Bus Message, Main Instrument Unit




Bus Message, Main Instrument Unit
For a further description of the car's bus system System Overview, Bus and Diagnostics Communication, Petrol

The MIU uses the following information:

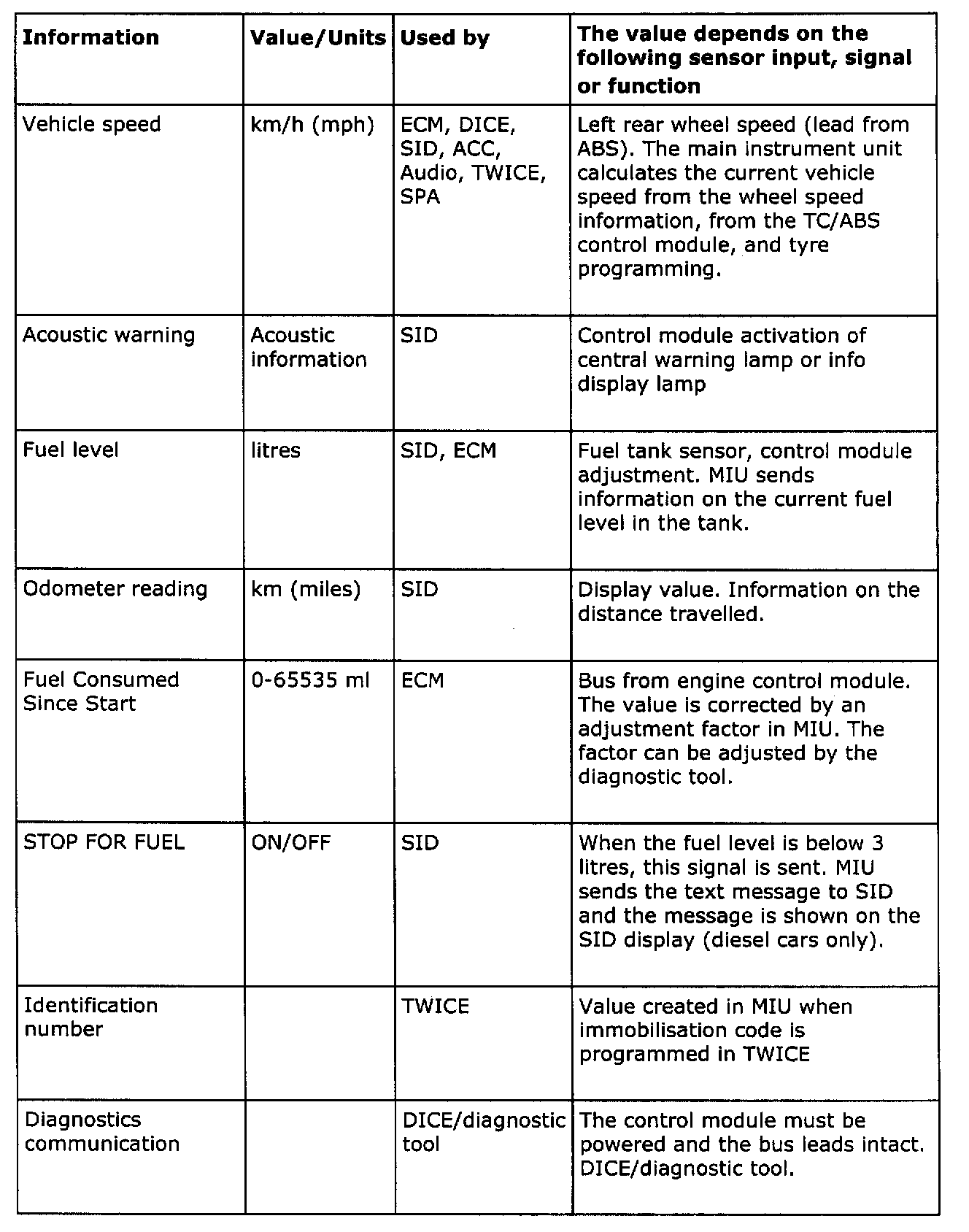

Part 1:

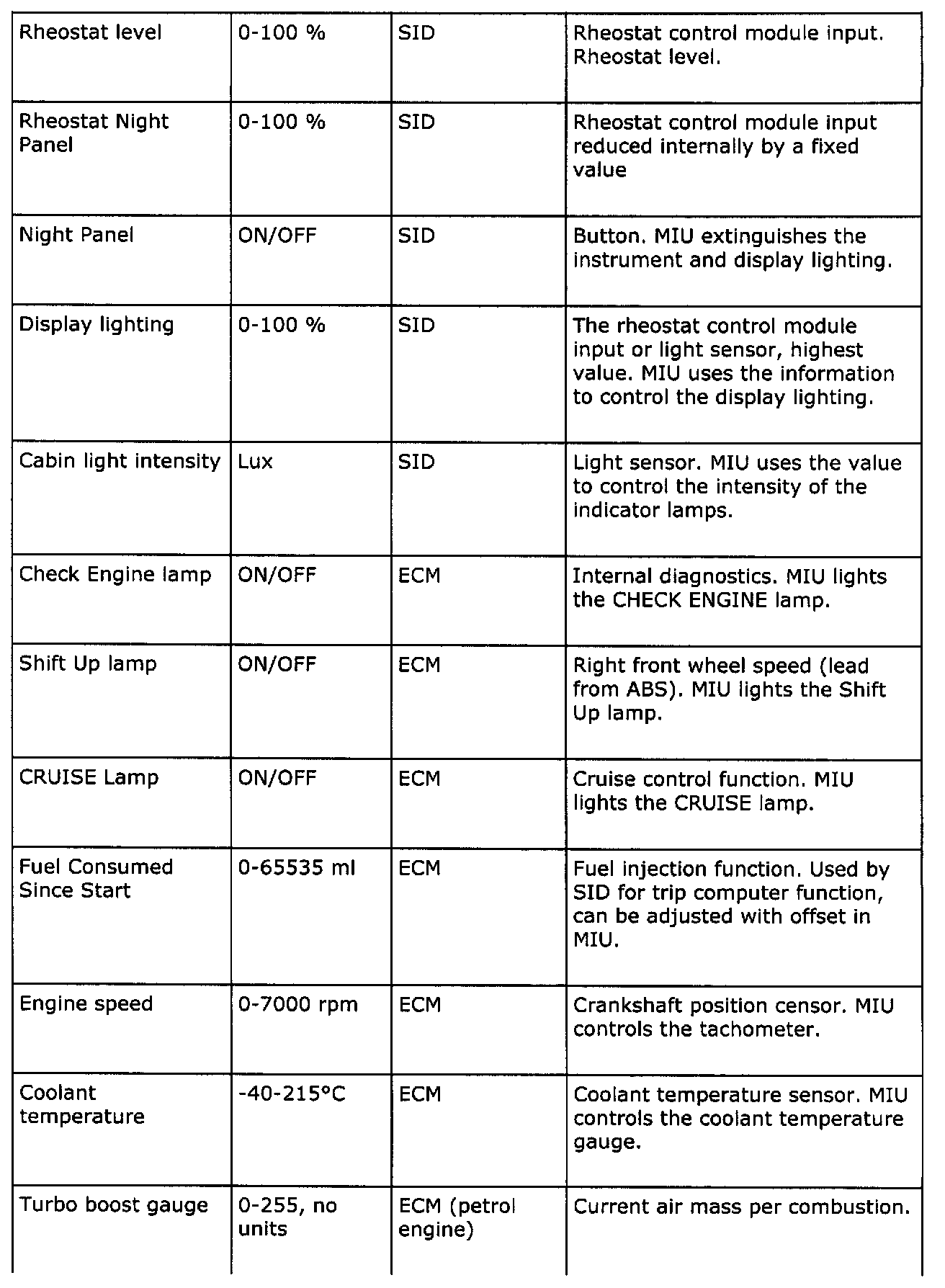

Part 2:

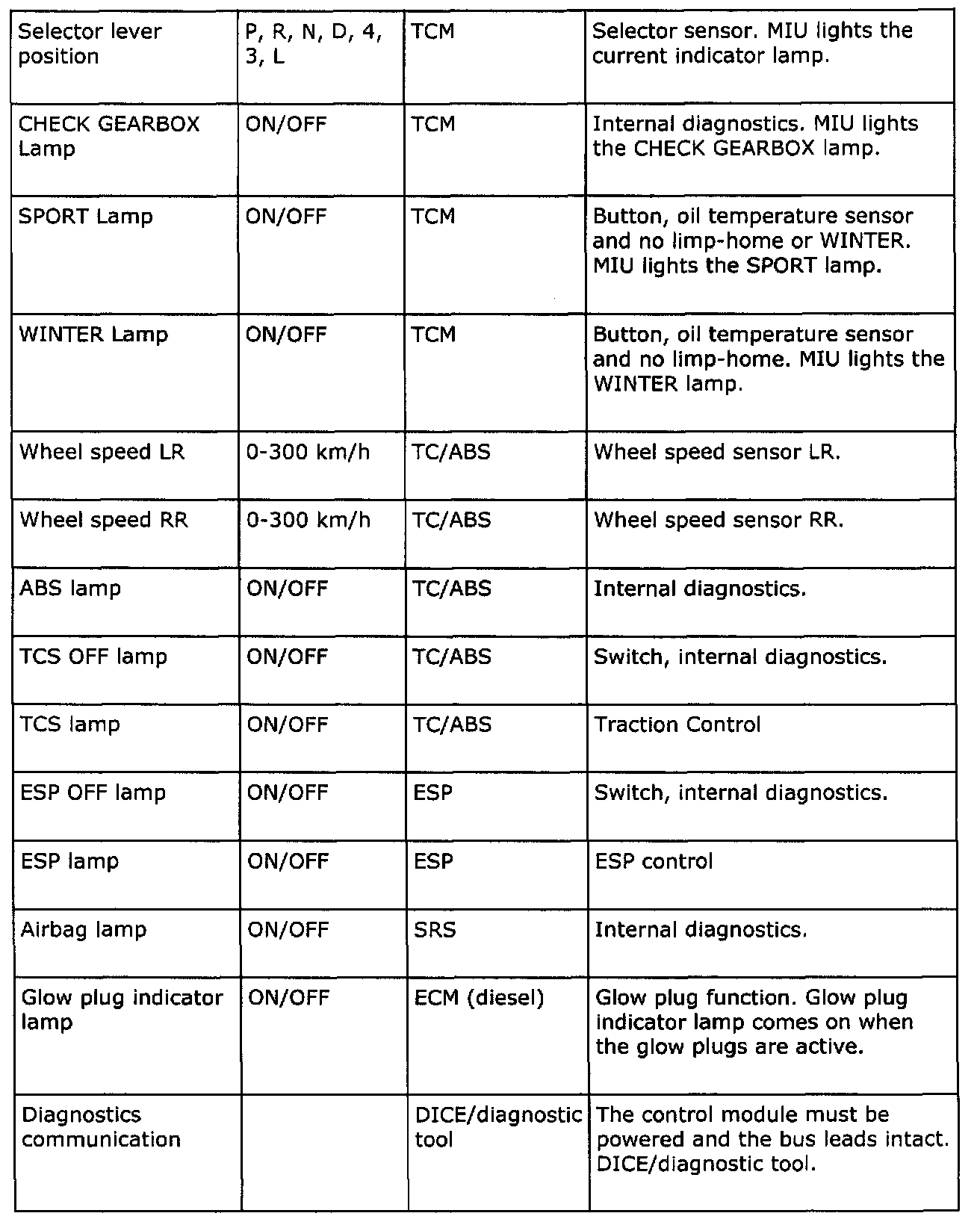

Part 3:

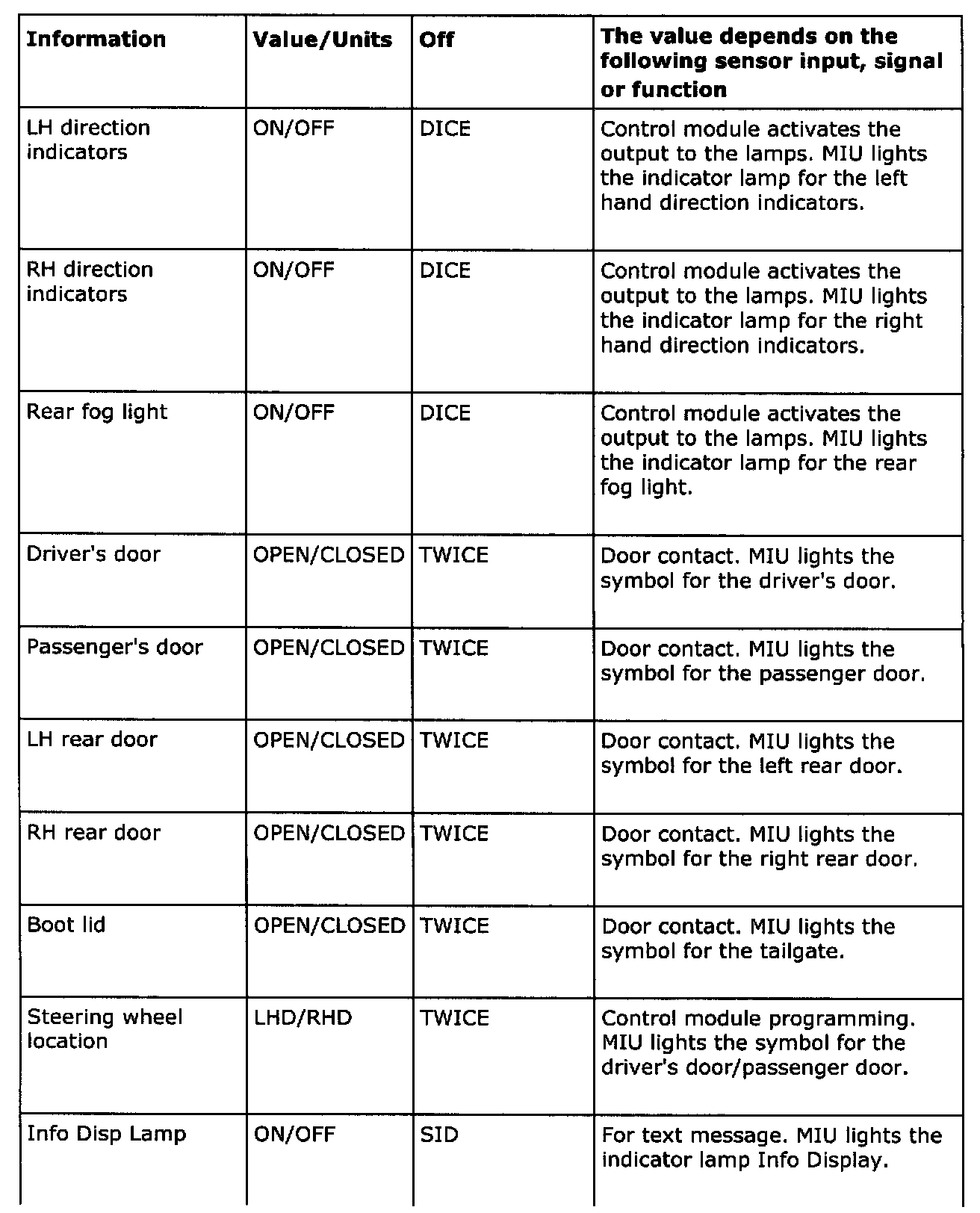

The MIU sends the following information:
