Bus Message, Information Display (SID)




Bus Message, Information Display (SID)
For a further description of the car's bus system System Overview, Bus and Diagnostics Communication, Petrol

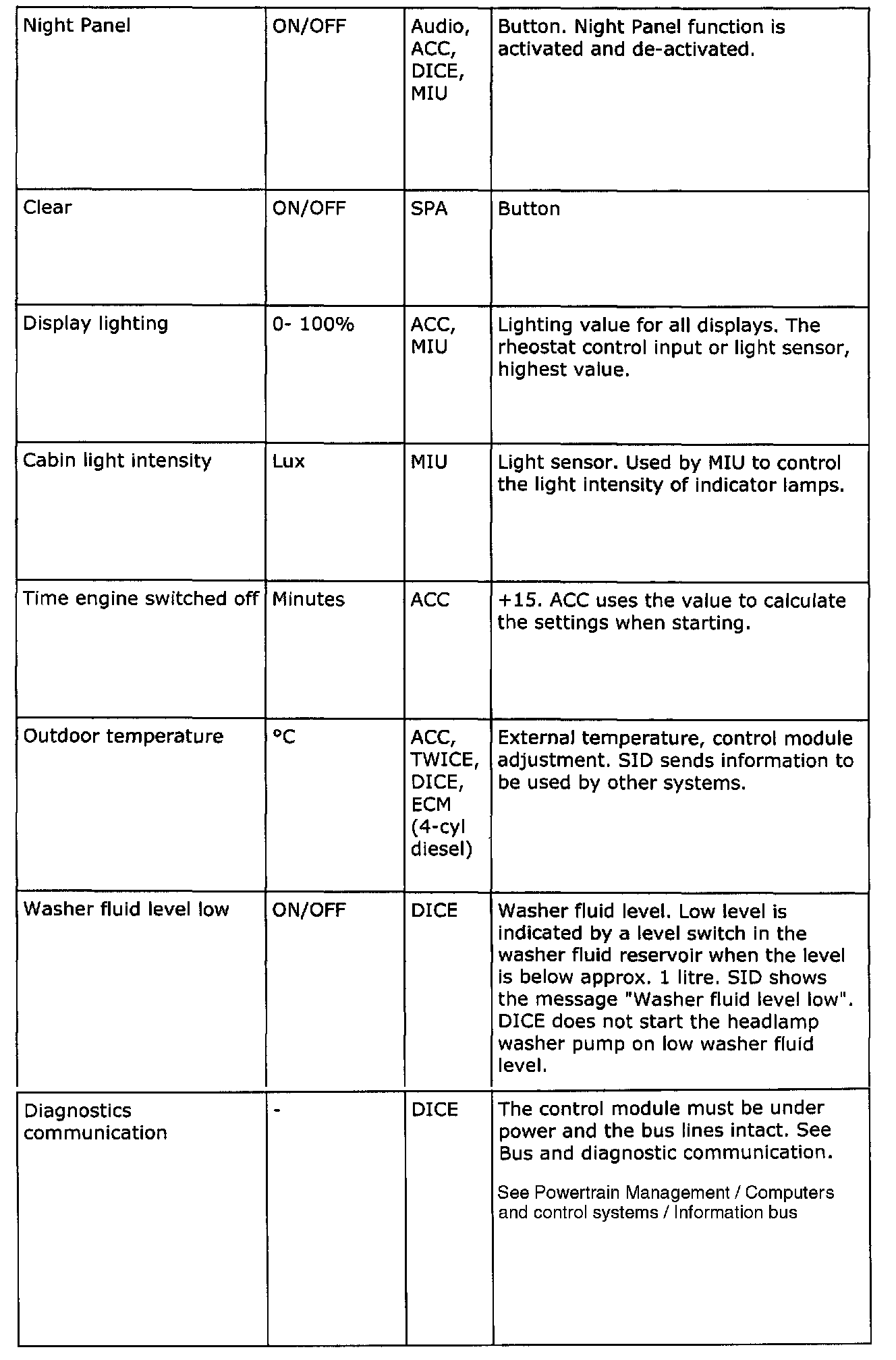

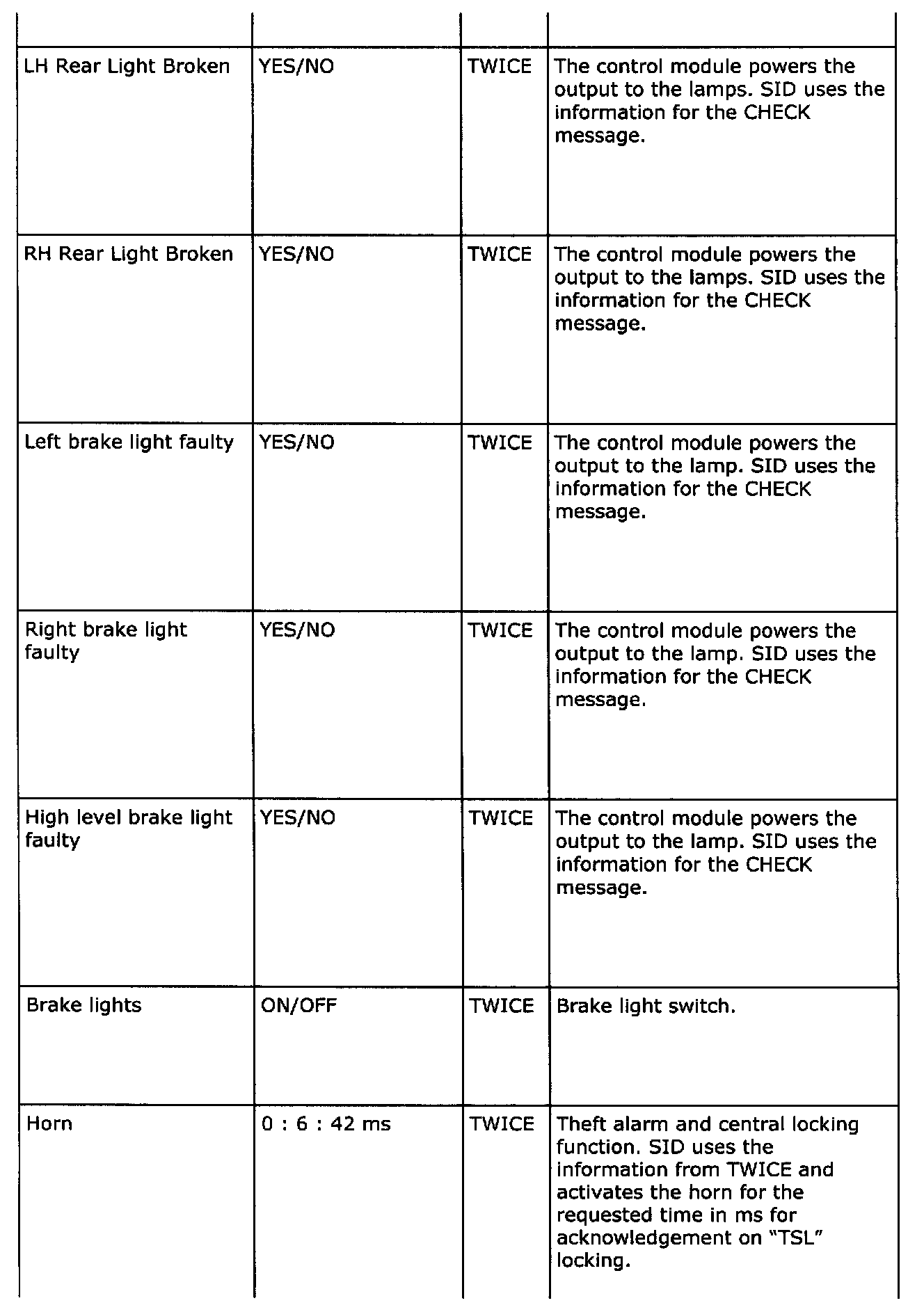

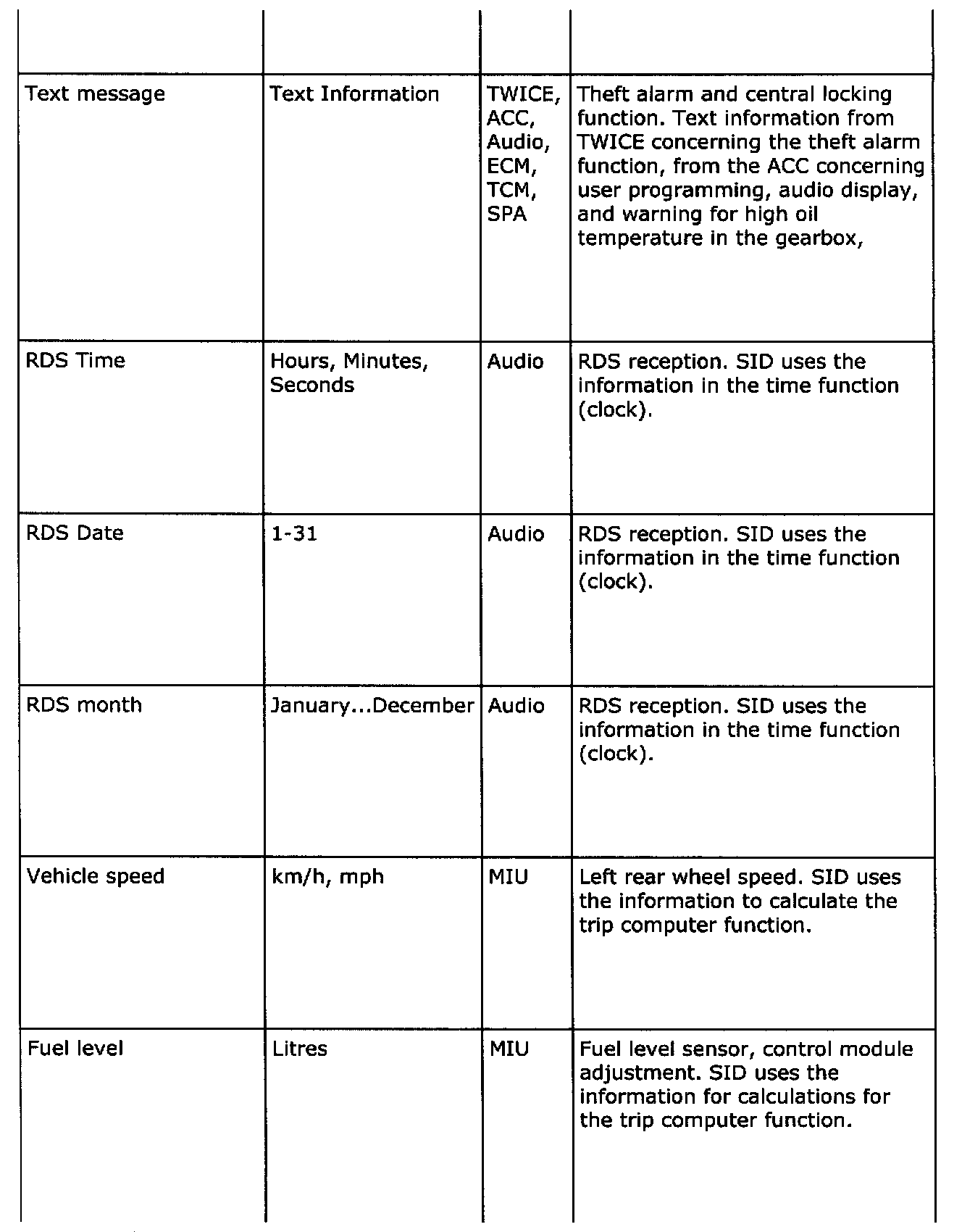

SID uses the following information


Part 1:






Part 2:






Part 3:






Part 4:

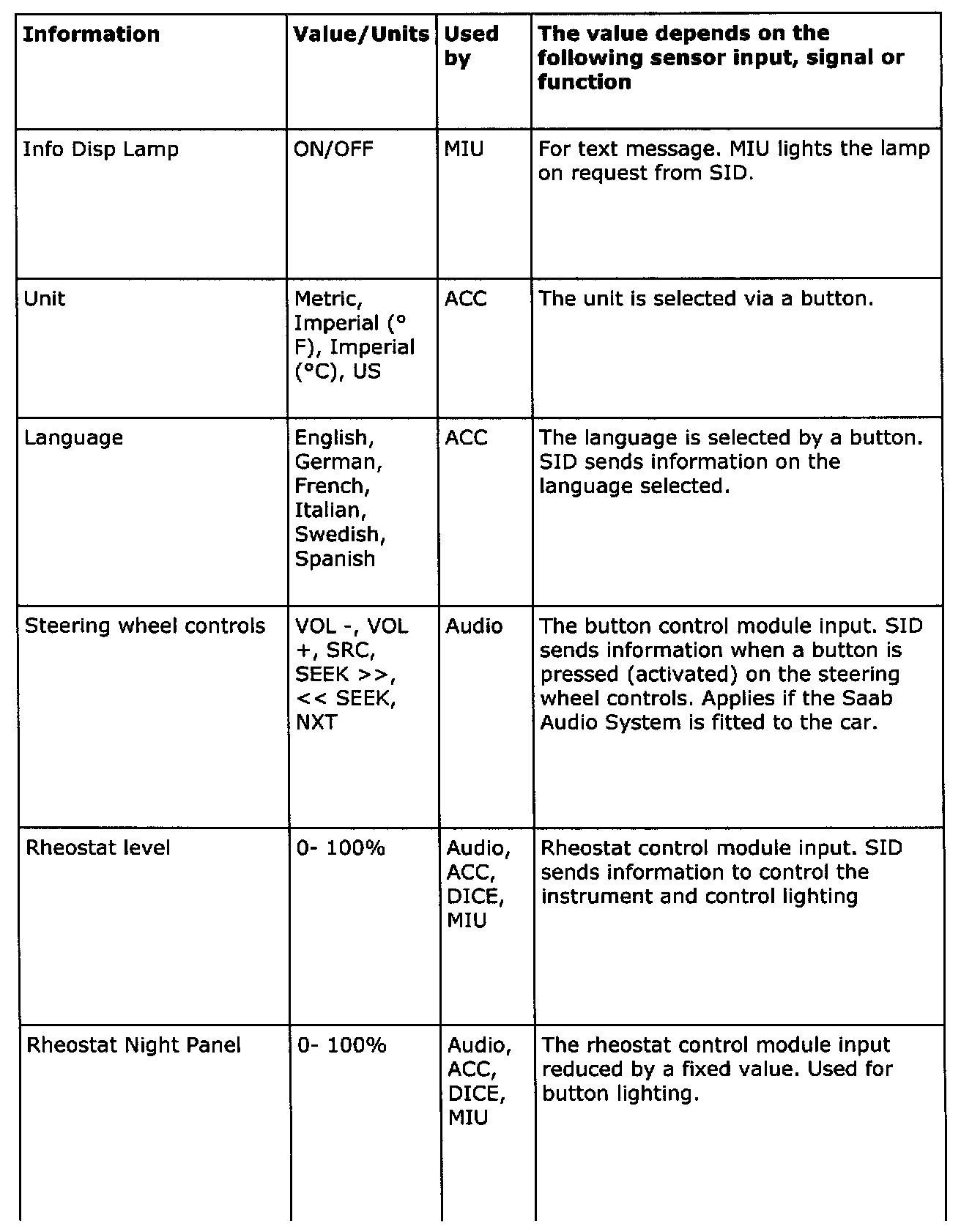

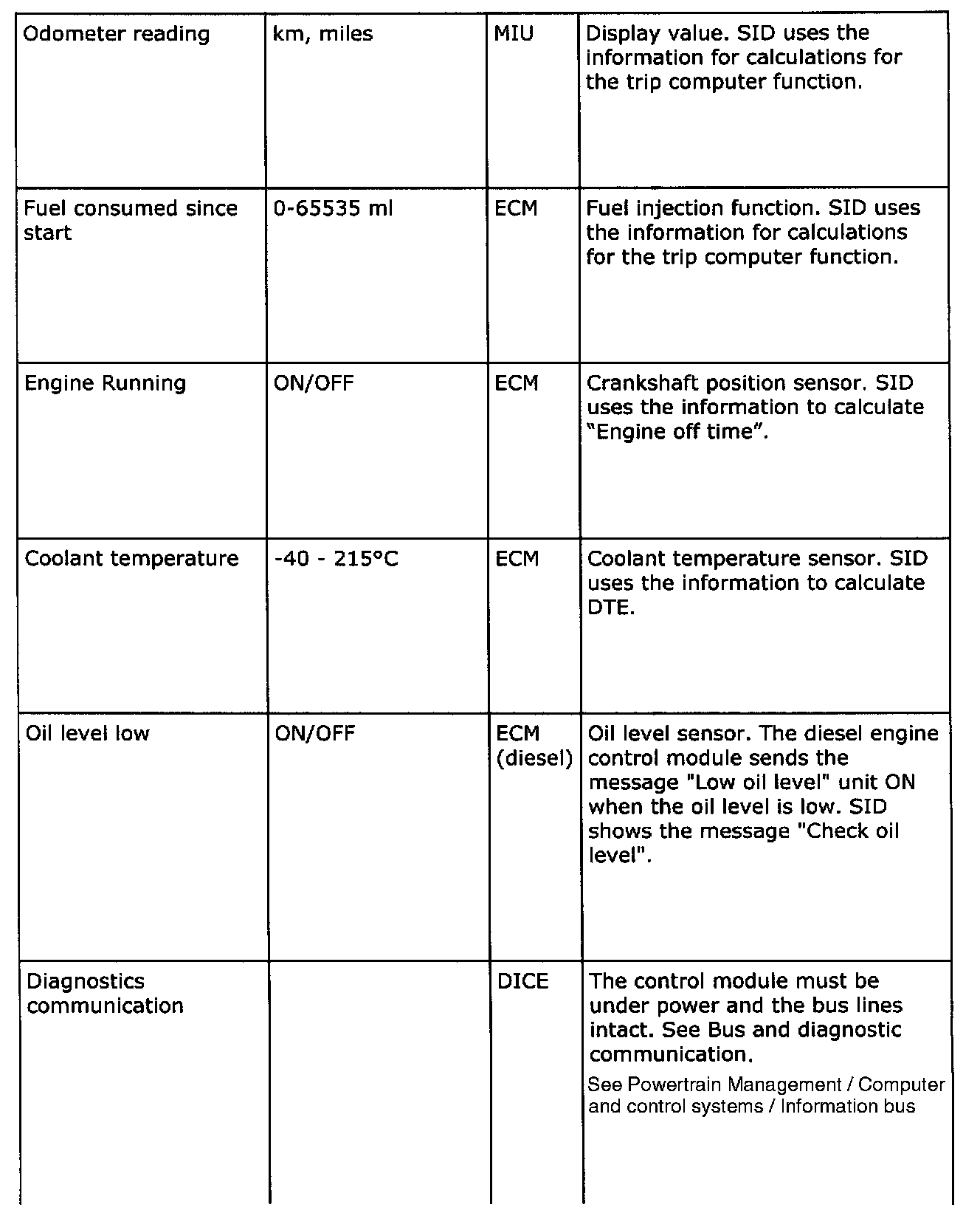

The SID sends out the following information


Part 1:






Part 2:
