Home >> Saab >> 2002 >> 9-5 Arc (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Halogen Headlamp Beam Adjustment, Manual

Halogen Headlamp Beam Adjustment, Manual

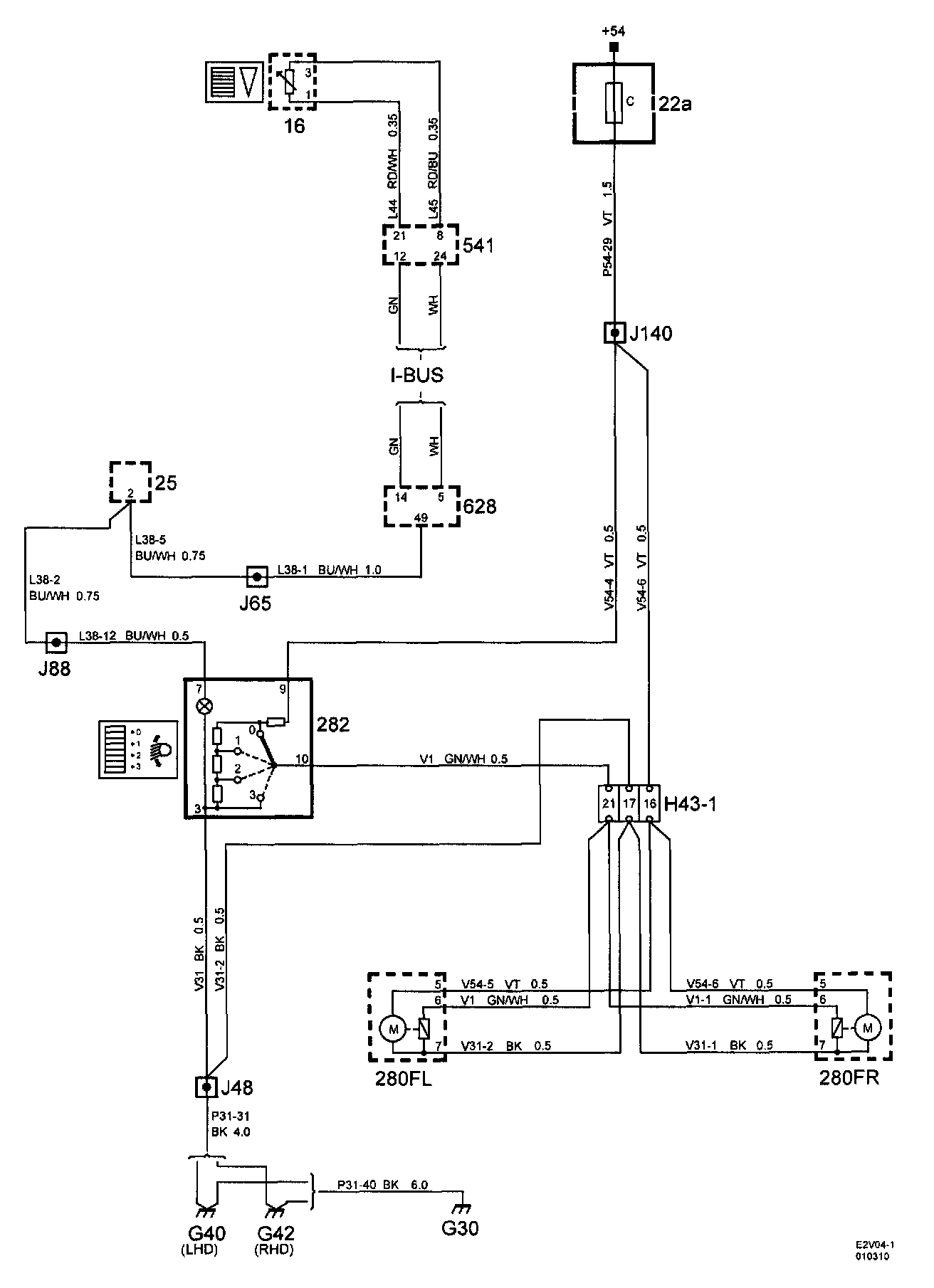

Halogen Headlamp Beam Adjustment, Manual

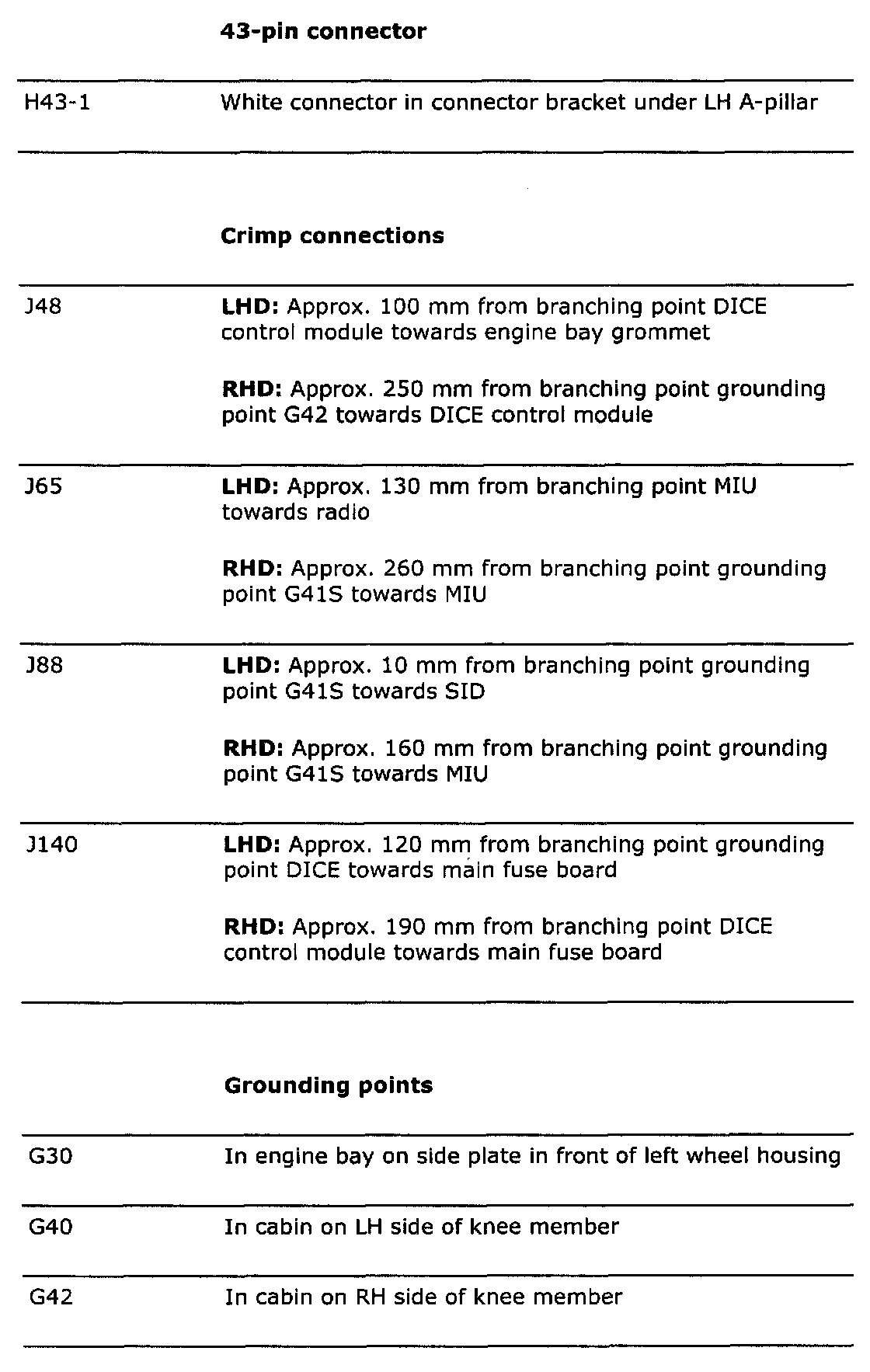

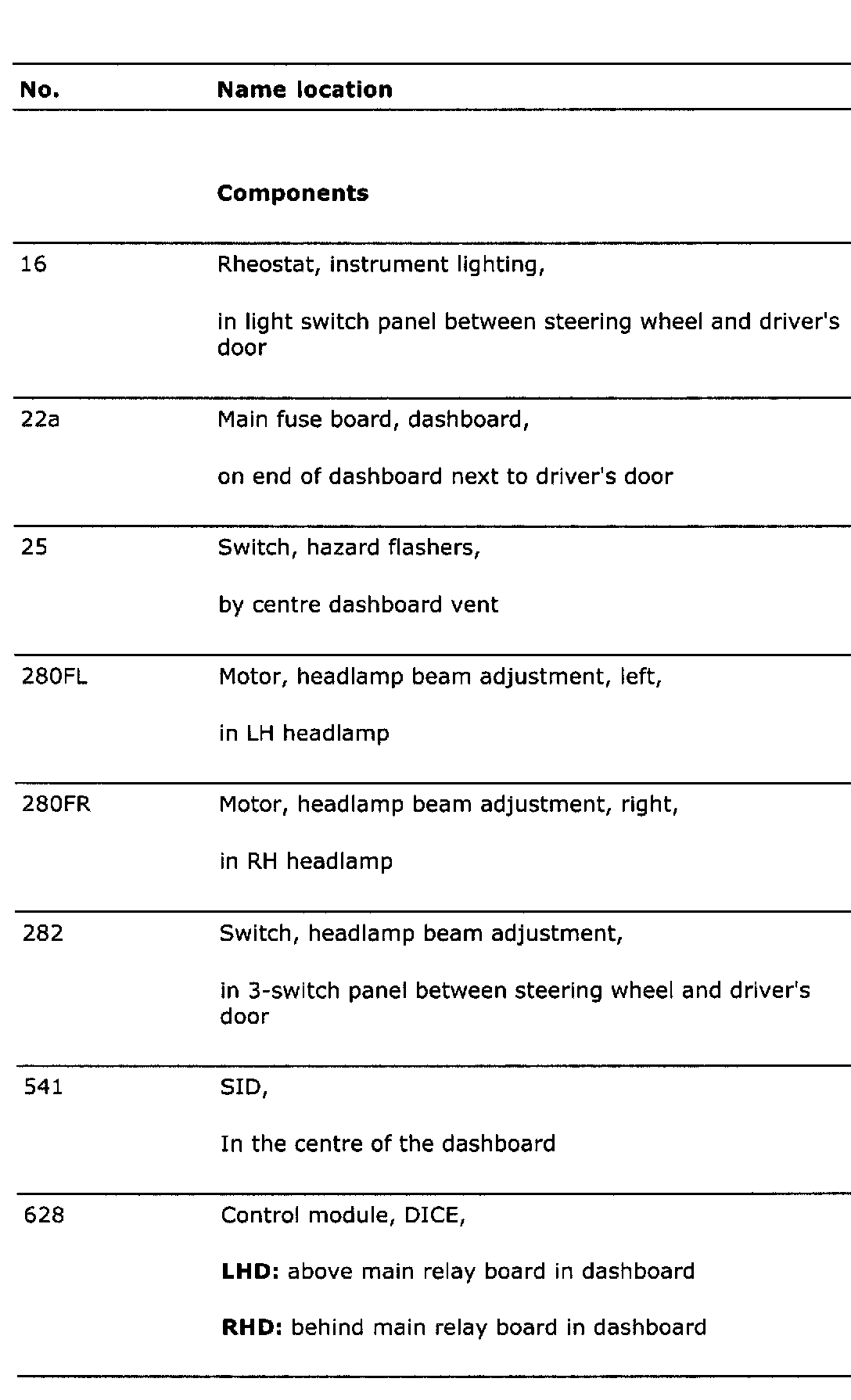

List Of Components

Part 1:

Part 2:
