Engine: Tools and Equipment
30 06 558 Plastigage

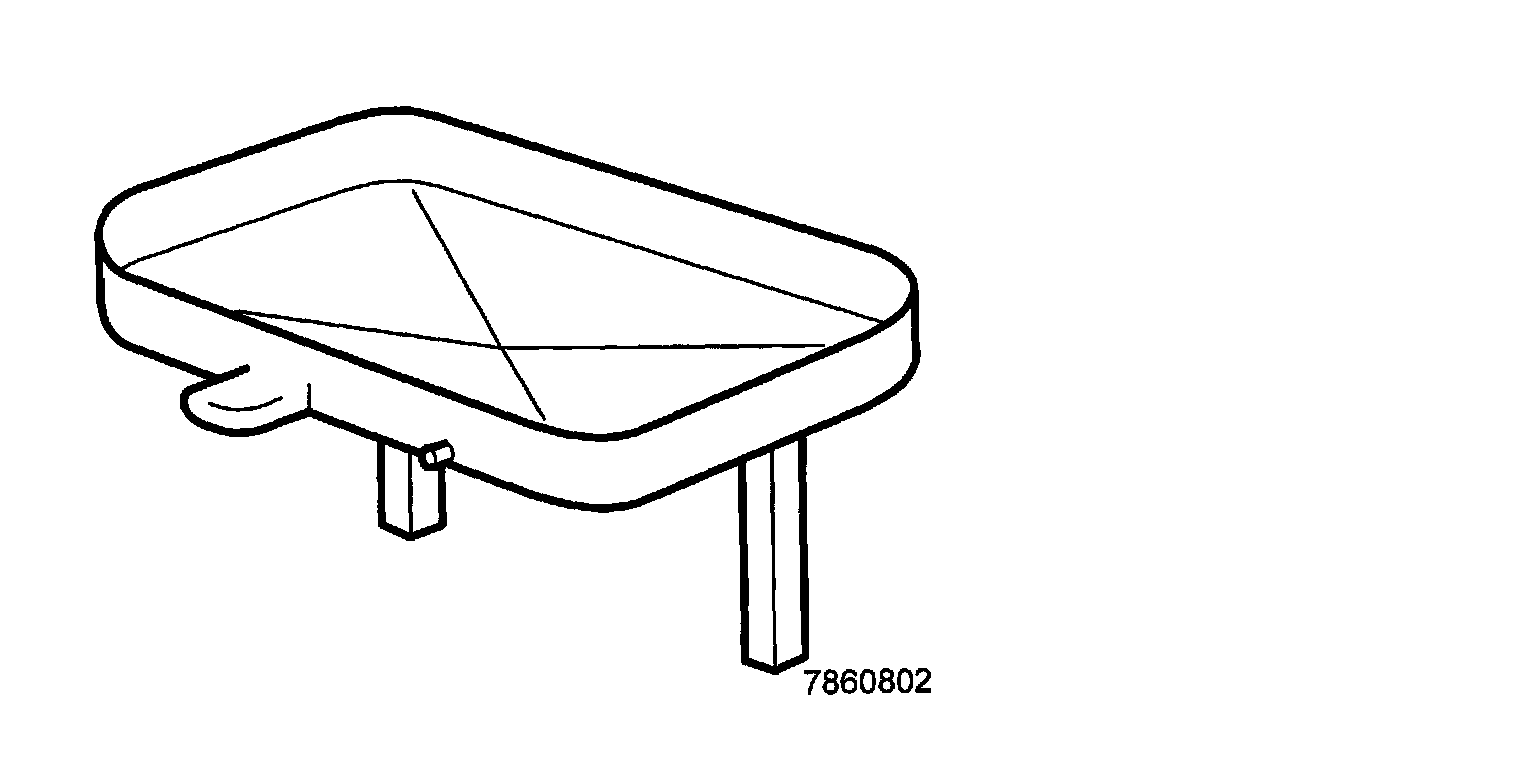

78 60 802 Oil pan
Used together with 78 74 878 Floor stand
Group: Automatic gearbox
83 93 936 Valve seat cutters, 60 Degrees:
78 61040 Valve seat cutter, 11° and 45° 34.5 mm Diameter
86 11 592 Toolboard T3
Group: Engine
78 74 878 Floor stand
Group: Engine, Manual gearbox
83 90 130 Spring balance
Reading for bearing preload
86 11 584 Toolboard T4
Group: Engine
83 90 478 Axle
Used together with 78 24 8Z8 Floorstand
Group: Manual gearbox, Automatic gearbox, Engine
83 91401 Magnetic tool
86 11 618 Toolboard T1
Group: Engine
83 92 409 Lifting sling
Group: Engine
83 93 787 Valve rack
86 11 592 Toolboard T3
Group: Engine
83 93 936 Valve seat cutters, 60 Degrees:
83 93 936 Valve seat cutters, 60°
86 11 592 Toolboard T3
Used together with 78 61 040 Valve seat cutter 11° and 45° 34.5 mm Diameter
Group: Engine
83 93 985 Belt-tension meter
Multigroove belt
Positive drive belt, camshaft drive V6
86 11 618 Toolboard T1
Group: Engine
83 94 157 Pliers for removing valve stem seal
86 11 592 Toolboard T3
Group: Engine
83 94 173 Compressed air adapter for spark plug hole
86.11 592 Toolboard T3
Used on 9-3 together with 83 94 207 Assembly tool and 83 94 181 Dismantling tool
Group: Engine
83 94 751 Engine holder, V6 and Diesel
86 11 568 Toolboard T6
Used together with 78 74 878 Floor stand
Group: Engine
83 94 850 Lifting Beam
Group: Engine Manual Gearbox
83 94 868 Flywheel locking attachment
86 11 618 Toolboard T1
Group: Engine

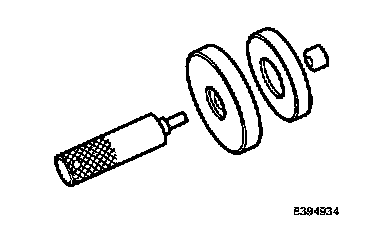

83 94 934 Assembly set for rear crankshaft seal, V6
86 11 618 Toolboard T1
Group: Engine
83 94 942 Assembly tool for front crankshaft seal, V6
86 11 618 Toolboard If
Group: Engine
83 94 959 Assembly tool for camshaft seal, V6
86 11 618 Tool board. T1
Group: Engine

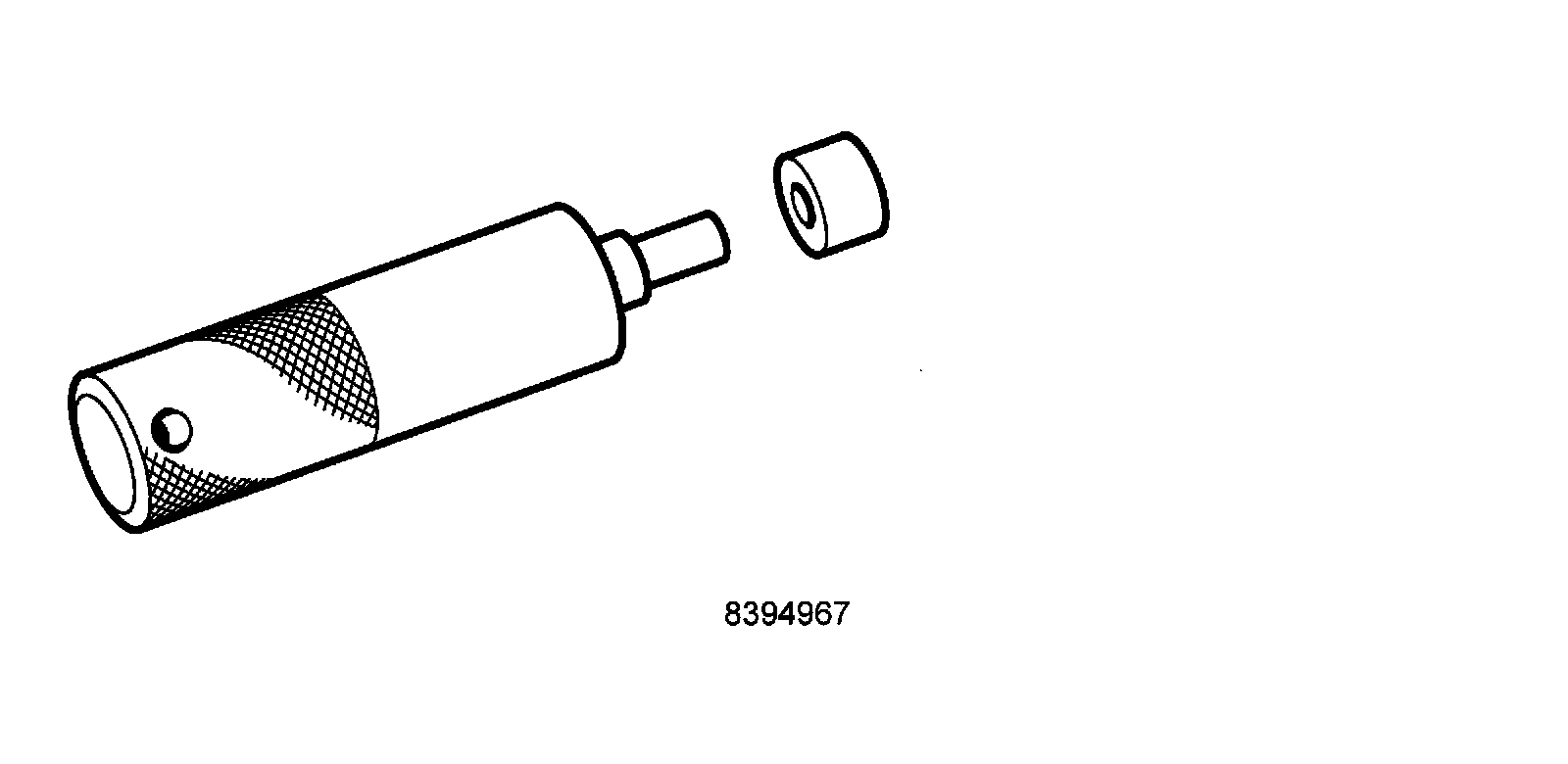

83 94 967 Assembly tool, rear crankshaft seal, V6
86 11 618. Toolboard T1
Used together with 83 94 934
Assembly set for rear crankshaft seal, V6
Group: Engine

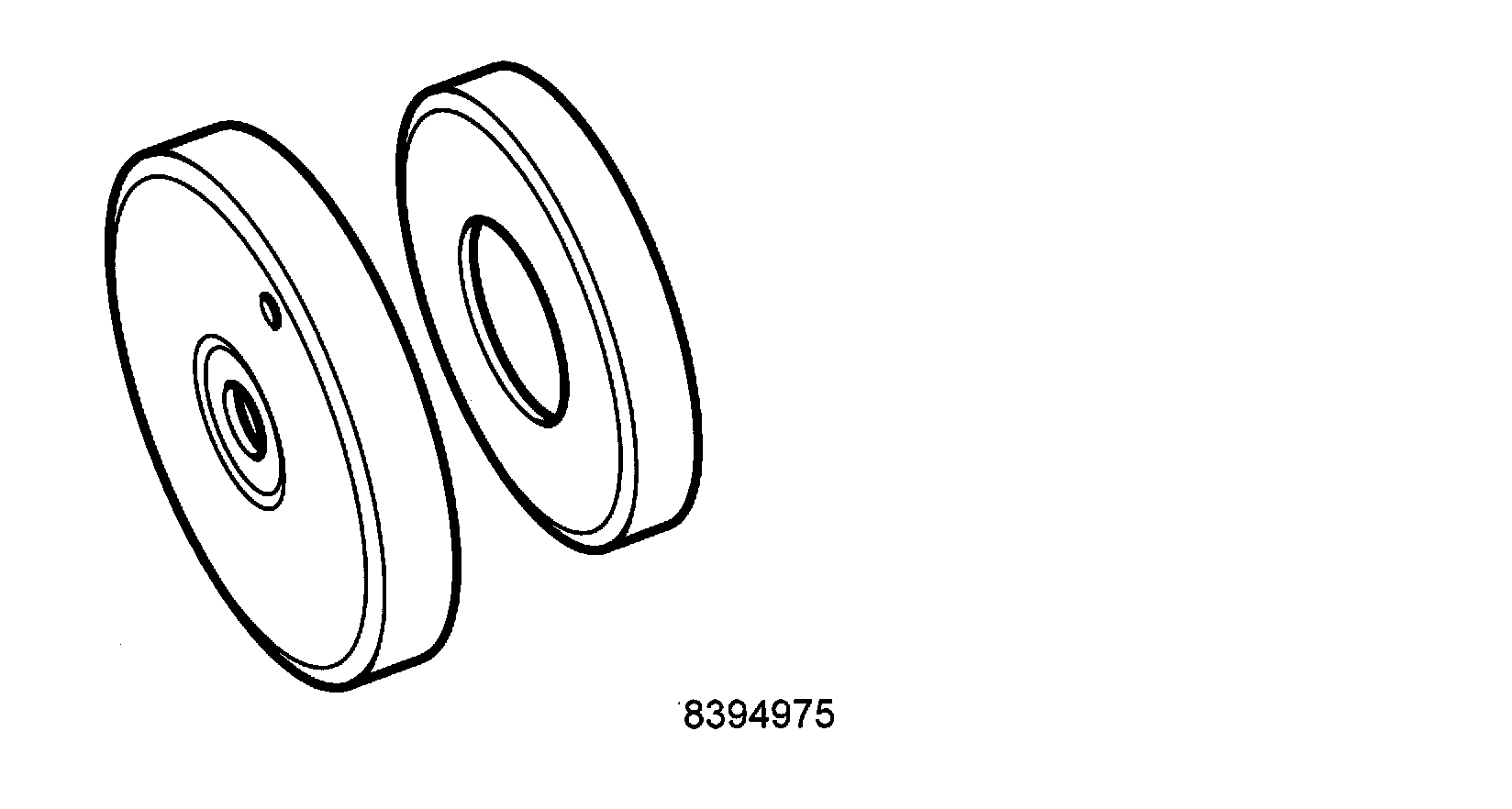

83 94 975 Assembly tool, rear crankshaft seal, V6
86 11 618 Toolboard T1
Used together with 83 94 934
Assembly set for rear crankshaft seal, V6
Group: Engine
83 94 983 Adjusting wrench, camshaft belt, V6
Adjusting belt tension
86 11 618 Toolboard T1
Used together with 83 95 006 Assembly tool for camshaft sprockets and camshaft drive belt,
Group: Engine

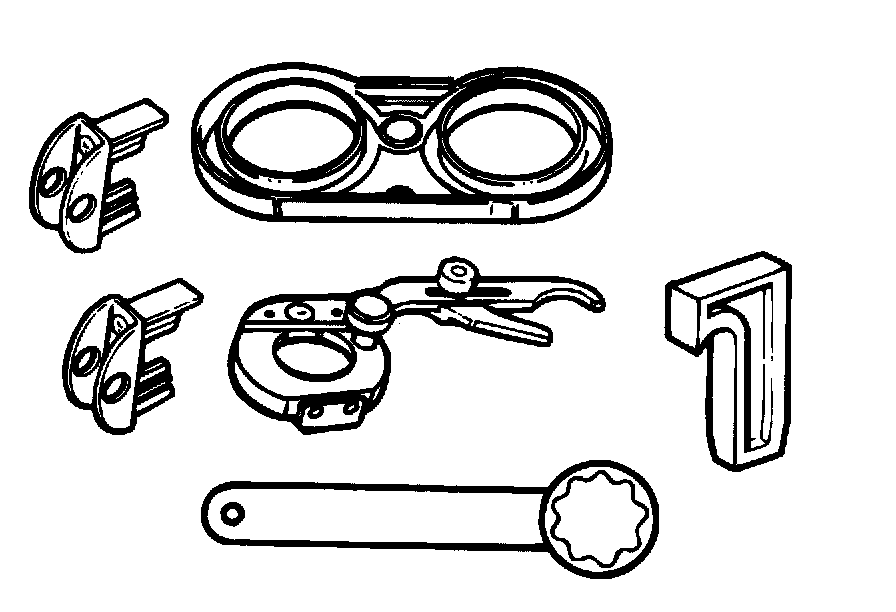

83 95 006 Assembly kit for camshaft sprockets and camshaft drive belt, V6
(consists of KM-800-1/-2/-10/-20/-30 and 83 94 983)
86 11 618 Toolboard T1
Group: Engine
83 95 022 Protective sleeve, V6 (x 12)
86 11 592 Toolboard J3
Group: Engine
83 95 055 Fixture, cylinder head V6
86 11 568 Toolboard T6
Used together with 78 74 878 work stand

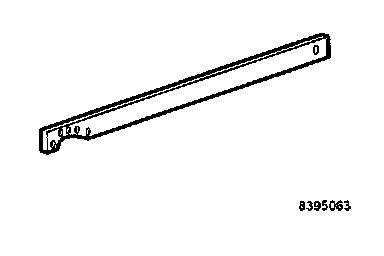

83 95 063 Counterstay, crankshaft belt pulley, V6
Group: Engine
83 95 071 Assembly tool for valve stem seal
4-cyl., V6
86 11 592 Toolboard T3
Group: Engine

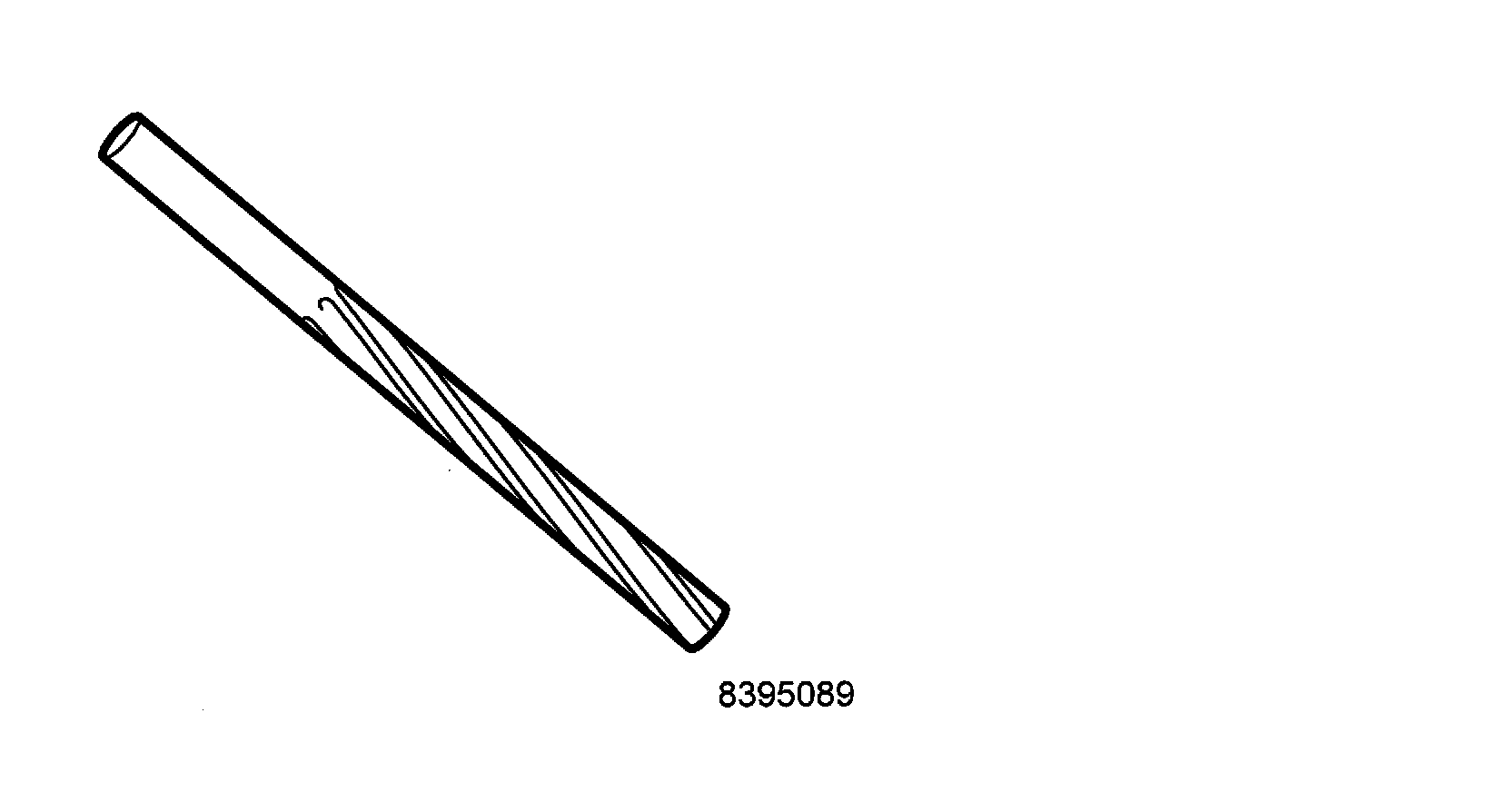

83 95 089 Valve guide reamer, 6mm
86 11 592 Toolboard T3
Group: Engine
83 95 097 Locating shaft for valve seat cutter, 6 mm
86 11 592 Toolboard T3
Used together with 83 95 105 Valve seat cutter, 70° 31. mm diameter
Group: Engine
83 95 105 Valve seat cutter, 70° 031 mm
86 11 592 Toolboard T3
Group: Engine

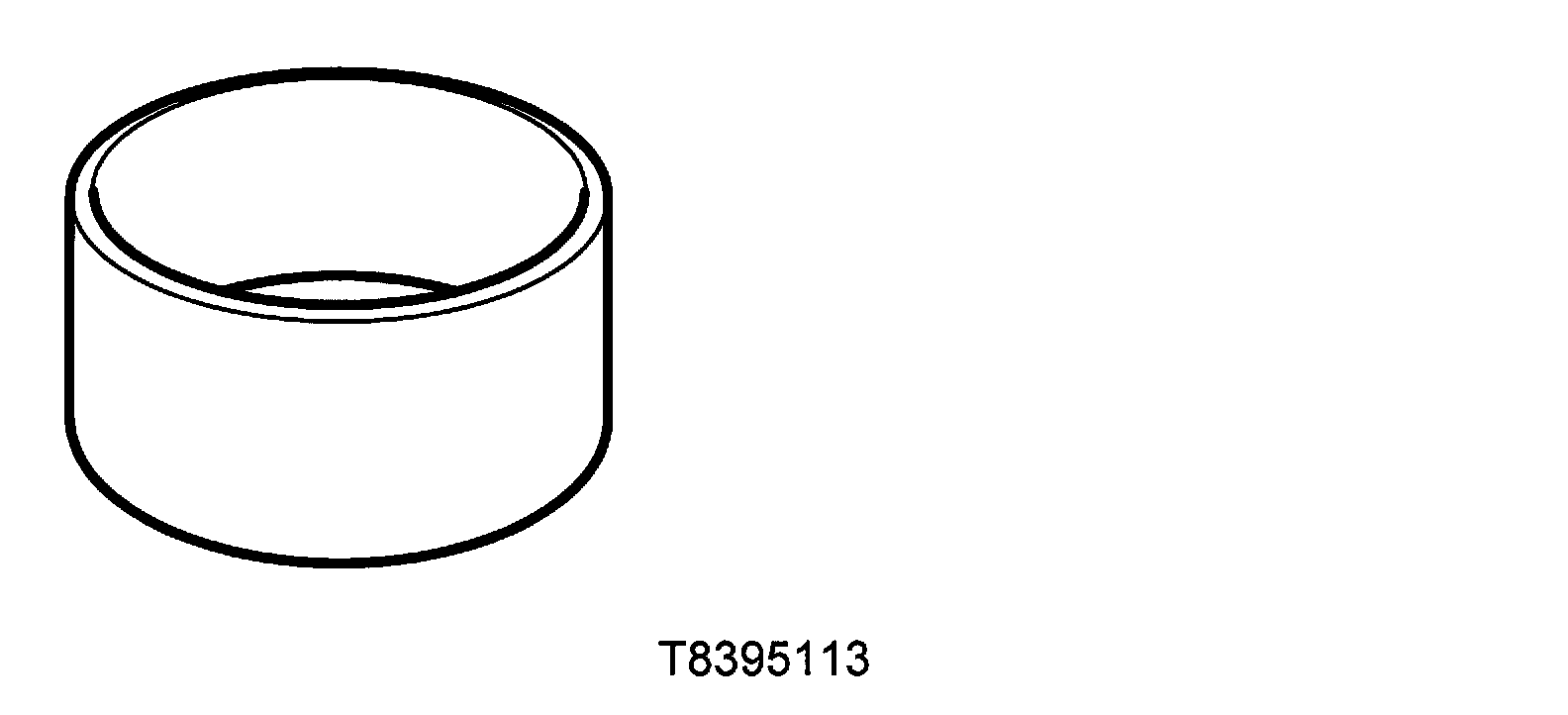

83 95 113 Piston fitting tool, V6, 3.0
8611 592 Toolboard T3
Group: Engine
83 95 212 Strap
Supports heavy components such as AC compressor when removing and fitting
Group: Engine
83 95 238 Wedge (x 5)
Group: Body, Engine
83 95 246 Valve spring compressor
Group: Engine
83 95 287 Holder
Engine support
Group: Engine

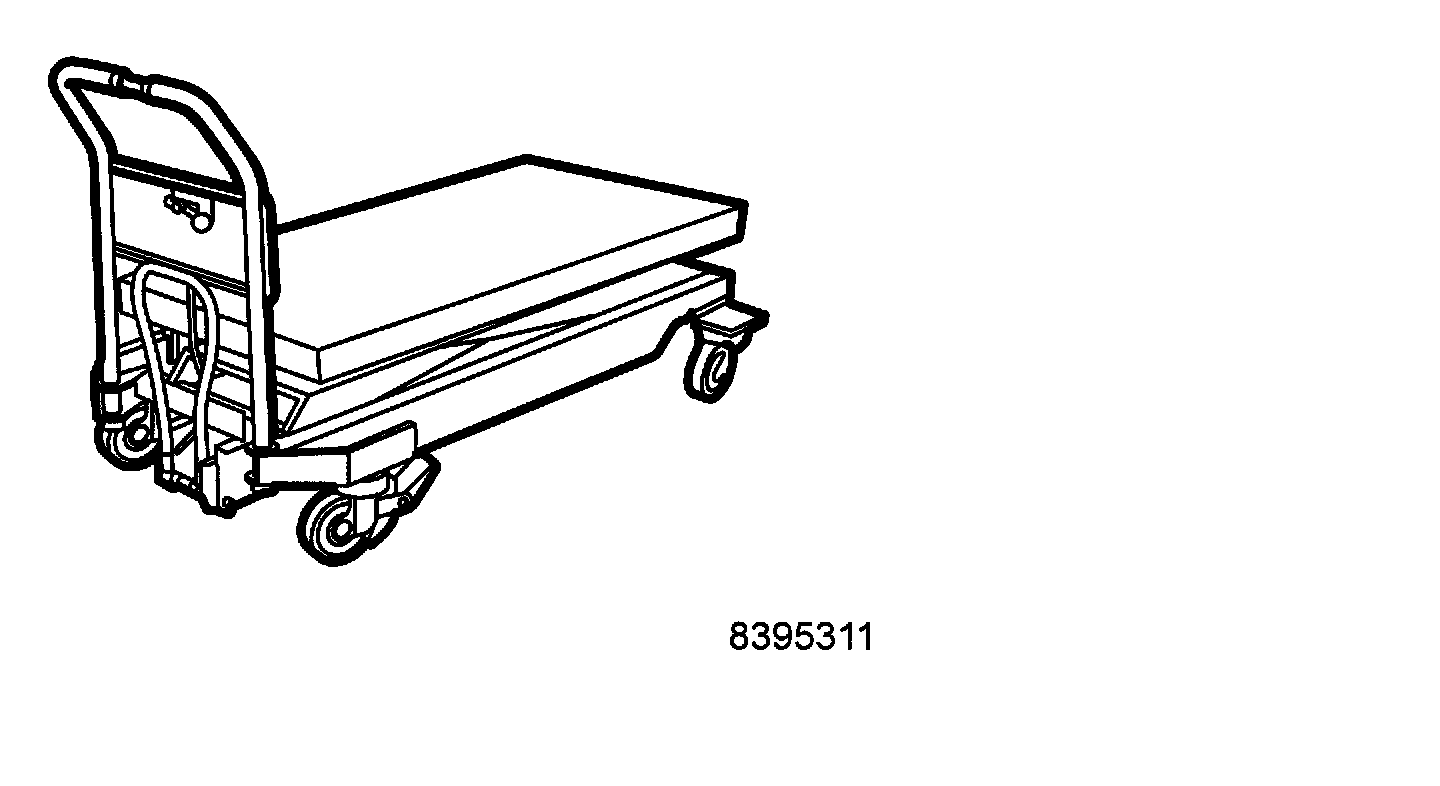

83 95 311 Trolley lift
Group: Miscellaneous
83 95 485 Spark plug socket assembly with locating sleeves
86 11 618 Toolboard T1
Group: Engine
87 90 727 Mounting, dial gauge
86 11 584 Toolboard T4
Group: Automatic transmission
87 92 194 Kit, dial gauge
86 11 584 Tool board T4
Group: Manual gearbox

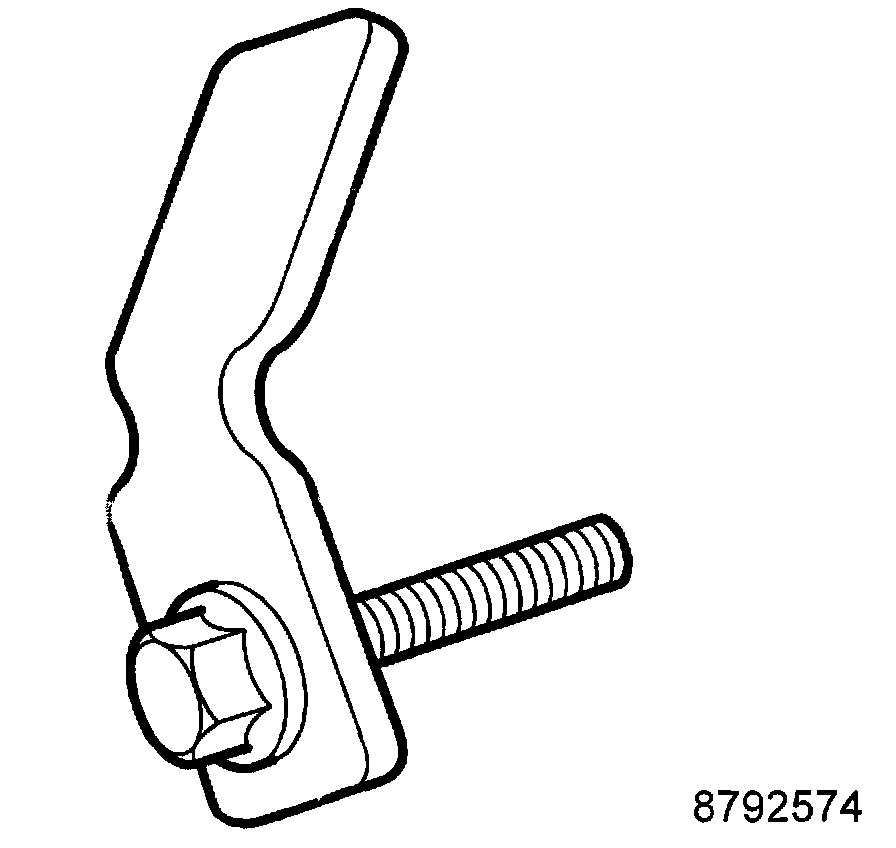

87 92 574 Converter holder
For torque converter
86 11 618 Toolboard T1
Group: Automatic gearbox
89 96 696 Puller
Removing the ball joint and steering link
86 11 600 Toolboard T2
Group: Chassis
