Engine Mounting Right Hand

Engine Mounting, Right-Hand
To remove





1. Drape wing protectors over the wings.
2. Position a jack under the oil sump, using a wooden block or the like between sump and jack, and take the weight of the engine off the engine mounting.

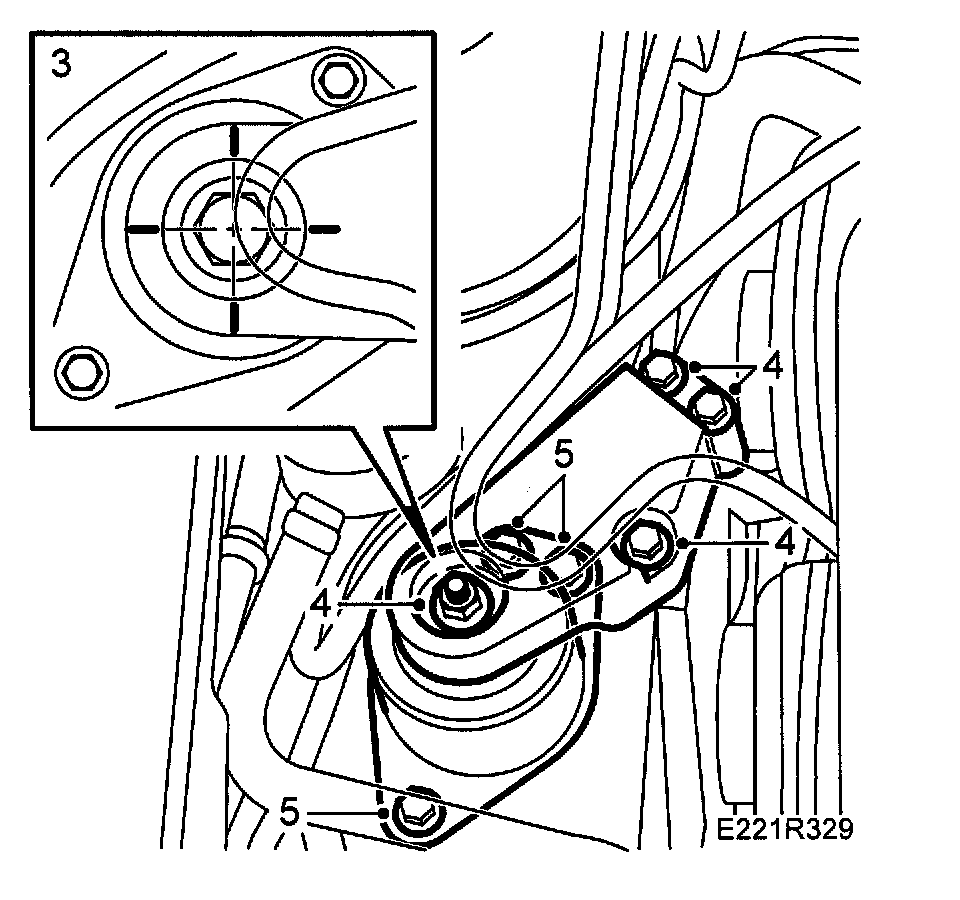

3. Mark the position of the engine mounting on its yoke with a cross.
4. Remove the engine mounting's yoke.

Important: Since the retaining yoke's bolts are screwed into aluminum, it is easy to damage the threads in the metal.

5. Remove the engine mounting.

To fit





1. Fit the engine mounting.
Tightening torque: 63 Nm (46.5 ft. lbs.).
2. Fit the yoke, centre the engine mounting in the yoke as marked, lower the engine and check that it hangs neutrally by shaking it.
3. Tighten the engine mounting's retaining nuts, using a torque wrench.
Tightening torque: 105 Nm (77.5 ft. lbs.).
4. Remove the jack and wing protectors.
