Trionic T7 (Part 1/3)

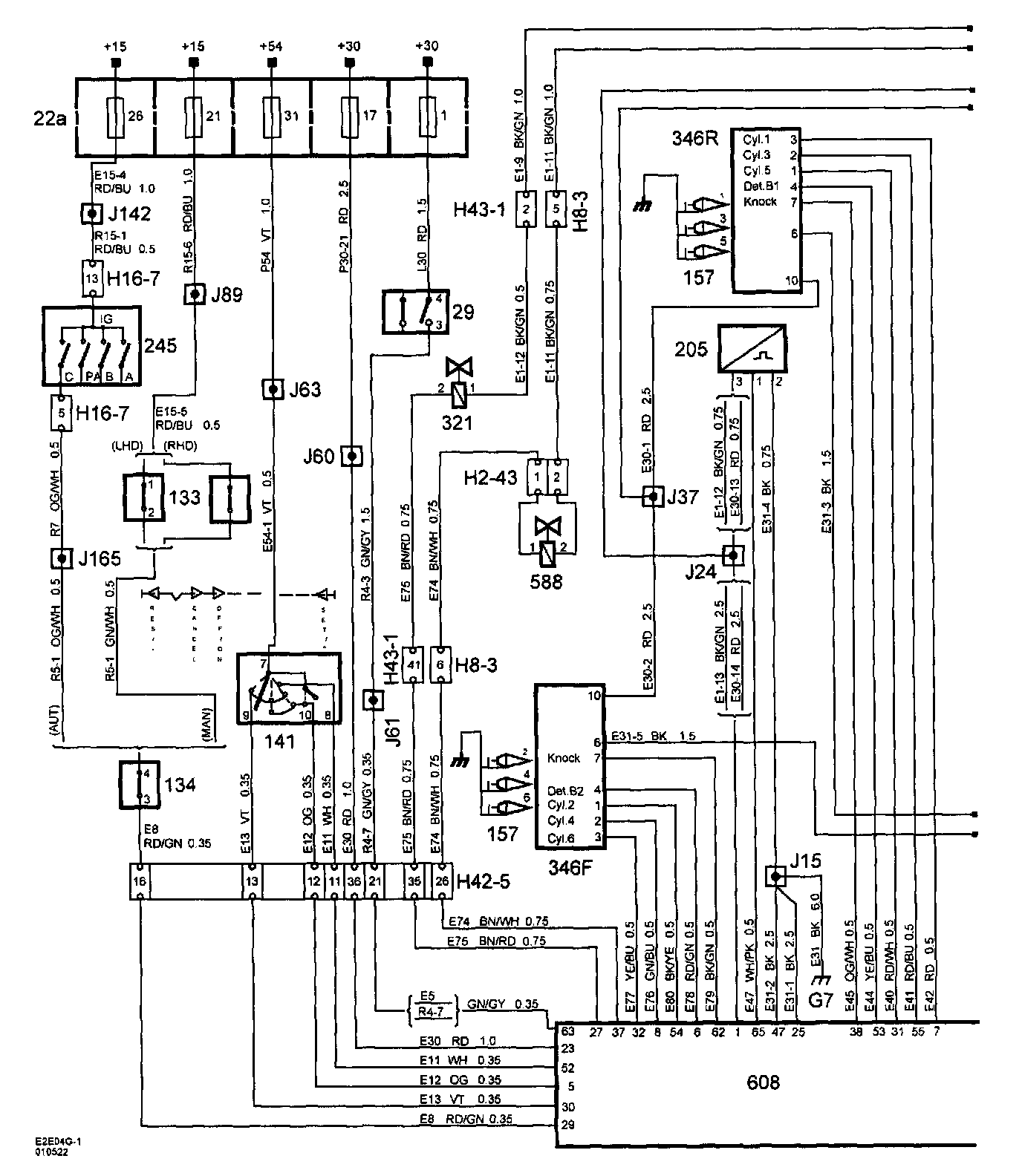

Trionic T7 Engine Management System V6 (Part 1/3)

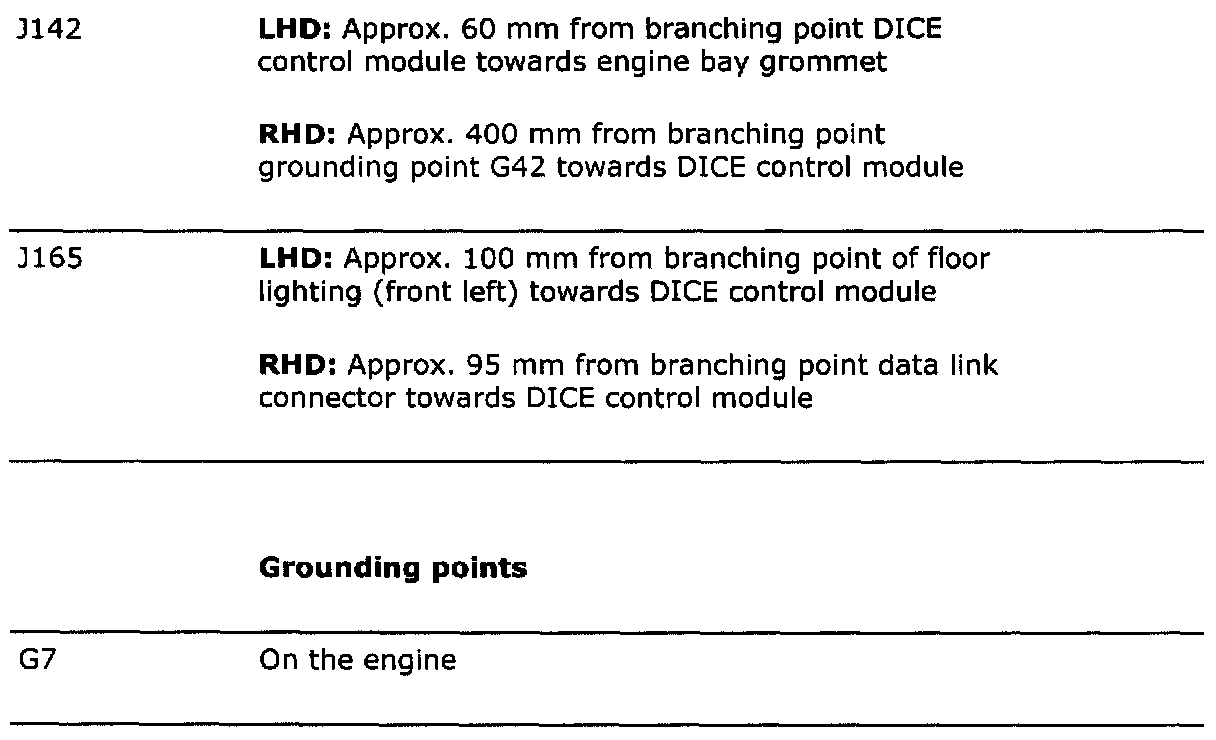

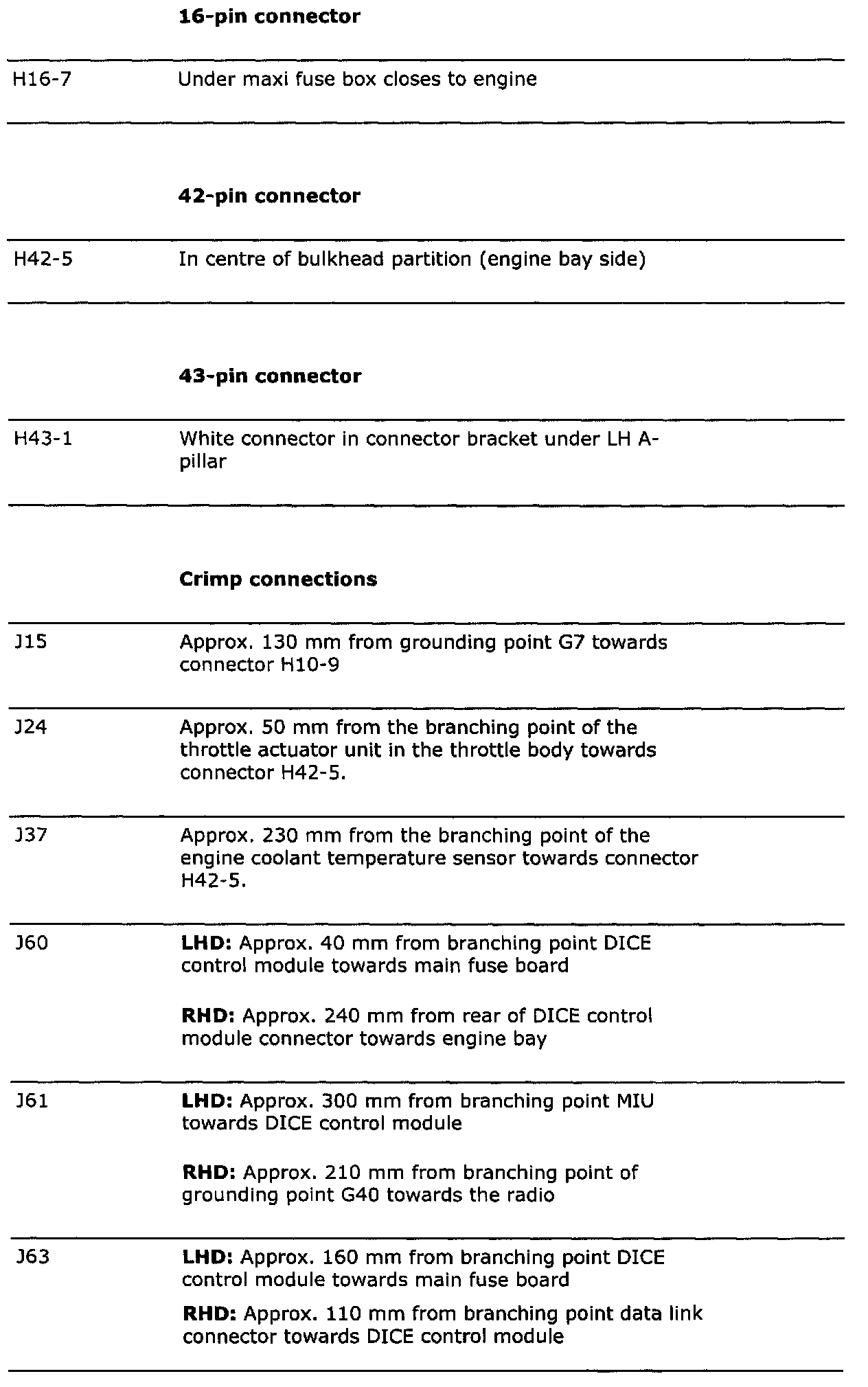

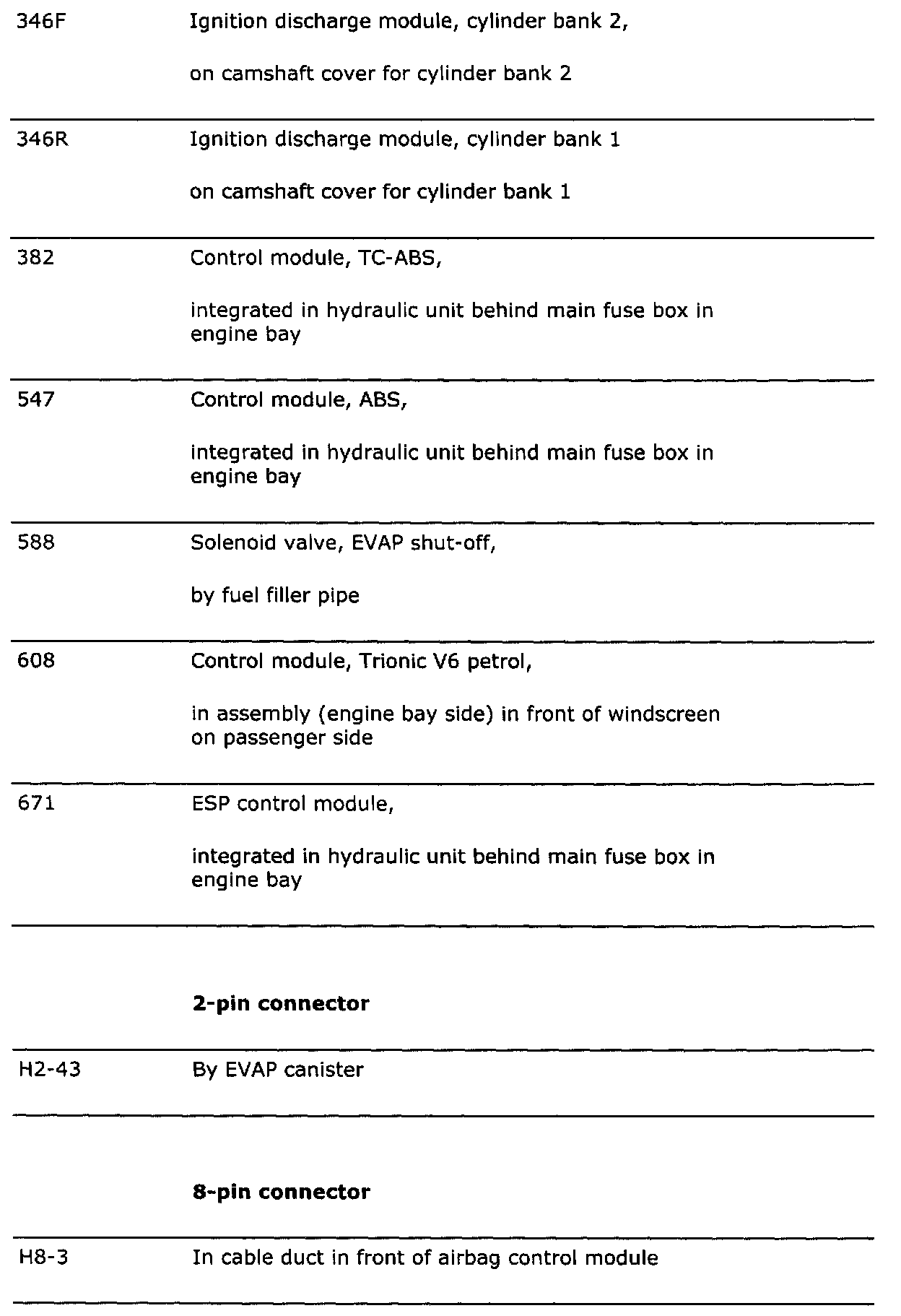

List of components


Part 1:






Part 2:






Part 3:






Part 4:
