Central Locking System, LHD

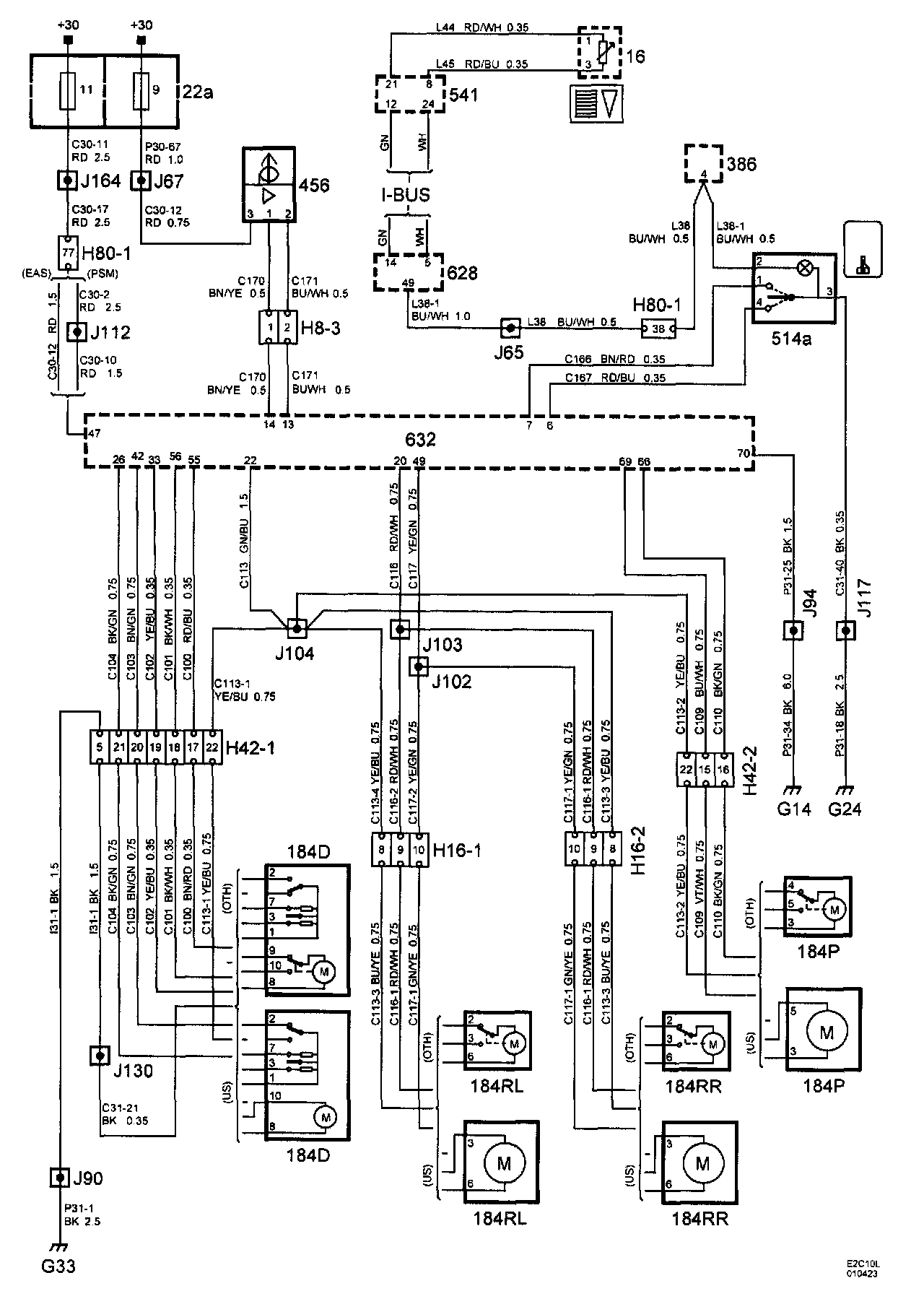

Central Locking System, LHD

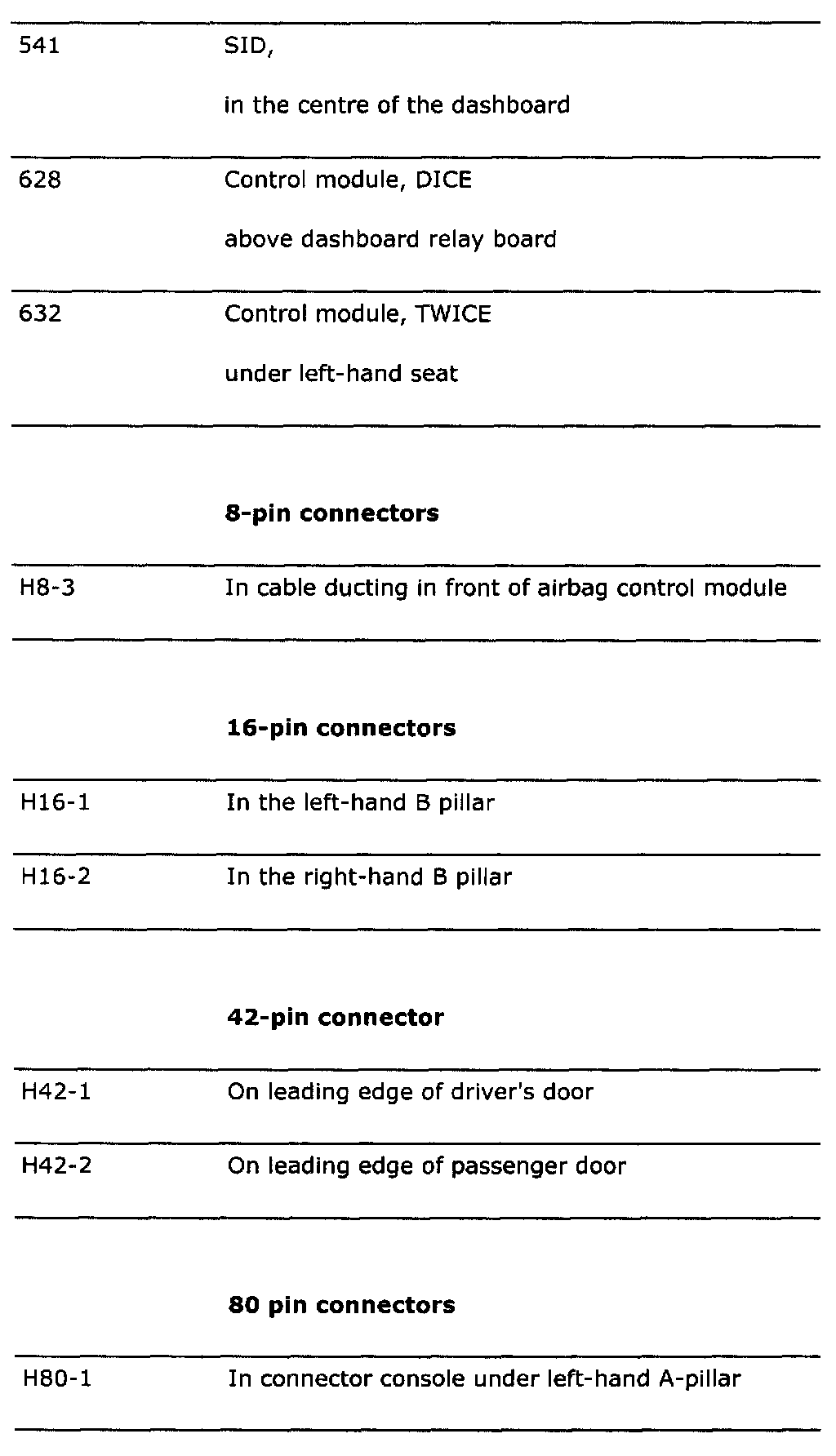

List of Components


Part 1:






Part 2:






Part 3:
