Home >> Saab >> 2002 >> 9-5 Arc (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> System Diagram

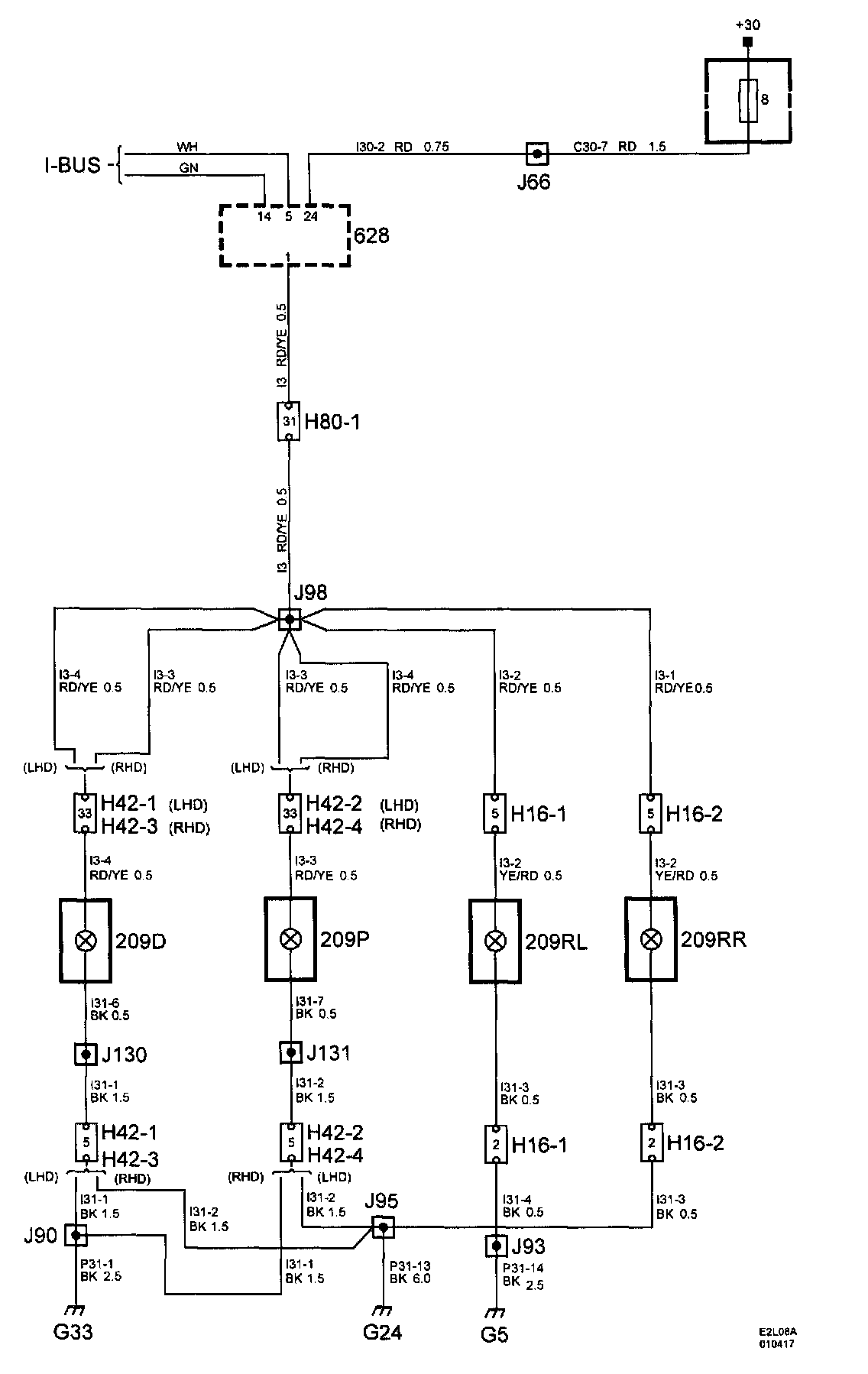

System Diagram




Courtesy Lights

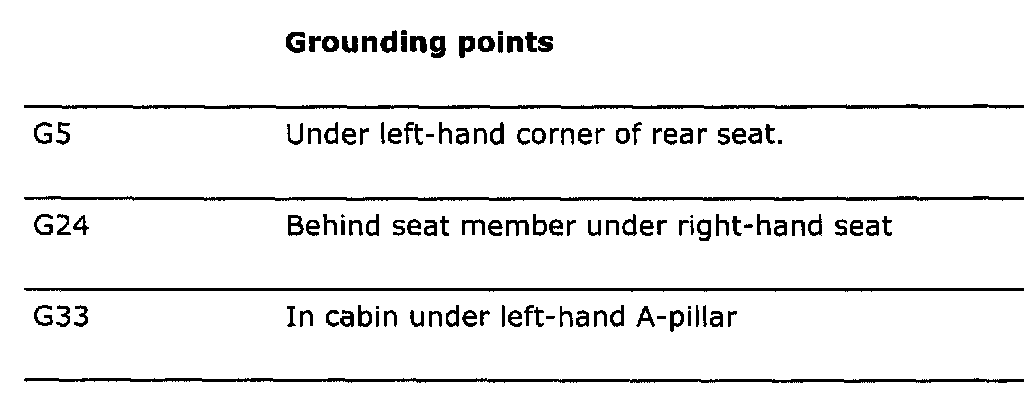

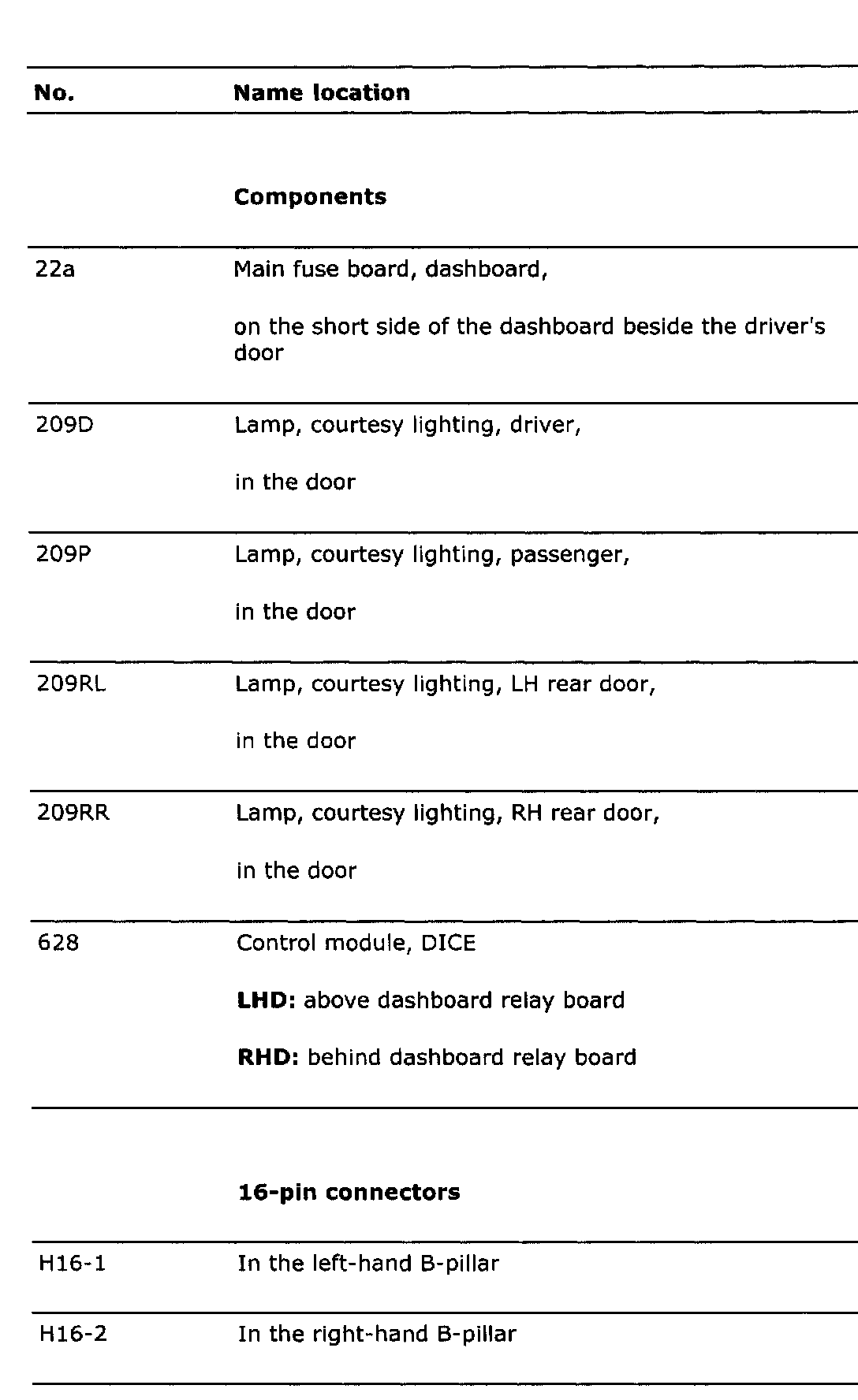

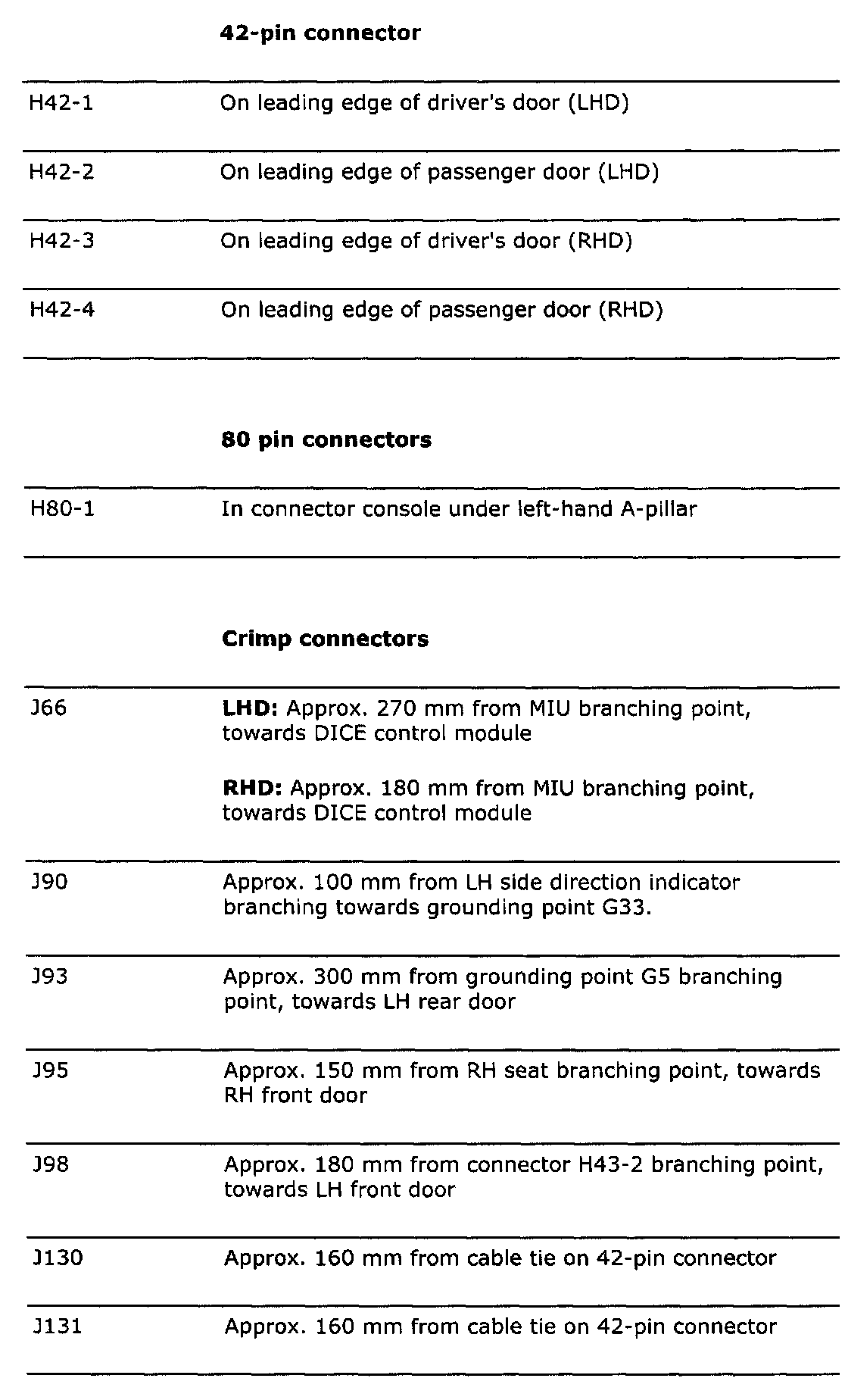

List Of Components


Part 1:






Part 2:






Part 3:
