Home >> Saab >> 2002 >> 9-5 Arc (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> System Diagram >> Stabilizer System, ESP Related Connectors >> Switch Hazard Flashes (25)

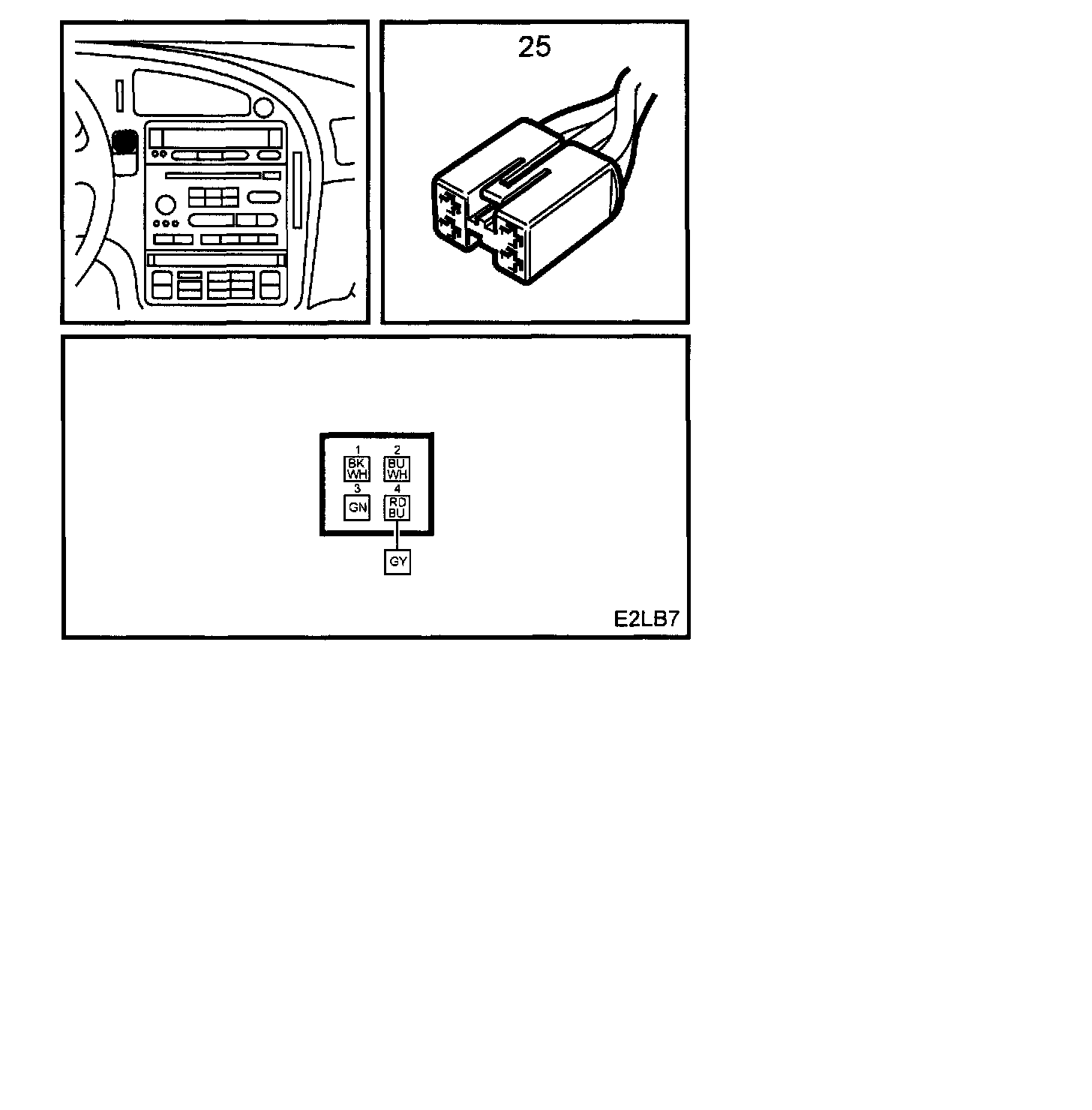

Switch Hazard Flashes (25)




Switch hazard flashes (25)
