Navigation System Connector (6356)
Navigation System Connector (6356)

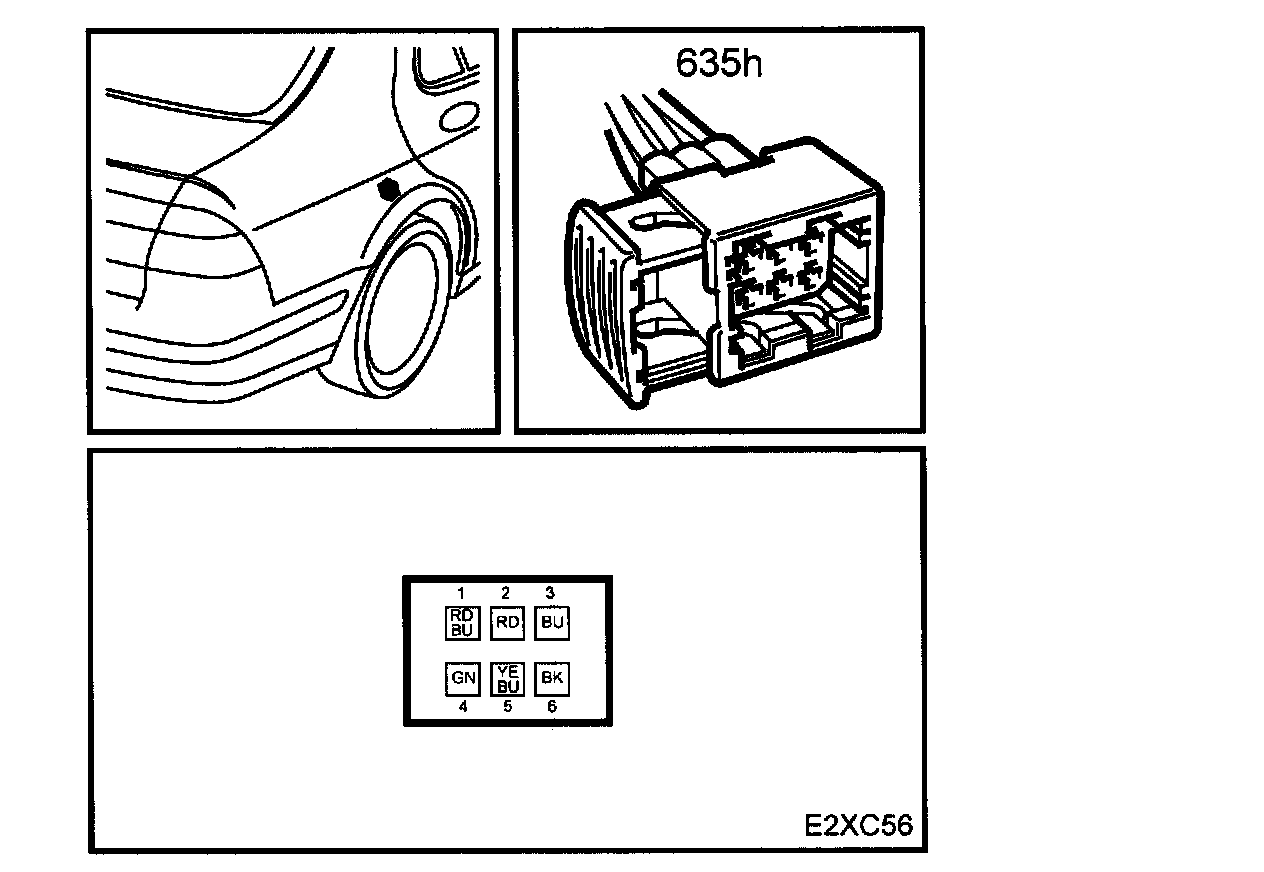

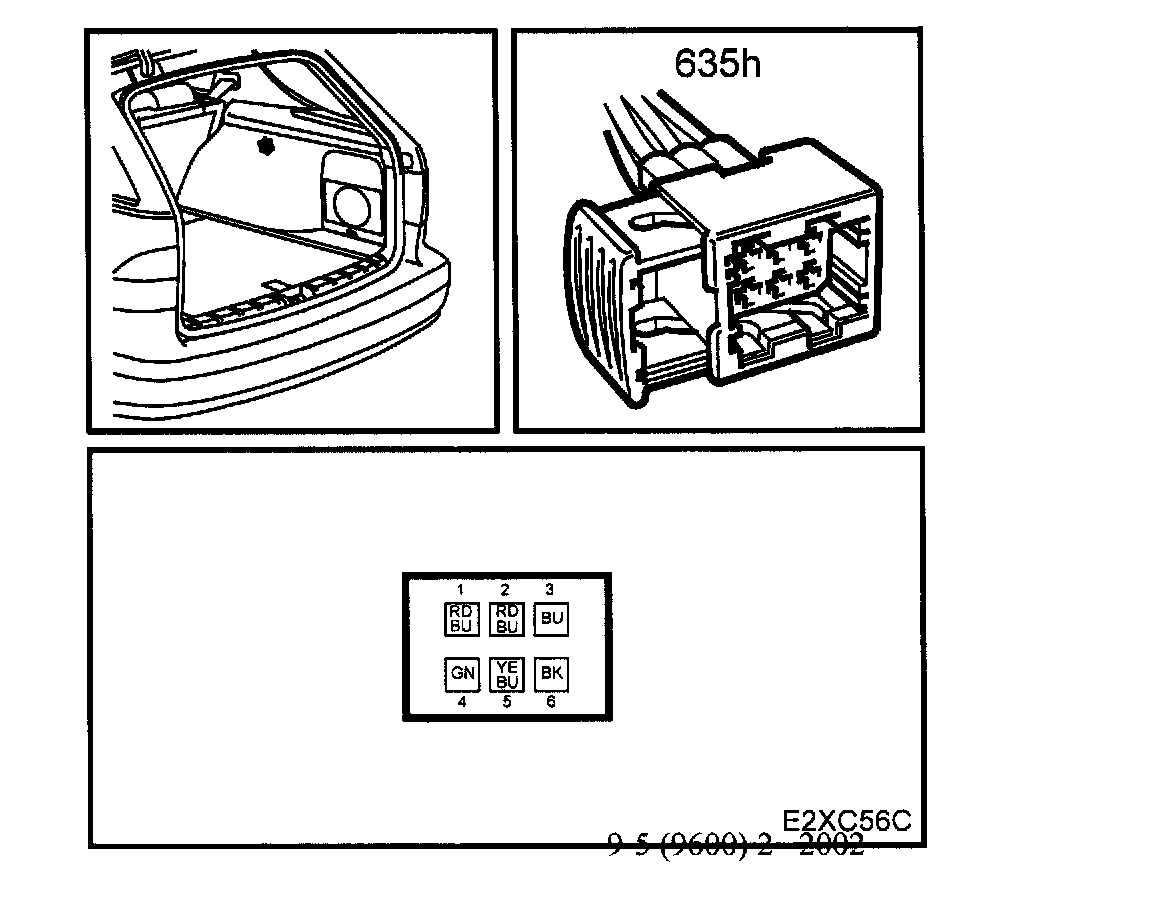

Navigation system connector (6356)
4D:
5D:
