Tech 2 Menu Structure, Read Values, Programming, Sys Info




Tech 2 Menu Structure

Diagnostic Trouble Codes (DTC)
Read Values
Programming
System Information

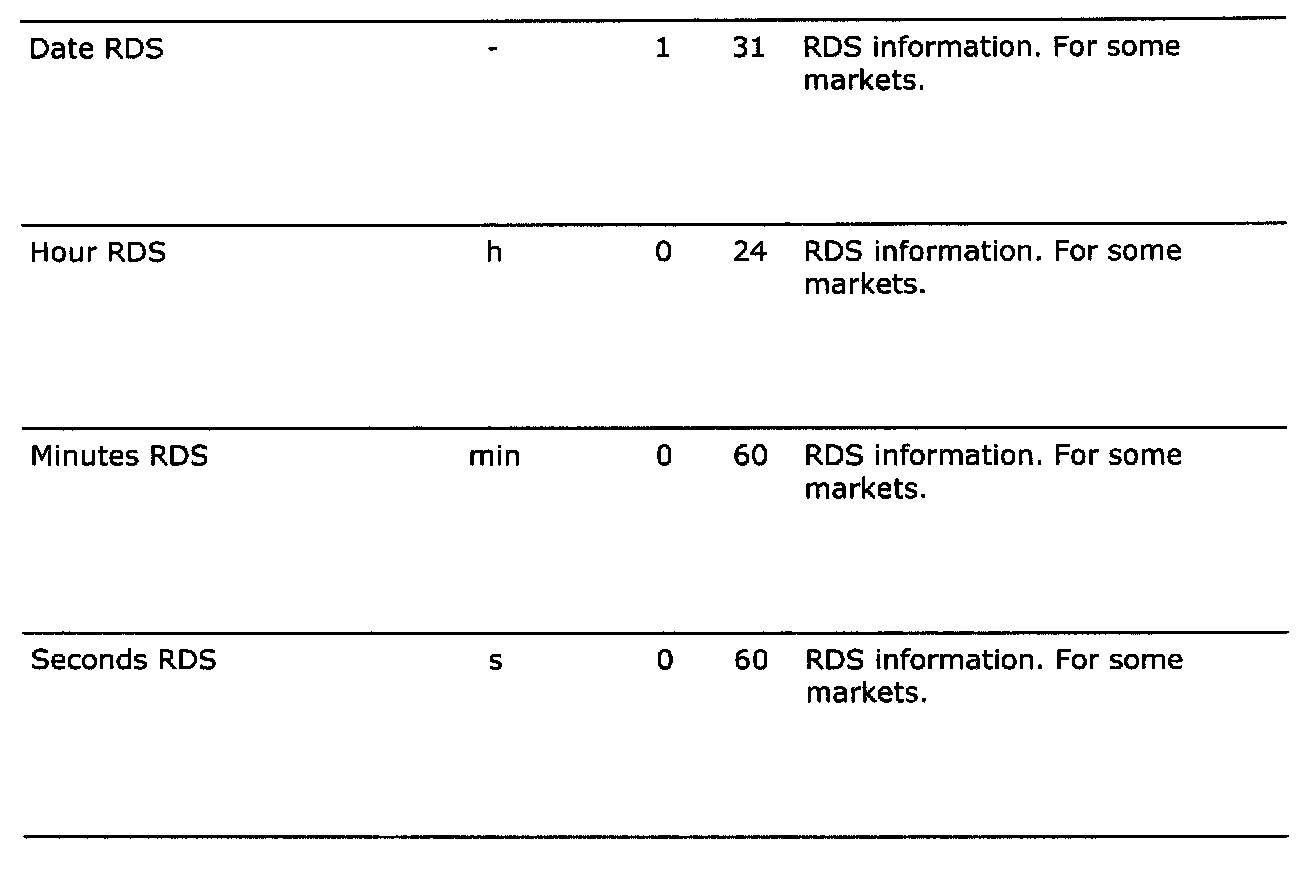

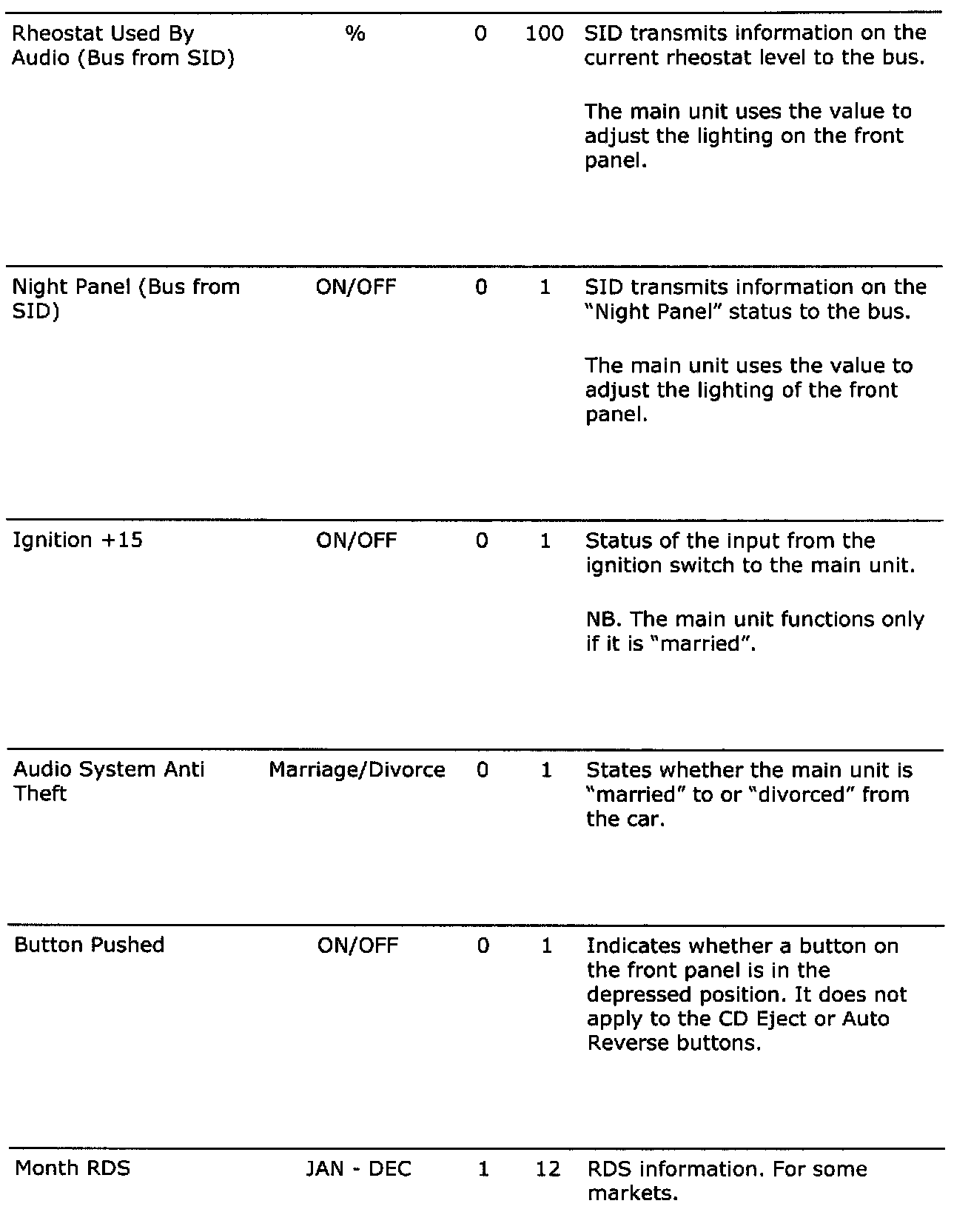

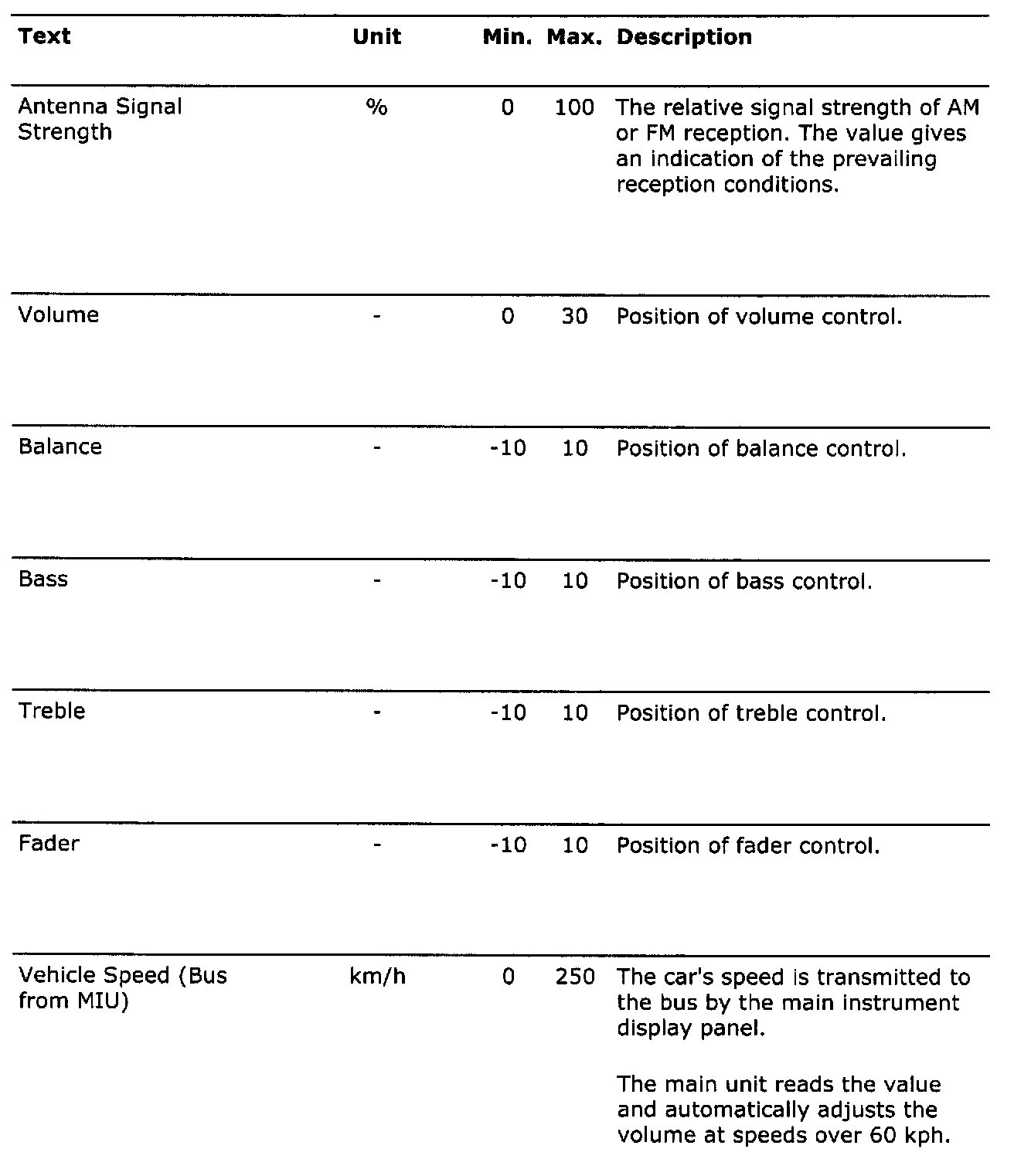

Menu "Read Values"


Part 1:






Part 2:






Part 3:

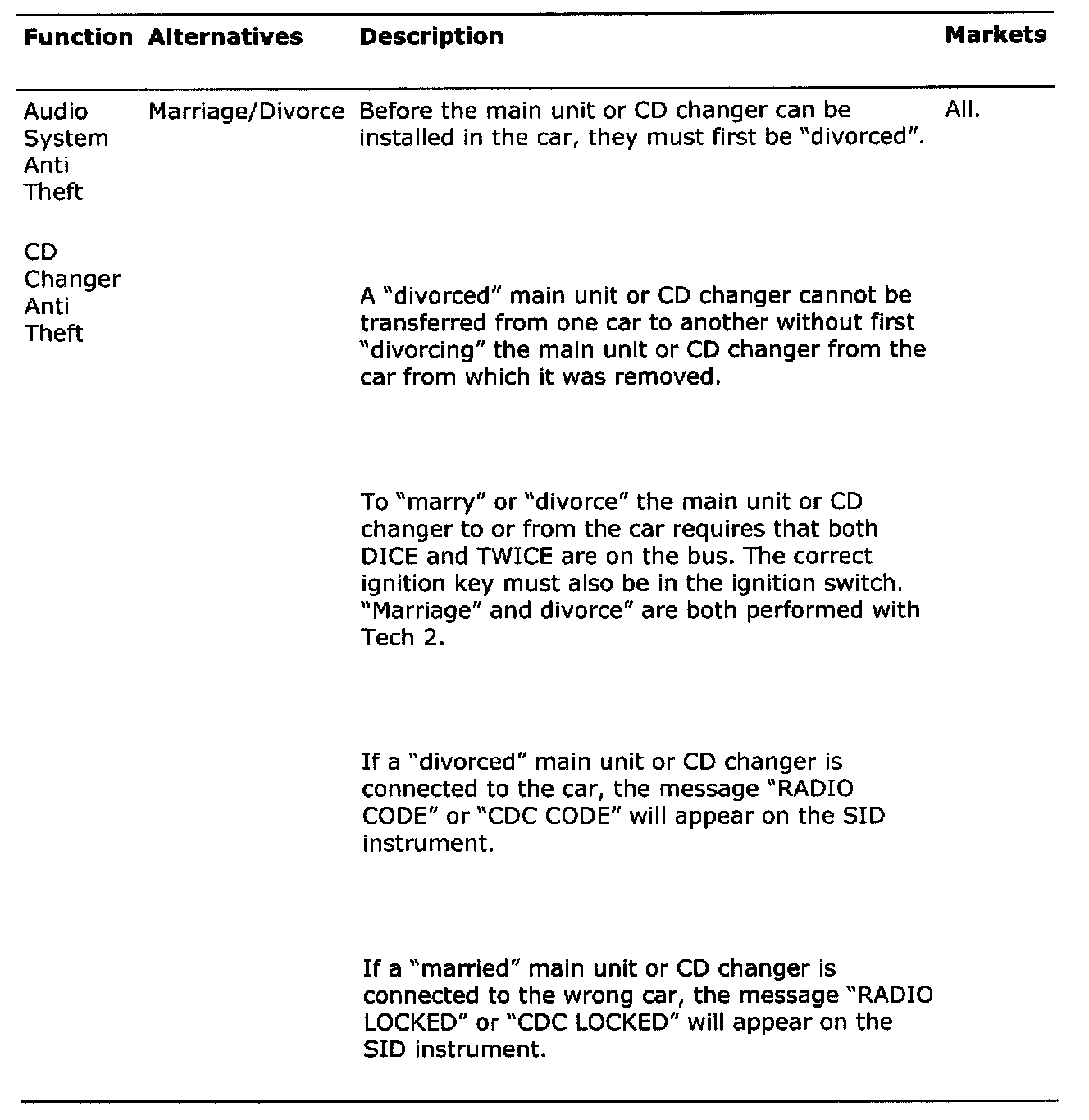

Menu "Programming"

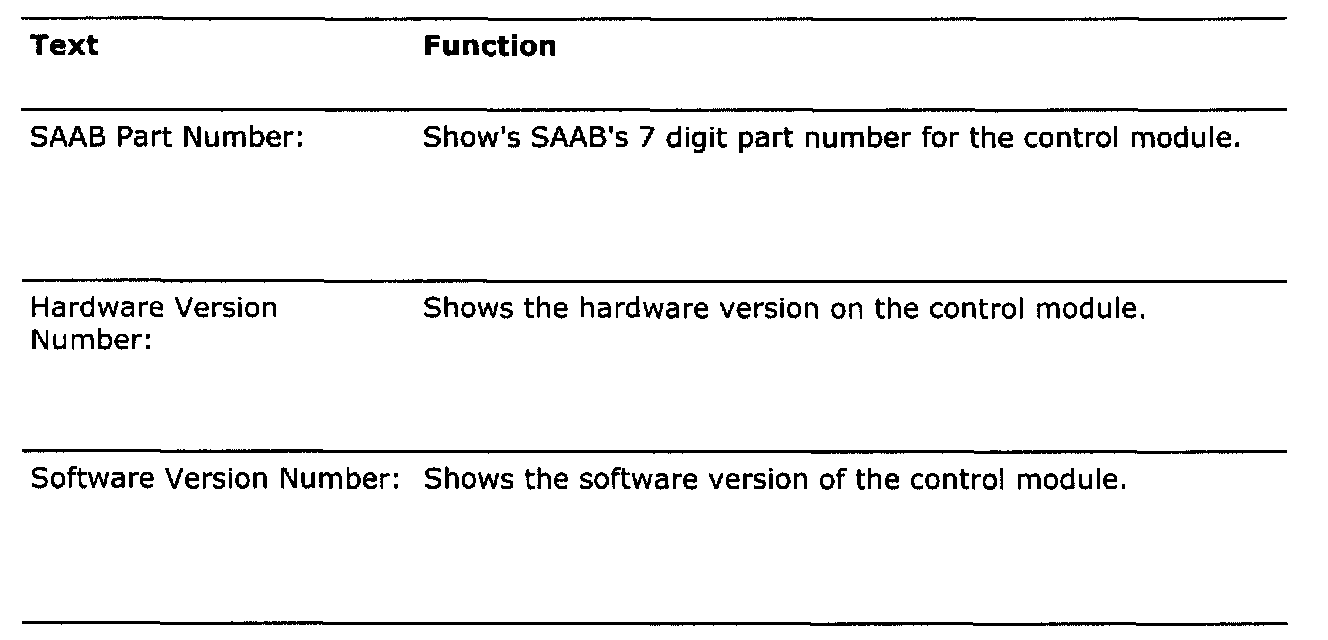

Menu "System Information"
