Home >> Saab >> 2002 >> 9-5 Arc (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Shock Sensor >> Locations >> Glass Breakage Sensor

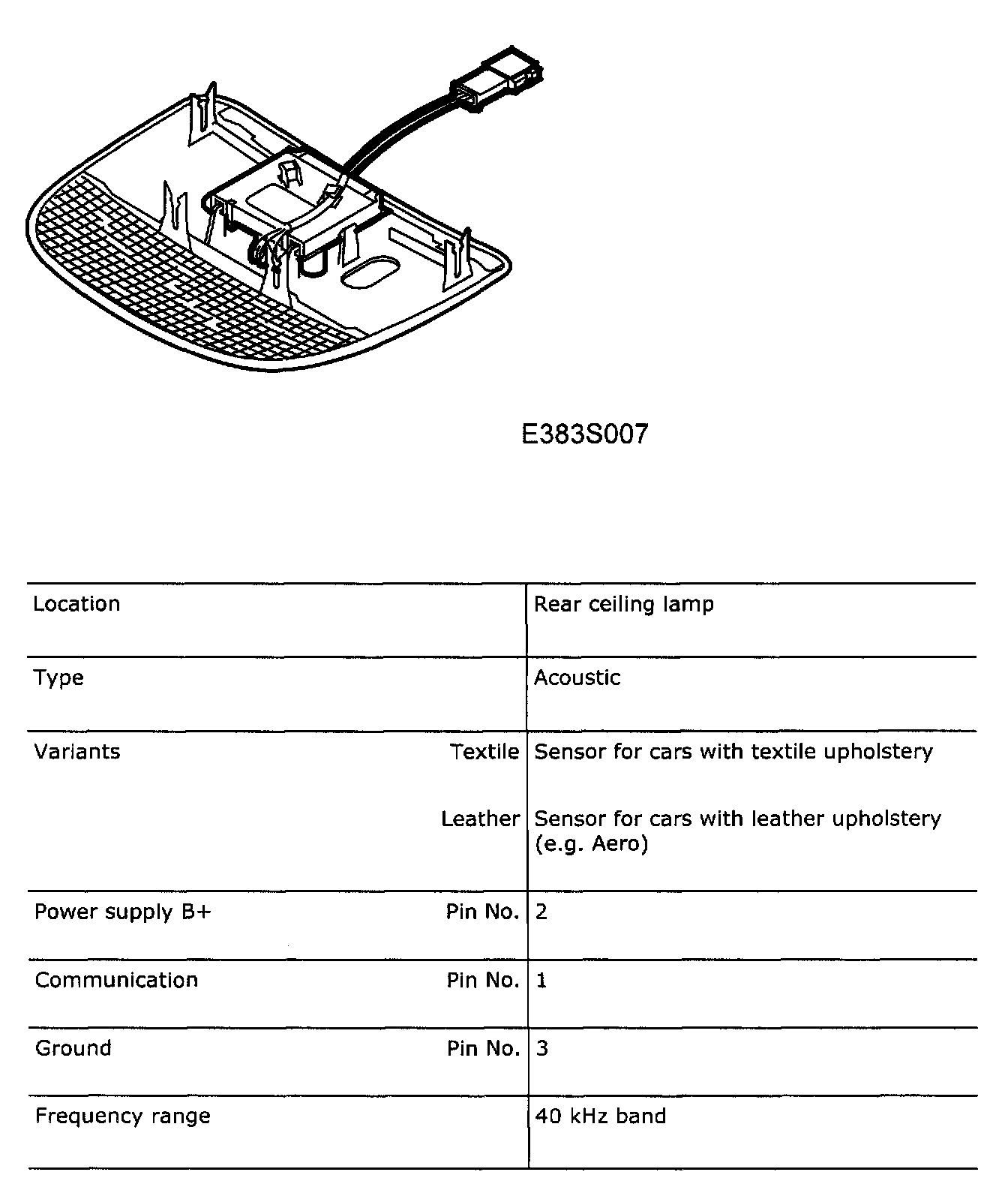

Glass Breakage Sensor




Glass Breakage Sensor (4D)







NOTE: To obtain the correct function and sensitivity of the anti- theft alarm, it is important that the correct variant of glass breakage sensor is used.
