Grounding Point G38
Grounding Point G38

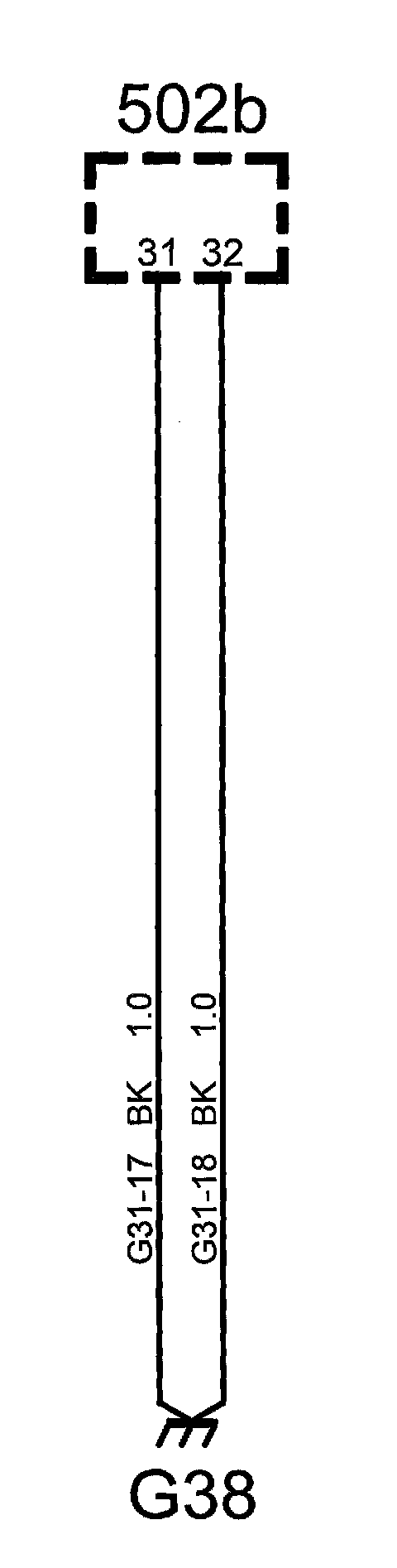

Circuit Diagram:
Grounding point G38

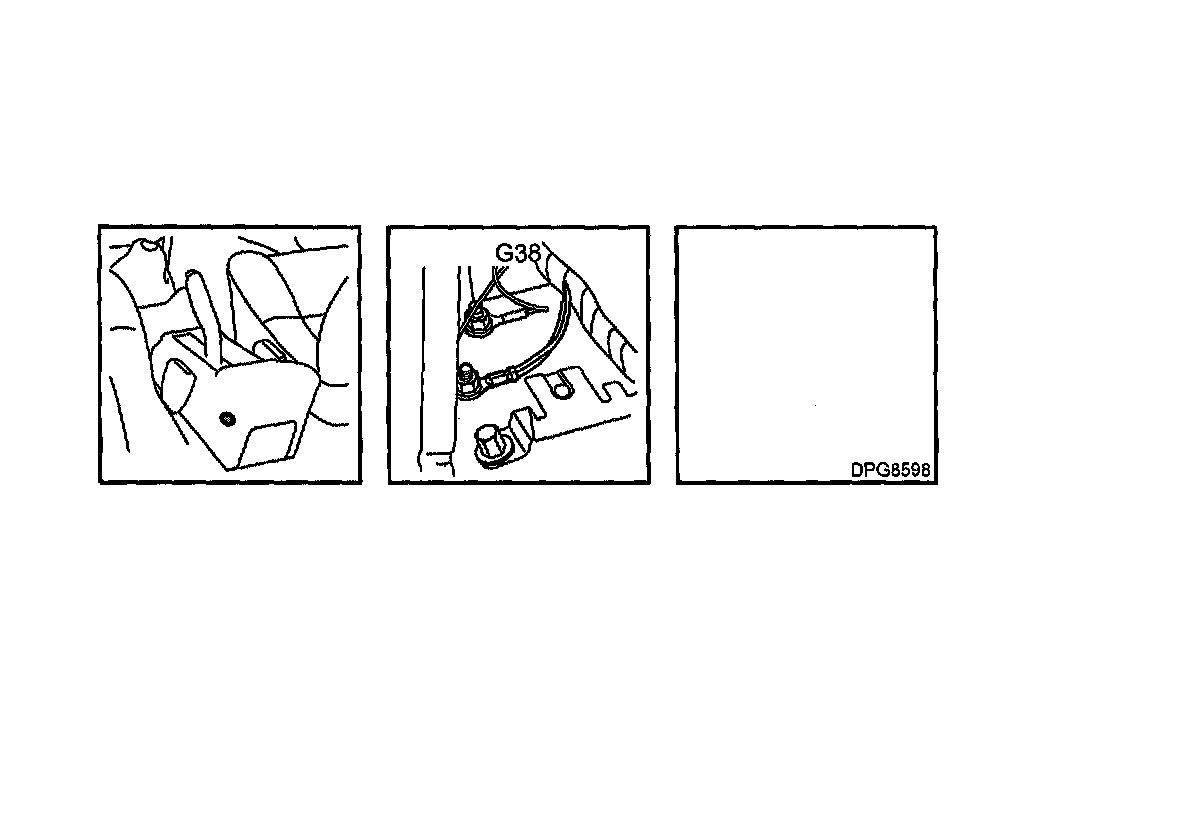

Location: on transmission tunnel between seats.

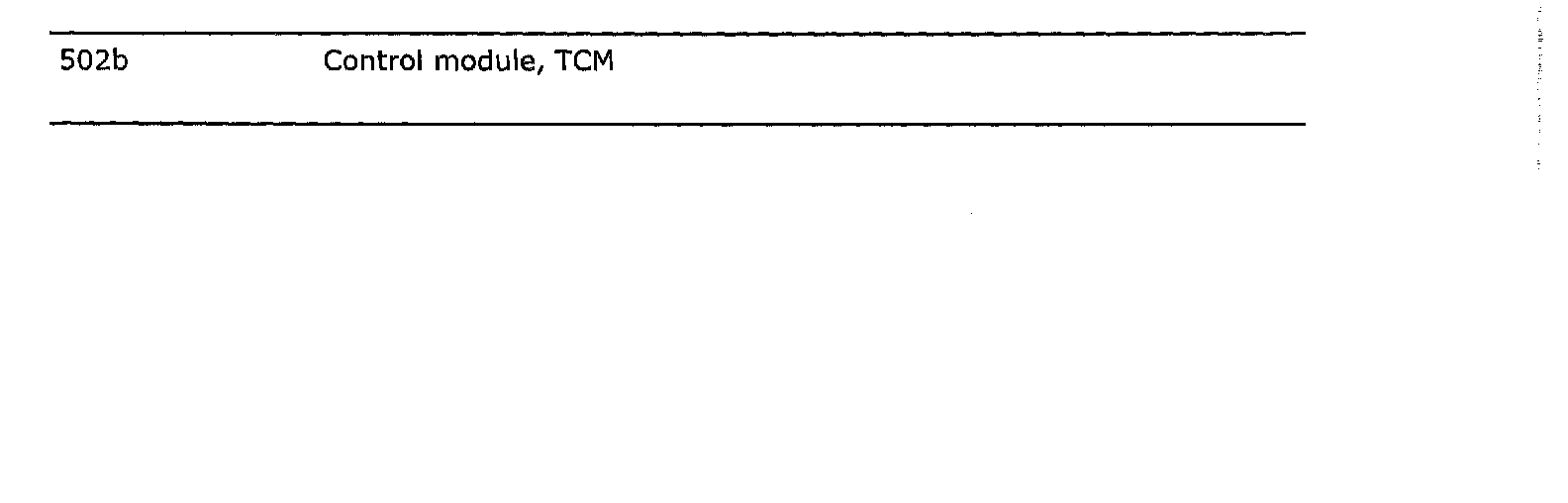

Connected components
