Grounding Point G34S

Grounding point G34S

Location: in cabin below right A-pillar.

A. Connected components on LHD cars
B. Connected components on RHD cars

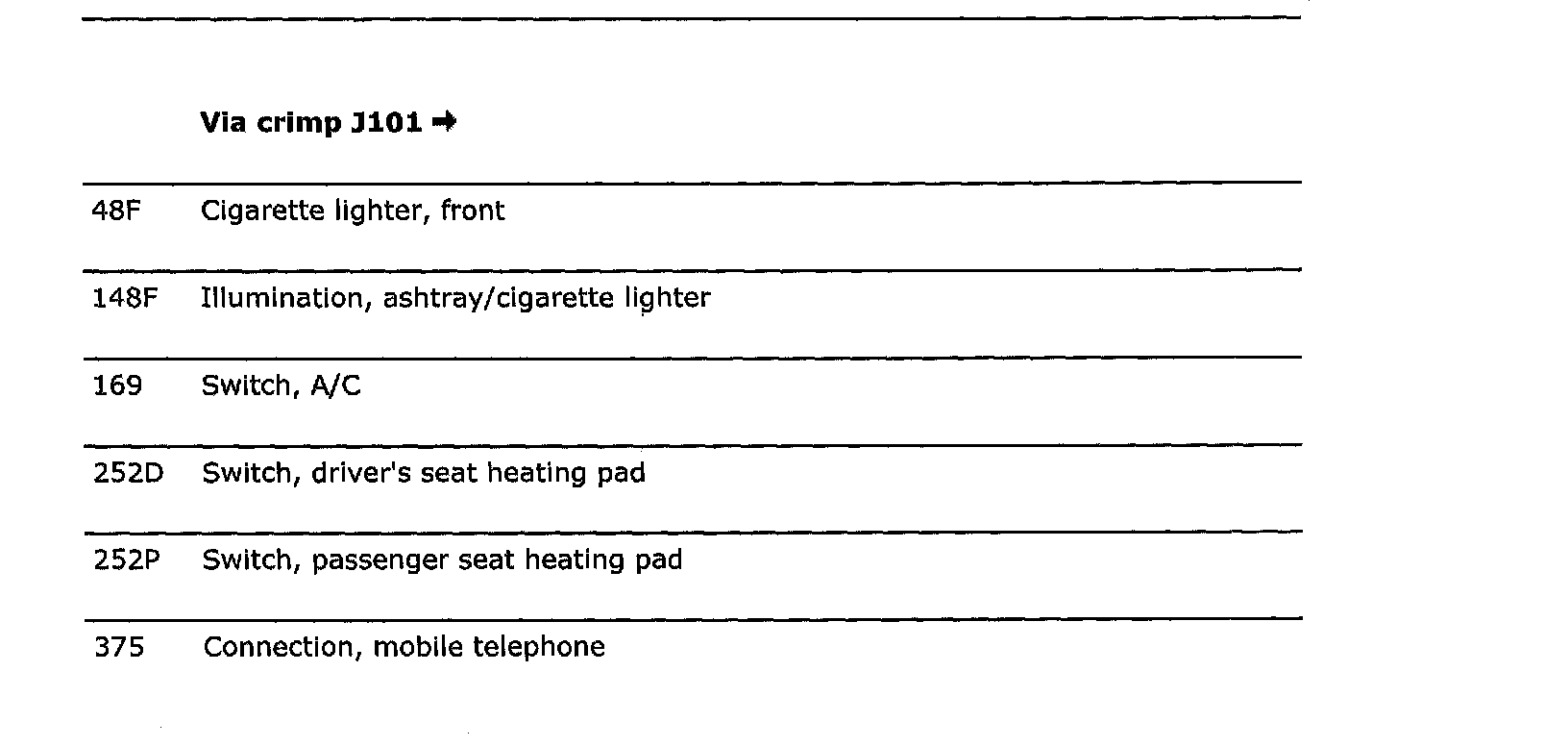

Connected Components (Part 1 Of 3):

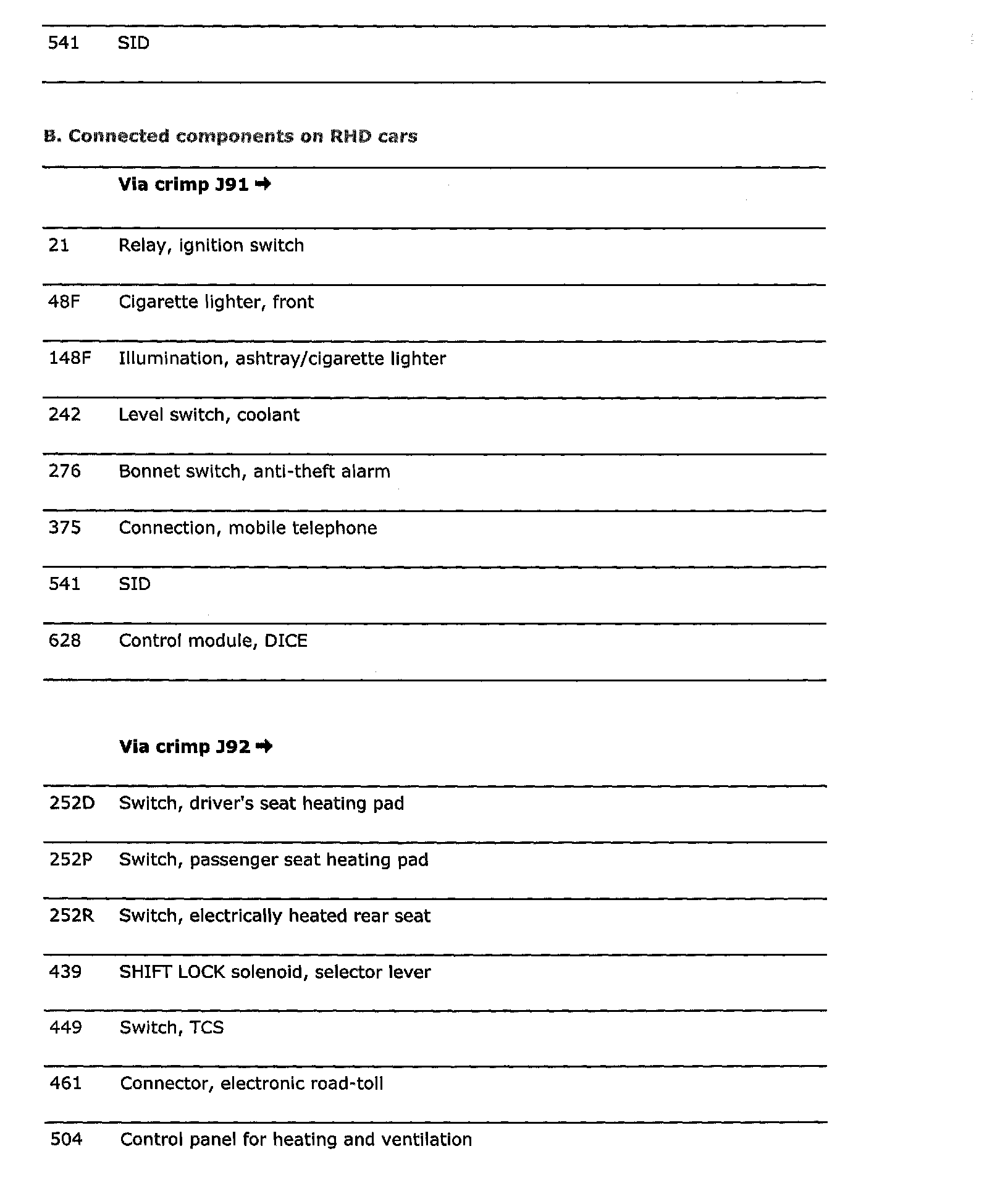

Connected Components (Part 2 Of 3):

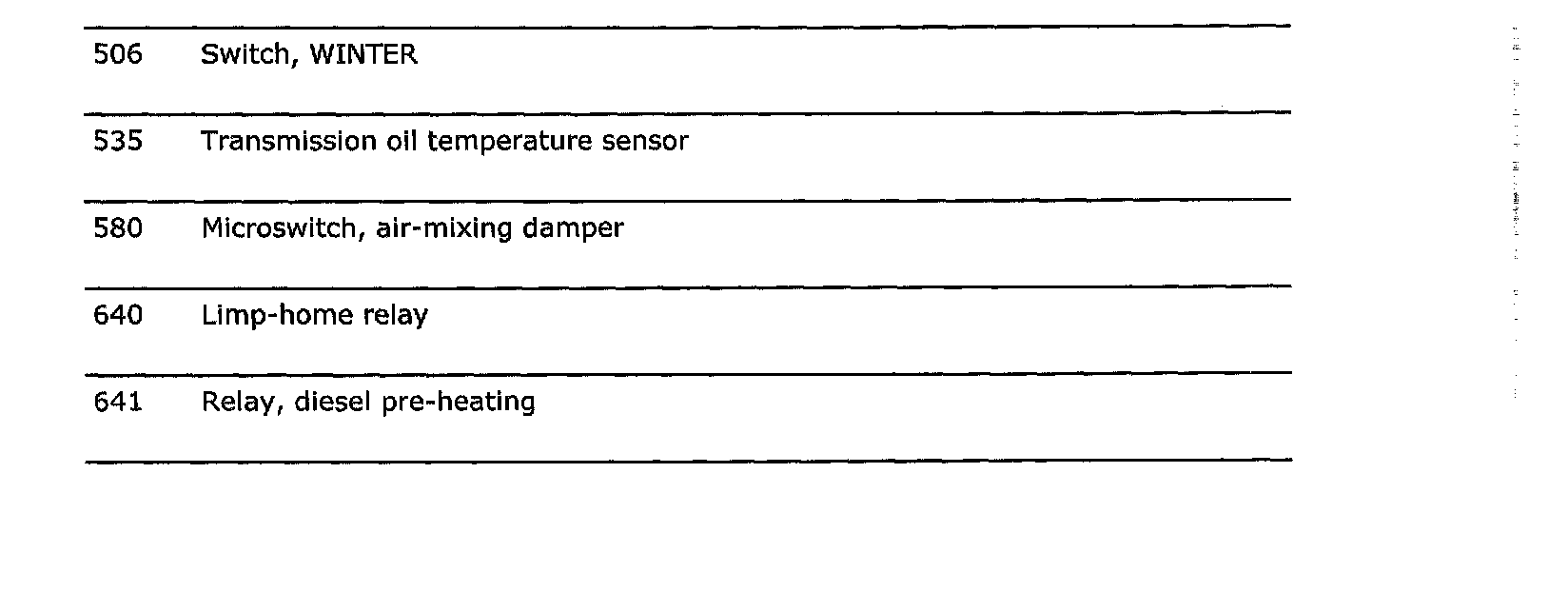

Connected Components (Part 3 Of 3):

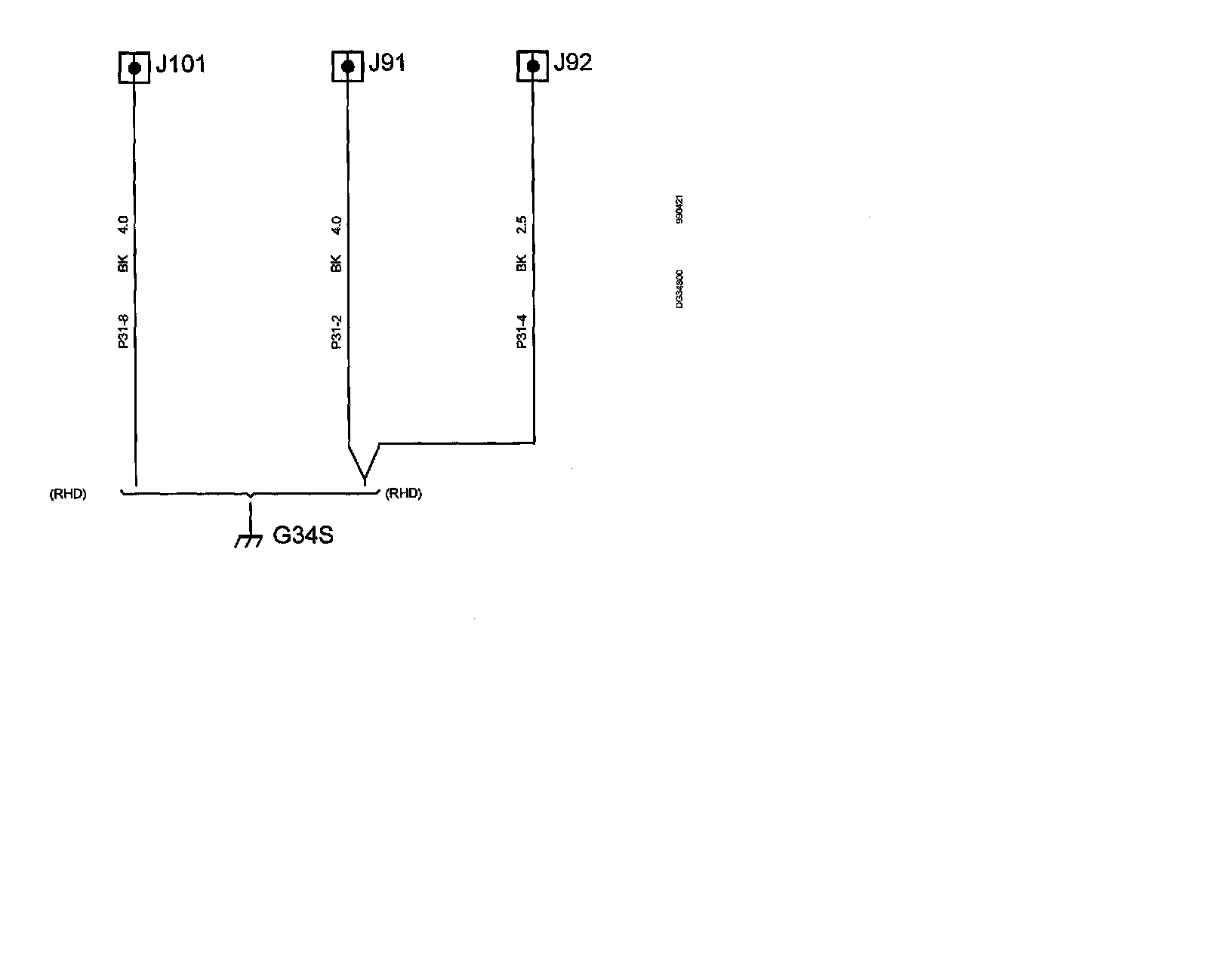

Circuit Diagram:
