Grounding Point G34P






Grounding point G34P

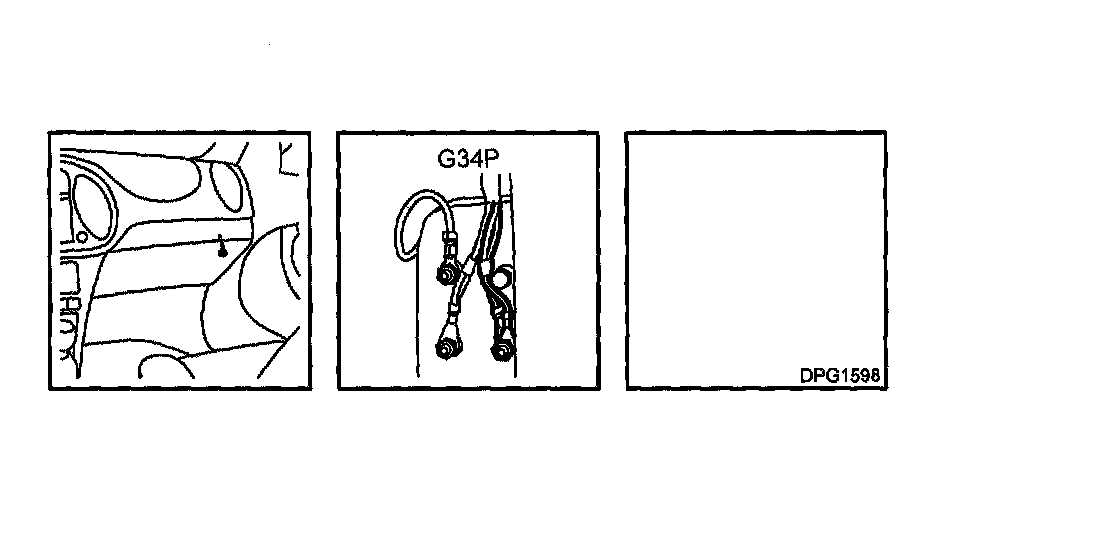

Location: in cabin below right A-pillar.

A. Connected components on LHD cars
B. Connected components on RHD cars

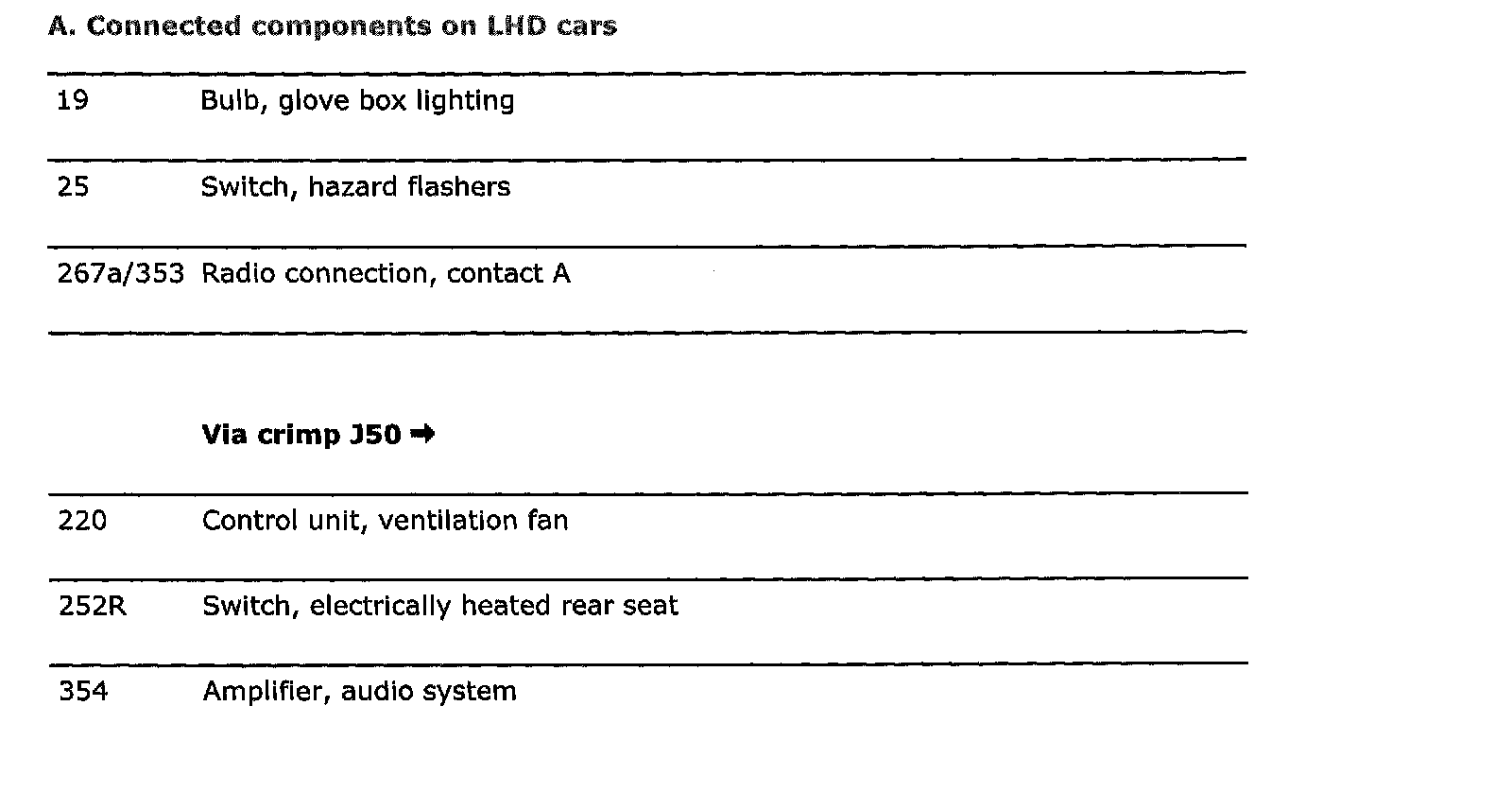

Connected Components (Part 1 Of 2):

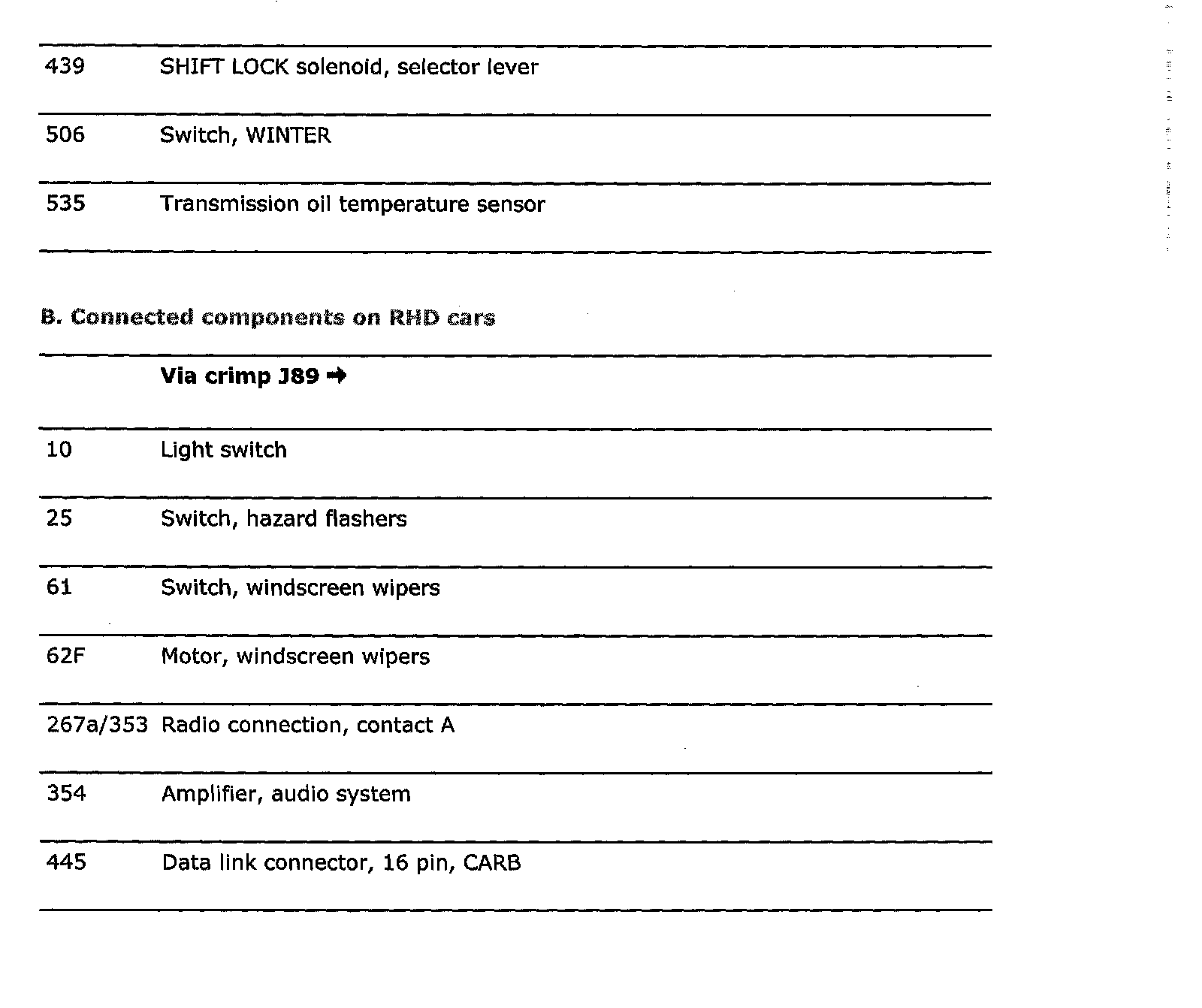

Connected Components (Part 2 Of 2:

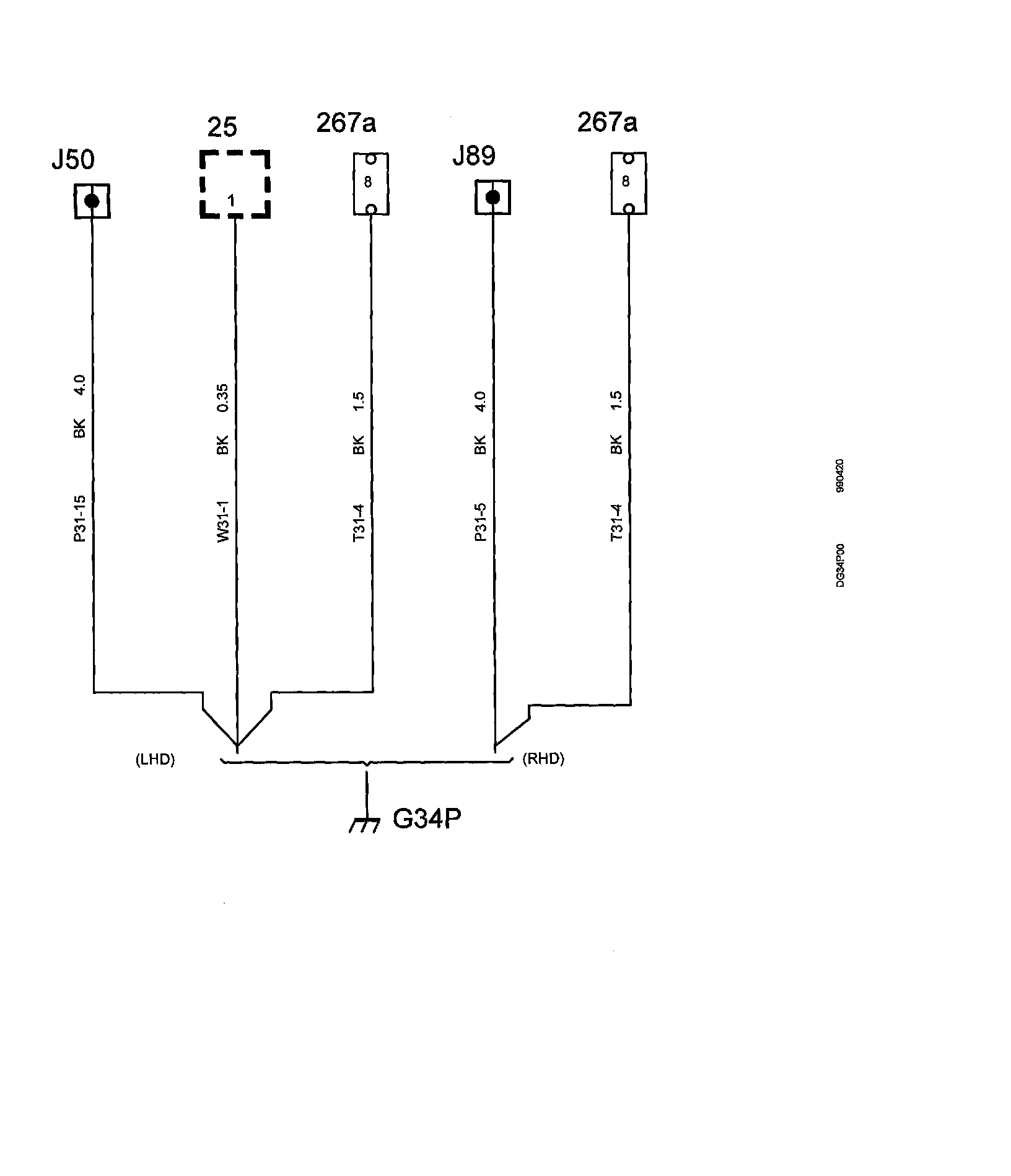

Circuit Diagram:
