Control Module Outputs, Bus

Control Module Outputs, Bus

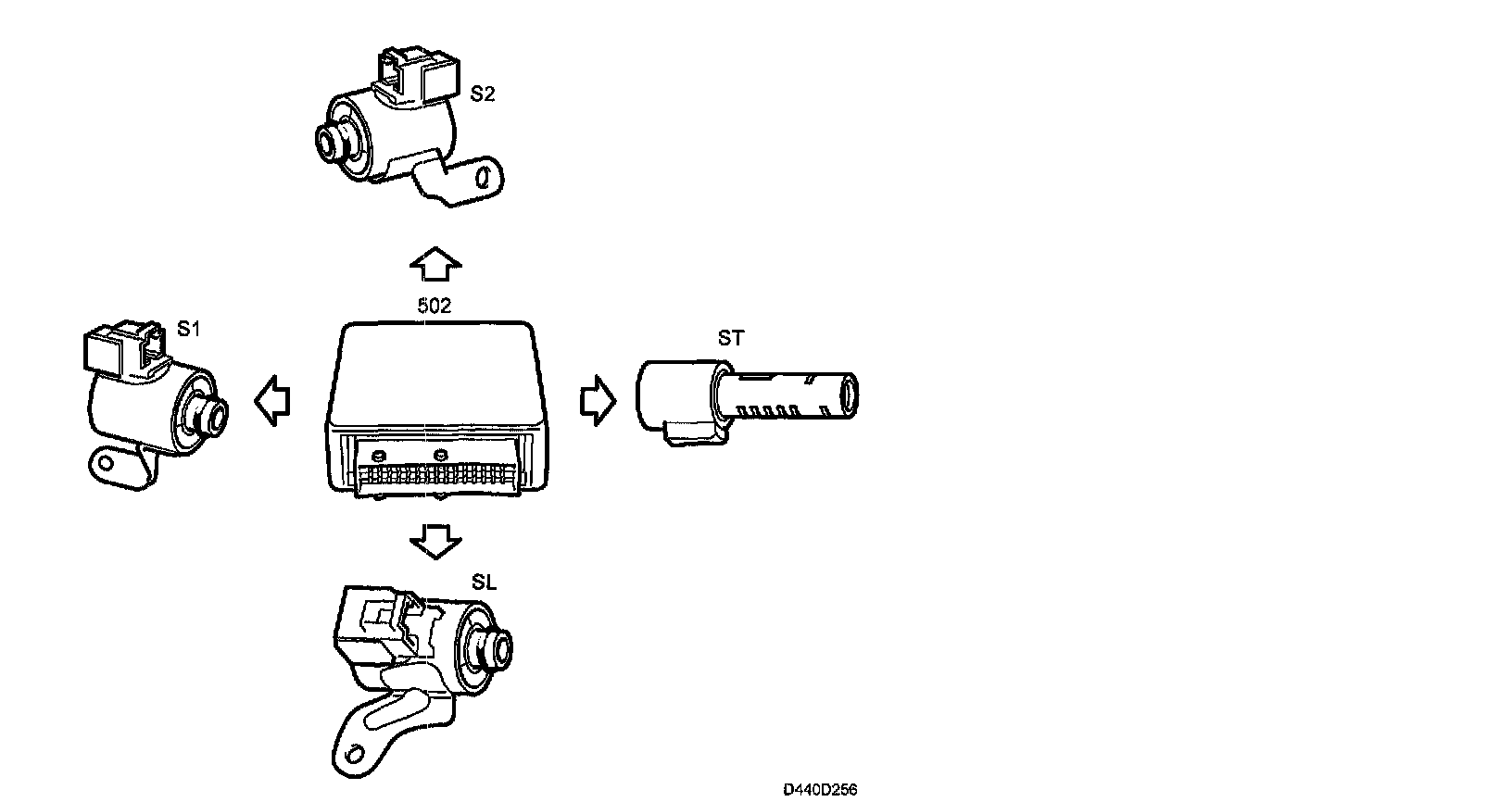

^ Solenoid valve S1 for shifting, see Solenoid valve S1, shifting
^ Solenoid valve S2 for shifting, see Solenoid valve S2 shifting
^ Solenoid valve SL for lock-up, see solenoid valve SL Lock-up
^ Solenoid valve ST for system pressure, see Solenoid valve ST, for system pressure

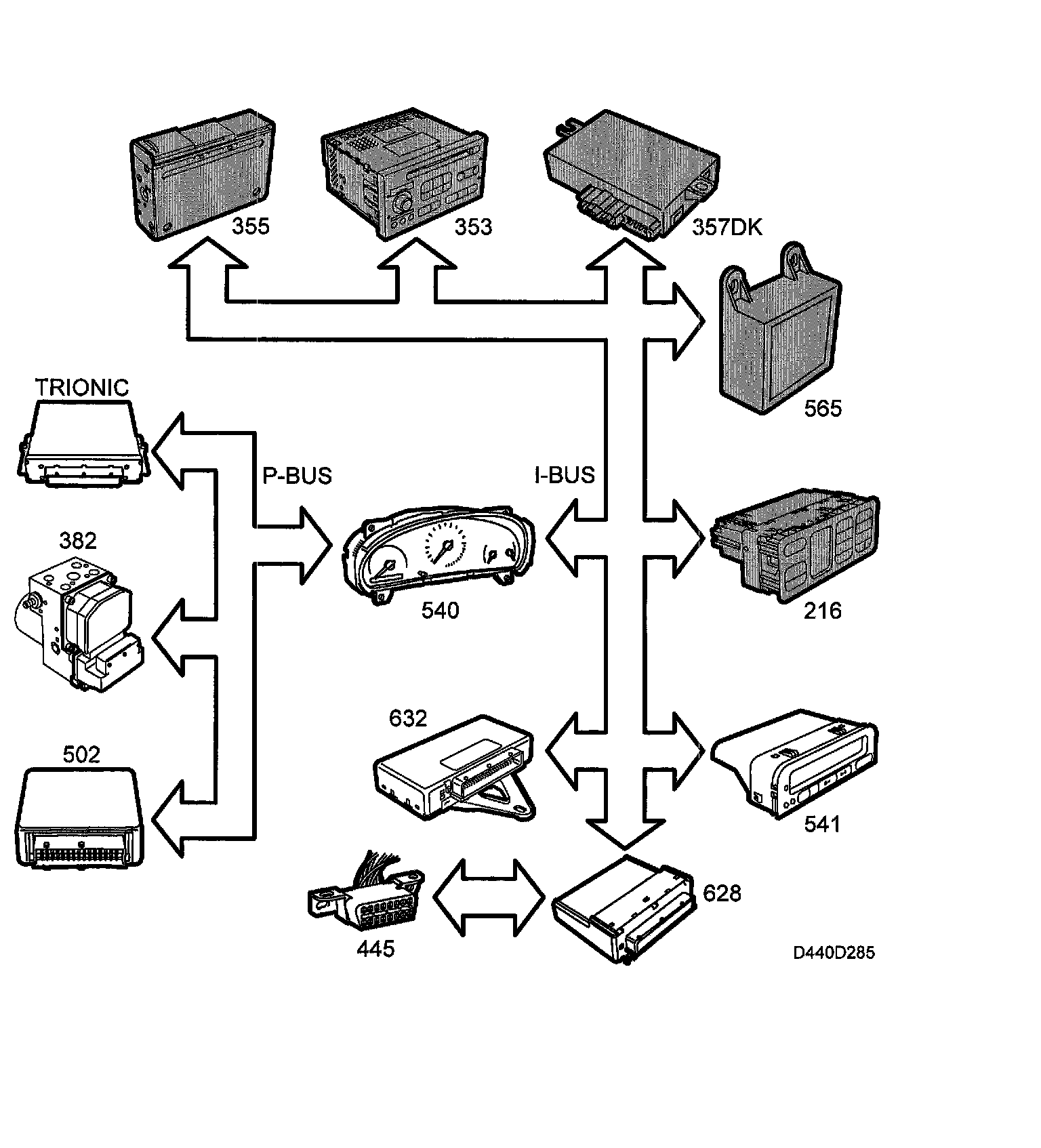

^ Maximum permitted torque (used by Trionic) (430/600), see Maximum permitted torque
^ Gear selector position (used by Trionic and MIU) (430/600, 540), see Gear selector position sensor - gear engaged.
^ Text message to SID (541), HIGH TRANSMISSION FLUID TEMPERATURE (used by SID), see Transmission fluid temperature sensor
^ CHECK GEARBOX lamp (used by MIU) (540), see CHECK GEARBOX warning lamp
^ SPORT (used by Trionic and MIU) (430/600, 540), see SPORT shifting program
^ WINTER lamp (used by MIU) (540), see Shifting programs WINTER
