Control Module Ground

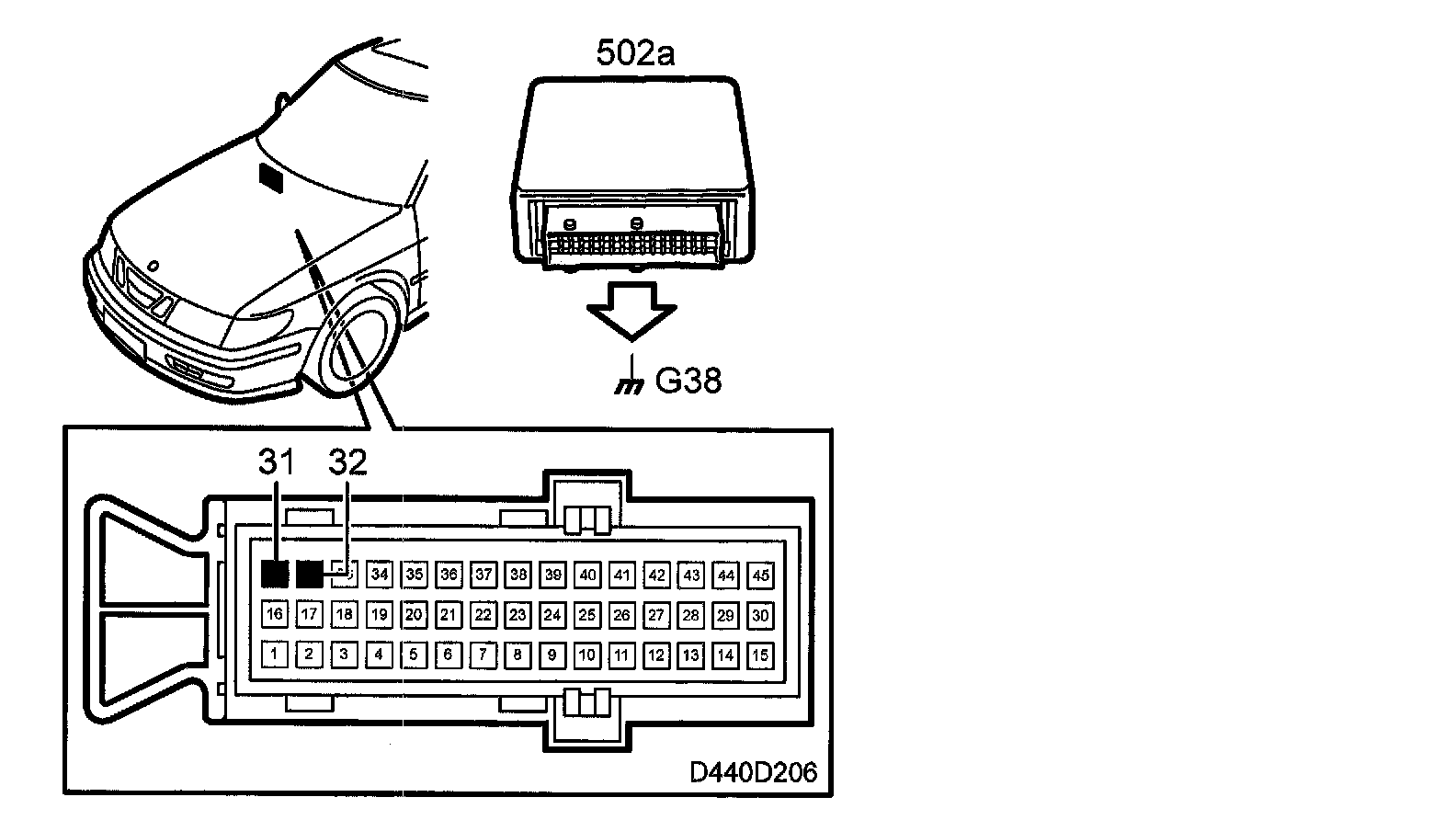

Component Location/Connector Pin ID:

Circuit Diagram:

Control Module Ground

The control module is grounded through pin 31 and pin 32 to grounding point G38.

Diagnostics
The grounding points are connected internally.
If there is no ground connection, communication with the TCM will not be possible. No diagnostic trouble code is generated.

TCM in Limp-Home mode.
