Front Suspension

Front Suspension





83 94 769 Foot to lifting beam (x2)
Used together with 83 94 850 Lifting beam
Group: Engine, manual gearbox





88 18 809 Holder
86 11 600 Tool board T2
Used together with 88 18 791 Spring compressor.
Group: Chassis





88 18 791 Spring compressor
86 11 600 Tool board T2
Group: Chassis





89 96 696 Puller
Removing the ball joint and steering link
86 11 600 Tool board T2
Group: Chassis

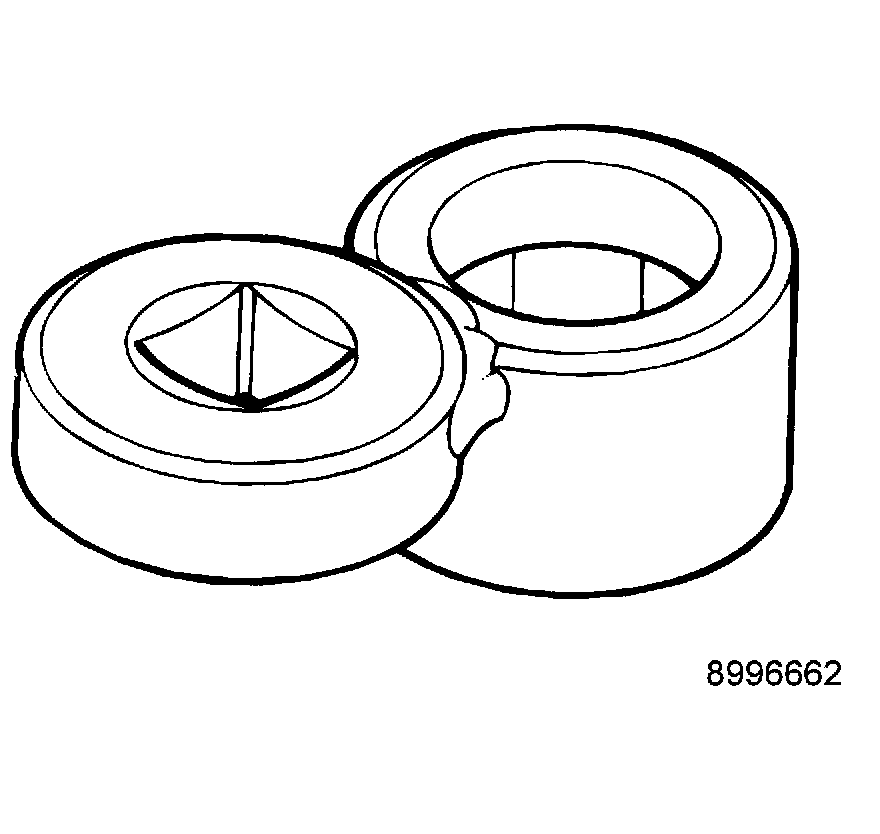

89 96 662 Socket, MacPherson strut
86 11 600 Tool board T2
Group: Chassis





84 96 670 Spanner, damper insert
86 11 600 Tool board T2
Group: Chassis





89 96 704 Drift, front-wheel bearings
86 11 600 Toolboard T2
Group: Chassis





89 96 613 Sleeve, MacPherson strut
86 11 600 Toolboard T2
Group: Chassis





89 96 720 Sleeve, rear damper bush
86 11 600 Tool board T2
Group: Chassis

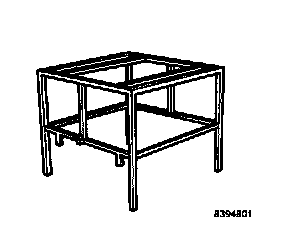

83 94 801 Parent fixture
Used together with 83 95 311 Spring compressor
Group: Miscellaneous

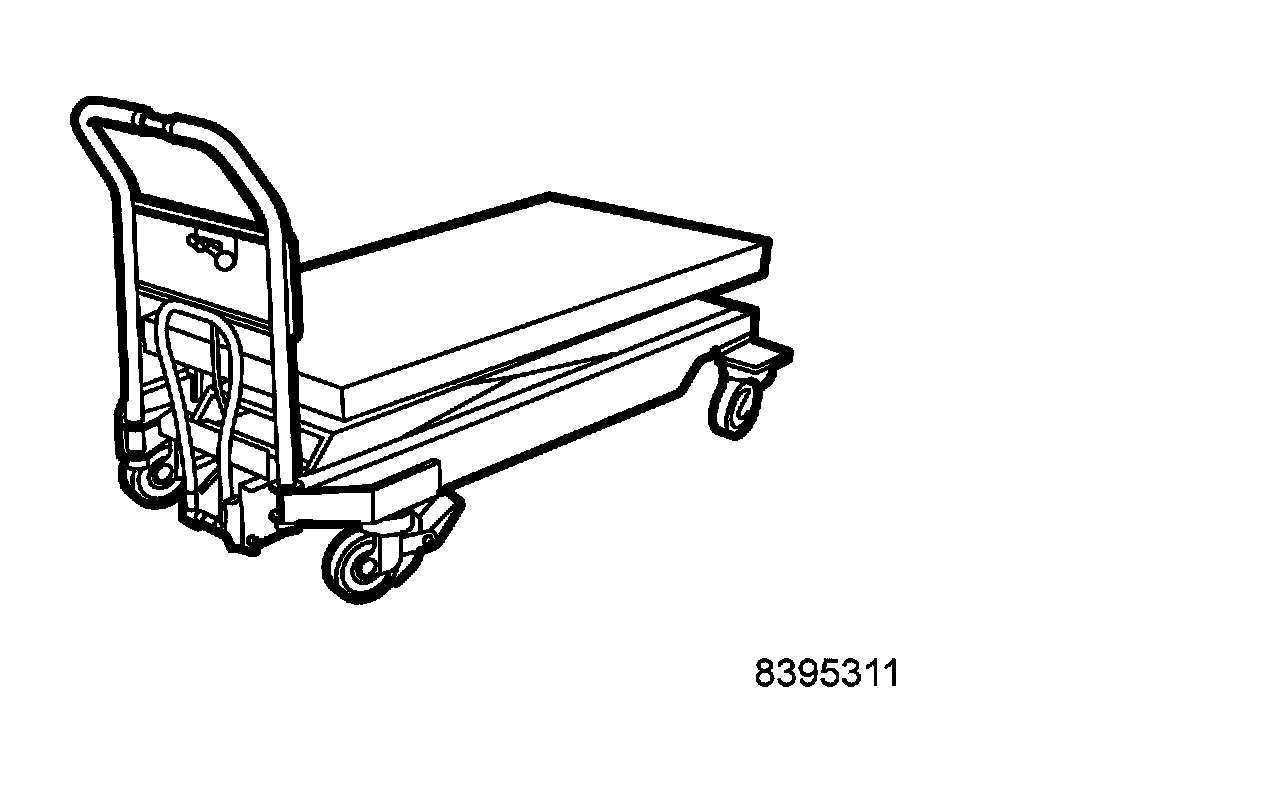

83 95 311 Trolley lift
Group: Miscellaneous





83 95 212 Strap
Supports heavy components such as AC compressor when removing and fitting
Group: Engine





83 95 287 Holder
Engine support
Group: Engine





83 94 850 Lifting beam
Group: Engine, Manual gearbox
