Trionic T7 (Part 3/3)

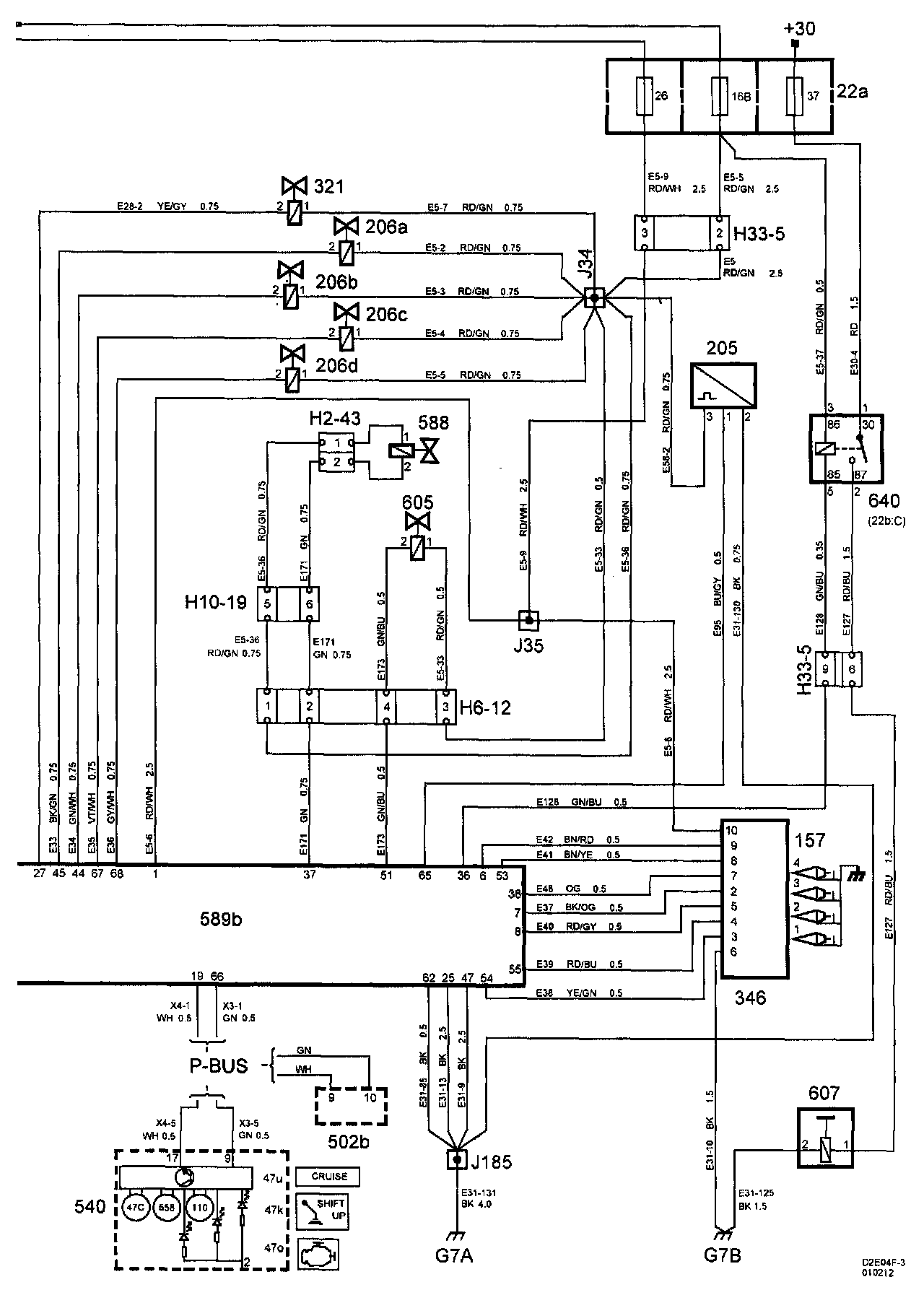

Trionic Engine Management System T7 (Part 3/3)

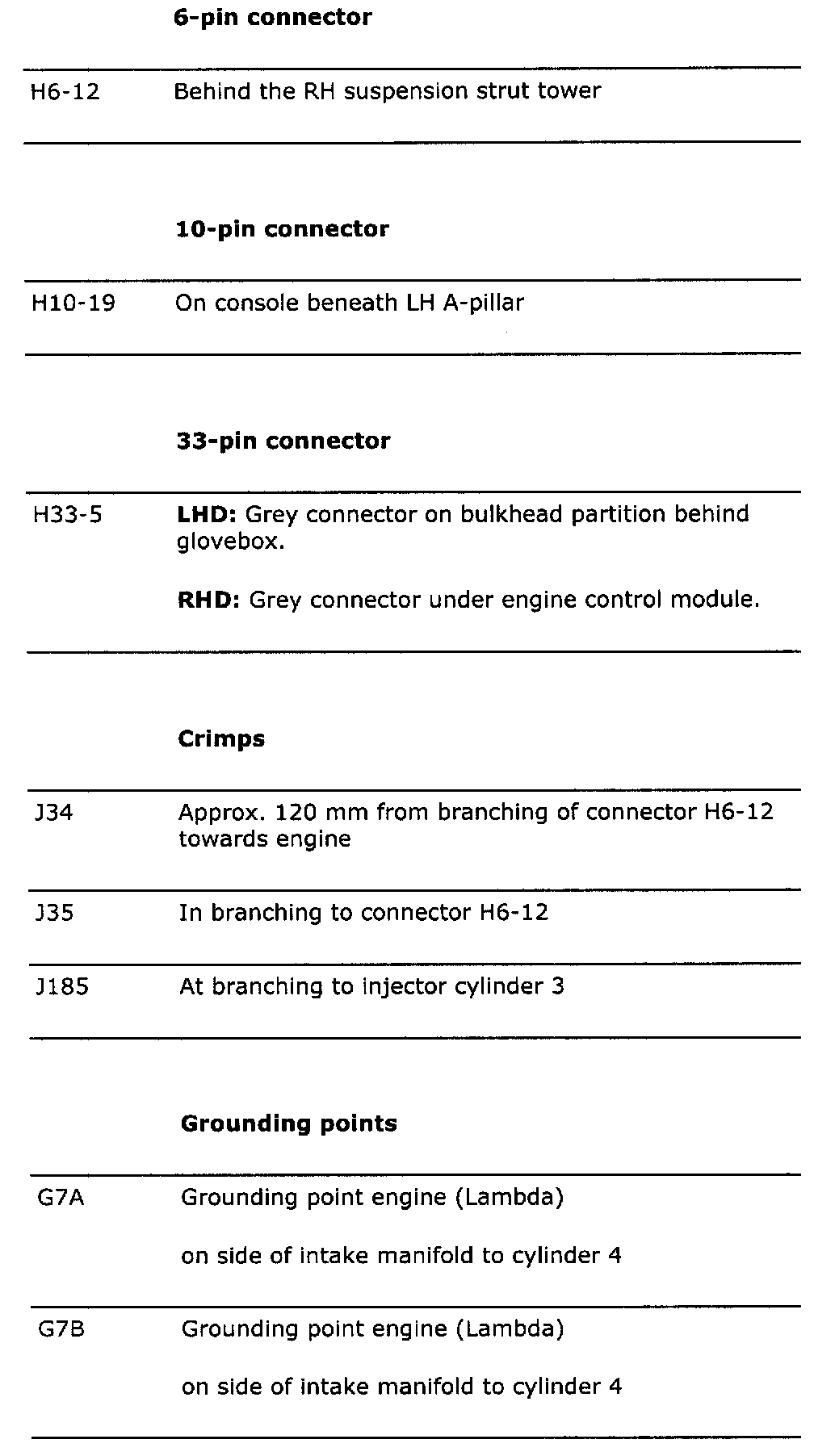

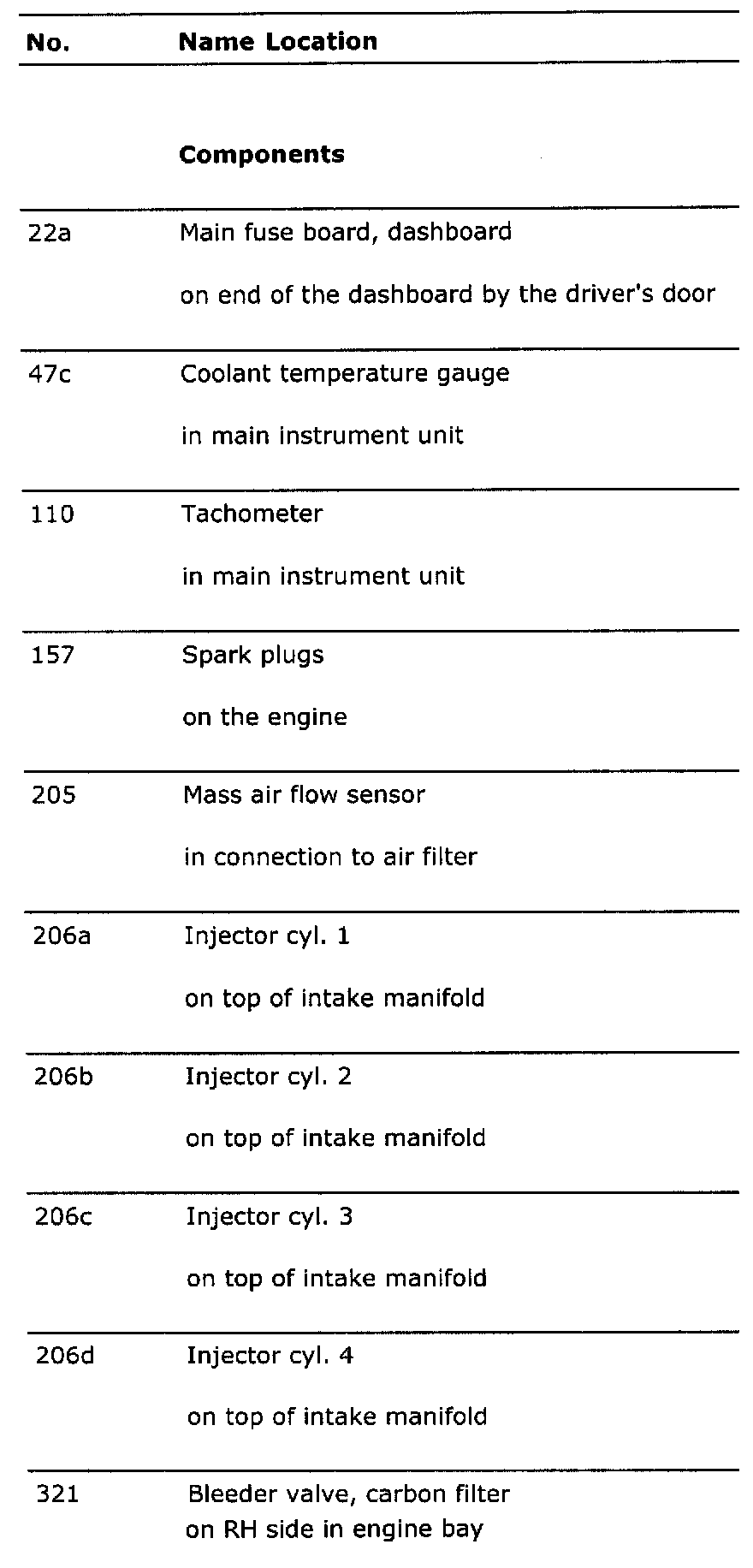

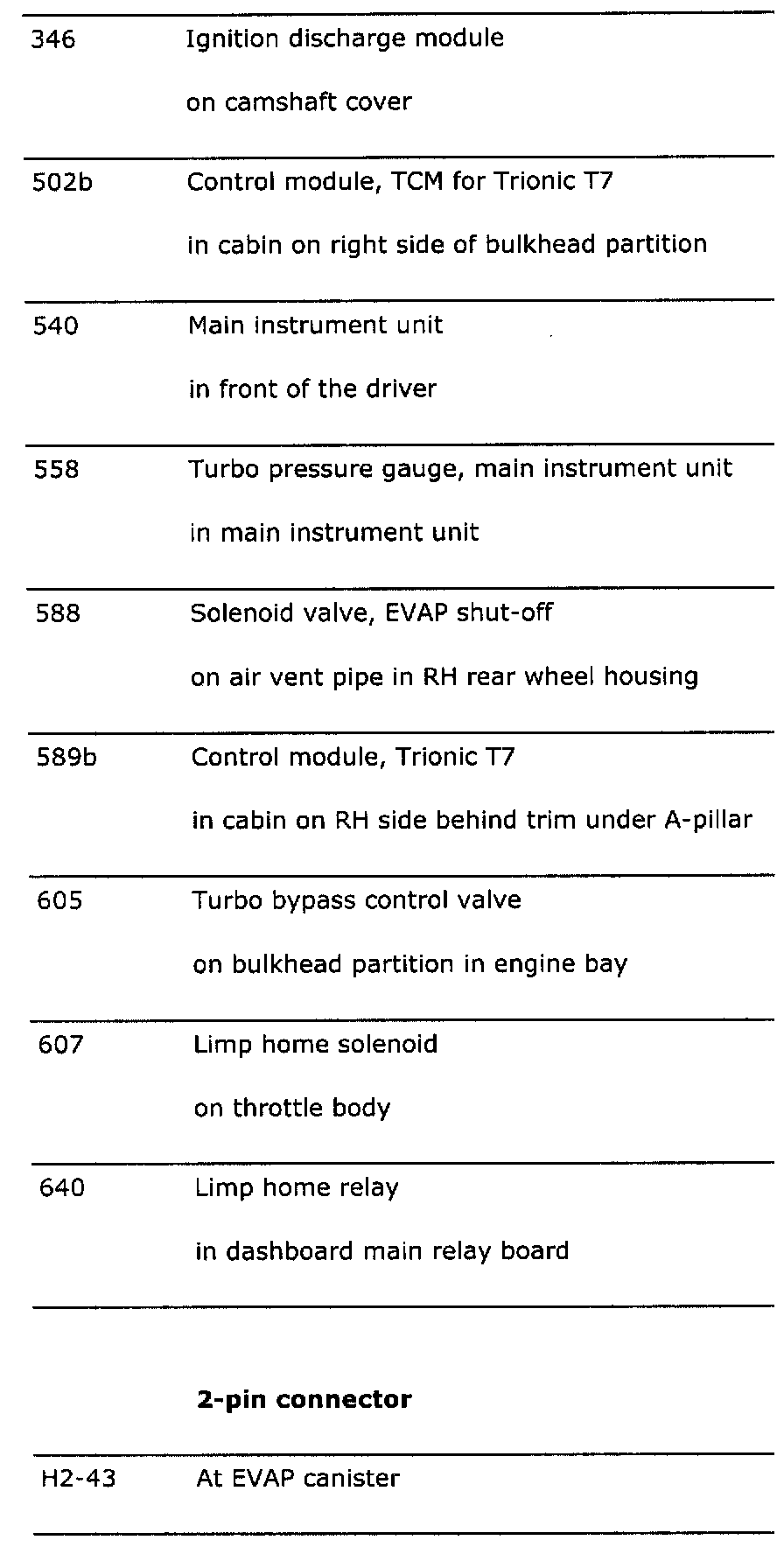

List of components


Part 1:




Part 2:




Part 3:
