Gear Selector Position Sensor

Selector Lever Position Sensor

Component Illustration:

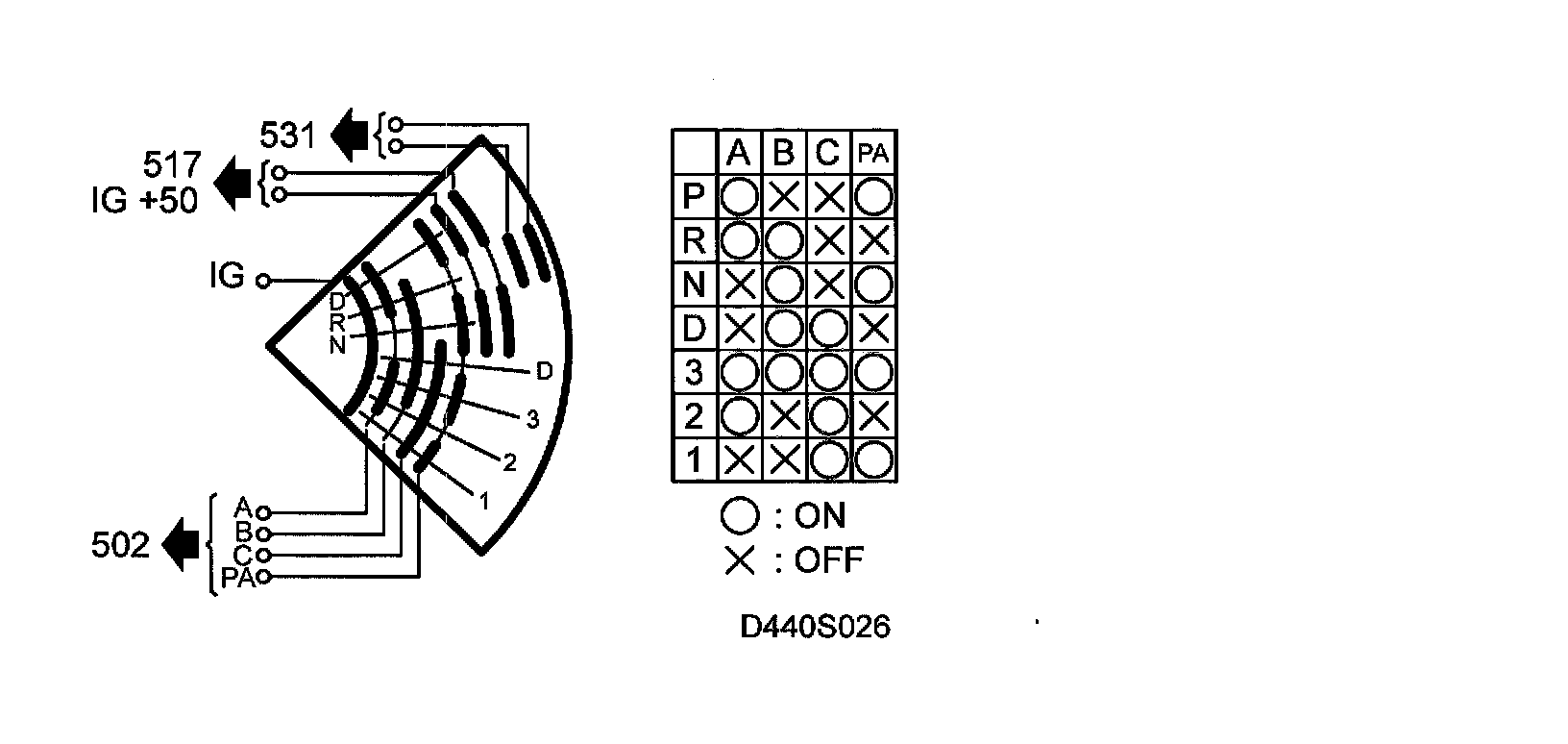

Internal Connection Diagram:

Location On the gearbox
To fit Adjustment required for proper operation
Type lip contacts
Power supply (+15 circuit) IG contact
Function:
Selector lever position A, B, C and PA contacts
Starter motor interlock SR contact
Reversing lights RL contact
Resistance:
Open contact OL (�)
Closed contact <5 Ohm
