Grounding Point G7A
Grounding Point G7A
Location:
on side of intake manifold at cylinder 4
Cable marking:
yellow tape

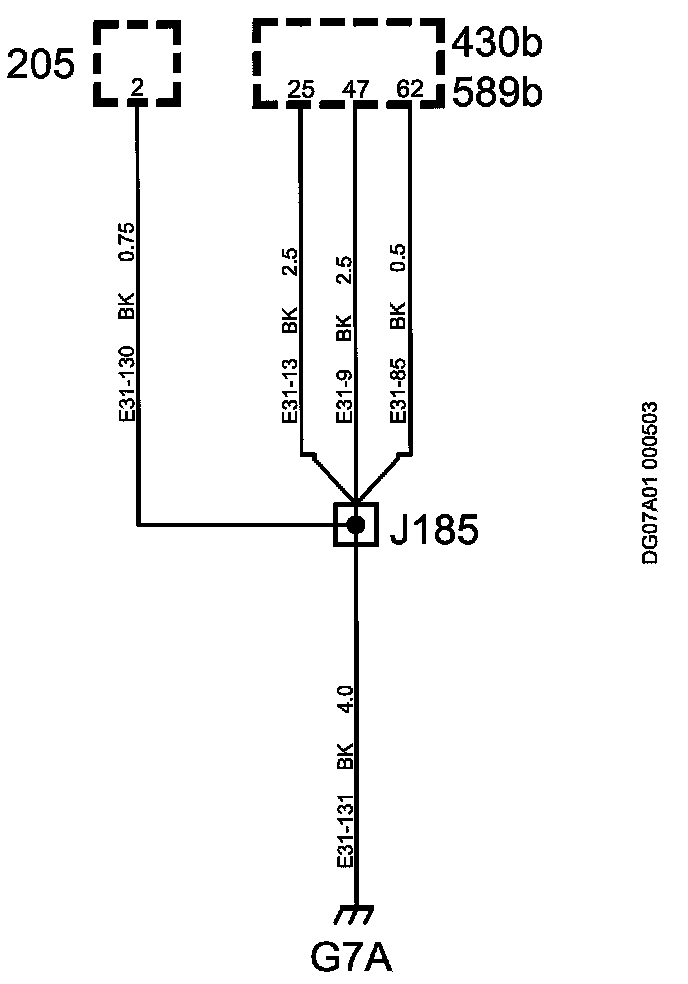

Grounding Point G7A:
Connected Components:
