9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Tail Light Bulb
>>
Service and Repair
>>
Convertible
Convertible
Lamp Bulb, Rear Light
1.

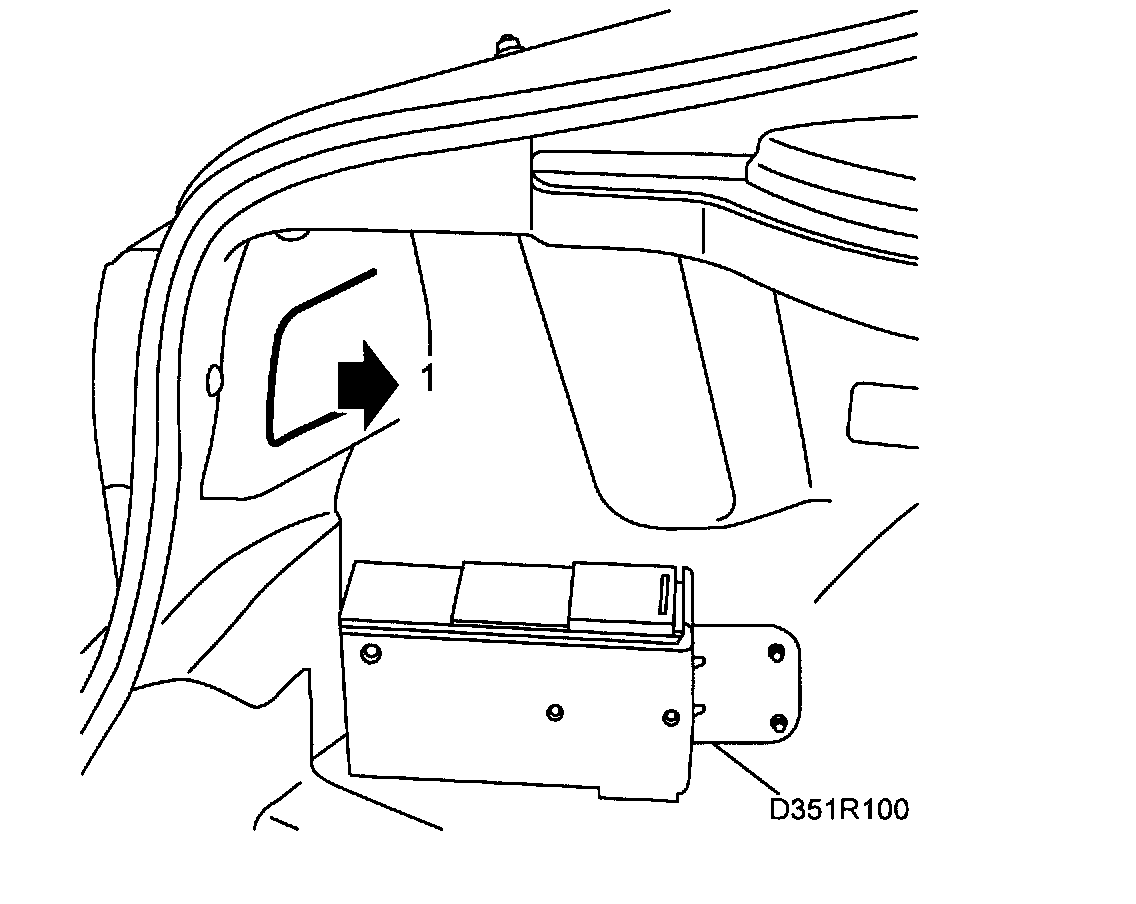

Open the cover in the trim.
2.
Loosen the lamp holder.
3.
Remove and change the bulb.
4.
Fit the bulb holder.
5.
Put back the trim cover.
