Headlamp Alignment Actuator: Adjustments

Headlamp Beam Adjustment Motor

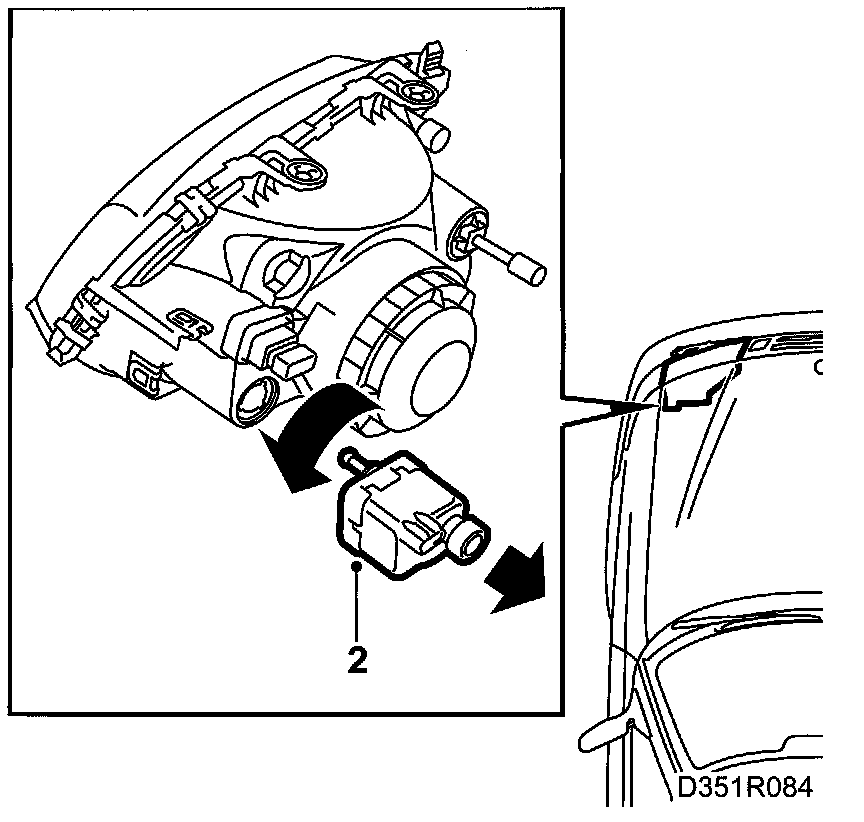

To remove







1. Remove the direction indicator. Remove the headlamp.
2. Turn the motor approx. 45 degree and pull it straight out with moderate force.

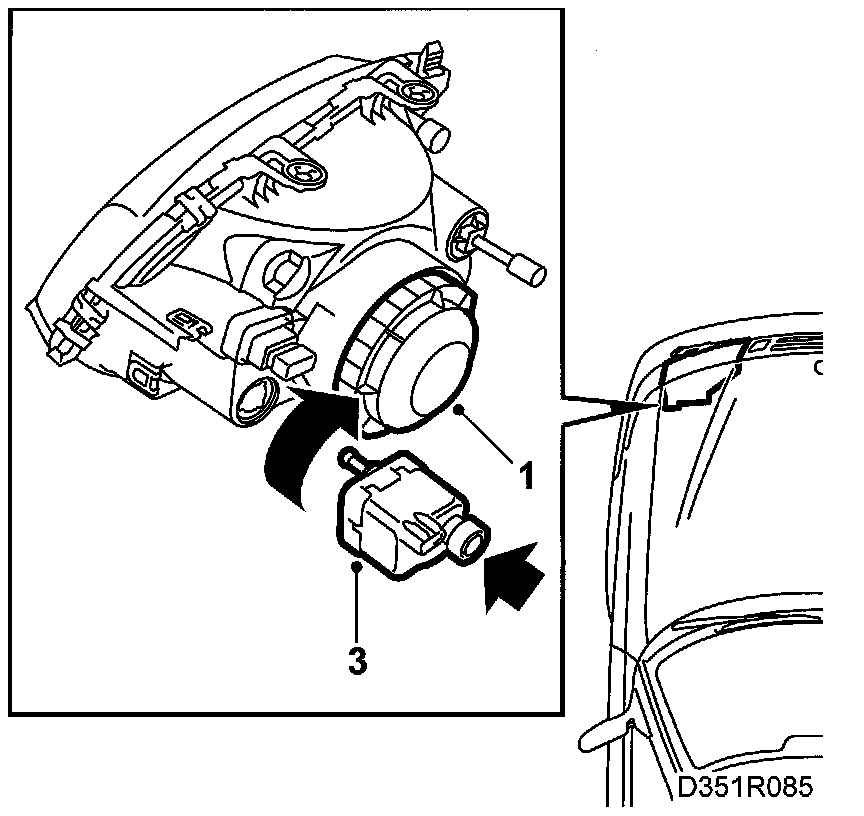

To fit







1. Remove the cover.
2. Lift up the reflector and press down the motor shaft into the groove.
3. Press in the motor and turn it approx. 45 degree to fasten it.
4. Fit the headlamp.
5. Fit the direction indicator.
