3 door and 5 door Hatchback

Rear Light Fitting In Luggage Compartment
To remove

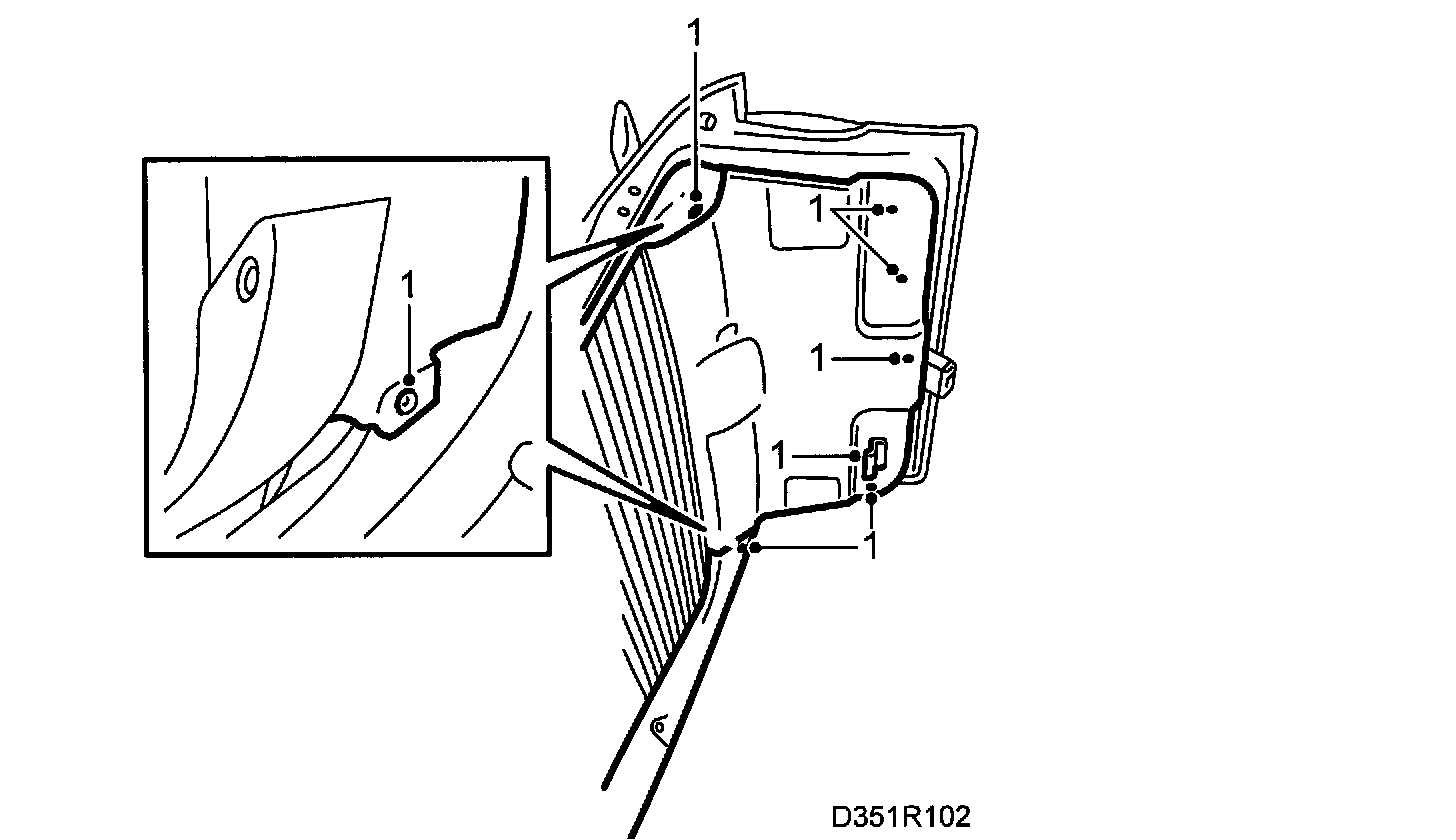

1. Open the cover in the luggage compartment trim on the side in question.

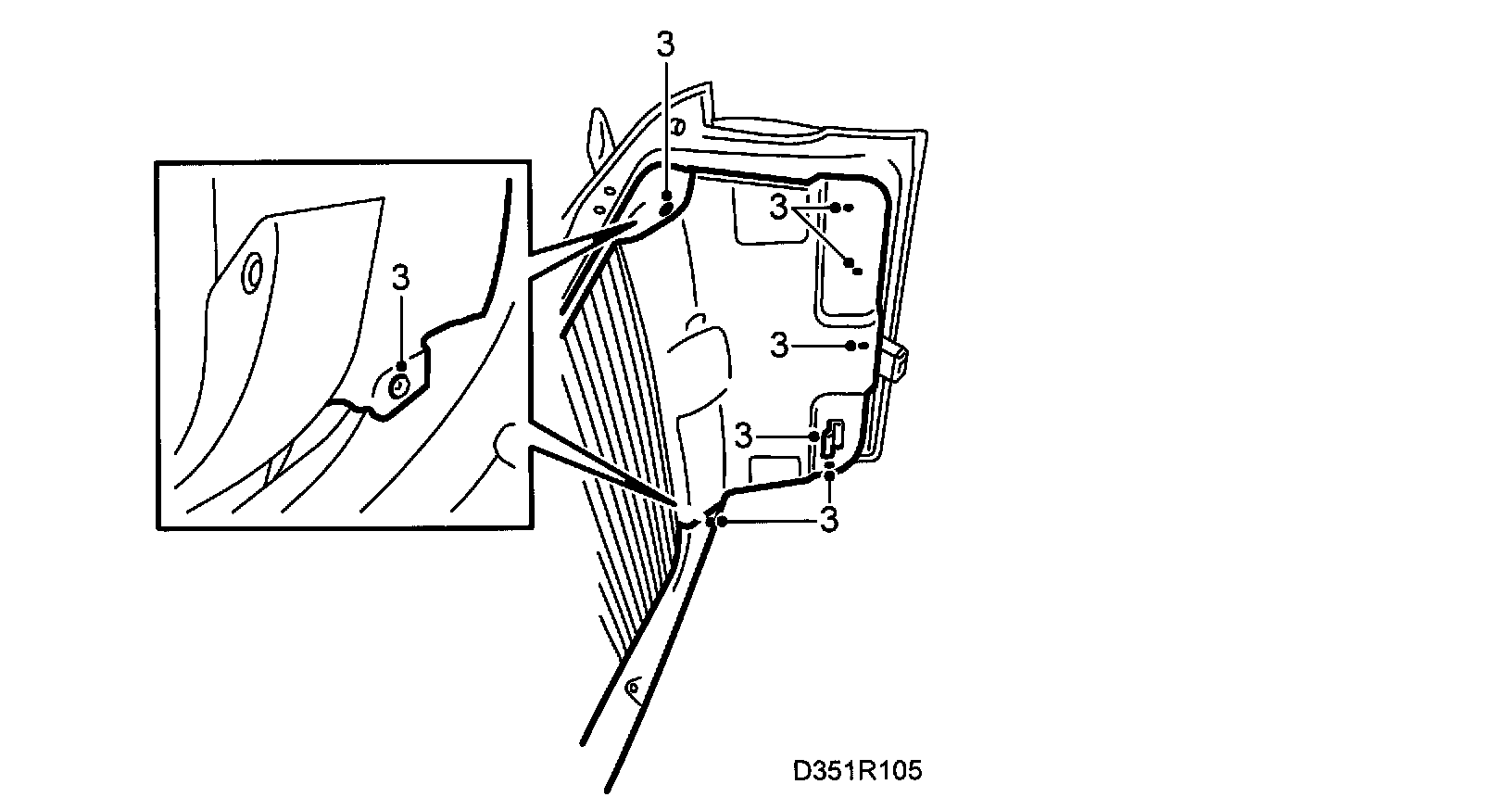

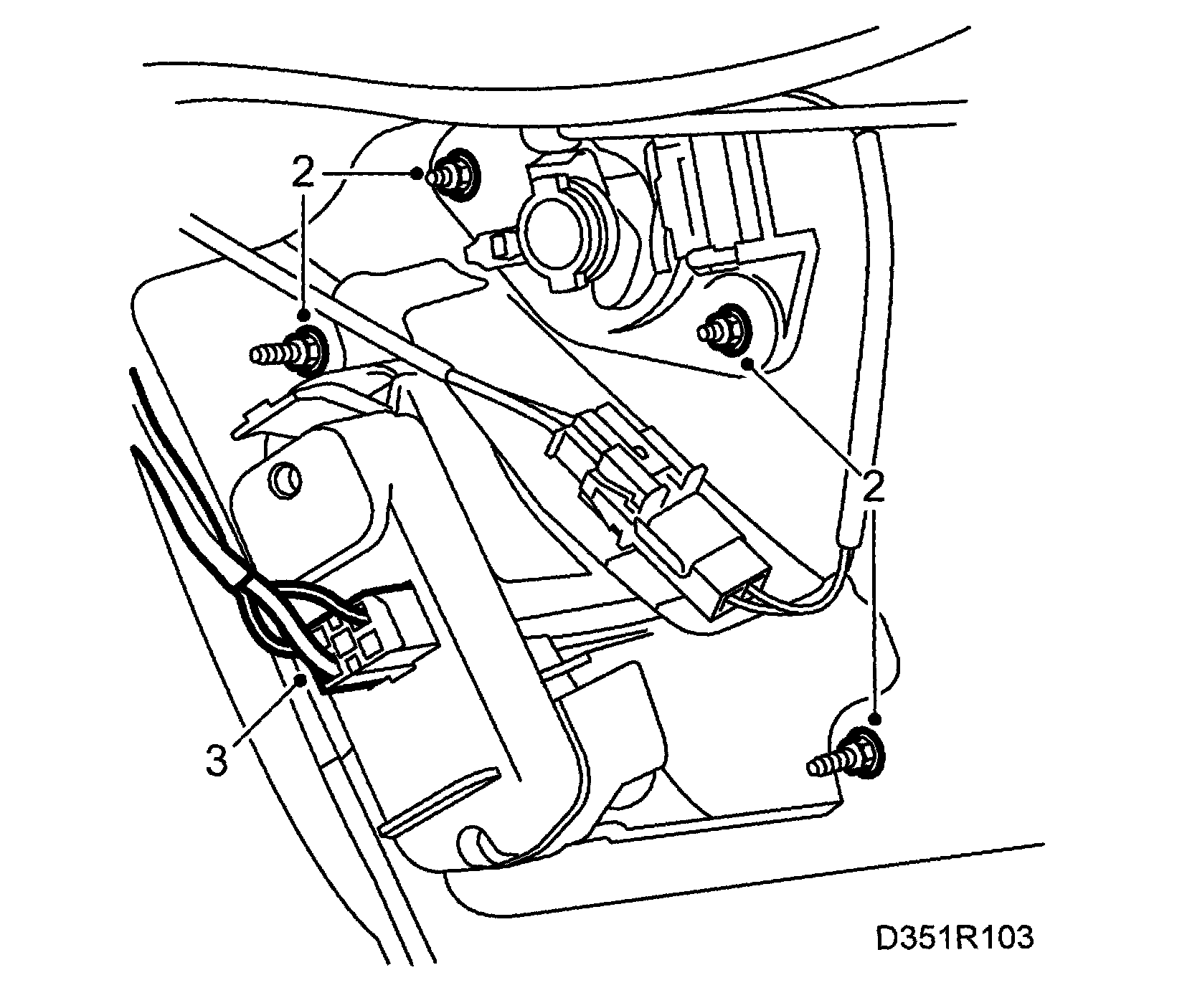

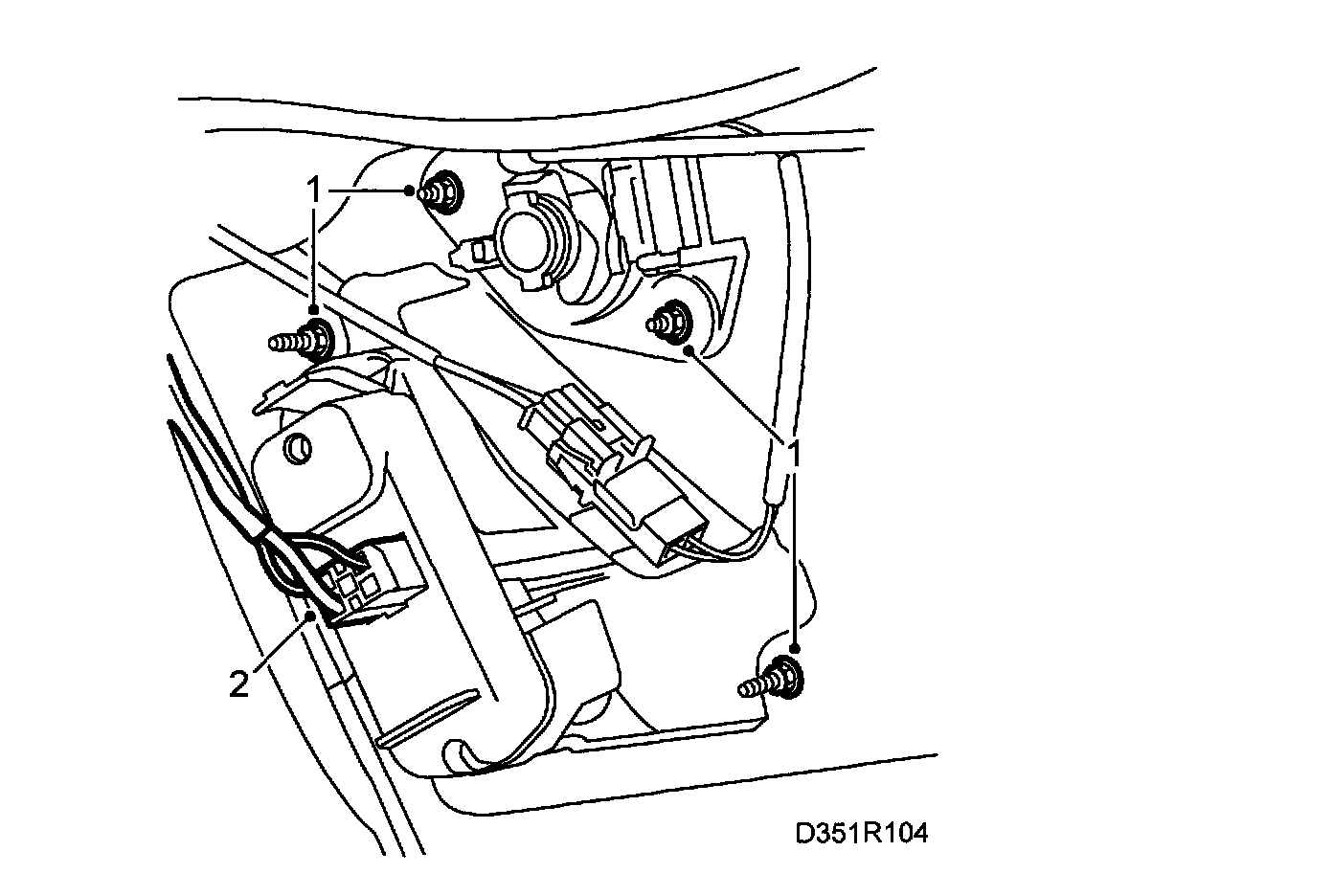

2. Unscrew the nuts holding the lamp fitting, 3 (LH side) and 4 (RH side).
3. Loosen the lamp holder.

To fit





1. Press in the lower corner of the fitting and fit the screws, 3 (LH side) and 4 (RH side).
2. Fit the lamp holder.





3. Close the cover in the luggage compartment trim.
