Instrument Panel Bulb: Service and Repair

Lamp Bulbs In The Instrument Panel

Bulbs in the switches







1. Remove the storage compartment or ashtray.
2. Insert a hand into the hole and press out the switch from inside.
3. Turn the bulb on the bottom of the switch anti-clockwise and pull it out.
4. Fit a new bulb and press the switch into the panel.
5. Fit the storage compartment or ashtray

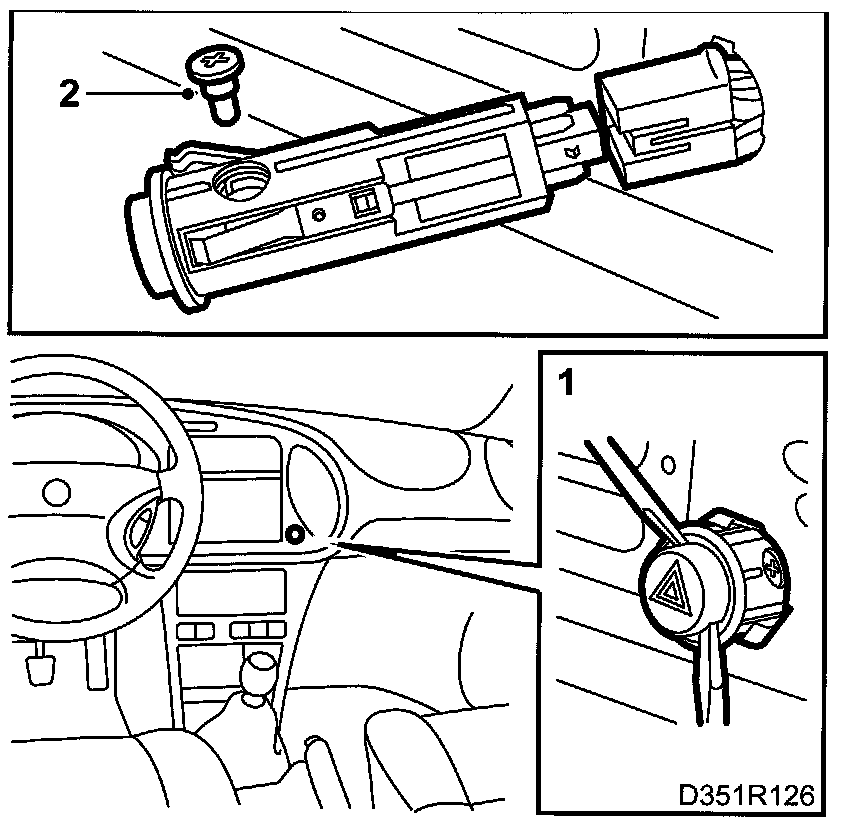

Bulb in the hazard flasher switch







1. Pull out the switch with two screwdrivers. Remove the lamp.
2. Fit a new bulb and press the switch into the panel.
