Trionic T7 (Part 2/3)

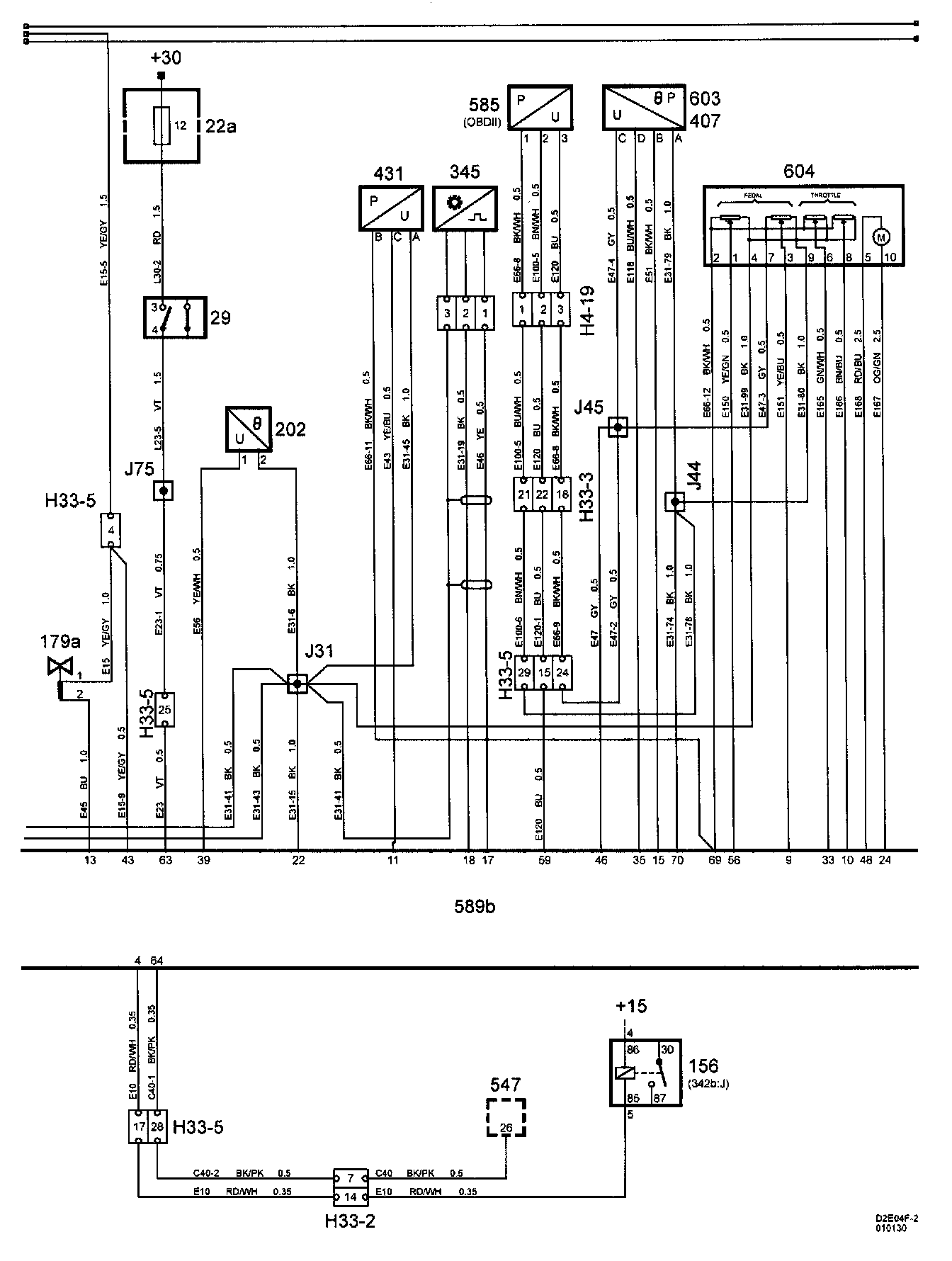

Trionic Engine Management System T7 (Part 2/3)

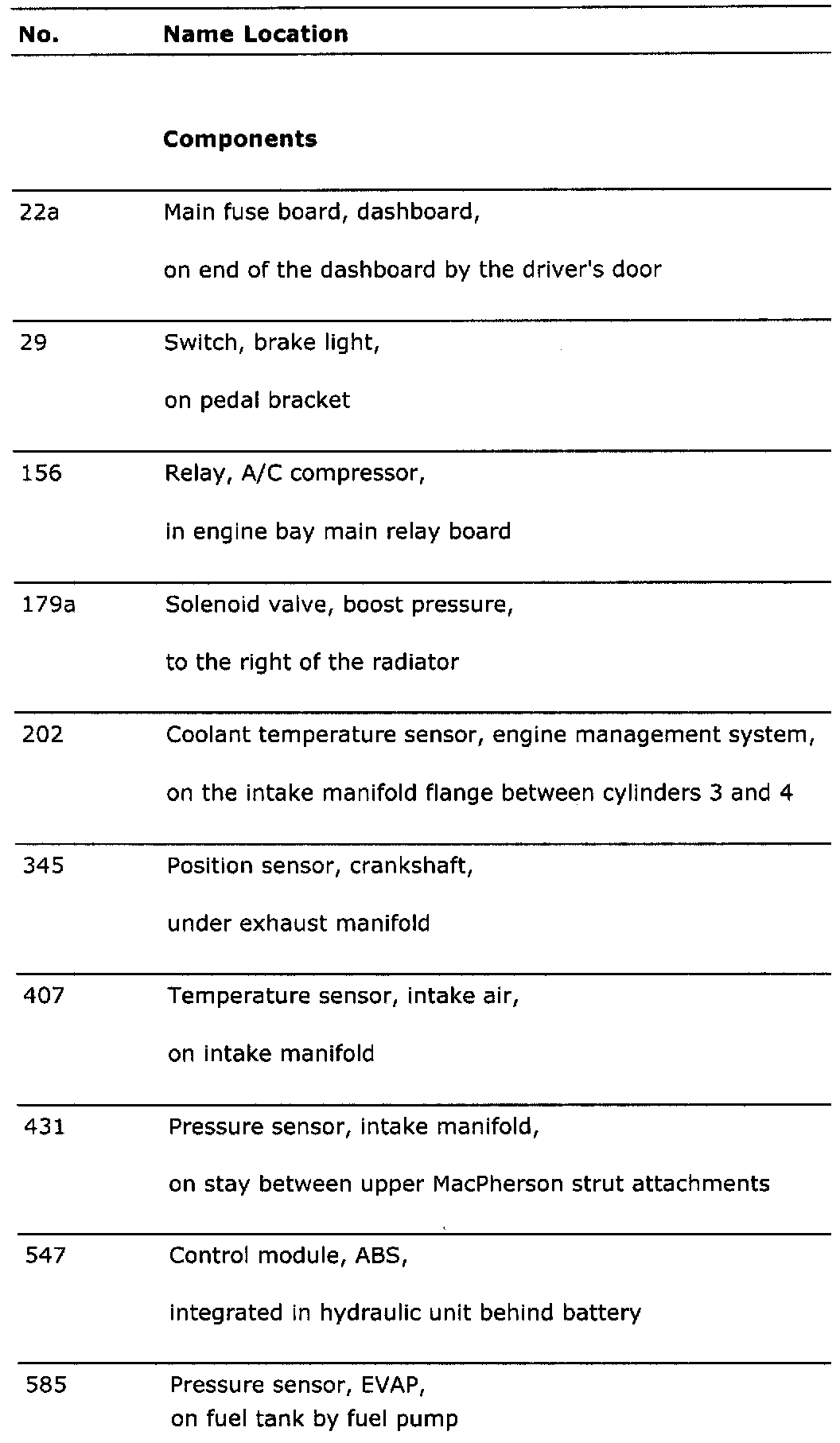

List of components


Part 1:




Part 2:
