Communication, I-Bus LHD

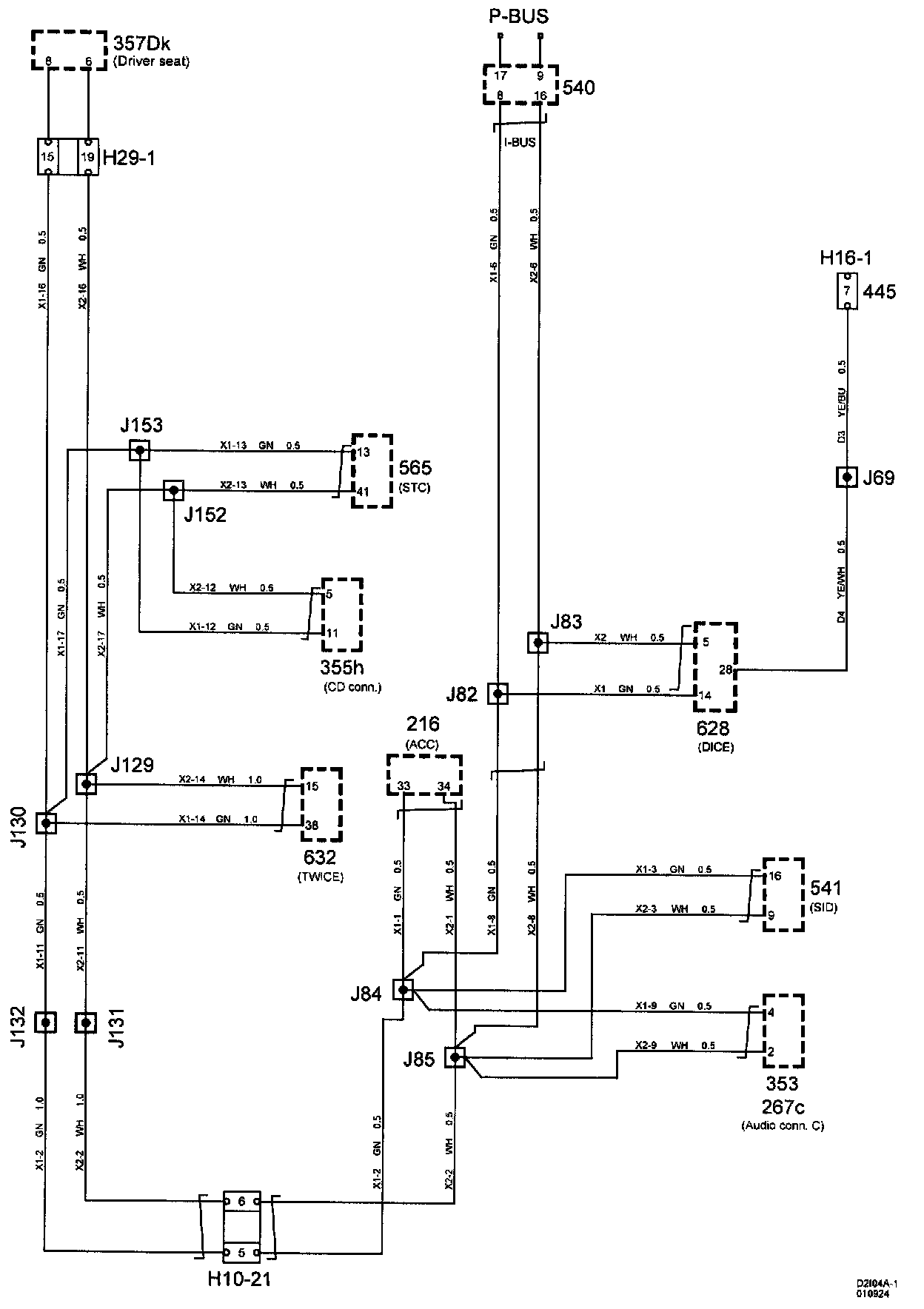

Communication, I-Bus Convertible LHD

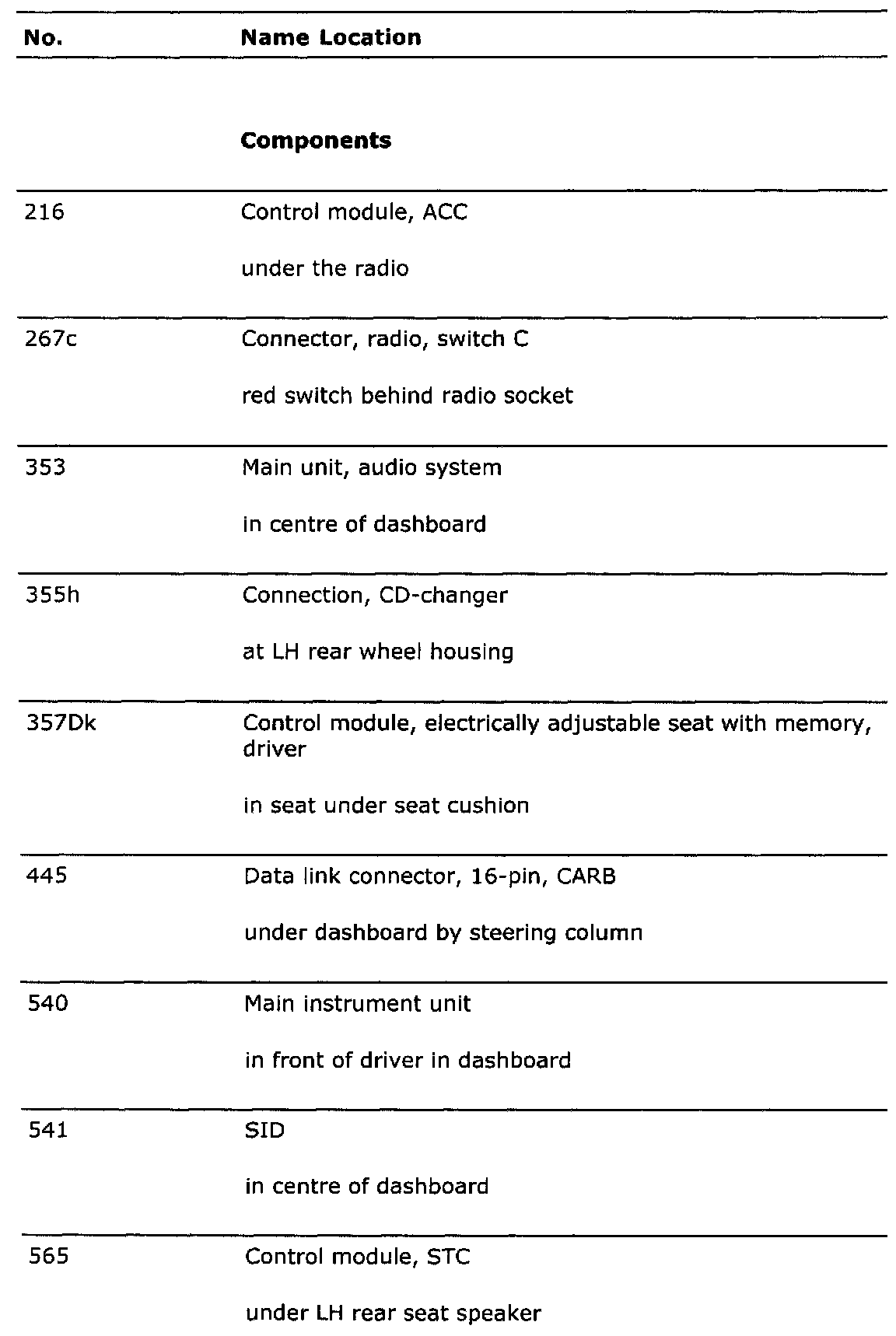

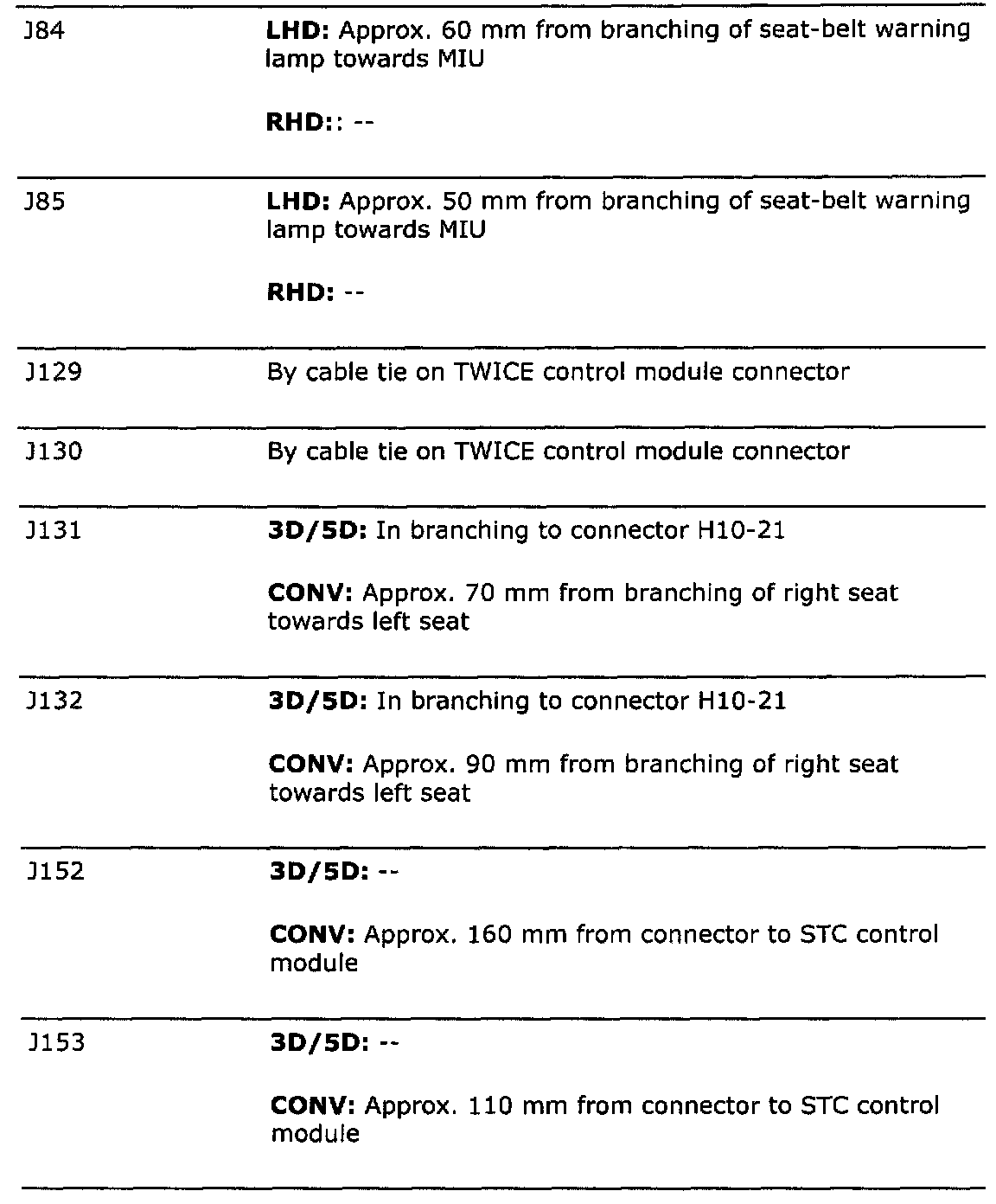

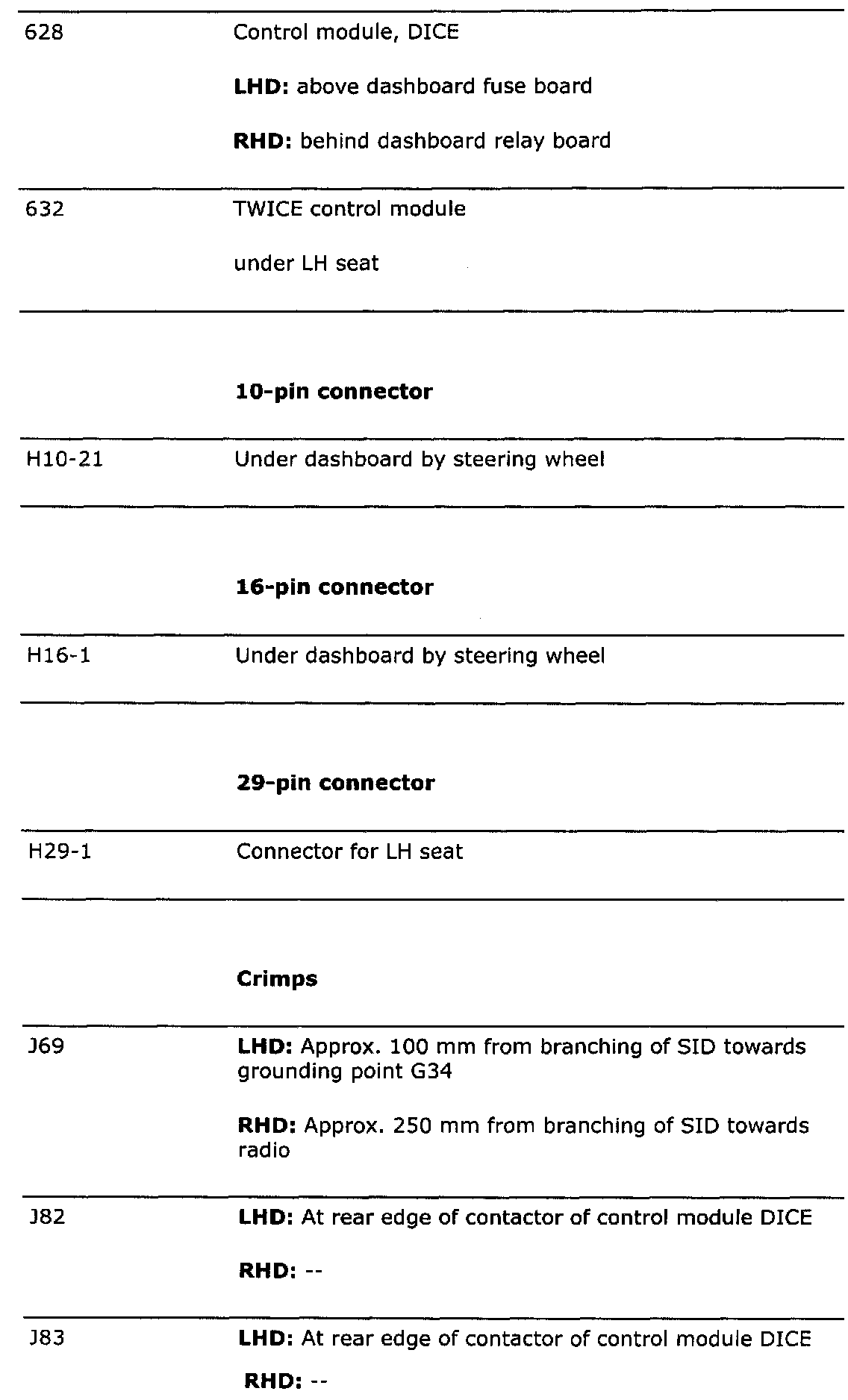

List of components


Part 1:




Part 2:




Part 3:
