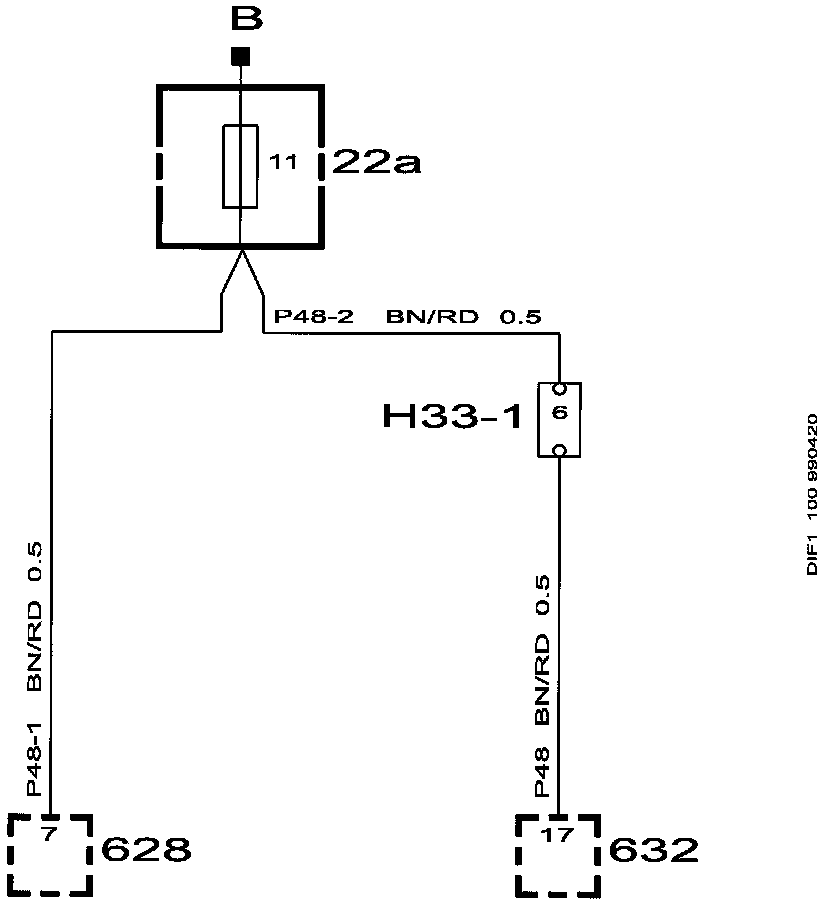

Fuse 11, Dashboard Fuse Board 22a

Fuse 11, Dashboard Fuse Board 22a:

Diagram Legend (Component I. D. List): The names of the components shown on this diagram can be determined via their numbers as found under Diagrams/Diagram Information and Instructions/Component I. D. List.
