Manual Control Panel, Heating and Ventilation

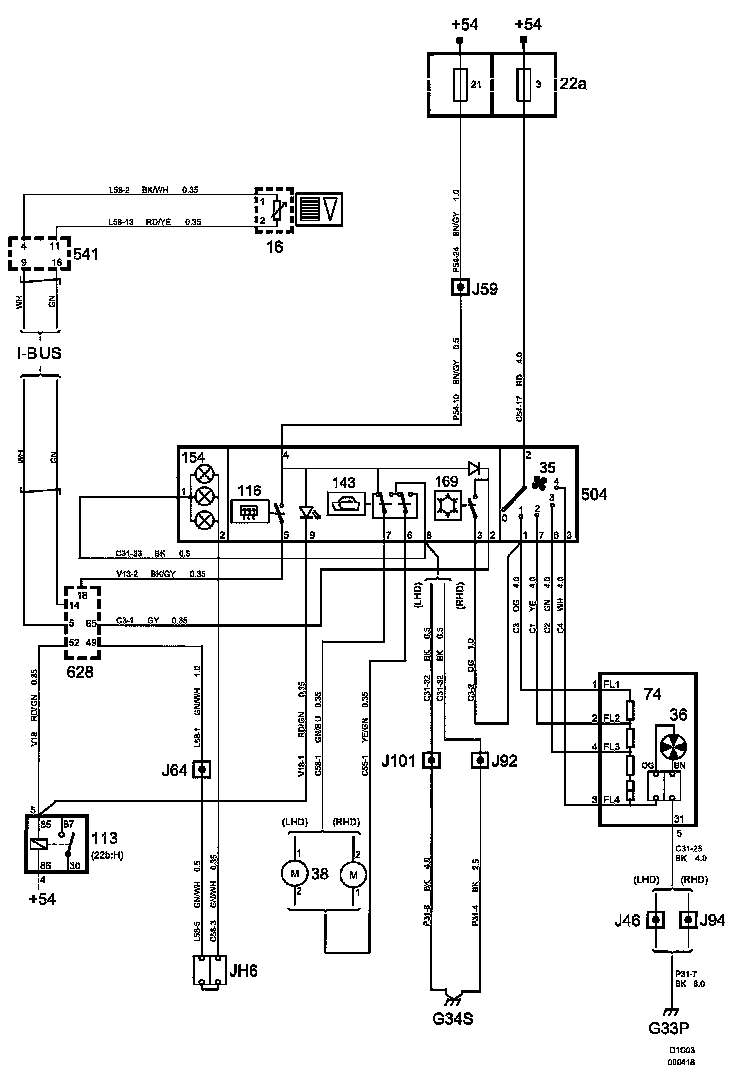

Manual Control Panel, Heating & Ventilation:

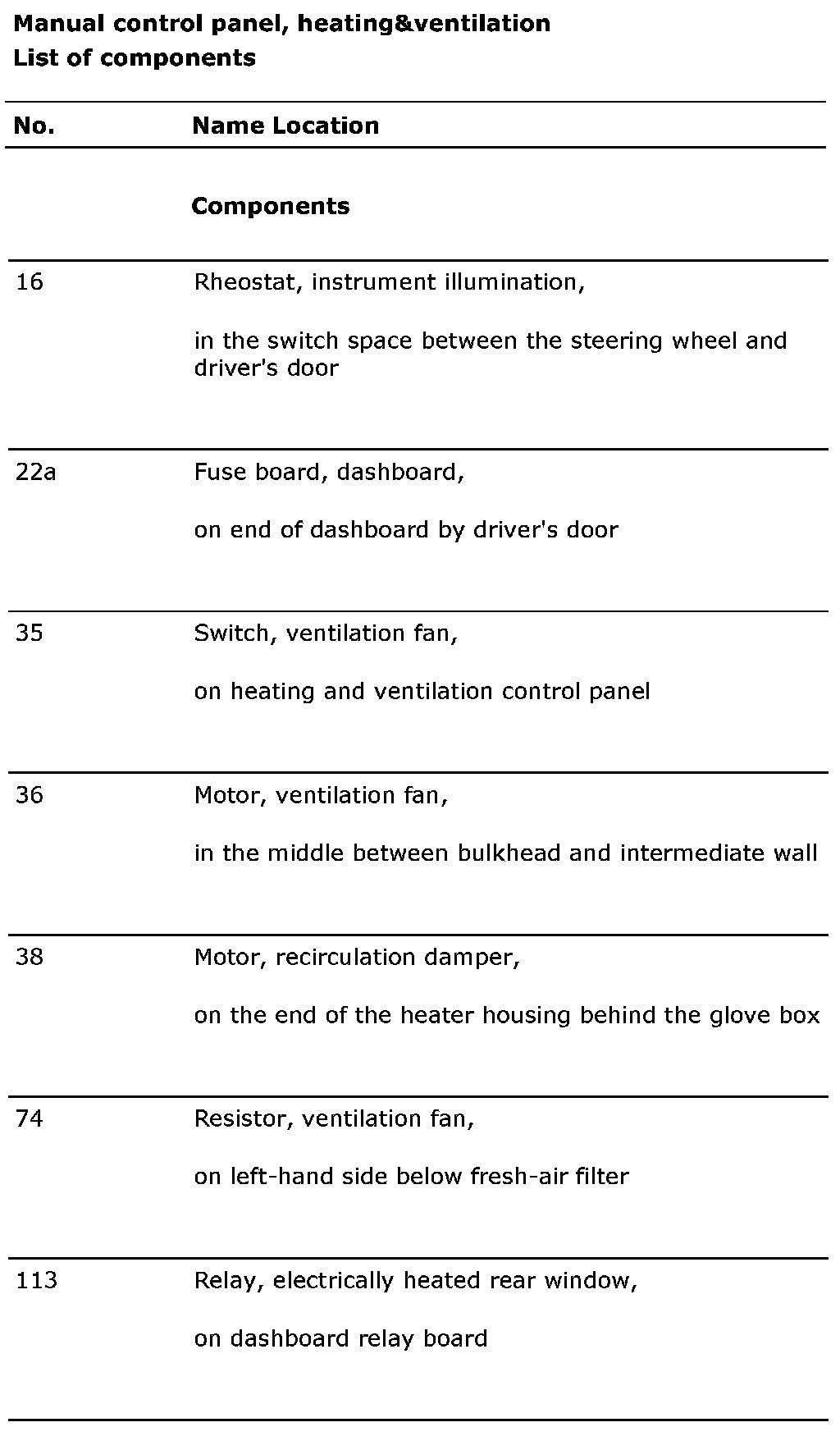

List of Components (Part 1):

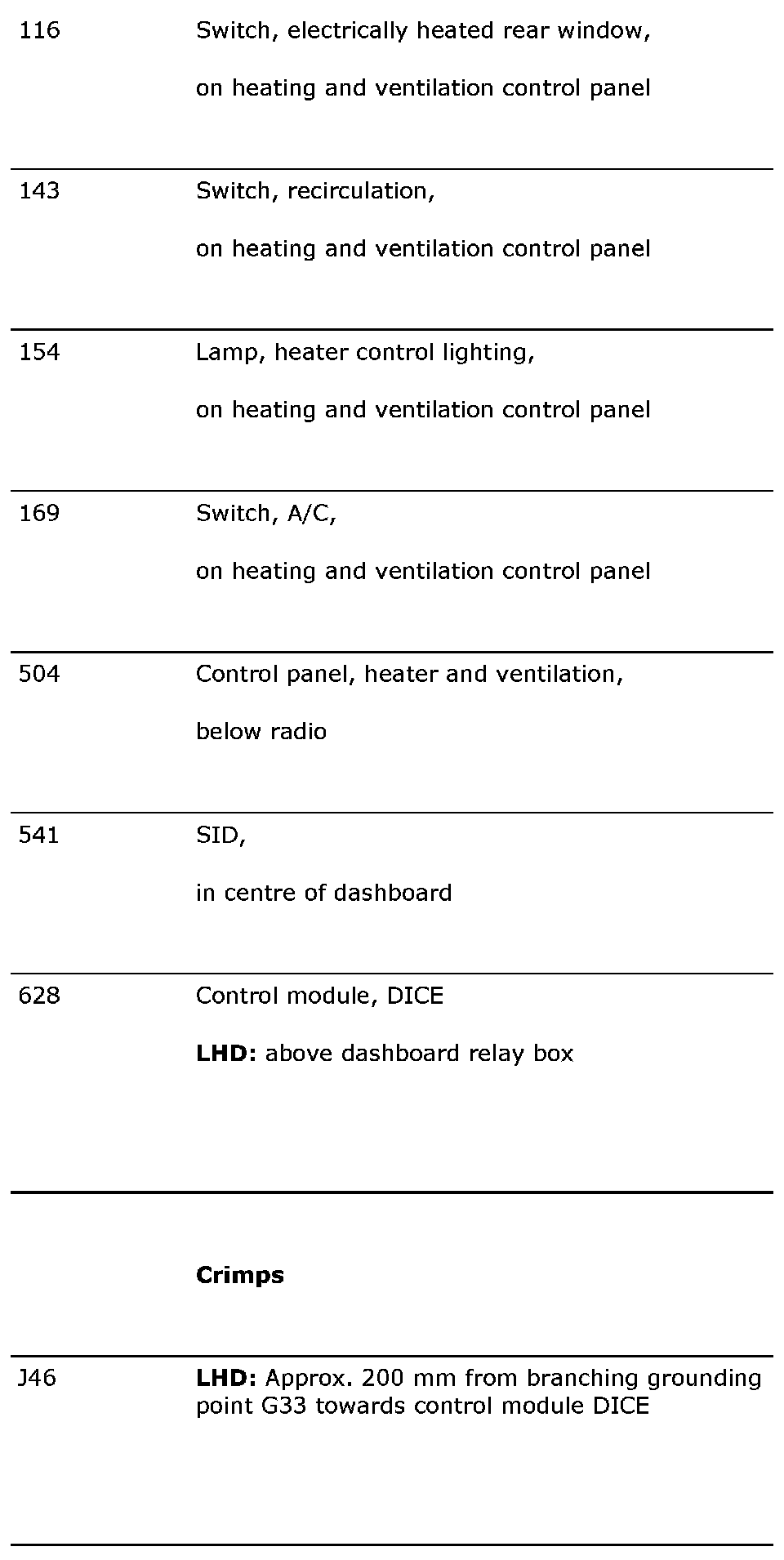

List of Components (Part 2):

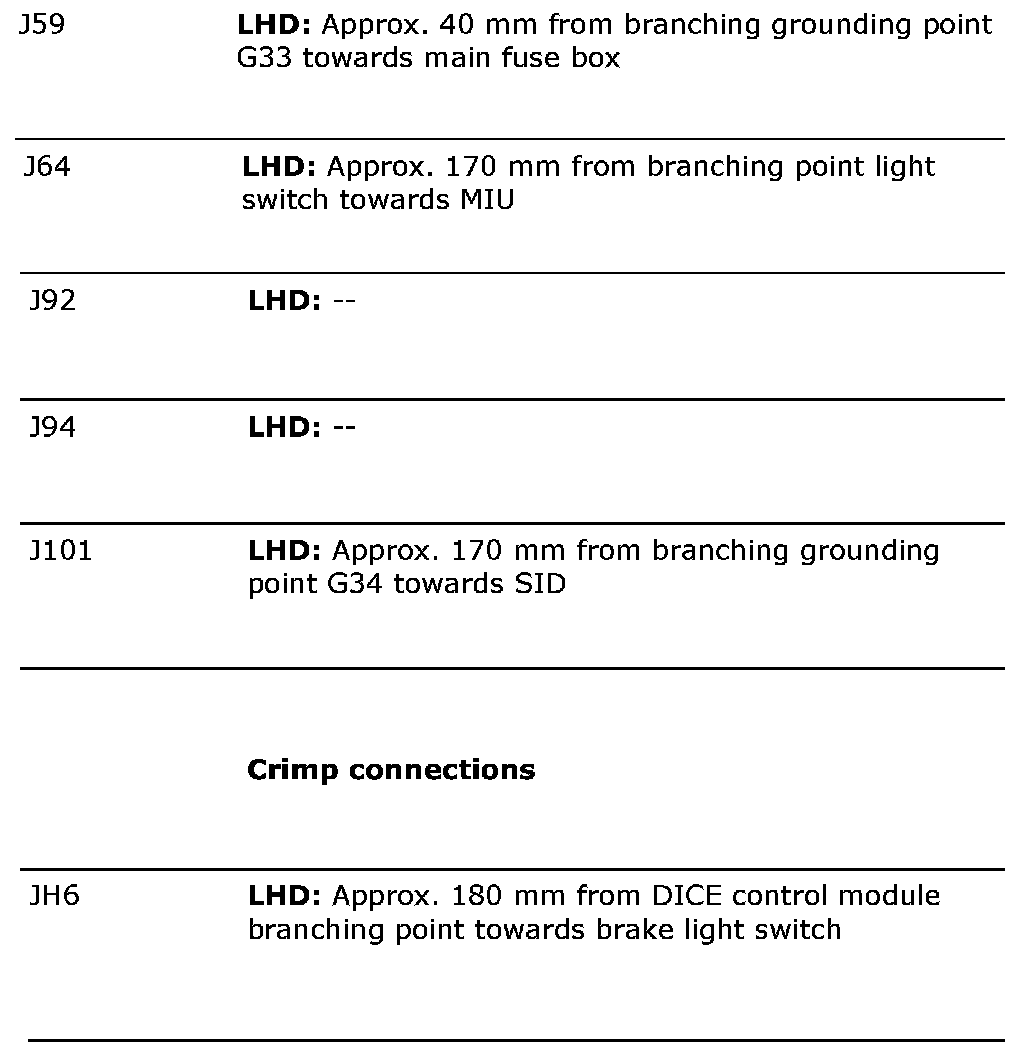

List of Components (Part 3):

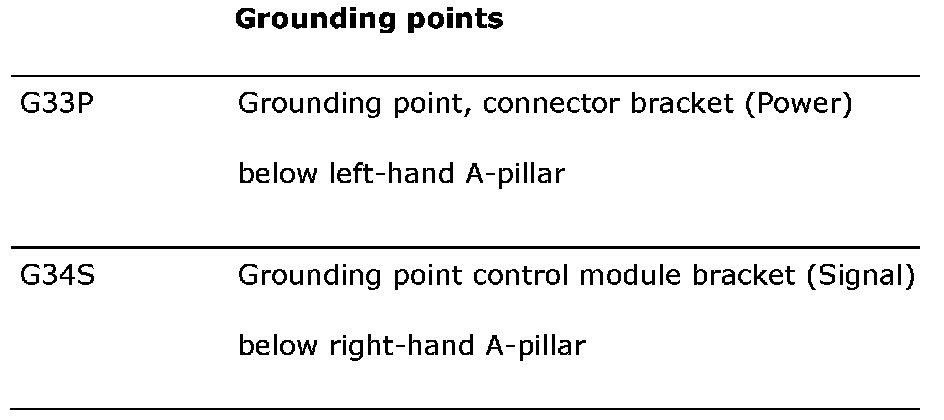

List of Components (Part 4):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
