9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Wheel Speed Sensor
Wheel Speed Sensor

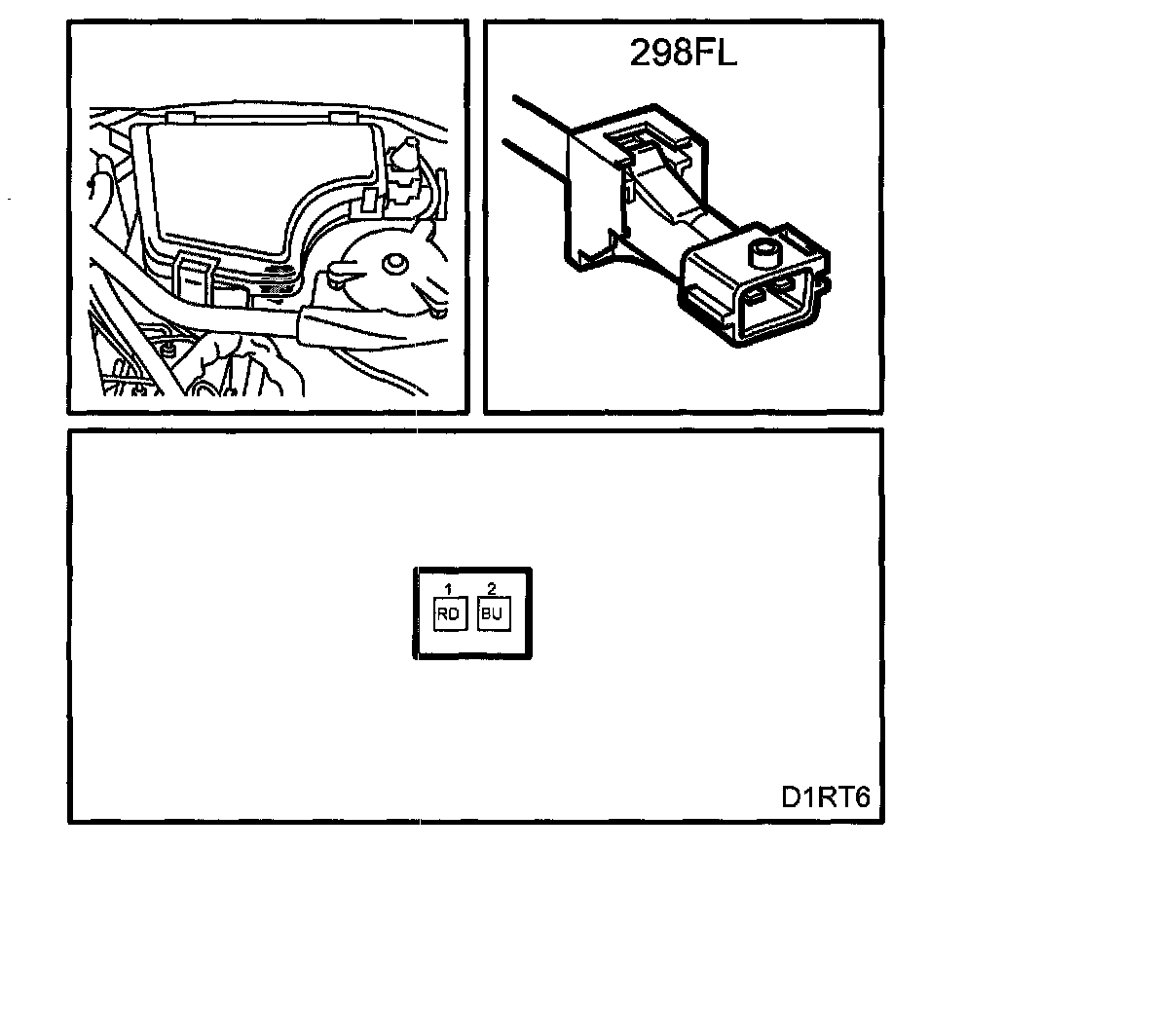

Wheel Speed Sensor, Front Left (298FL):

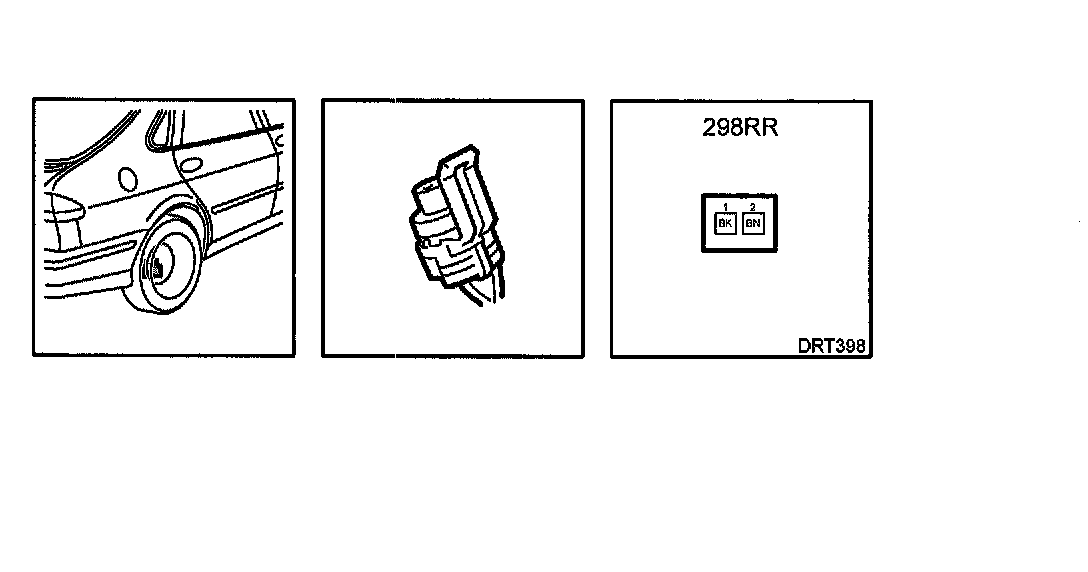

Wheel Speed Sensor, Rear Right (2981RR):

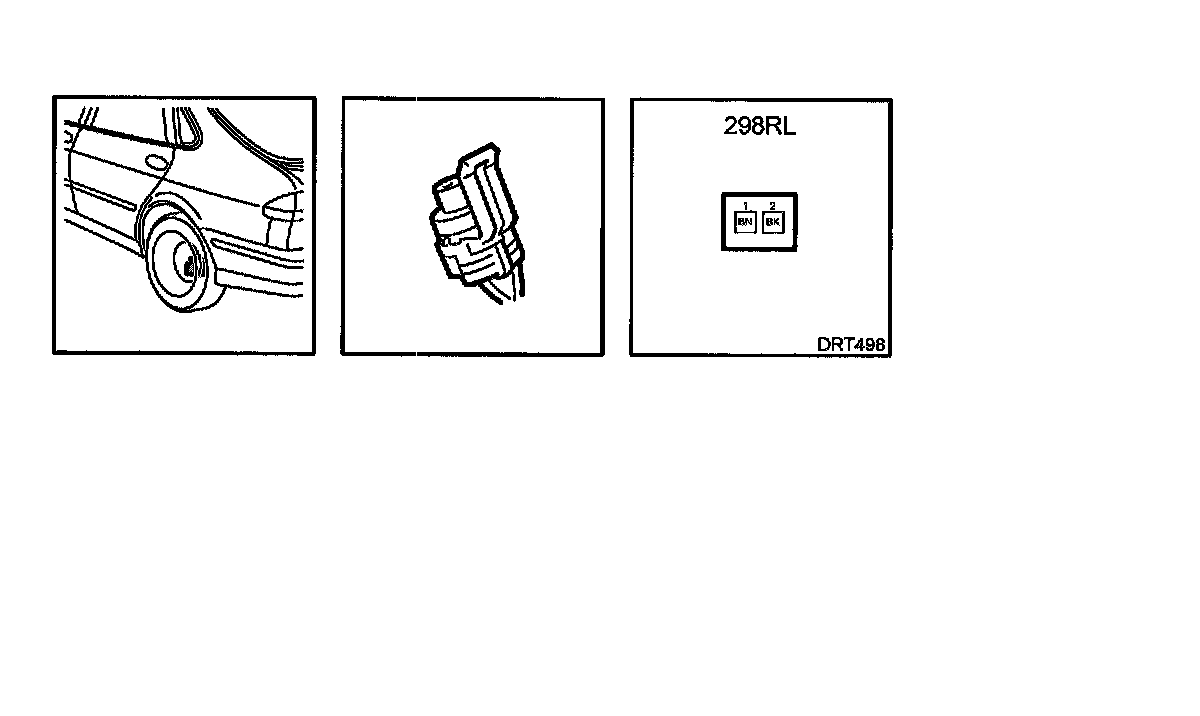

Wheel Speed Sensor, Rear Left (298RL):
Wheel Speed Sensor, Front Right (298FR):
