Electrical Diagrams

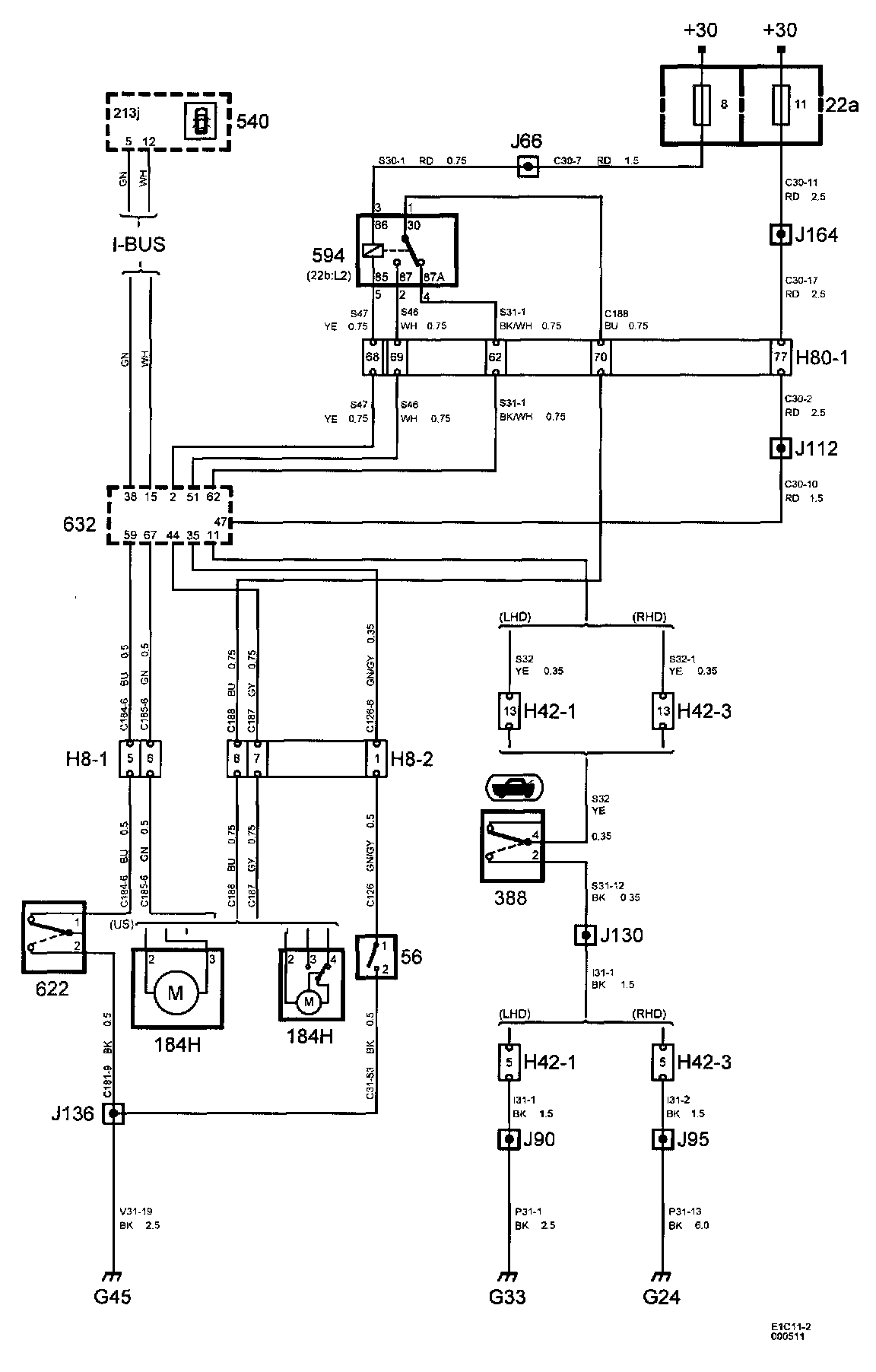

Electrical Opening Of Tailgate Lock, 5D

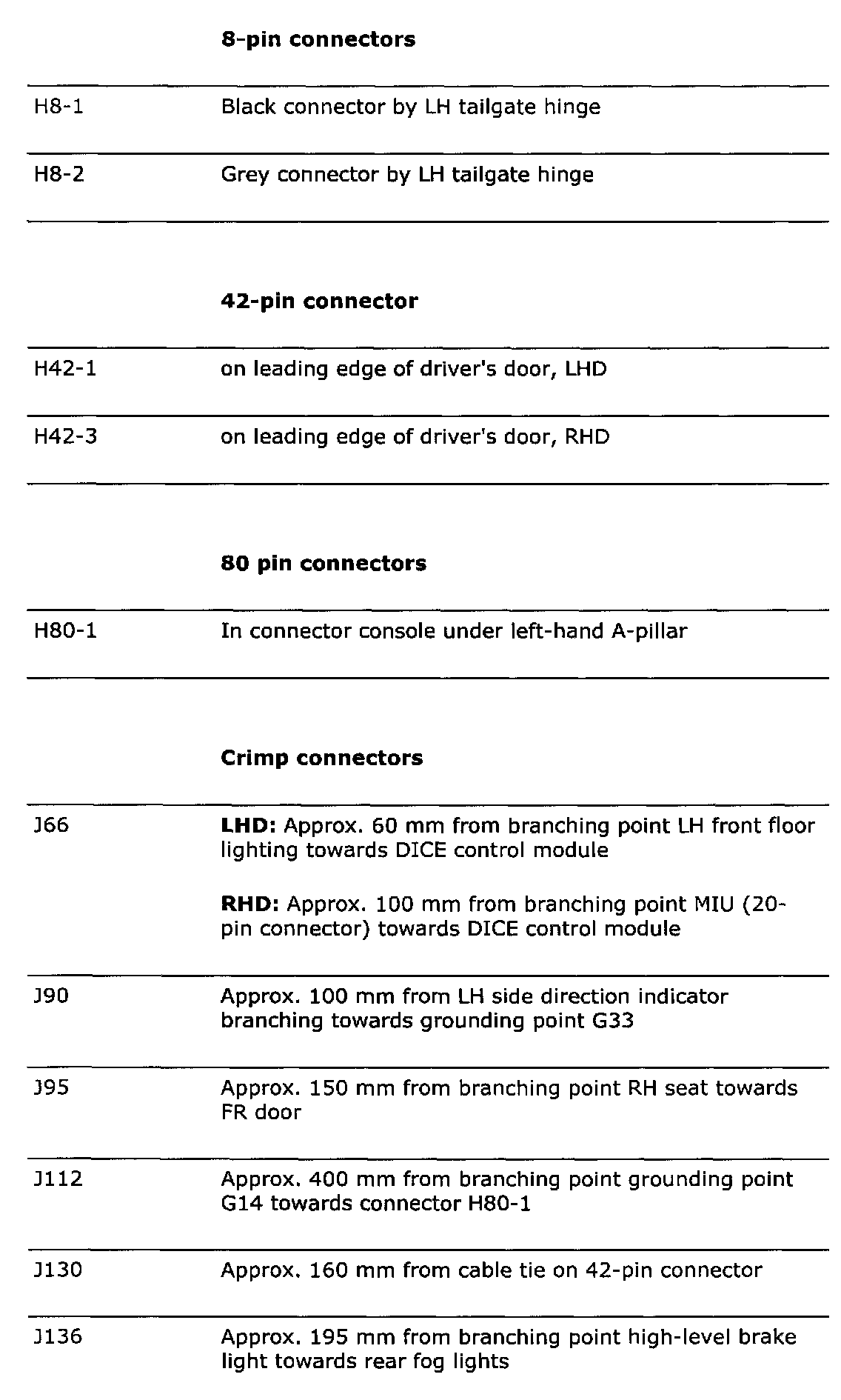

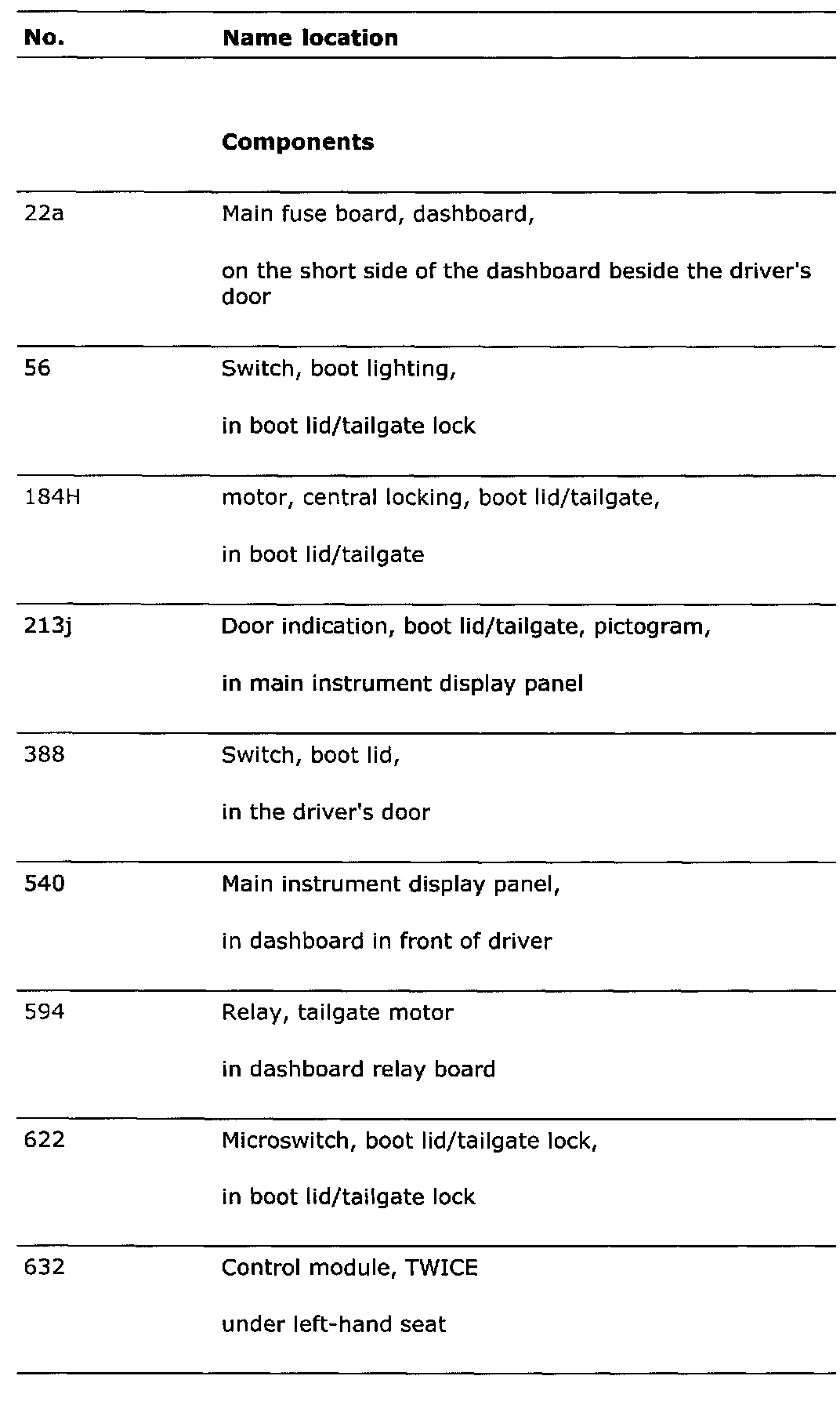

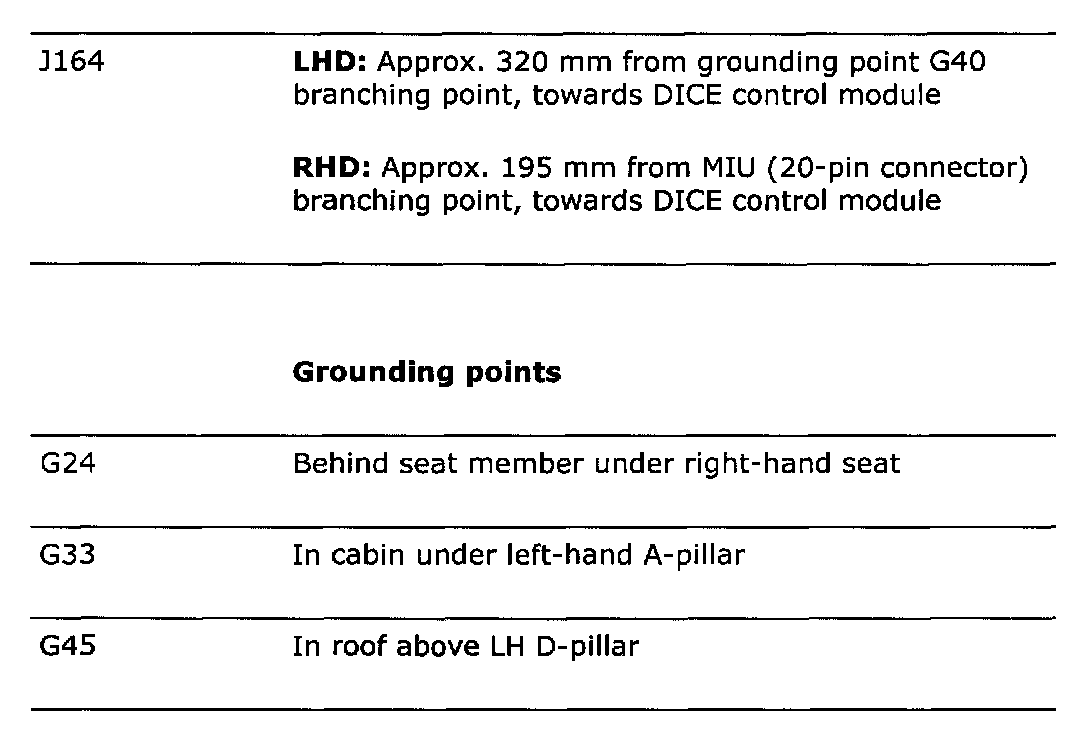

List of components


Part 1:






Part 2:






Part 3:
