Control Module Power Supply

Control Module Power Supply

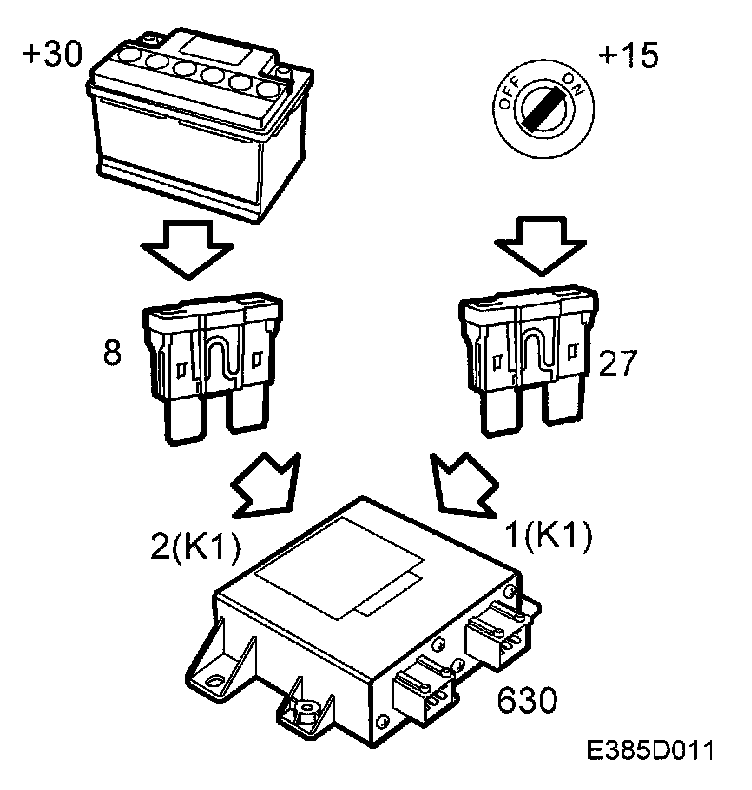

+30

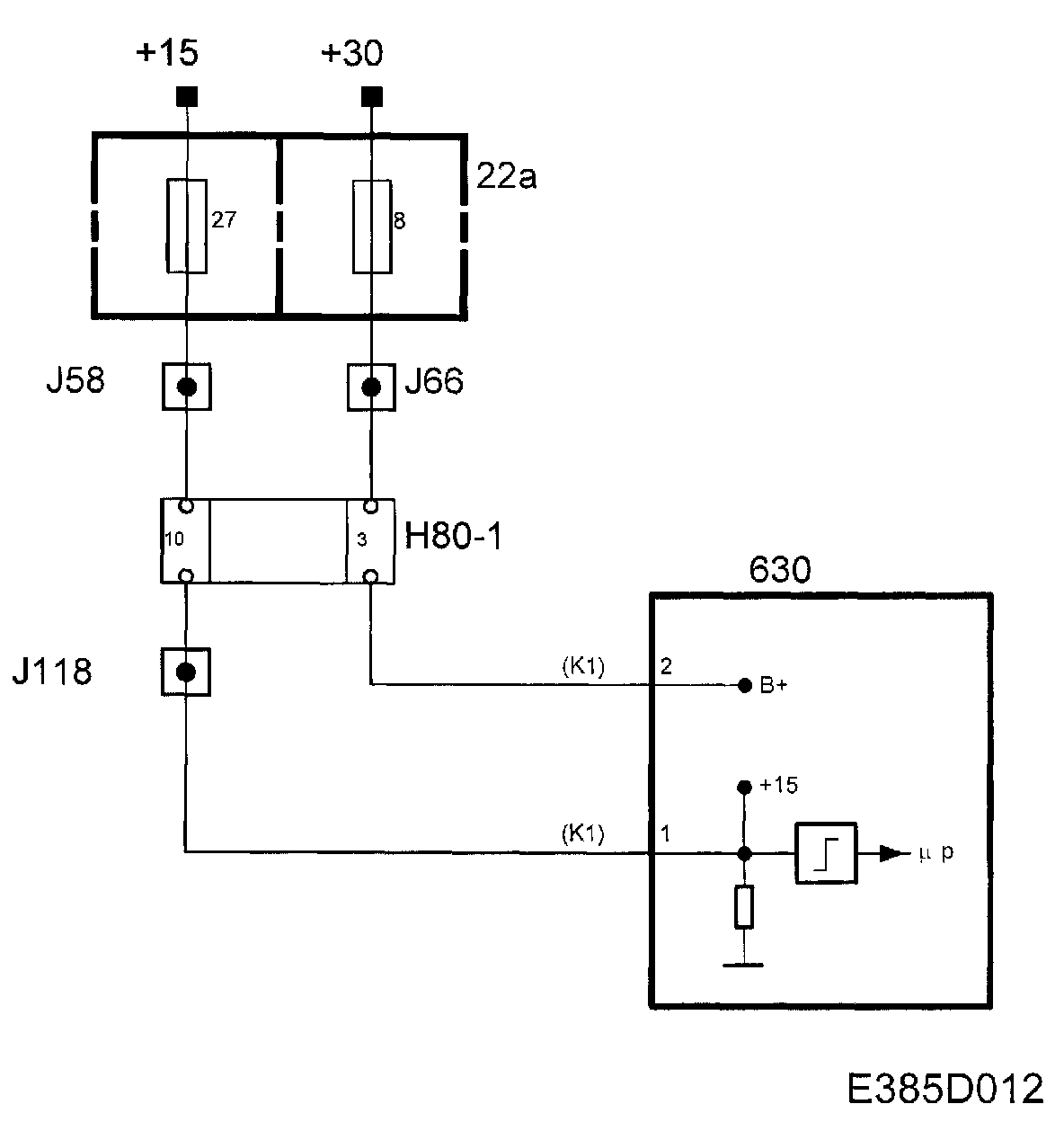

Pin 2 of the control module connector (K1) is supplied power from fuse 8.

+15
Pin 1 of the control module connector (K1) is supplied current (+15 circuit) from fuse 27

When current (+15 circuit) is supplied to pin 1, the control module is activated into one of the 3 modes:
- Standby
- Active
- Detected

Which mode the control module enters depends on which gear is selected and whether or not there are any objects behind or alongside the car.
