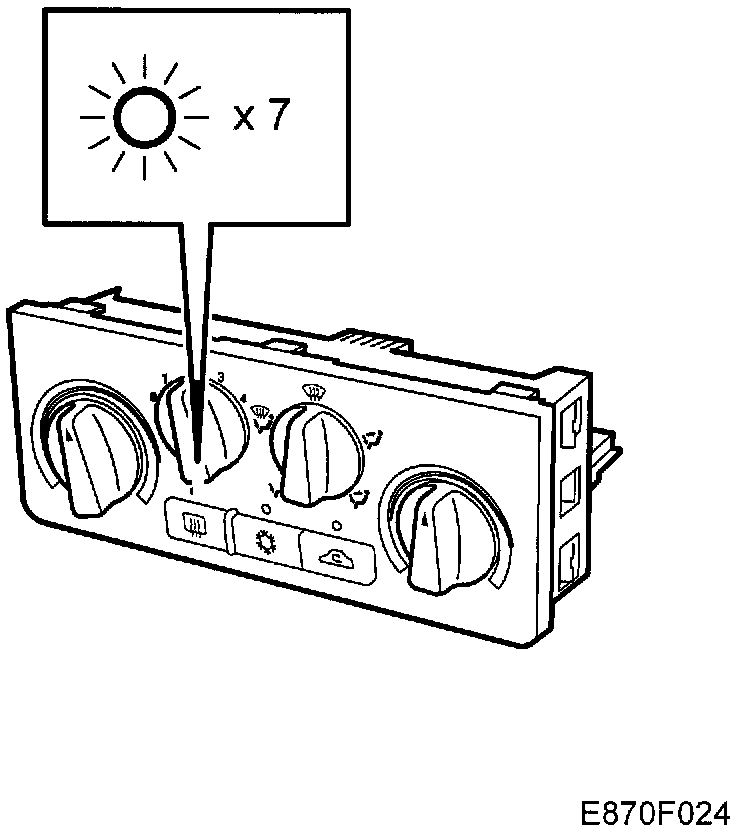

DTC 07

7

Open Circuit, Short To Ground Or Short To B+ In A Motor.

Fault Symptoms
Unable to change air distribution defrost/floor. Unable to adjust heating.

Conditions
When calibrating, the current consumption for all three motors is measured. The current consumption is compared to a stored set-point value. If the current consumption deviates from the set-point value, diagnostic trouble code 7 is set.
