B1240

B1240

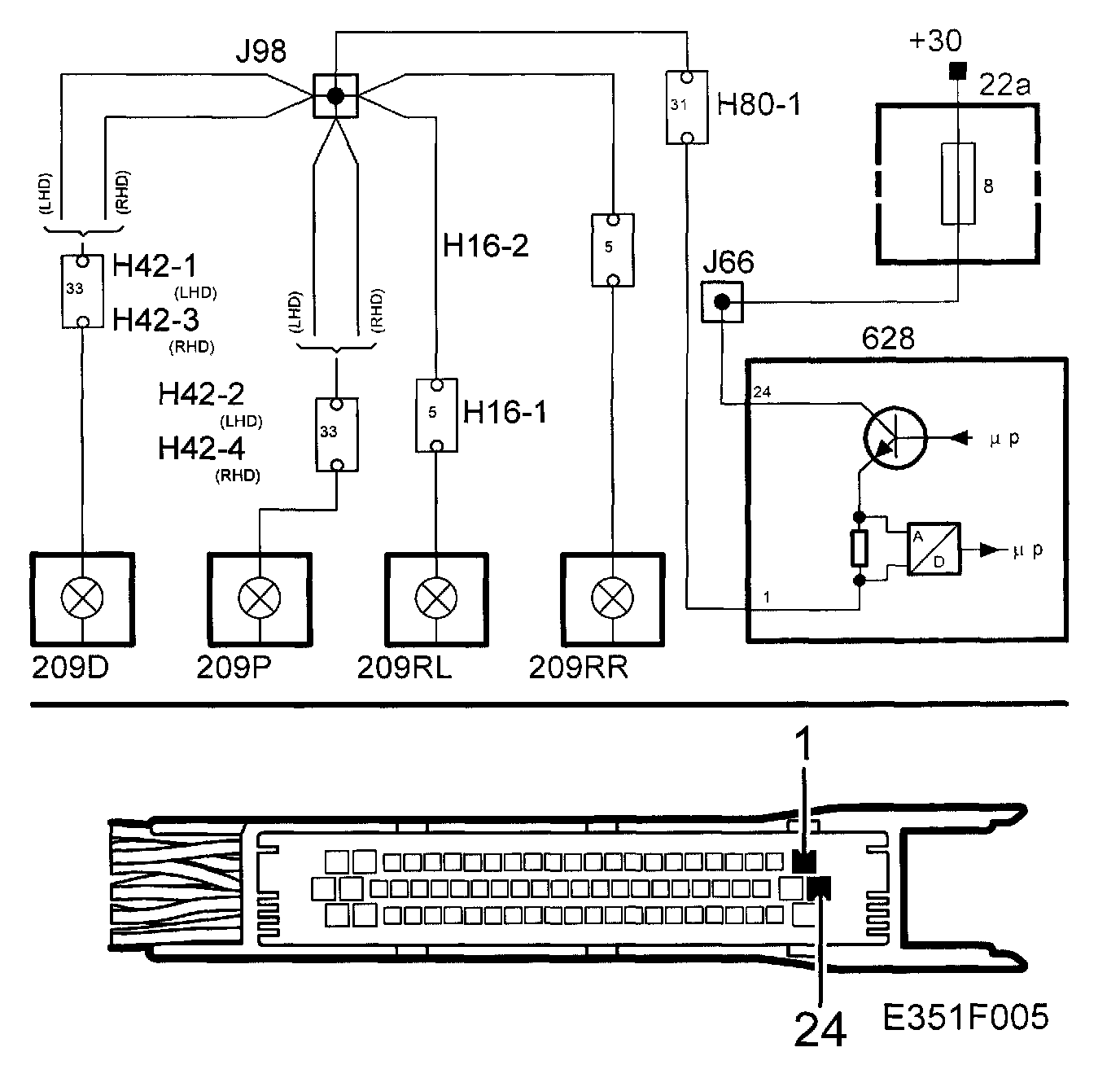

Door Lighting







Fault symptoms
Courtesy lights not working.

Condition
The output is overload protected and is cut if the load is too high. A DTC is generated if this occurs.

DTCs are not generated if the voltage is below 11 V or during diagnostic communication.

Diagnostic help
Make sure the bulbs are of the correct rating.

If a lamp with too high a rating is fitted, diagnostic trouble code B1240 can be generated.

The overload protection is reset by turning the ignition OFF and then ON.


IMPORTANT
The DICE control module can be damaged if a bulb with incorrect rating is fitted.
