Symptoms and Conditions

Part 2 Of 2:

Fault symptoms
The Winter or Sport mode cannot be selected.

Conditions

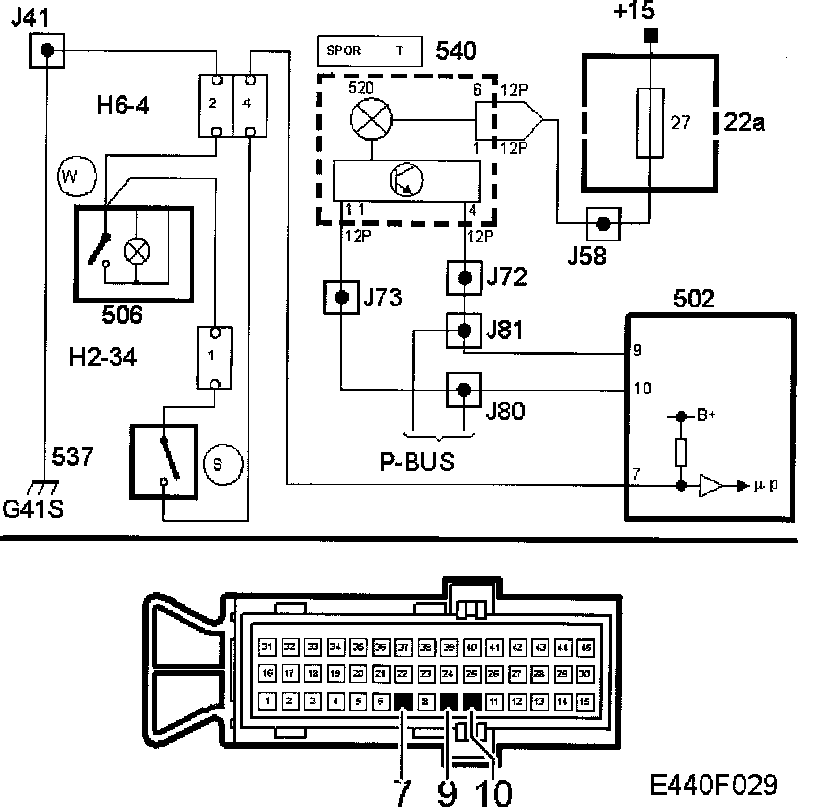

The wiring or switch is faulty.

Diagnostic help
The status of the WINTER/SPORT mode can be ascertained with the diagnostic instrument.
