Electronic Over-Revving Cut-Out


Overview

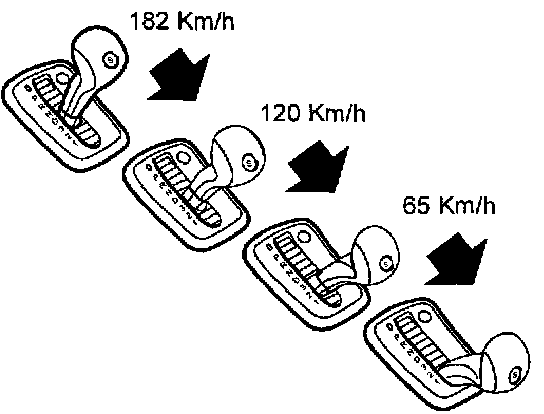

To prevent over-revving of the engine, the transmission control module is programmed with an electronic over-revving cut-out. This makes downshifting impossible until the speed of the car is below the limit for the gear in question.

____________________
4-3 182 km/h
____________________
3-2 120 km/h
____________________
2-1 65 km/h
