Home >> Saab >> 2001 >> 9-5 SE (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Splice Locations

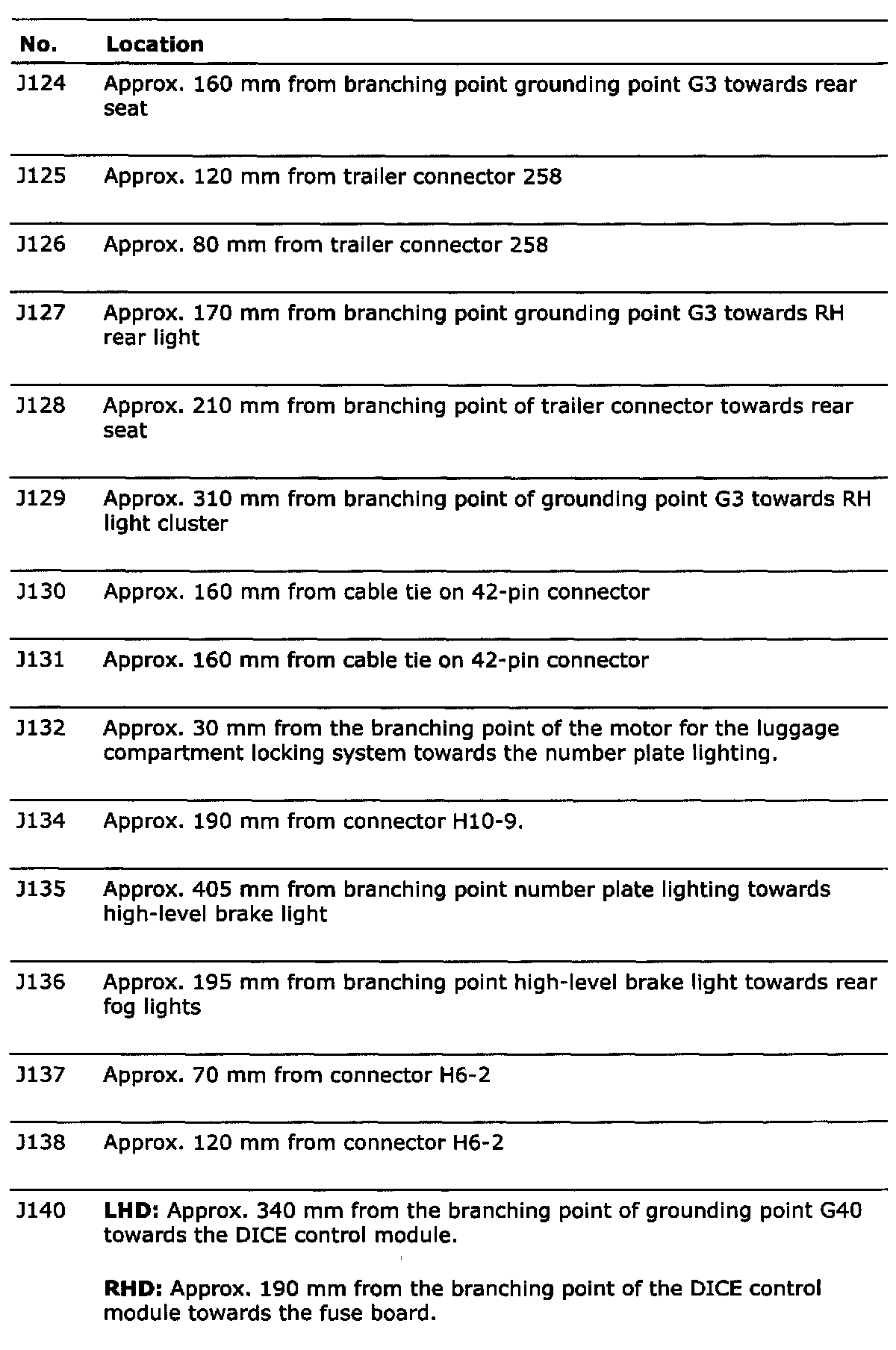

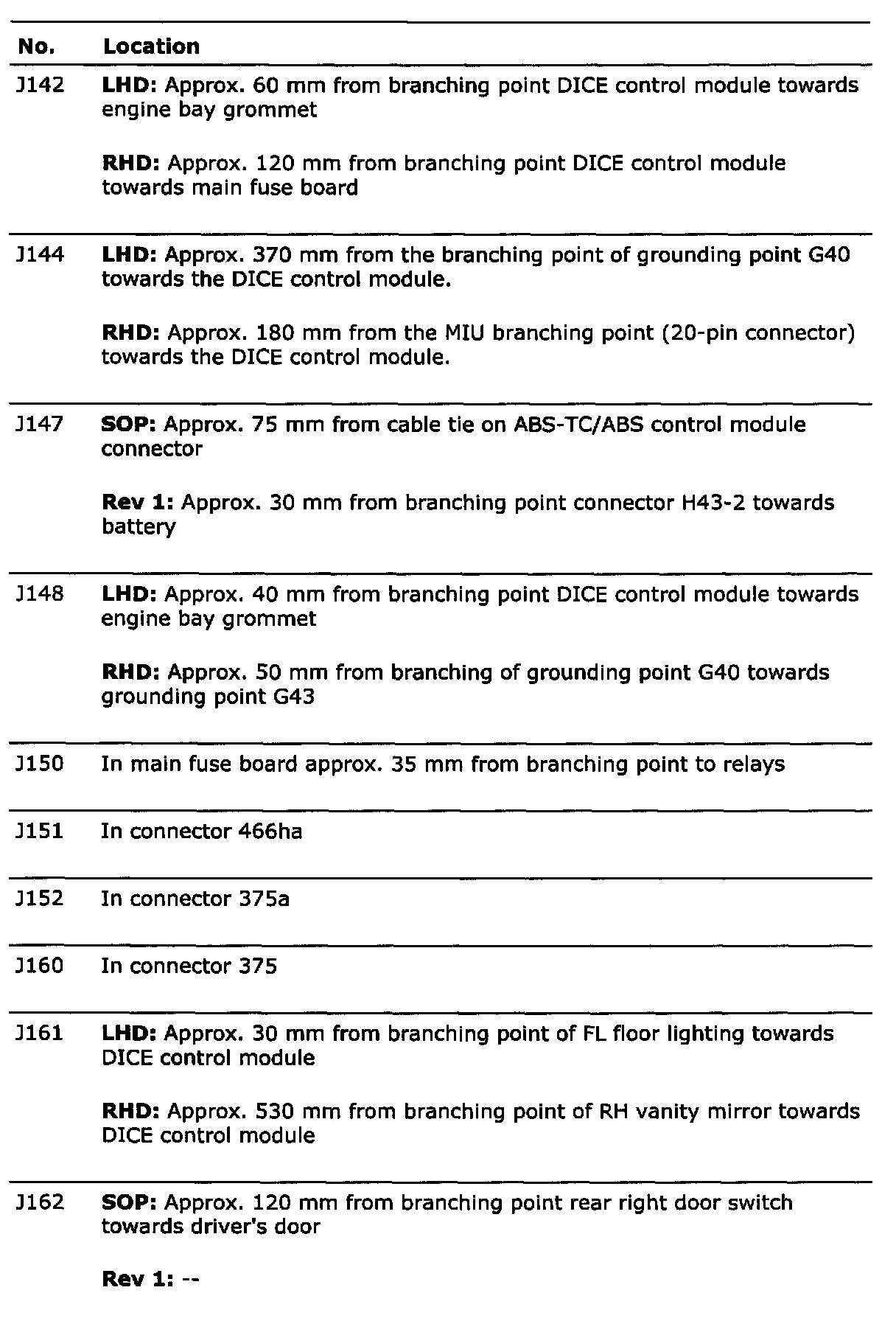

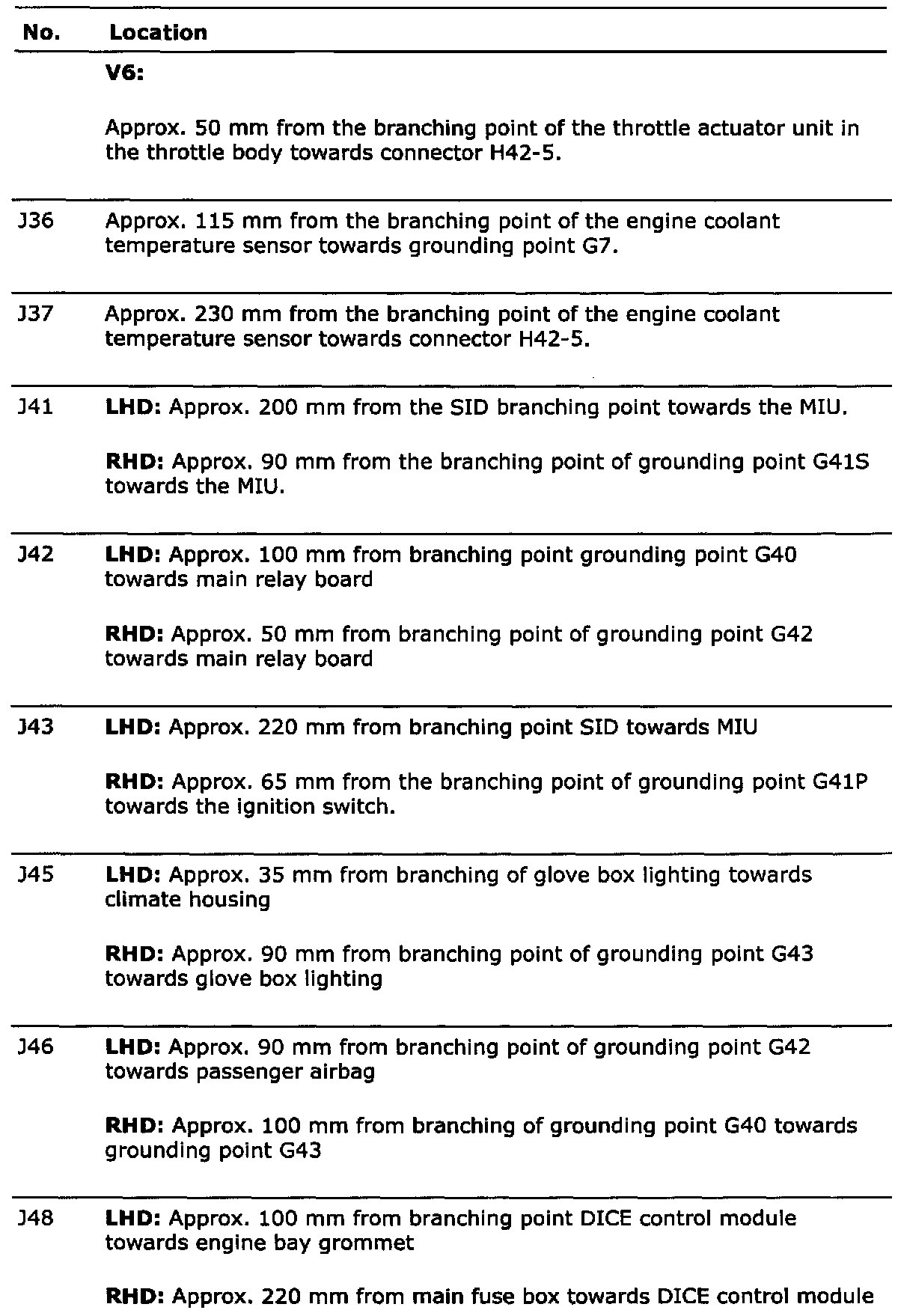

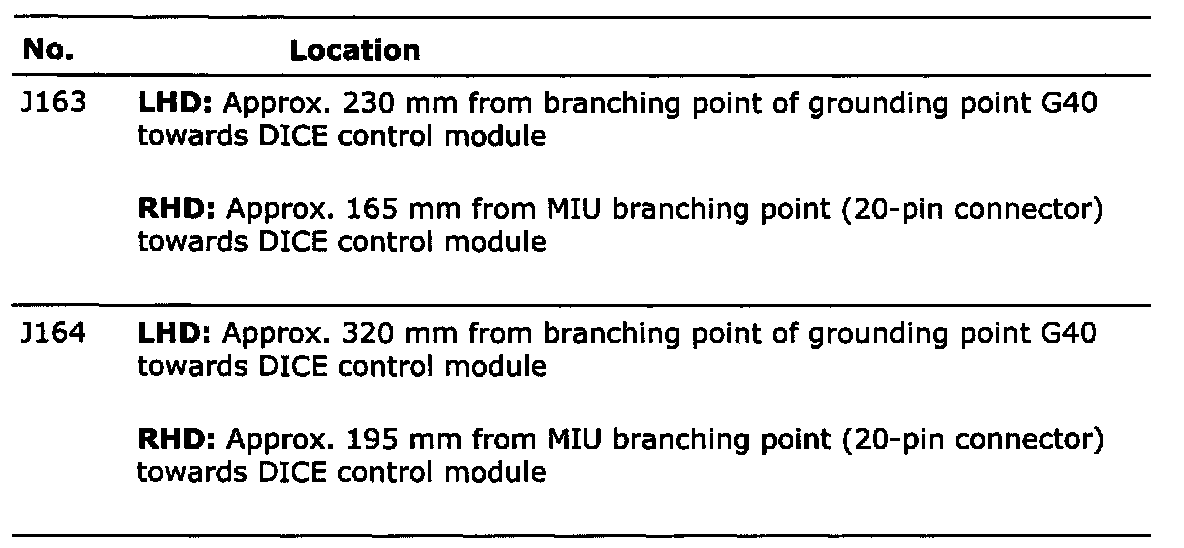

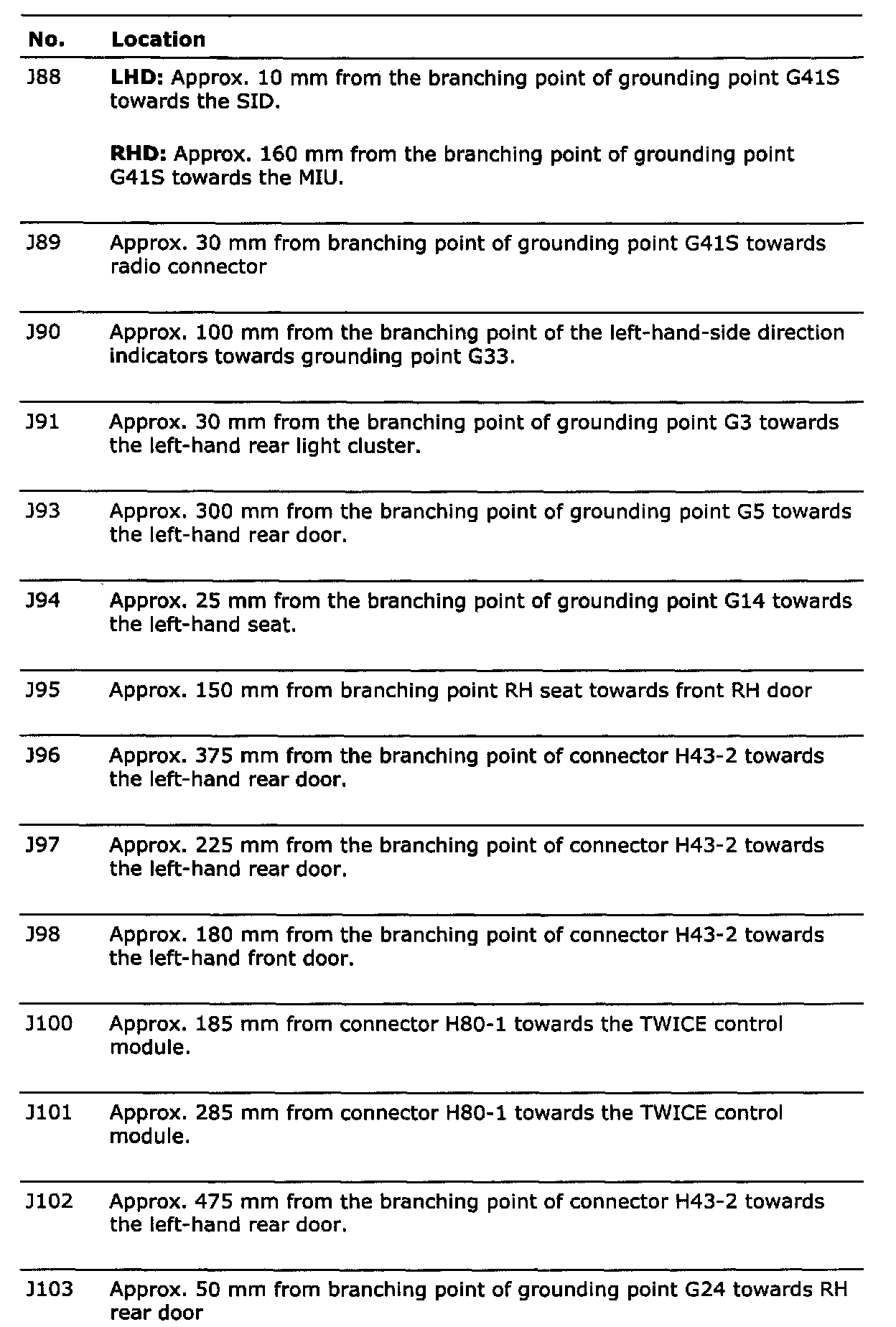

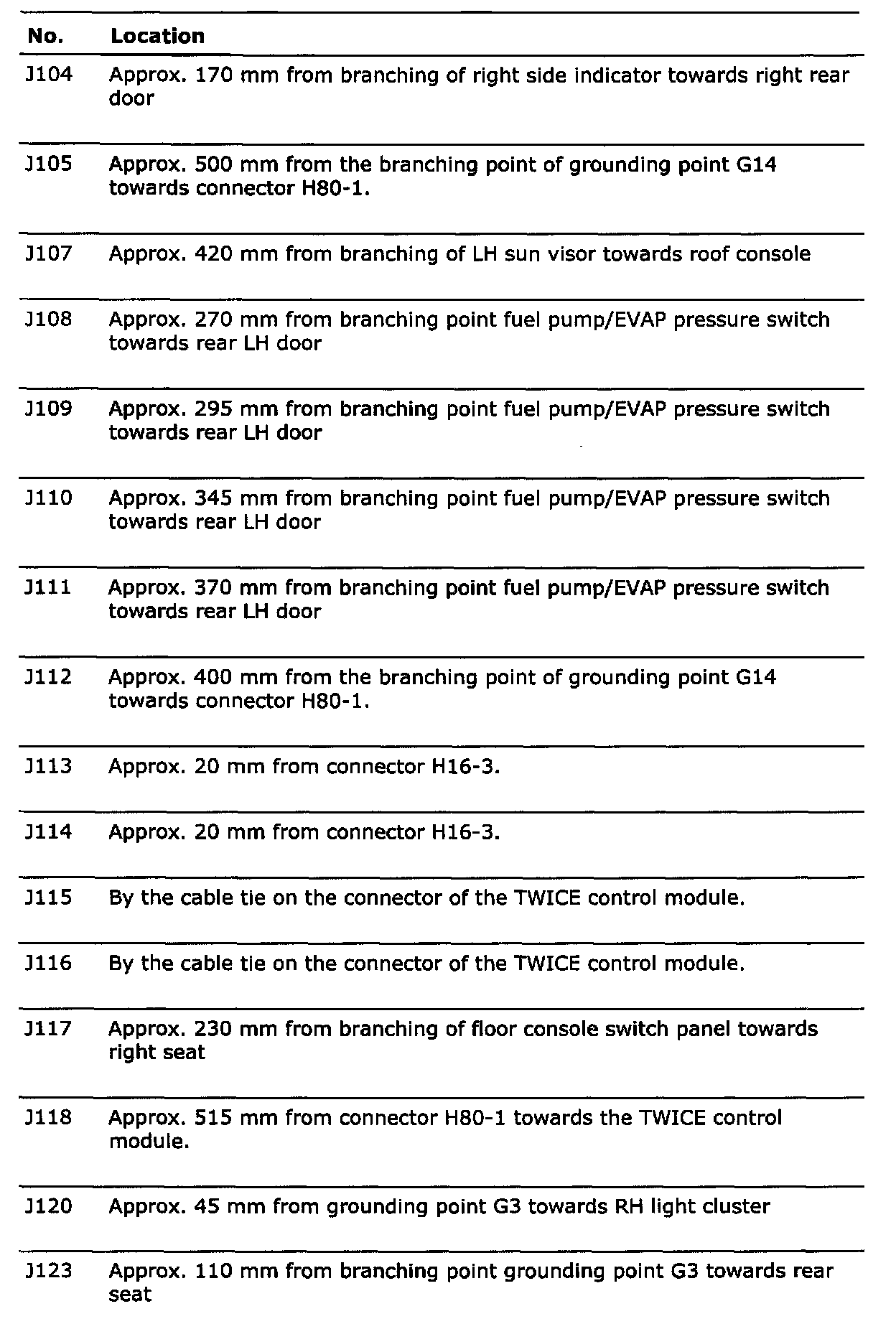

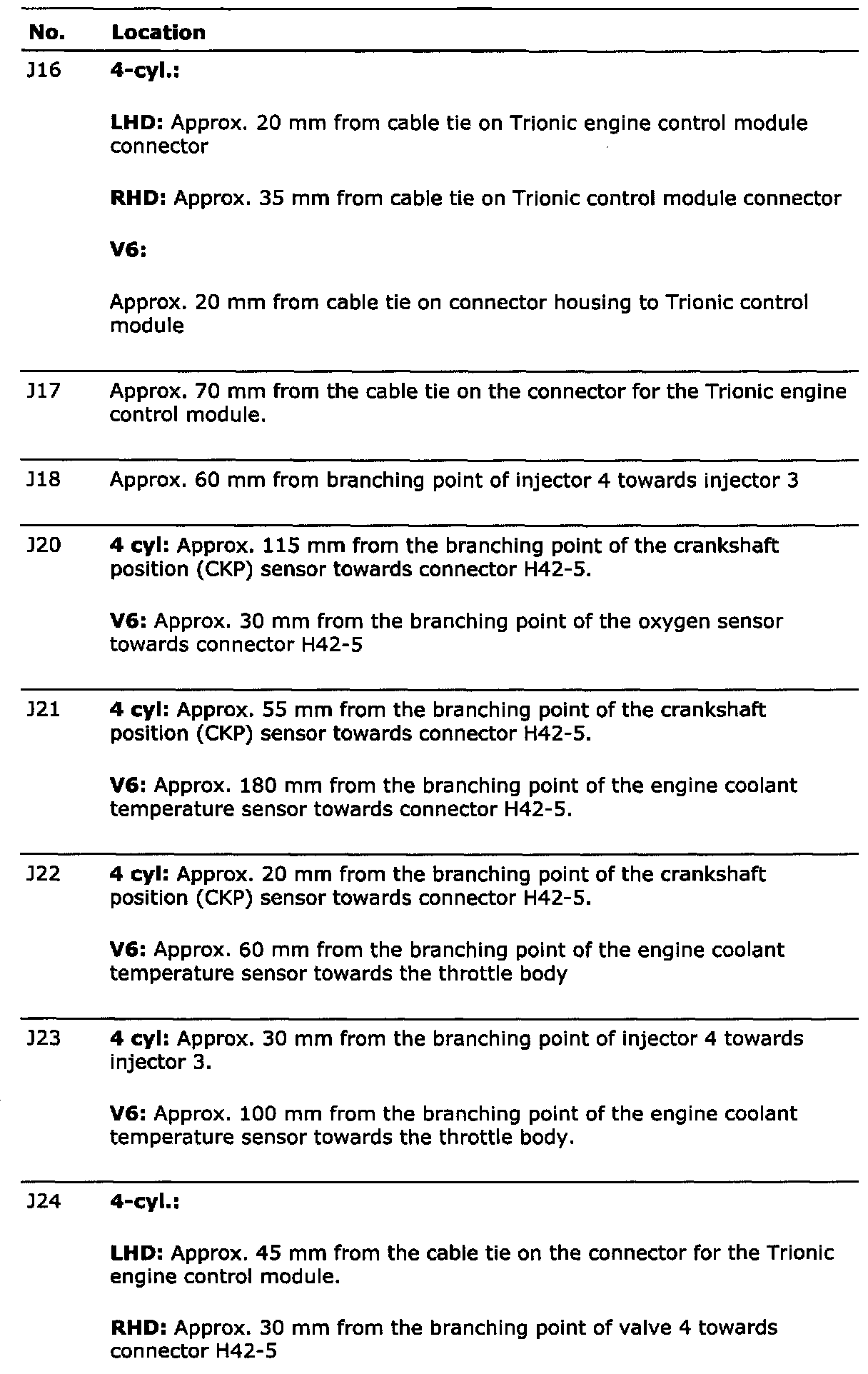

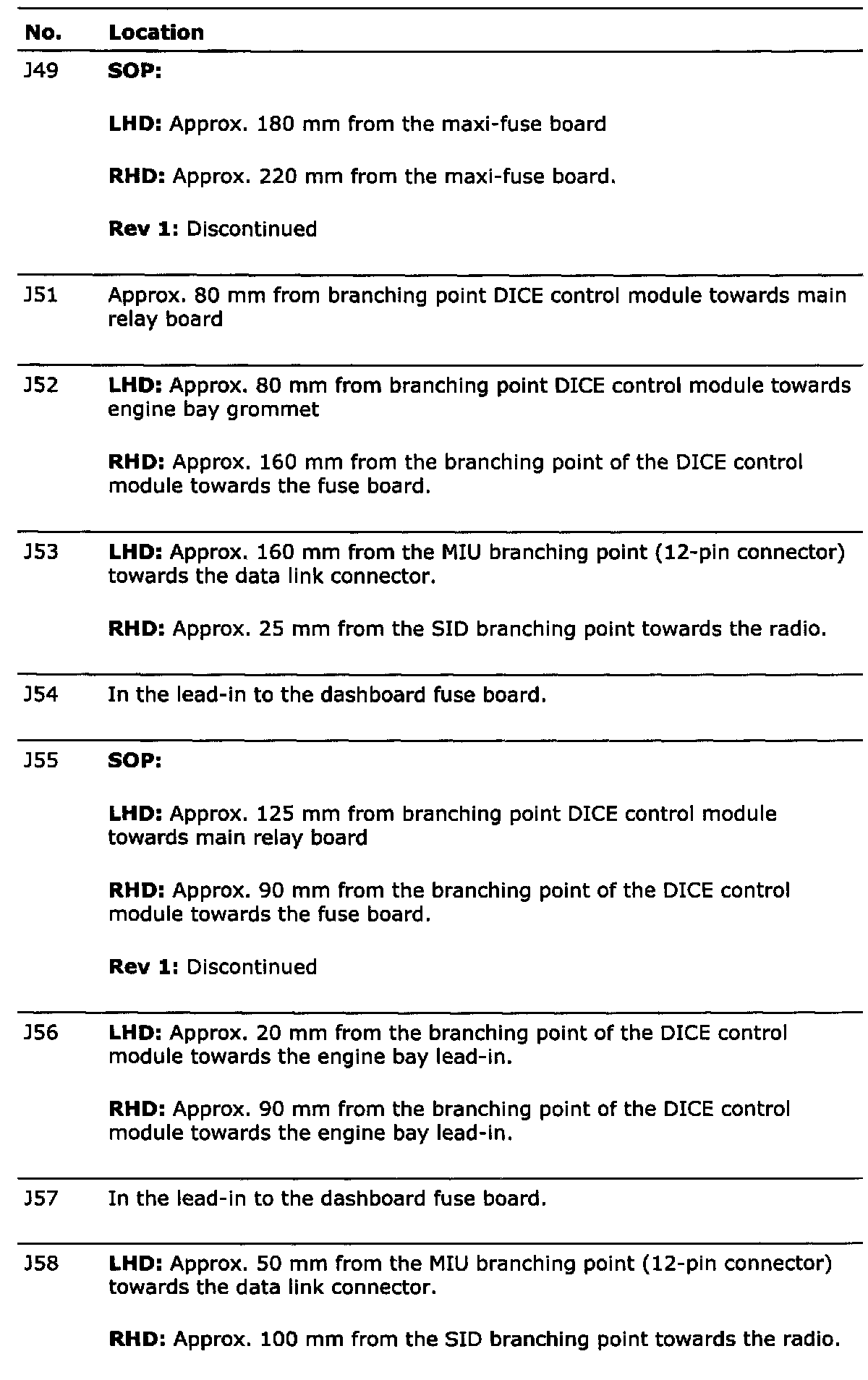

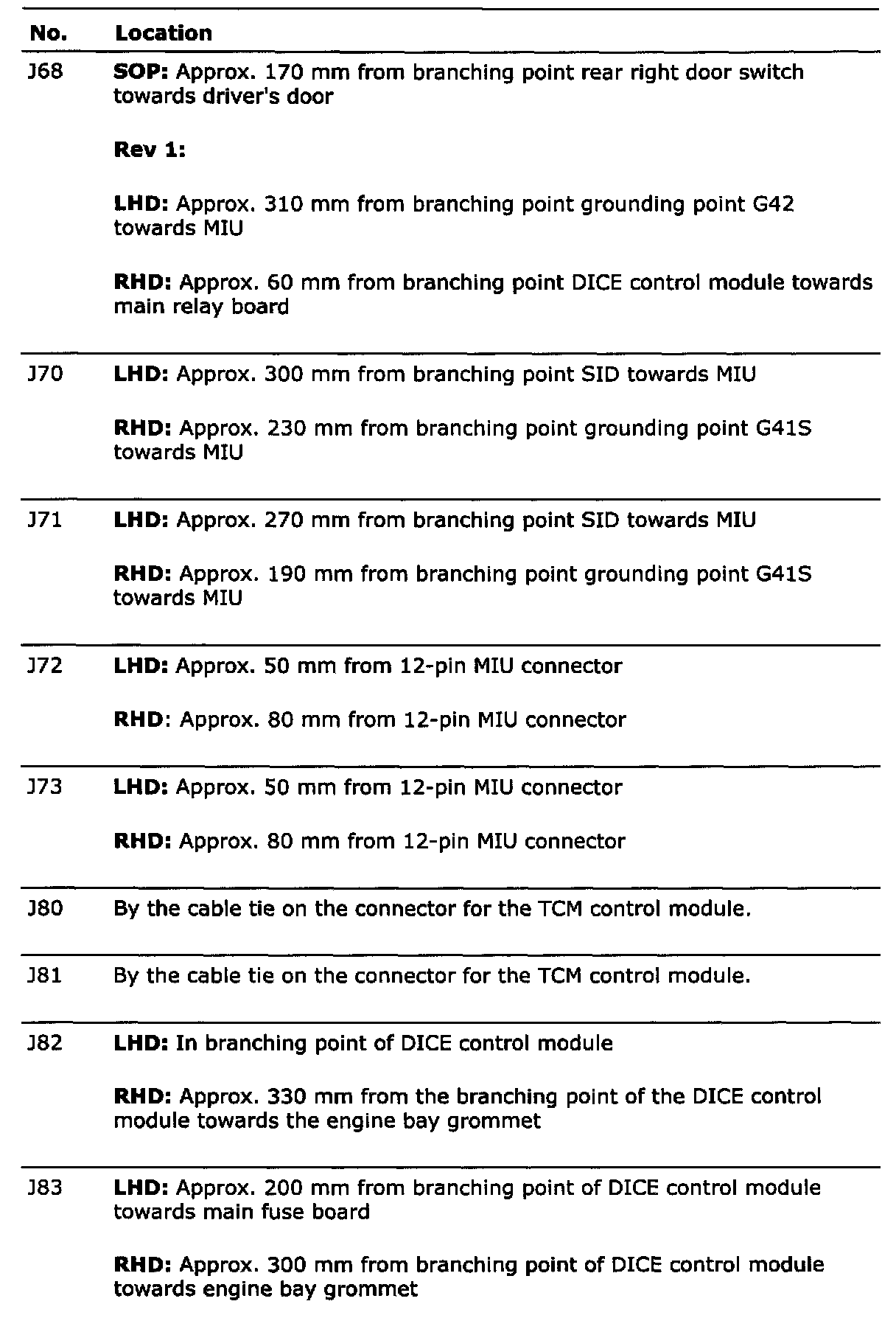

Splice Locations

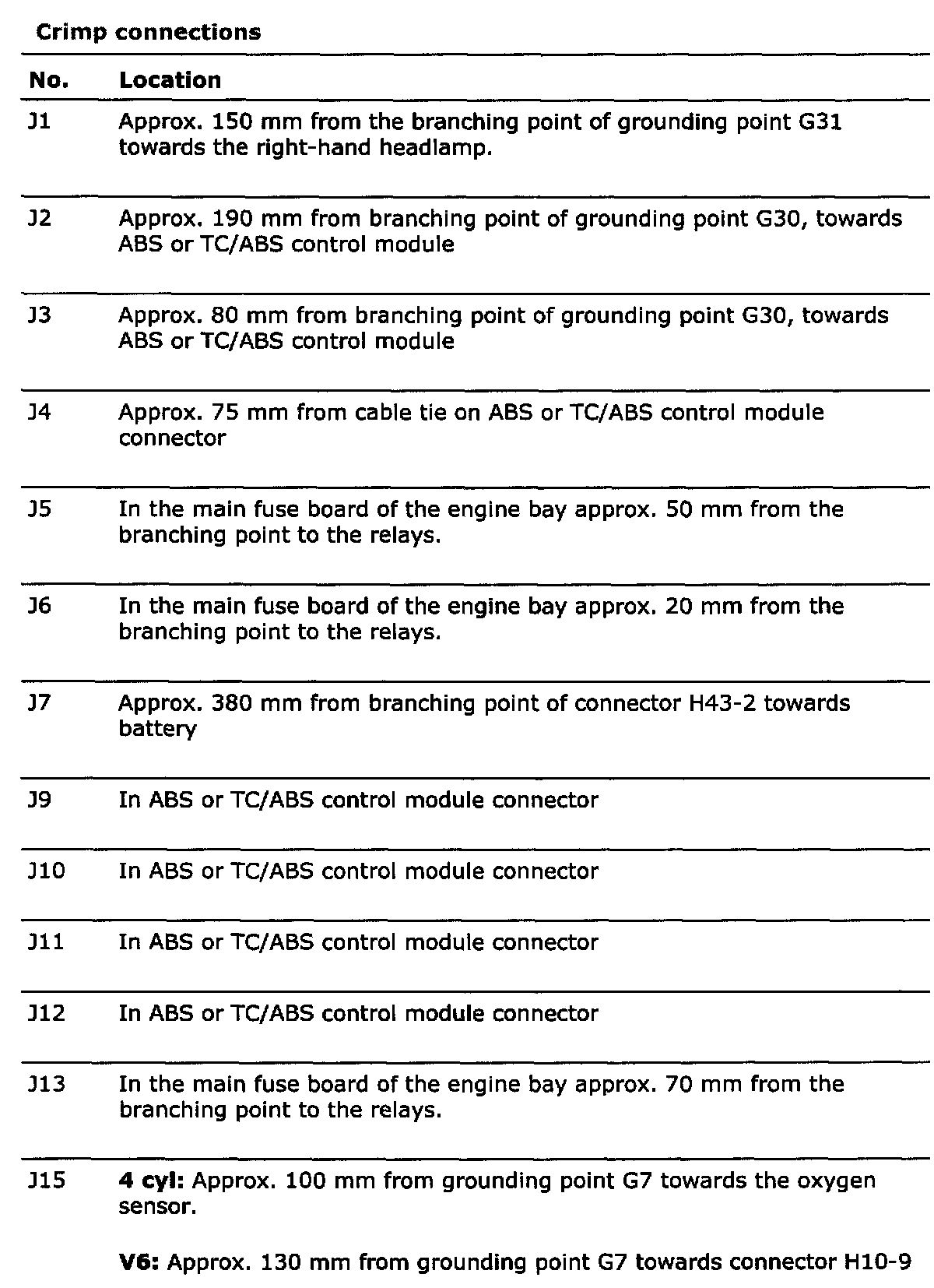

Crimp Connections


Part 1:






Part 2:






Part 3:






Part 4:






Part 5:






Part 6:






Part 7:






Part 8:






Part 9:






Part 10:






Part 11:
