Grounding Point G41P
Grounding Point G41P

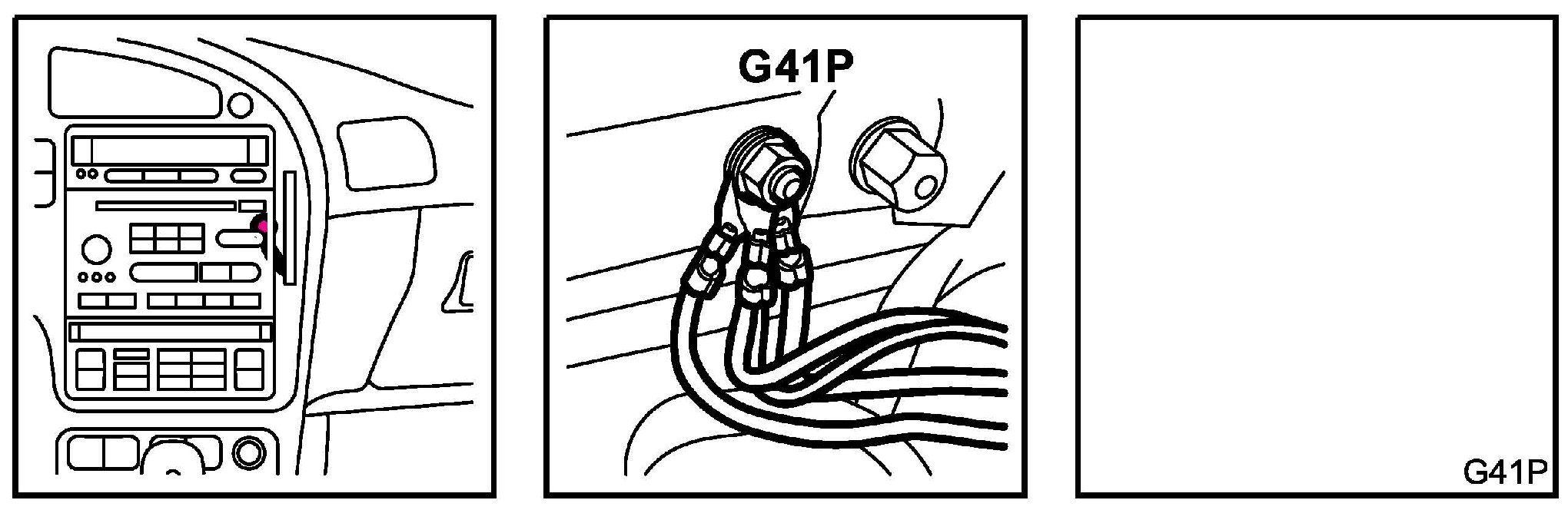

Location:
On the centre ground screw in the middle of the knee member (in the interior).

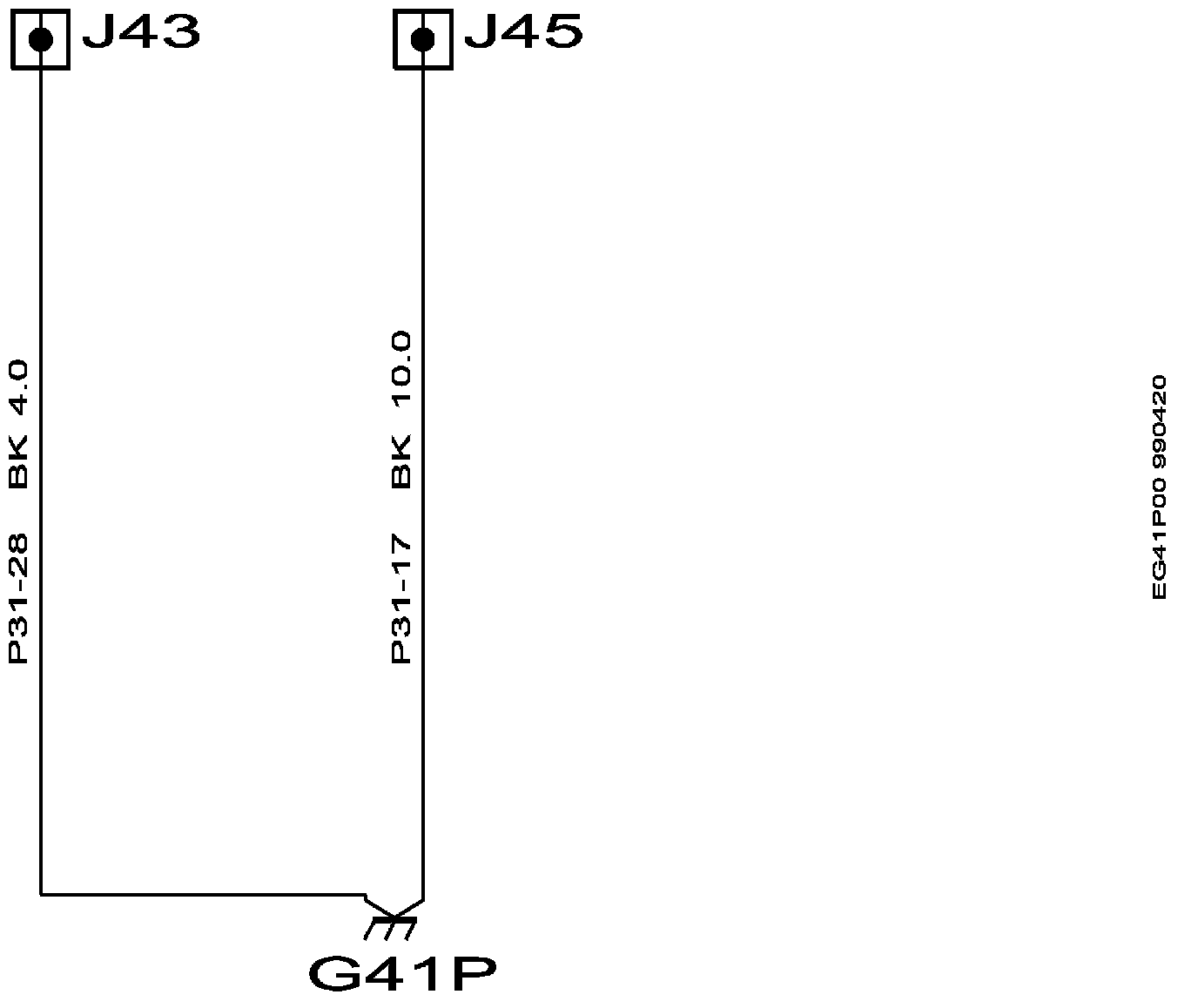

Grounding Point G41P:

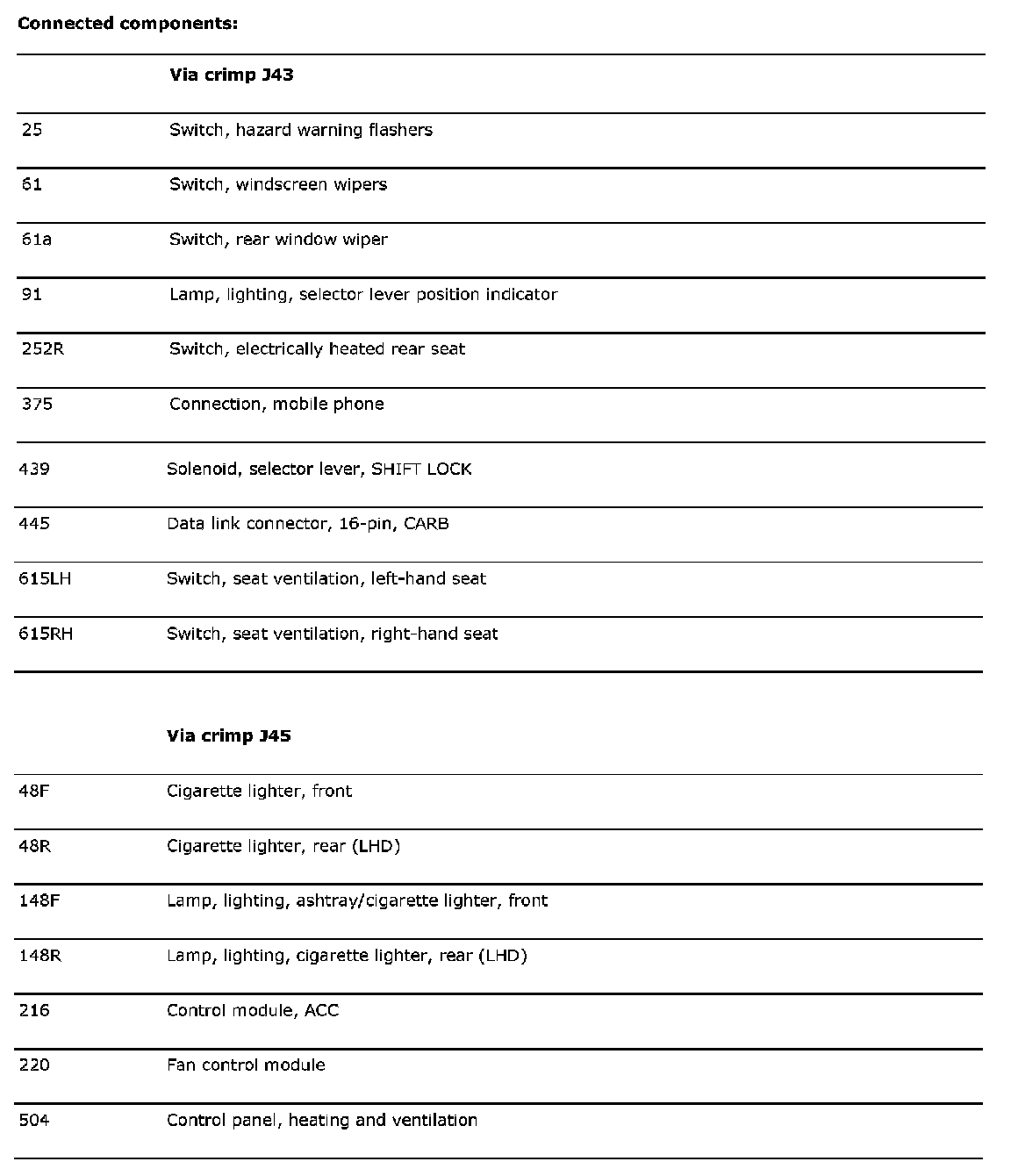

Connected Components:
