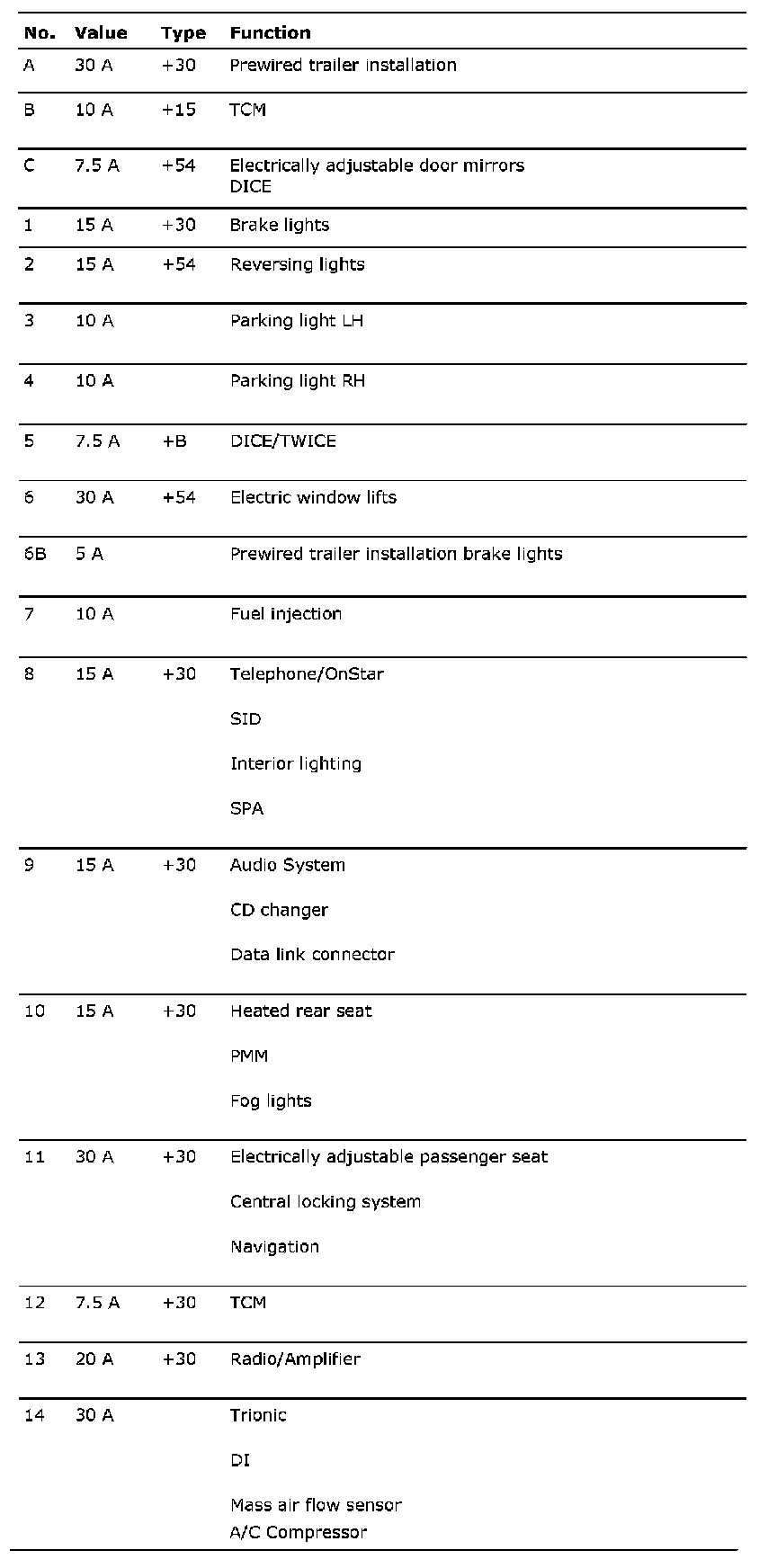

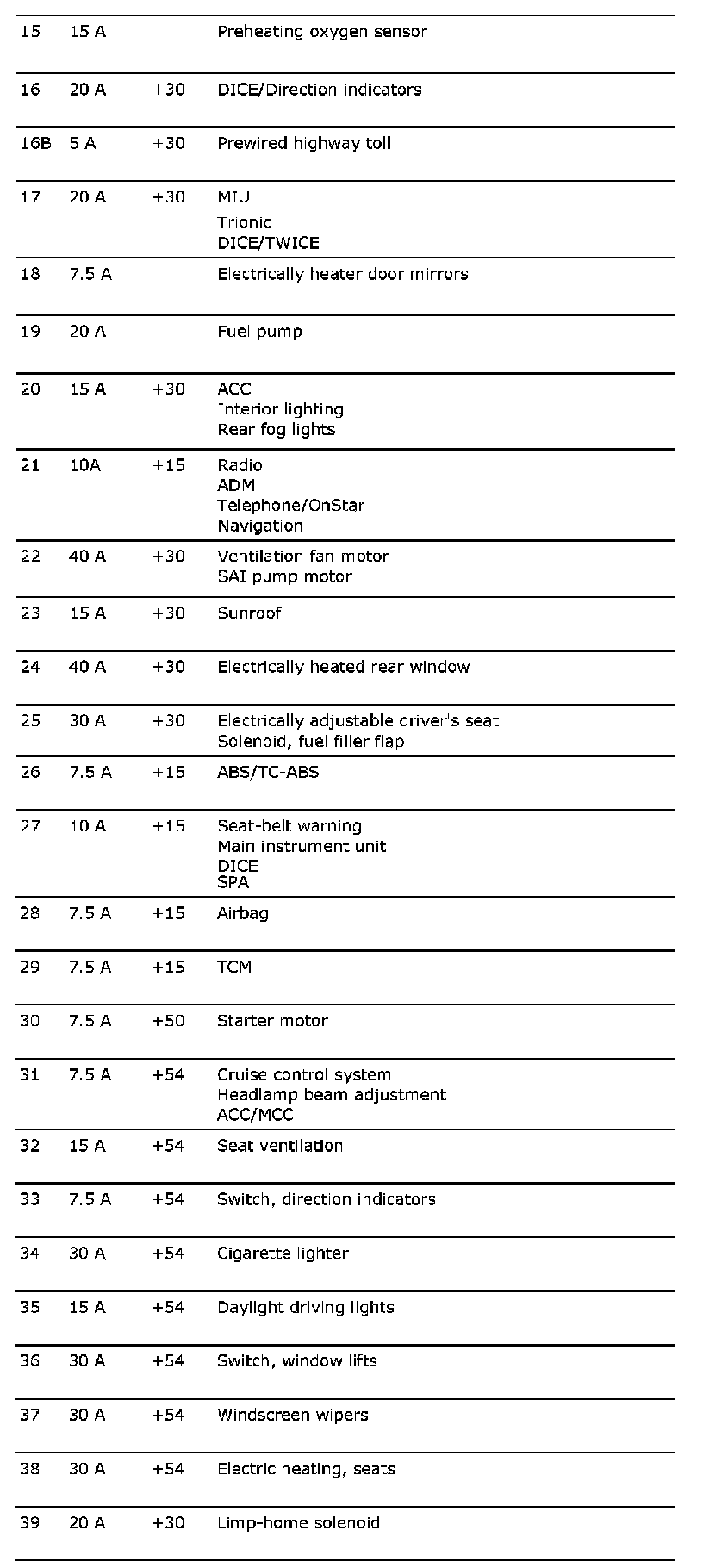

Main Fuse Board 22a In Dashboard



Main Fuse Board 22a In Dashboard

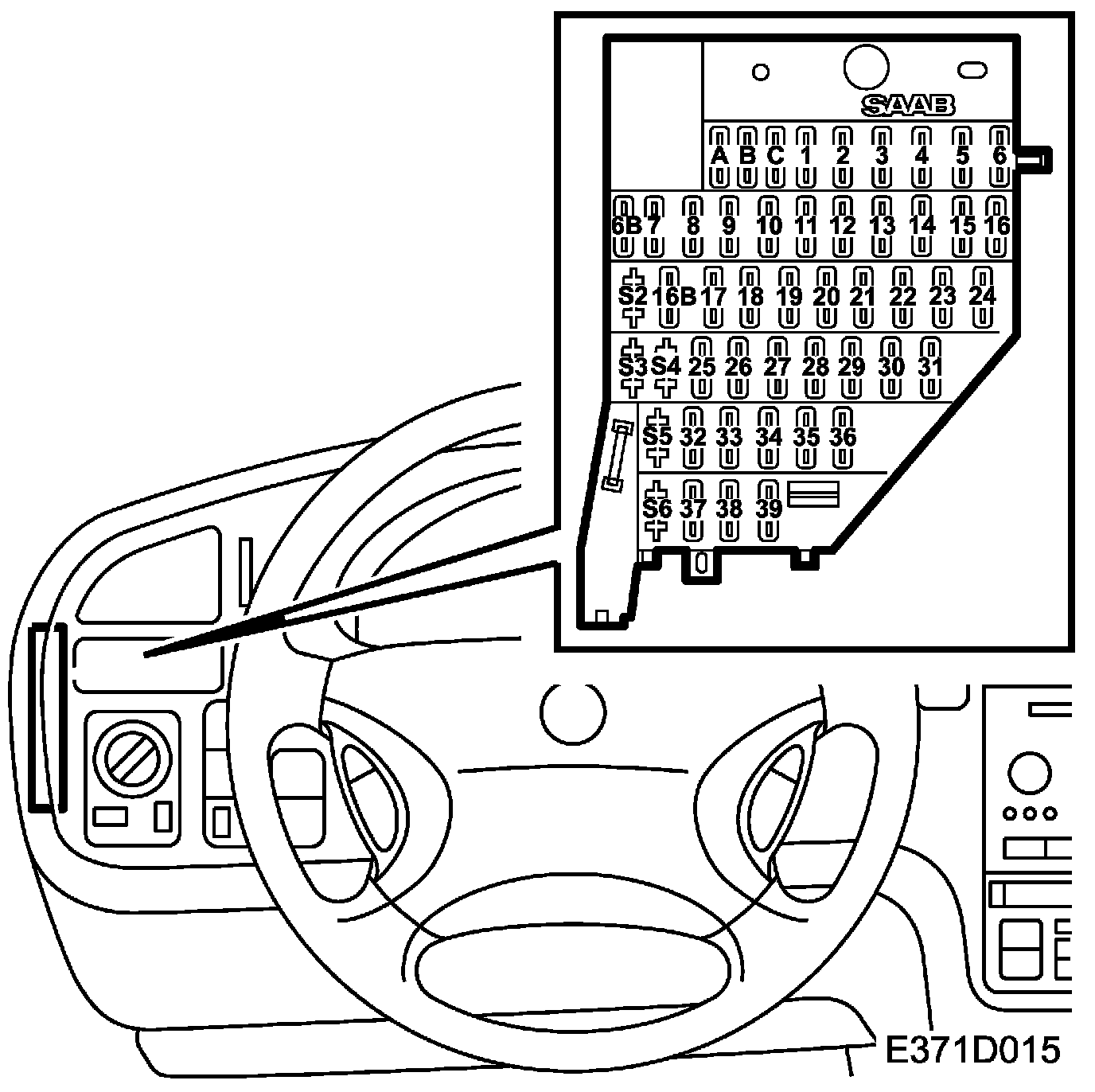

Location: On side of dashboard by driver's door.

Other outlets are incoming voltage.
