Fuse Board 22a In the Dashboard

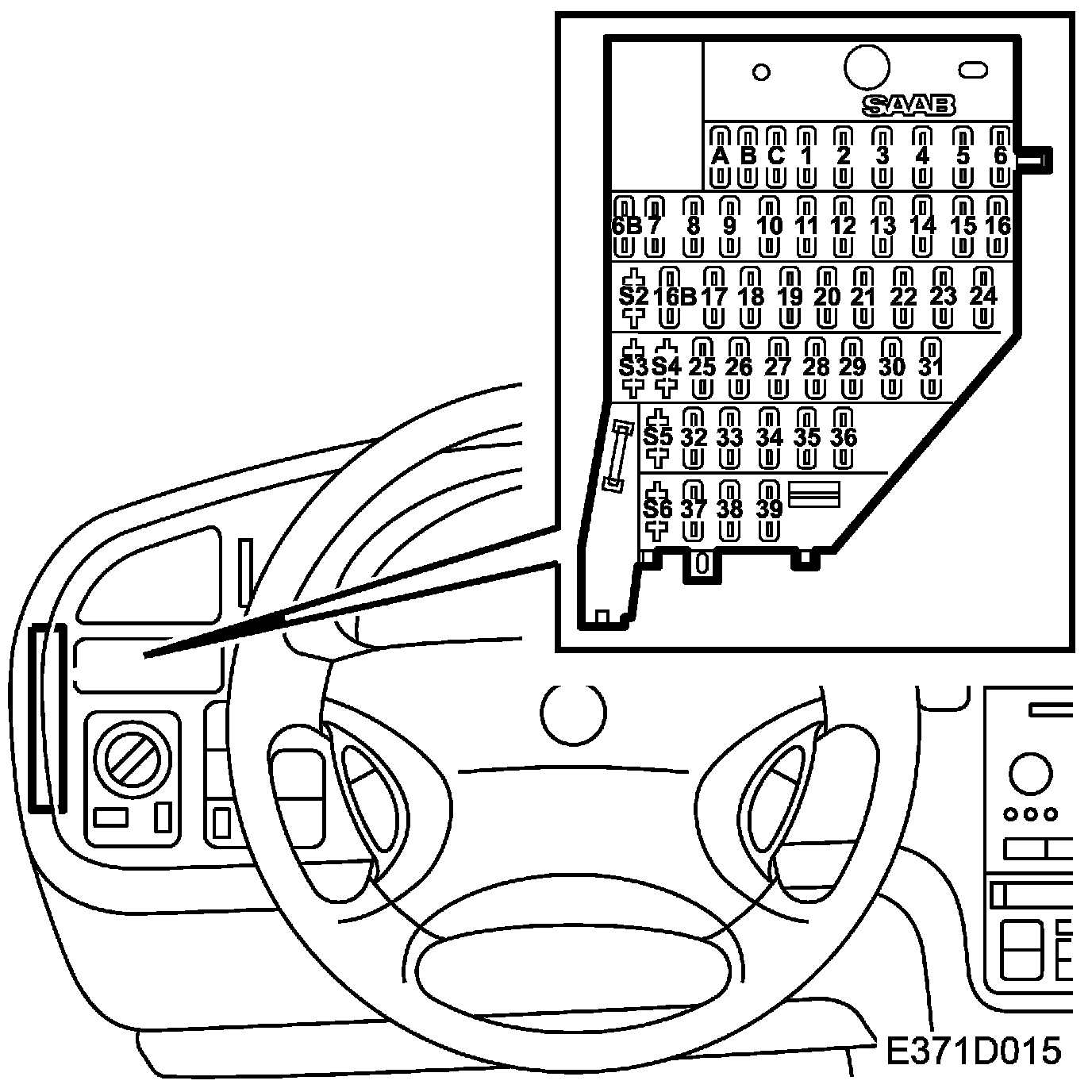

Main fuse board 22a in dashboard

Location: On side of dashboard by driver's door.

Other outlets are incoming voltage.
