Home >> Saab >> 2001 >> 9-5 SE (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Splices >> J135, Tailgate Harness

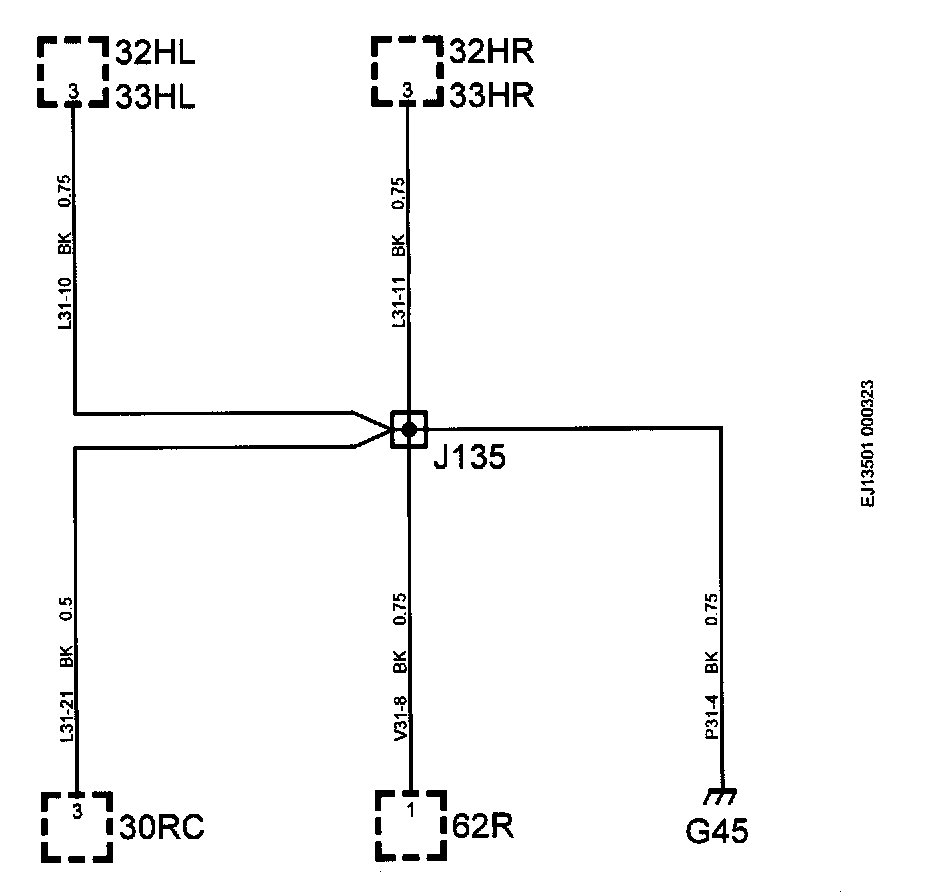

J135, Tailgate Harness




Crimp J135, Tailgate Harness
