Home
>>
Saab
>>
2001
>>
9-5 SE (9600) V6-3.0L Turbo (B308)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Grounds
>>
G43
G43

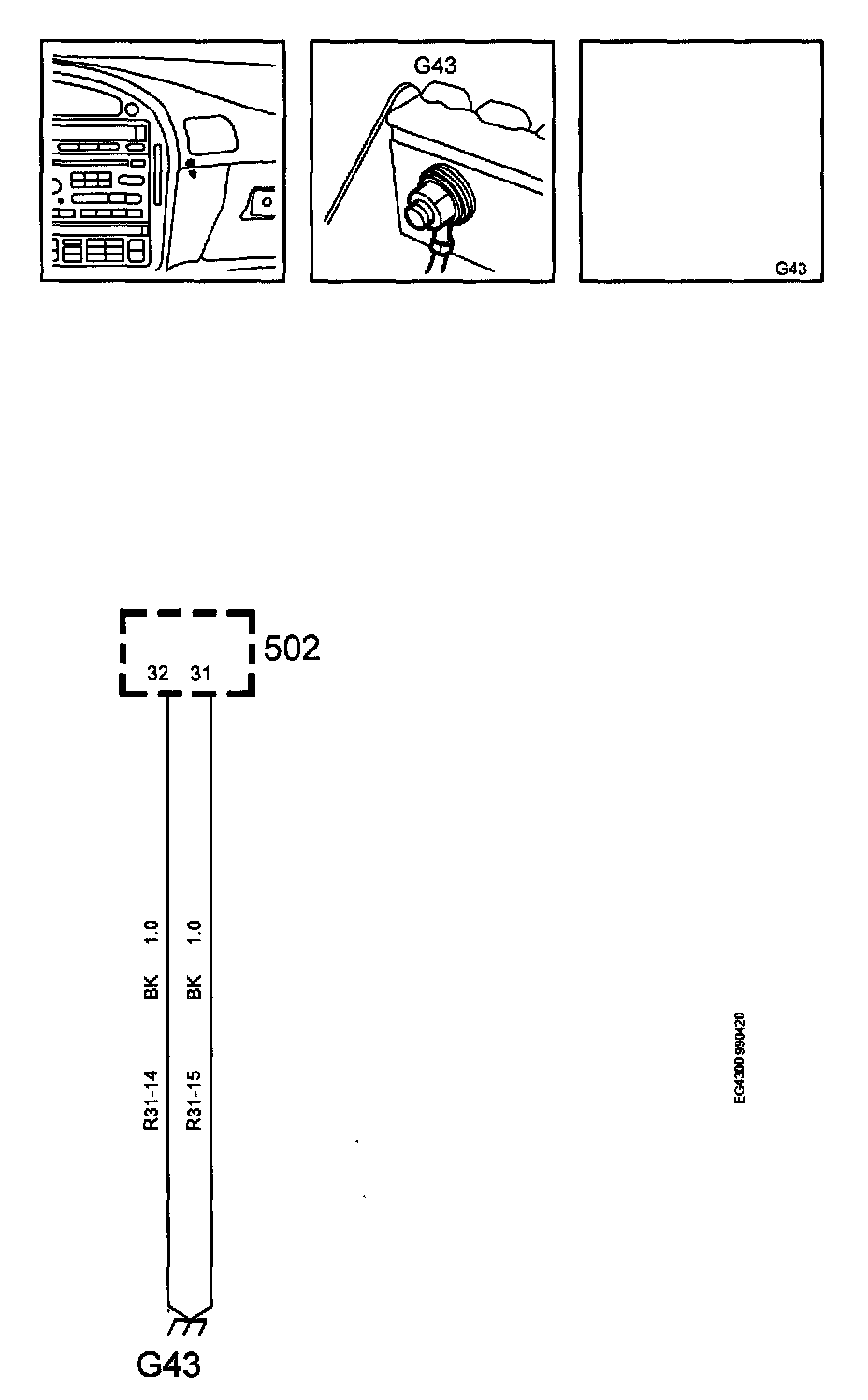

Grounding Point G43
Location:
On the right-hand ground screw in the middle of the knee member (in the interior).
502:
