Home >> Saab >> 2001 >> 9-5 SE (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Grounds >> G42

G42




Grounding Point G42







Location: On right-hand side of knee member

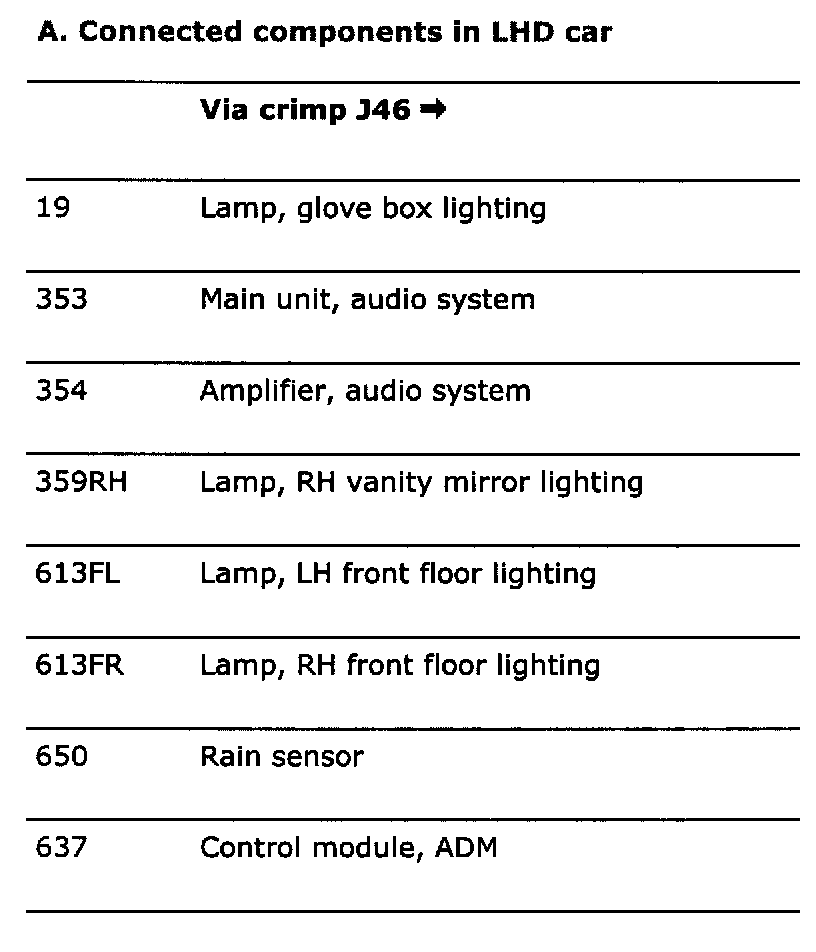

19 - 637:

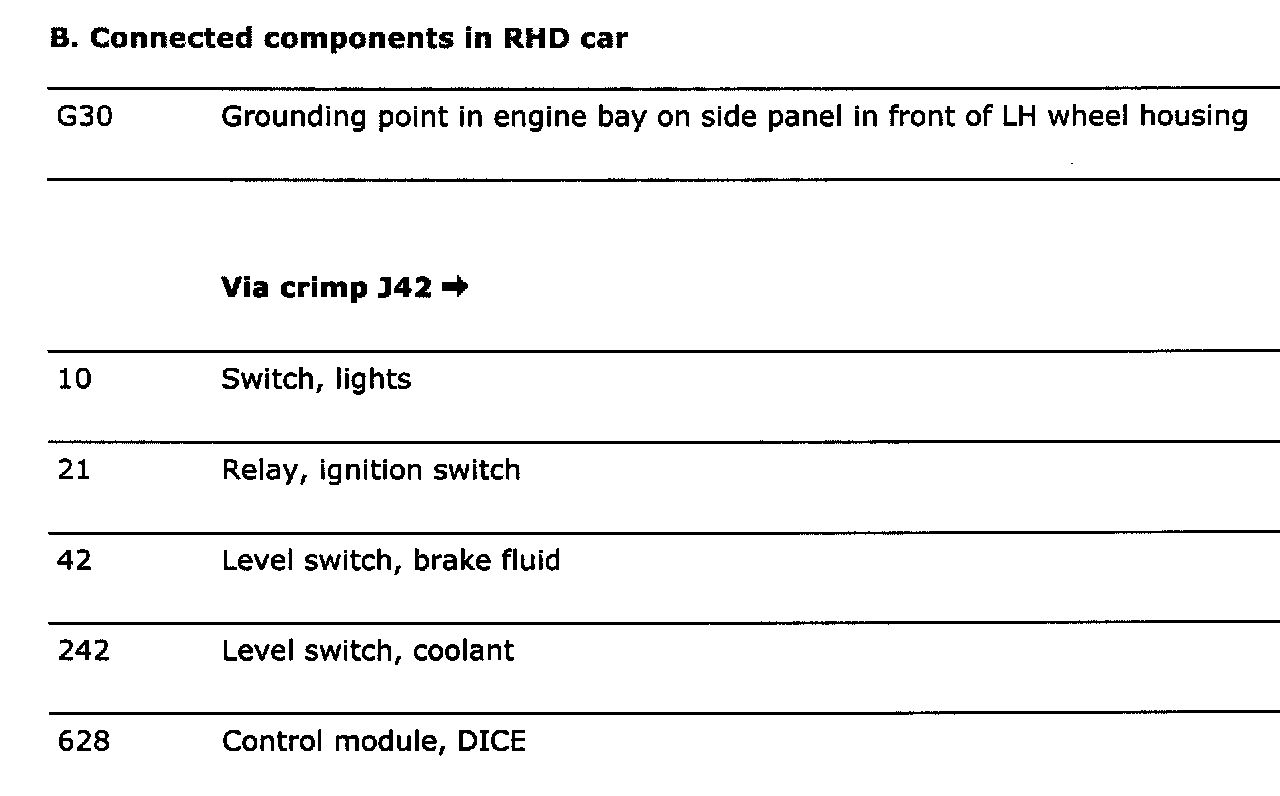

G30 - 628:

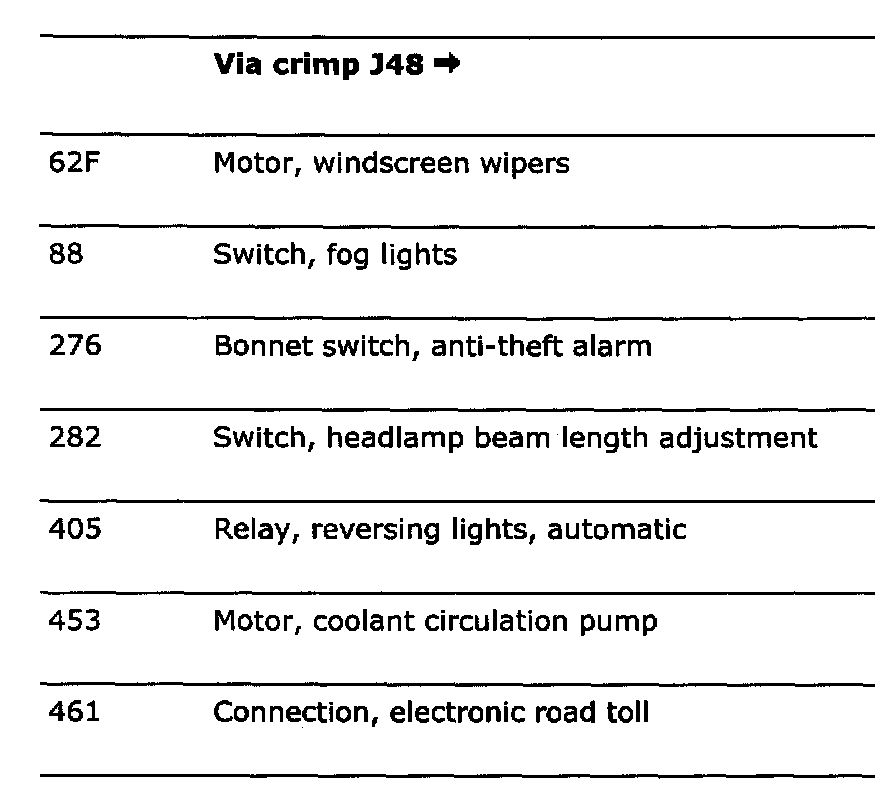

62F - 461:
