Grounds
>>

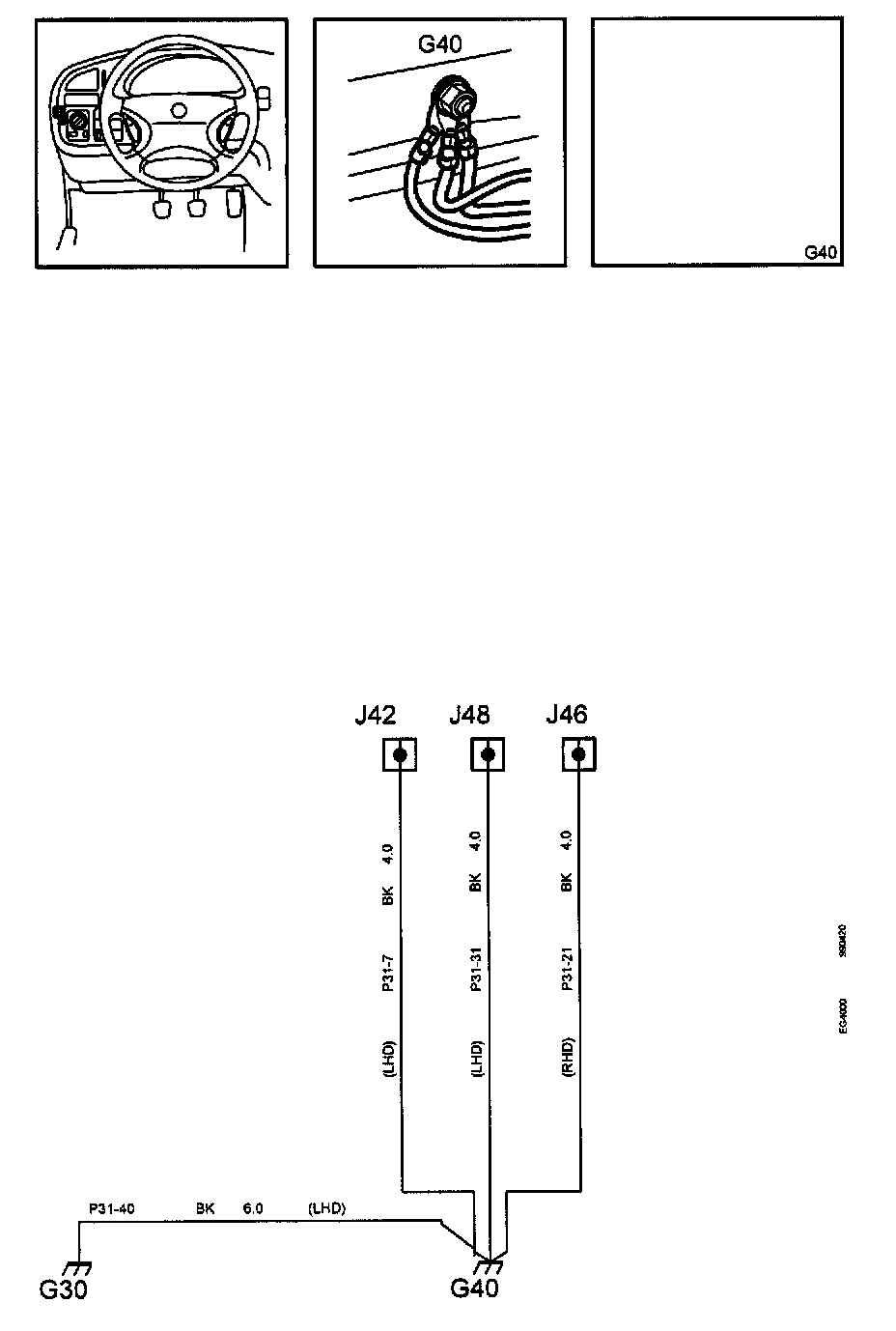

G40
G40
Grounding Point
G40
Location:
In passenger compartment on left-hand side of knee member.

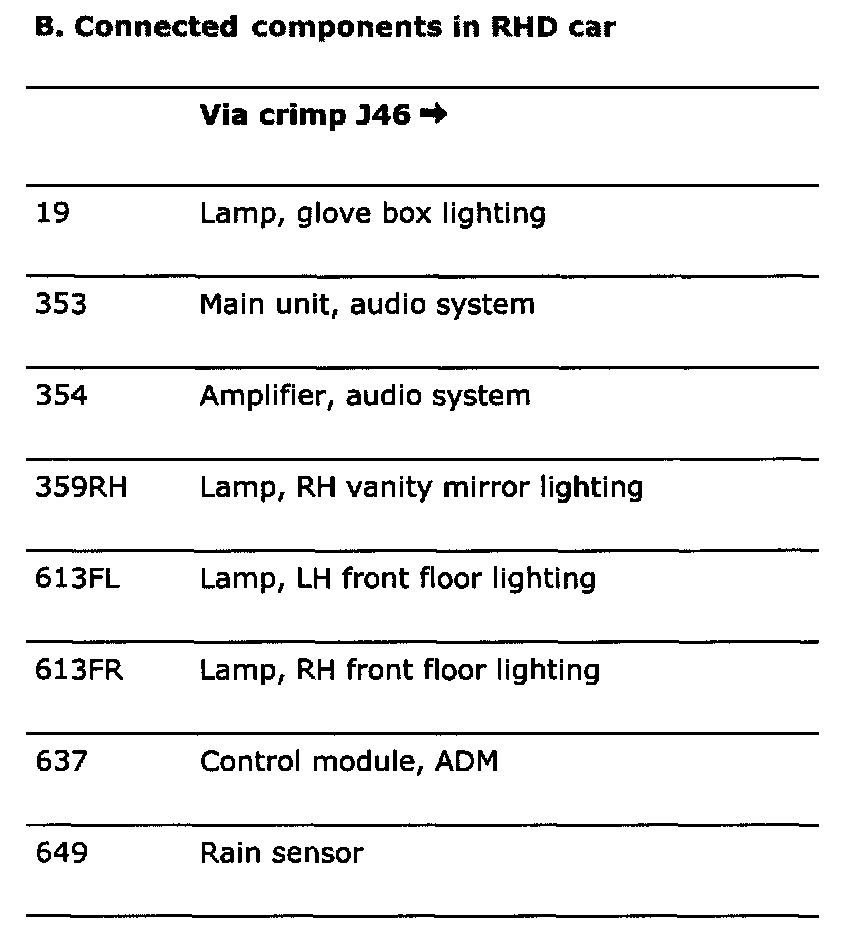

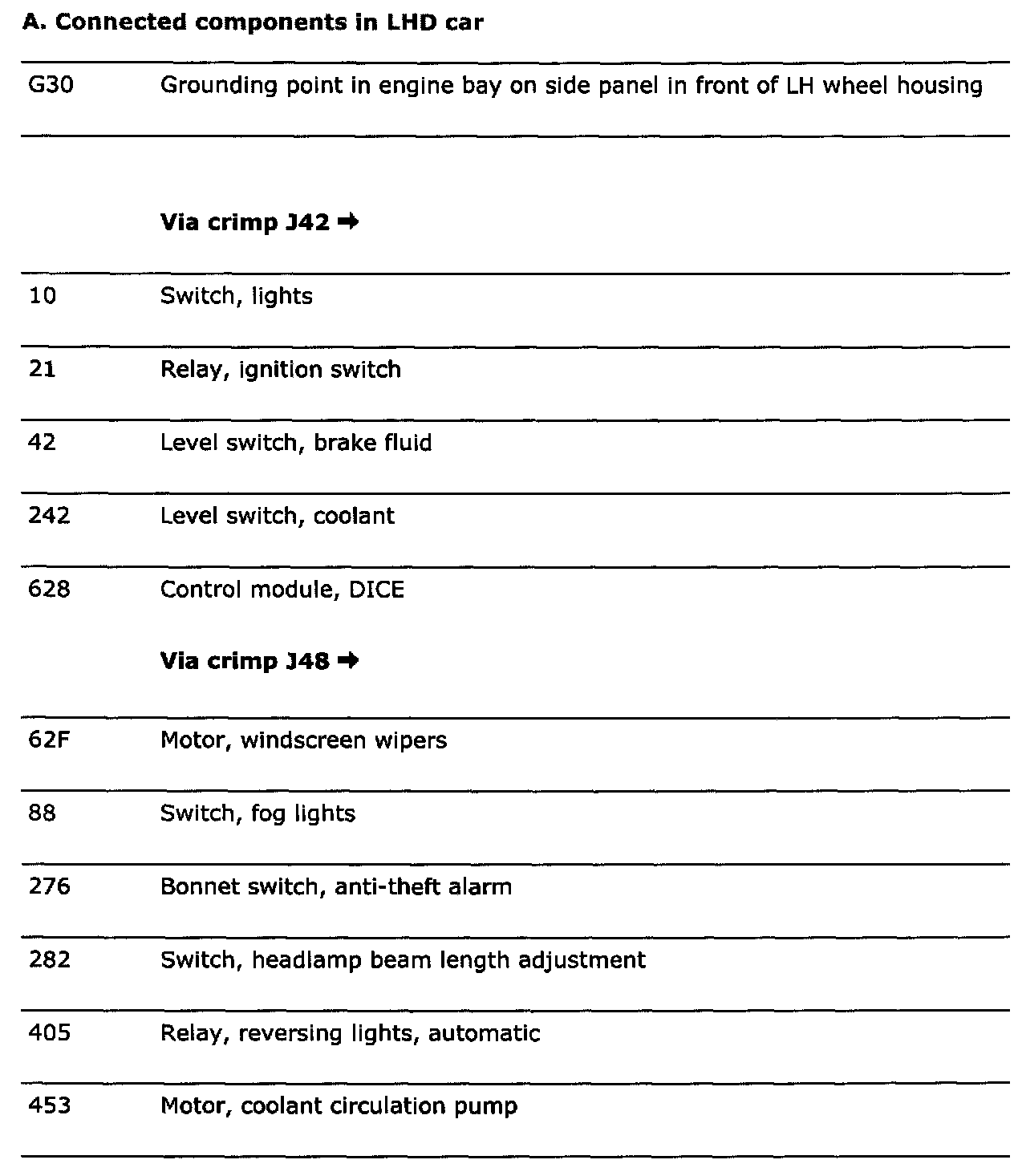

G30 - 453:
19 - 649:
