Home >> Saab >> 2001 >> 9-5 SE (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Grounds >> G33

G33

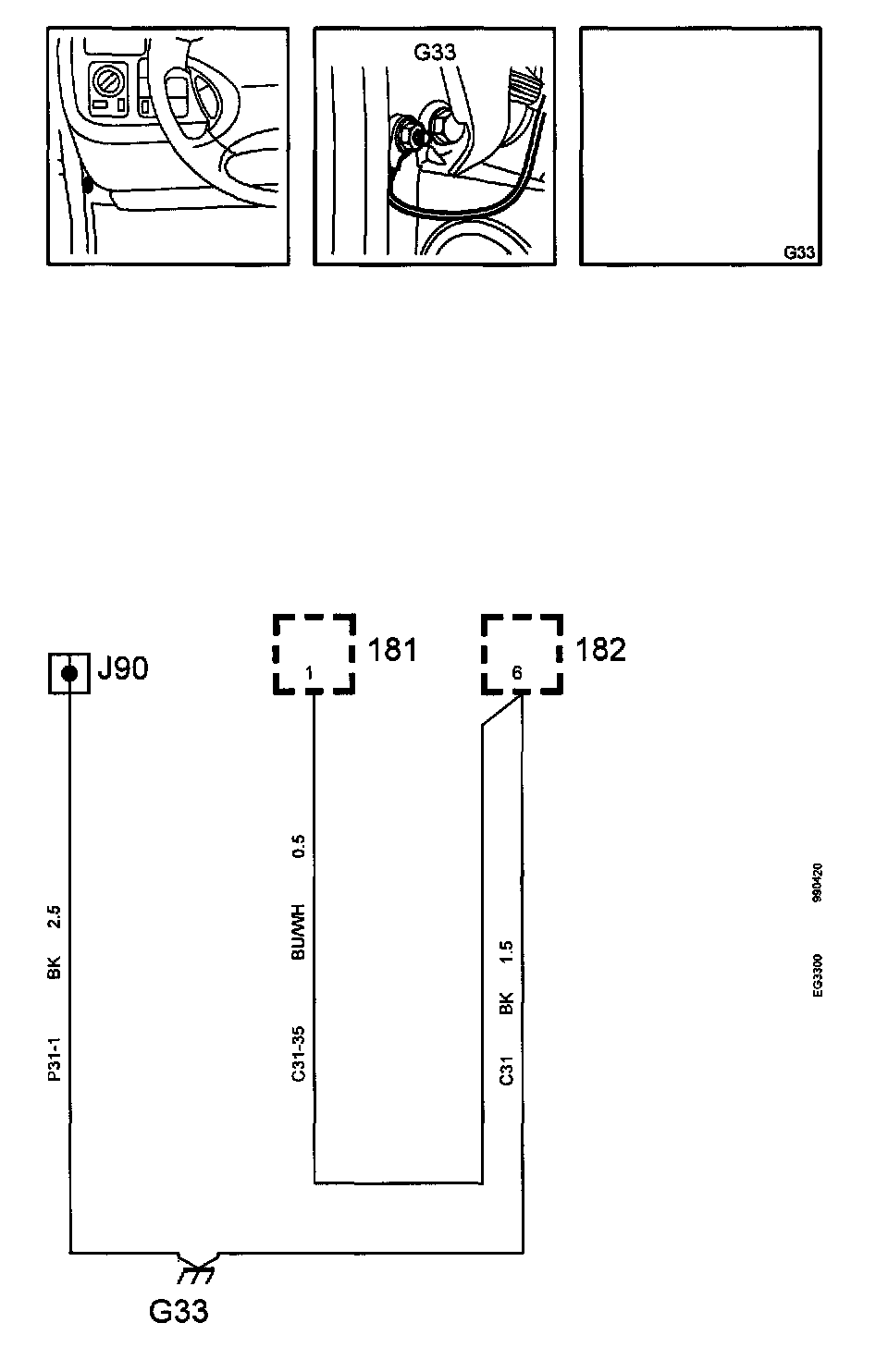

Grounding Point G33







Location: Under the left-hand A-pillar.

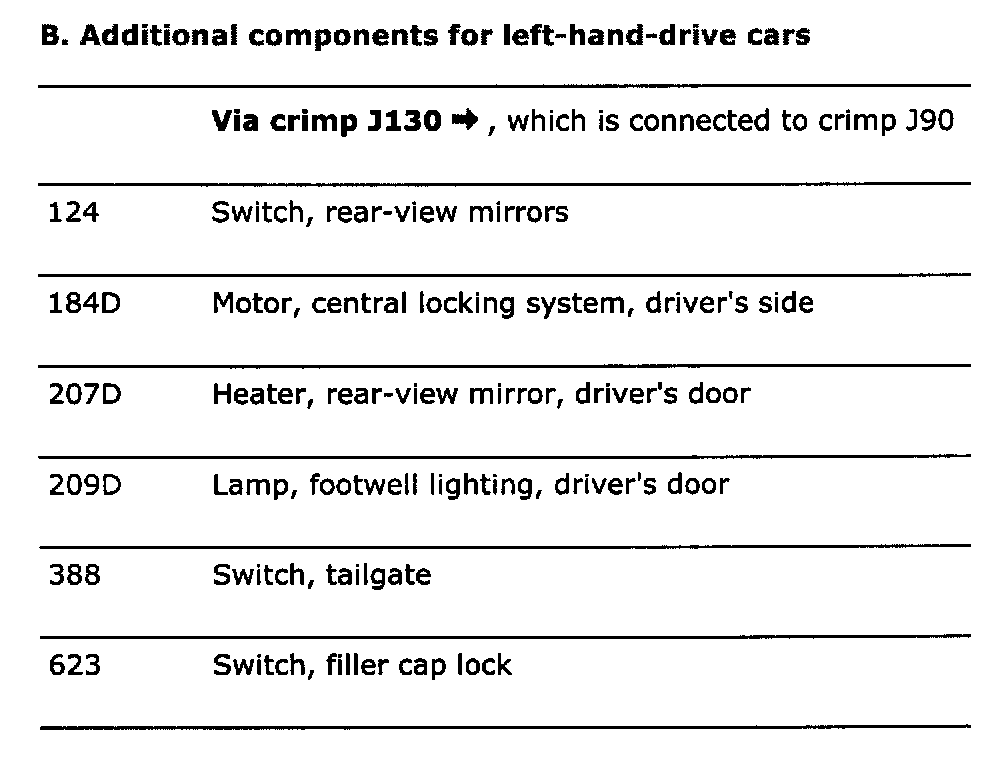

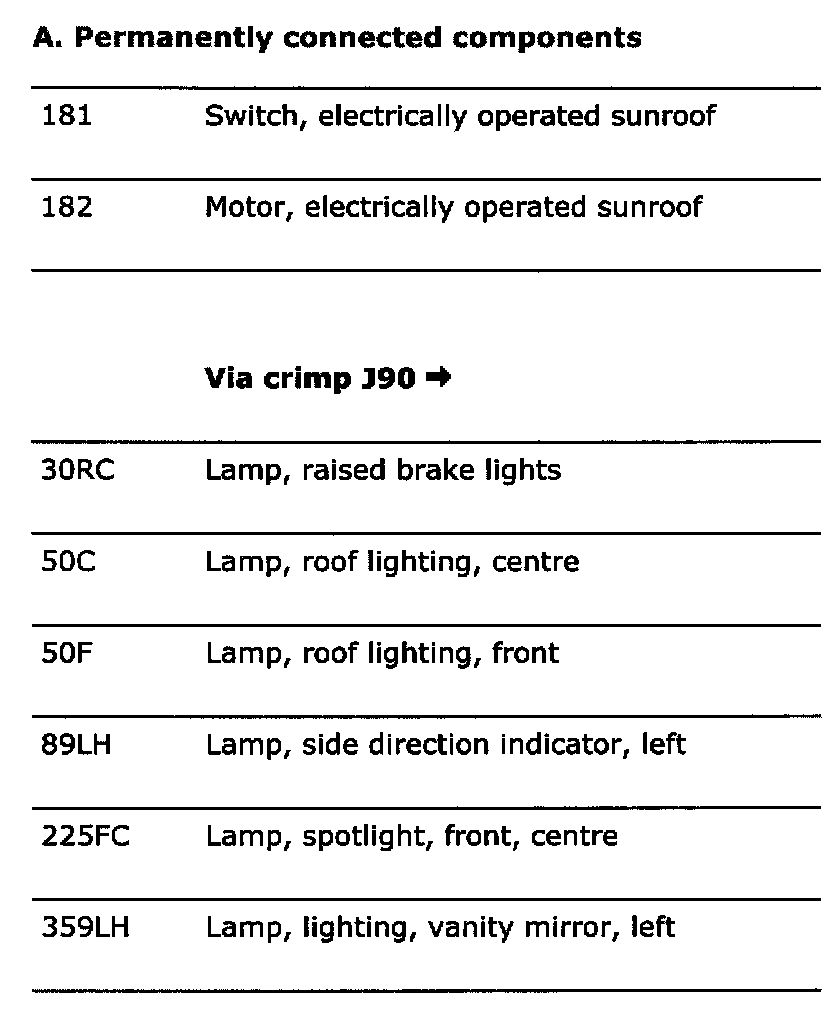

181 - 359LH:






124 - 623:

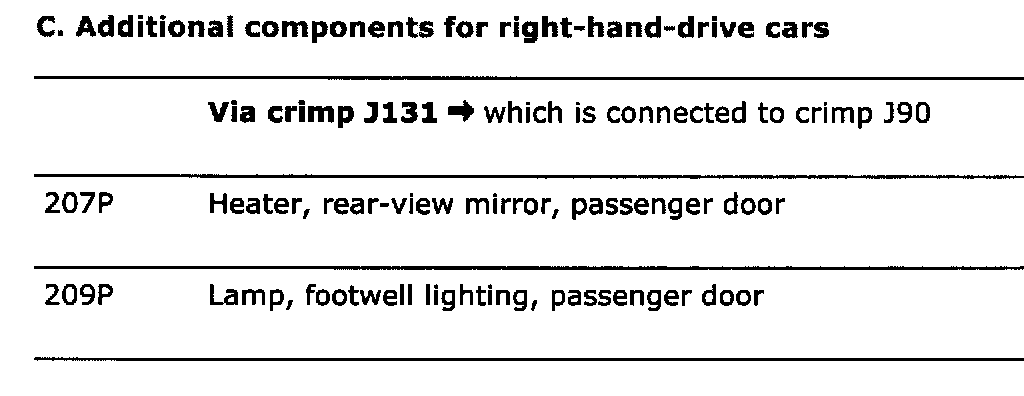

207P - 209P:
