G30
G30

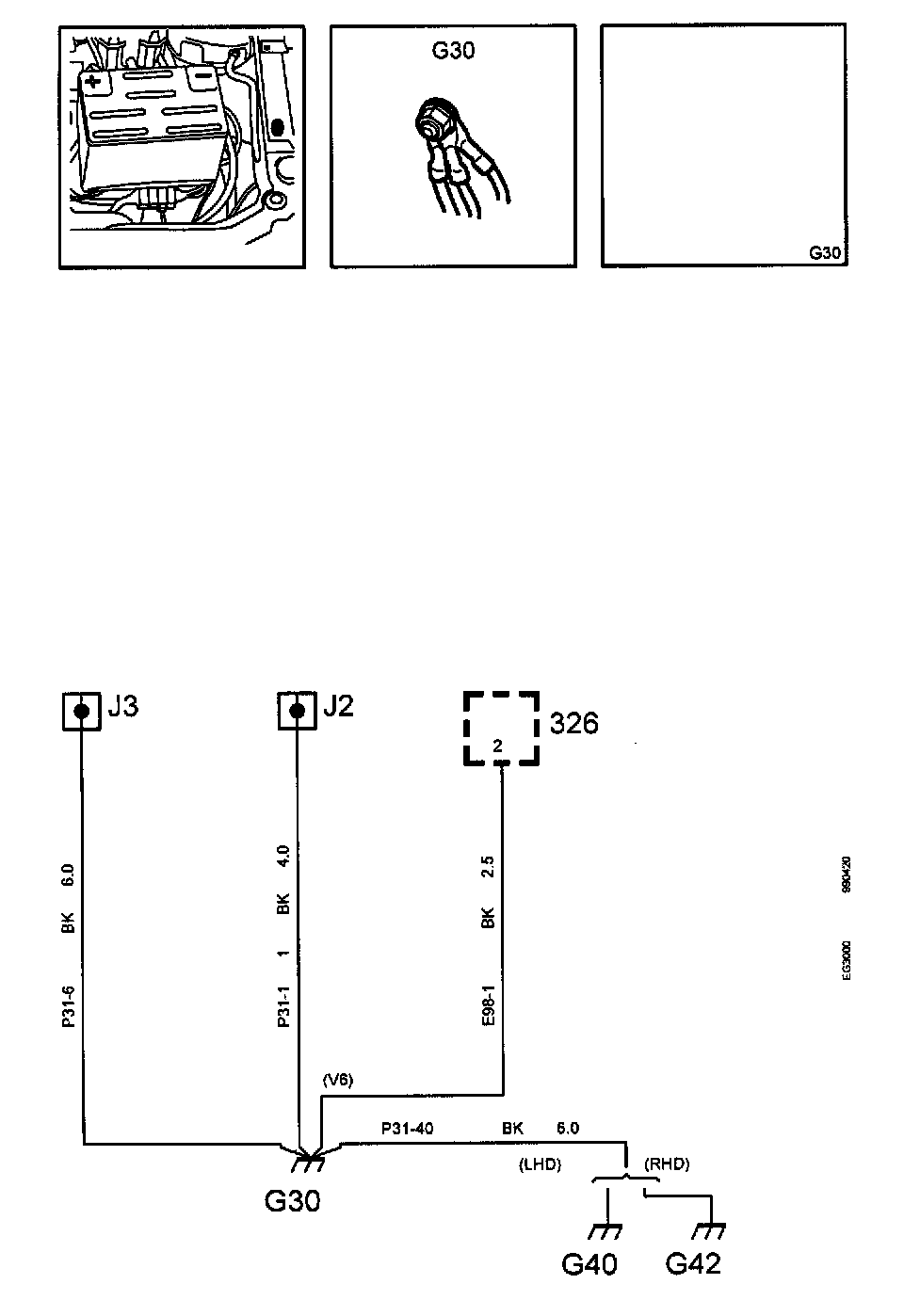

Grounding point G30
Location:
In the engine bay on the side panel in front of the left-hand wheel housing

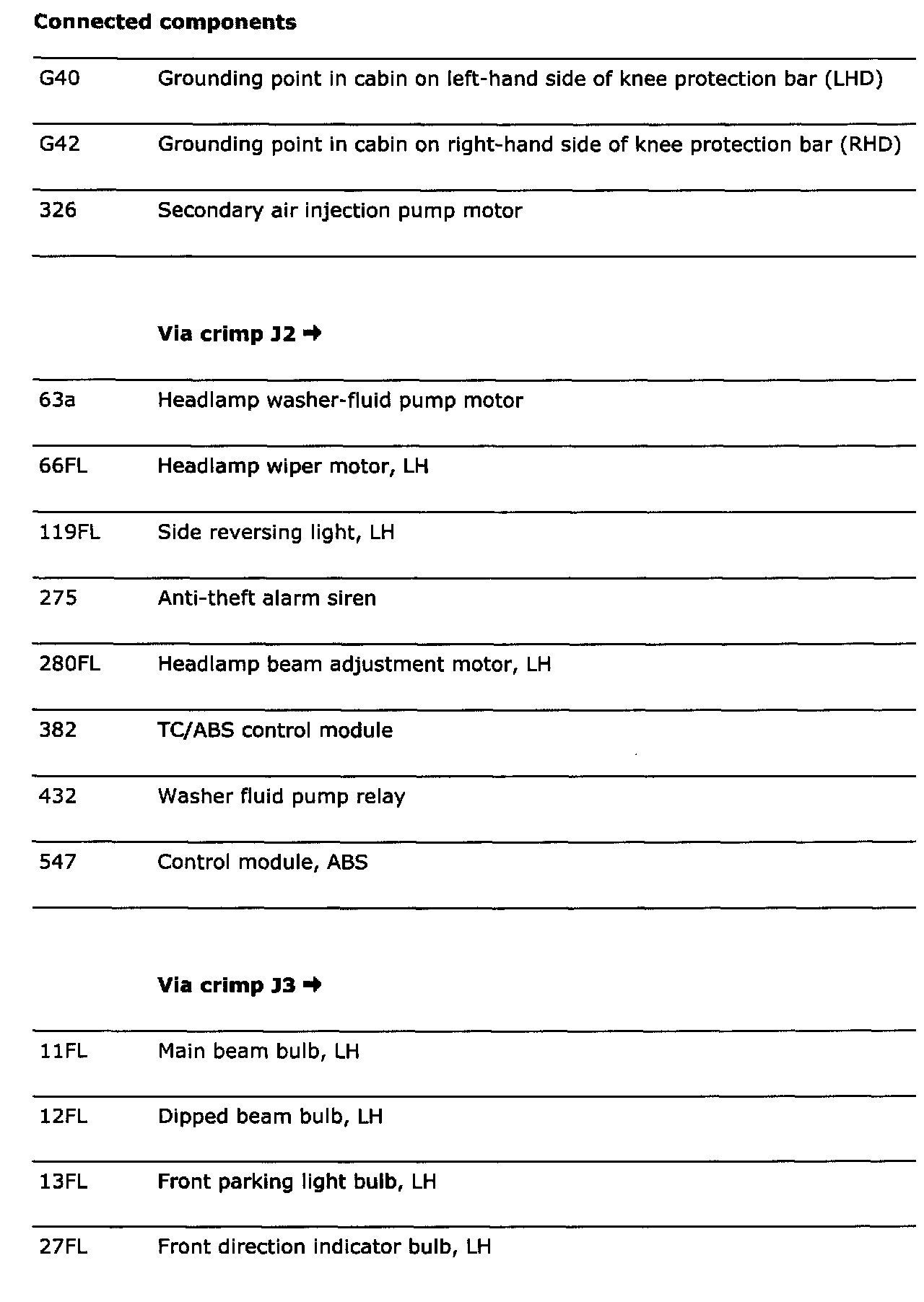

G40 - 27FL:

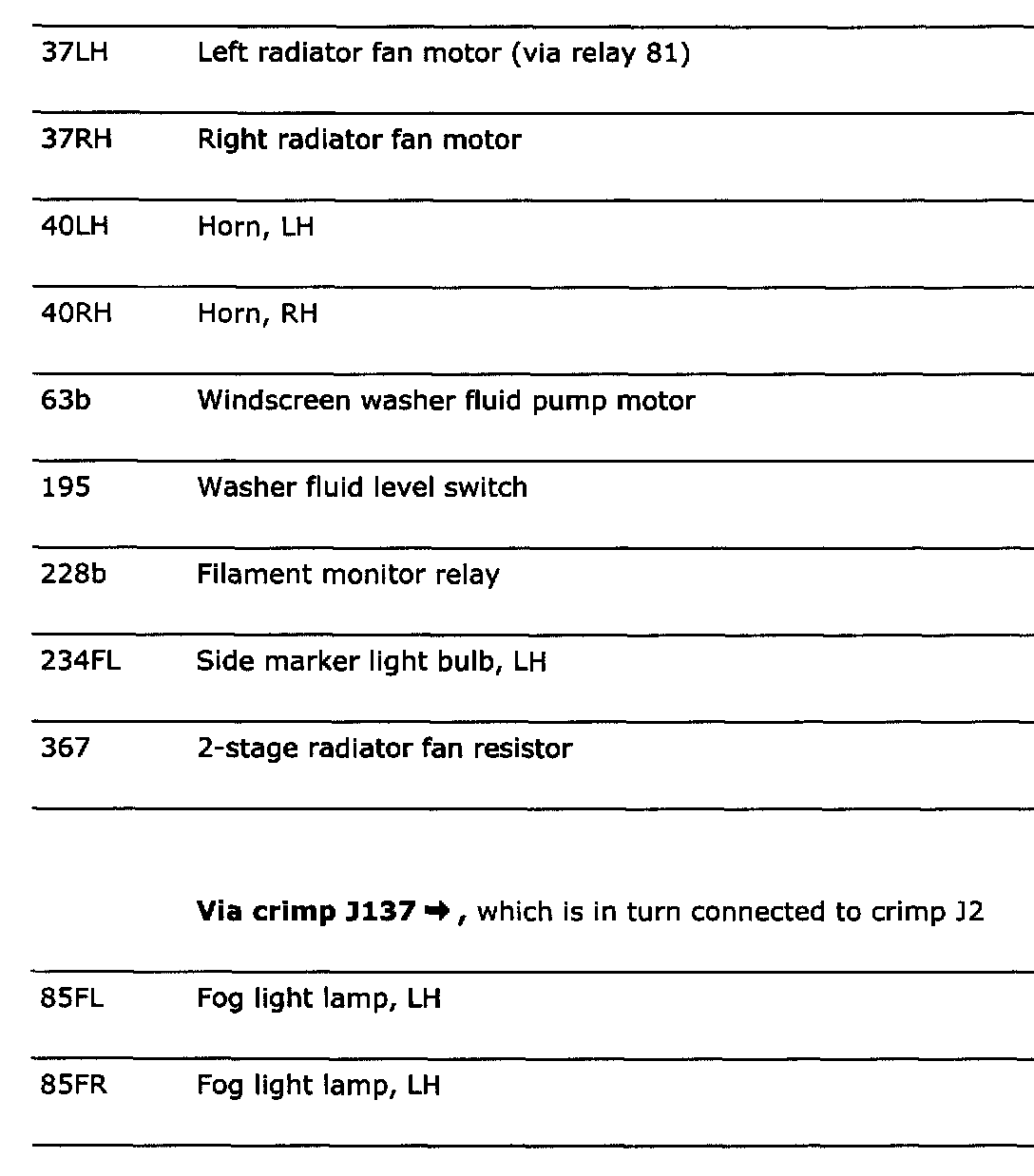

37FL - 85FR:
