Home >> Saab >> 2001 >> 9-5 SE (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Grounds >> G14

G14




Grounding Point G14

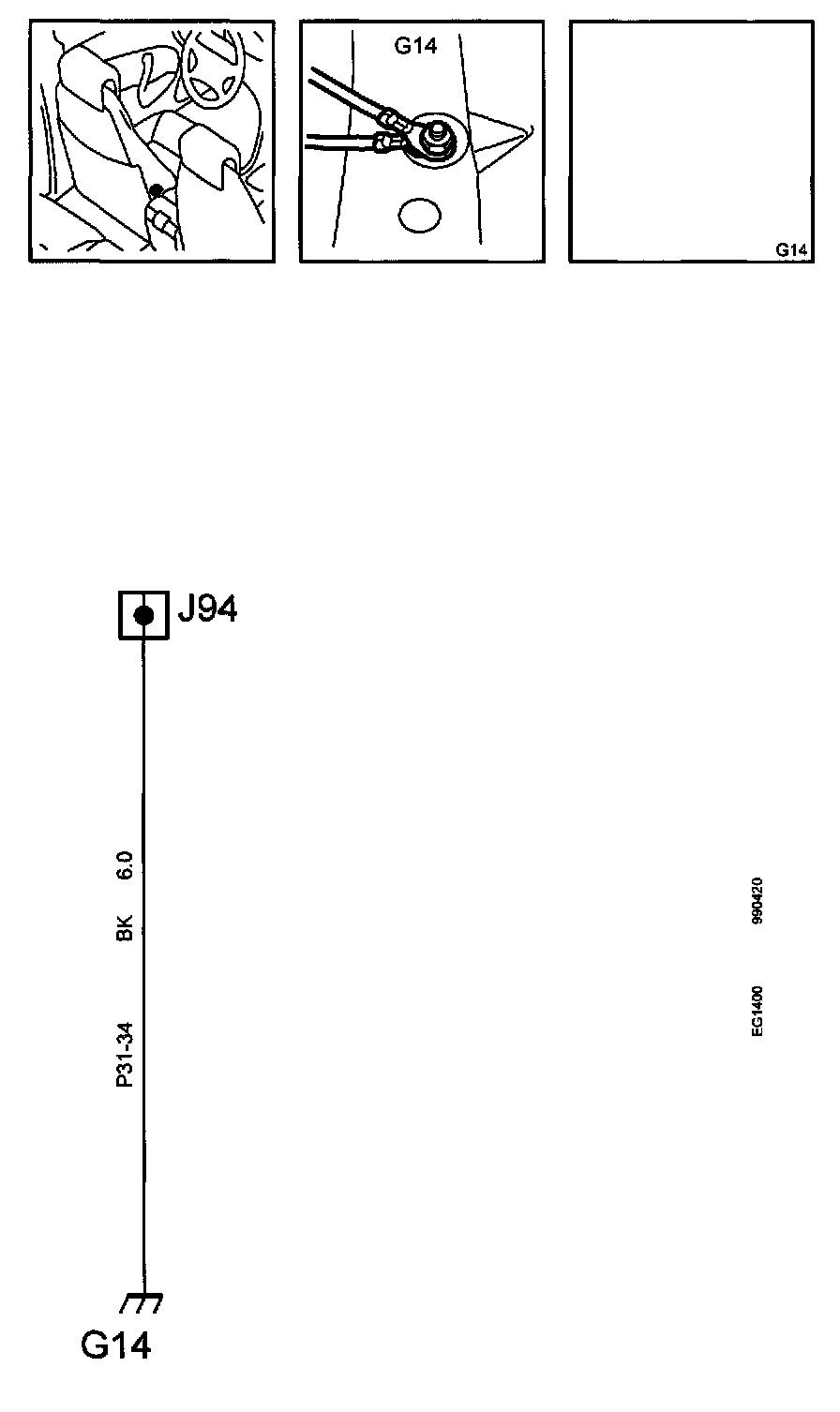

Diagram:






Location: On the seat member under the left-hand seat.

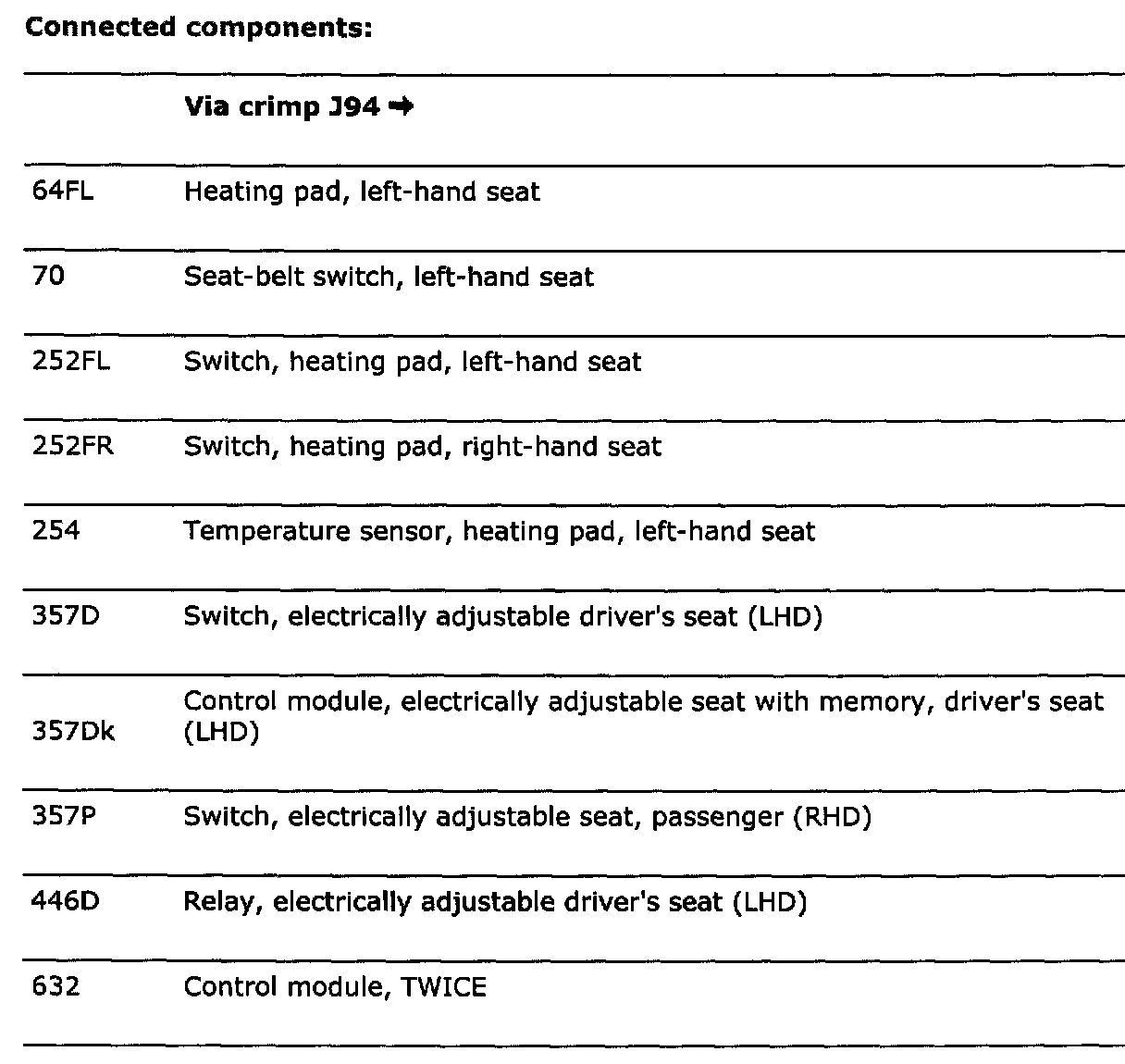

List:
