Wiring Harness, Engine




Wiring Harness, Engine

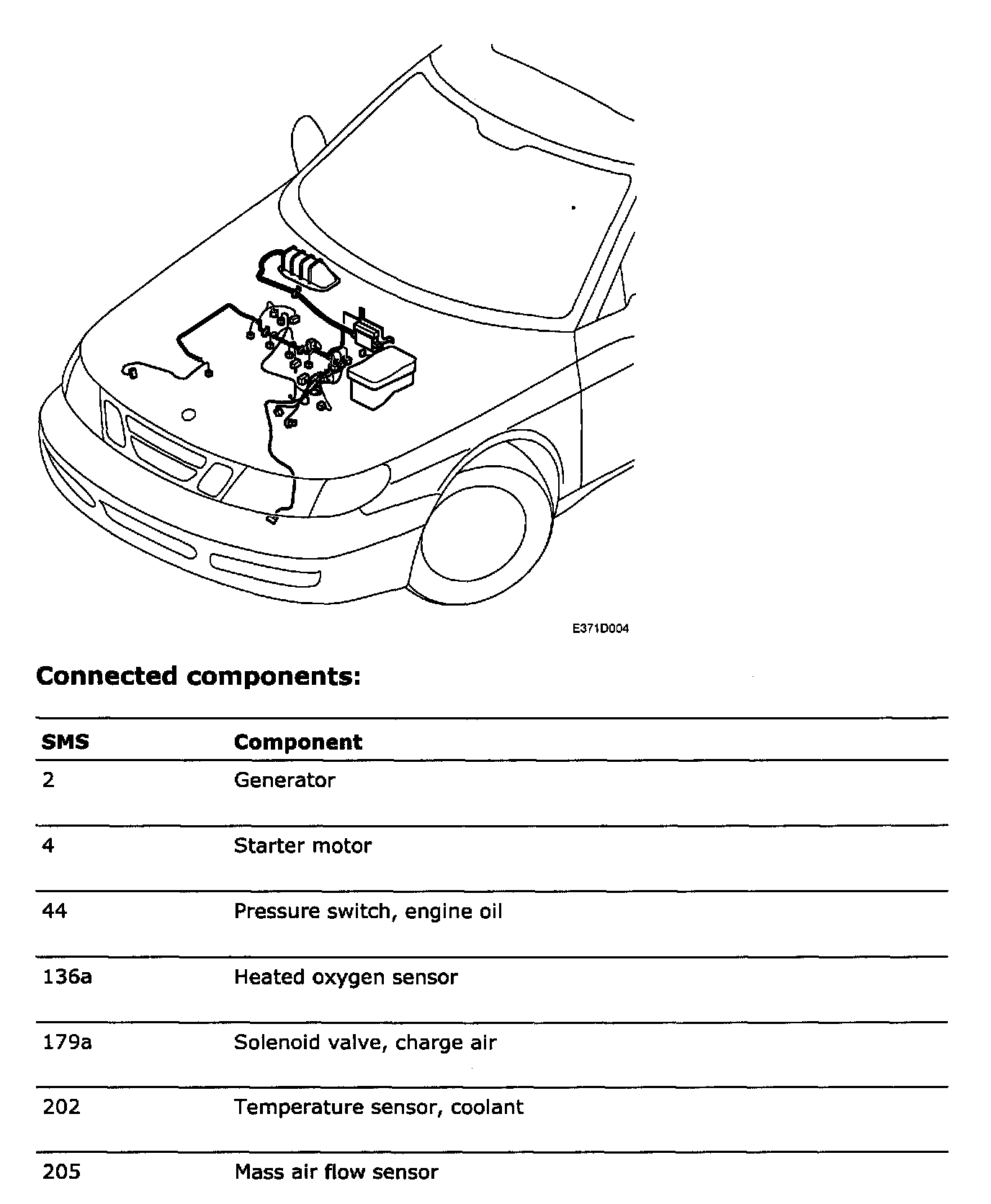

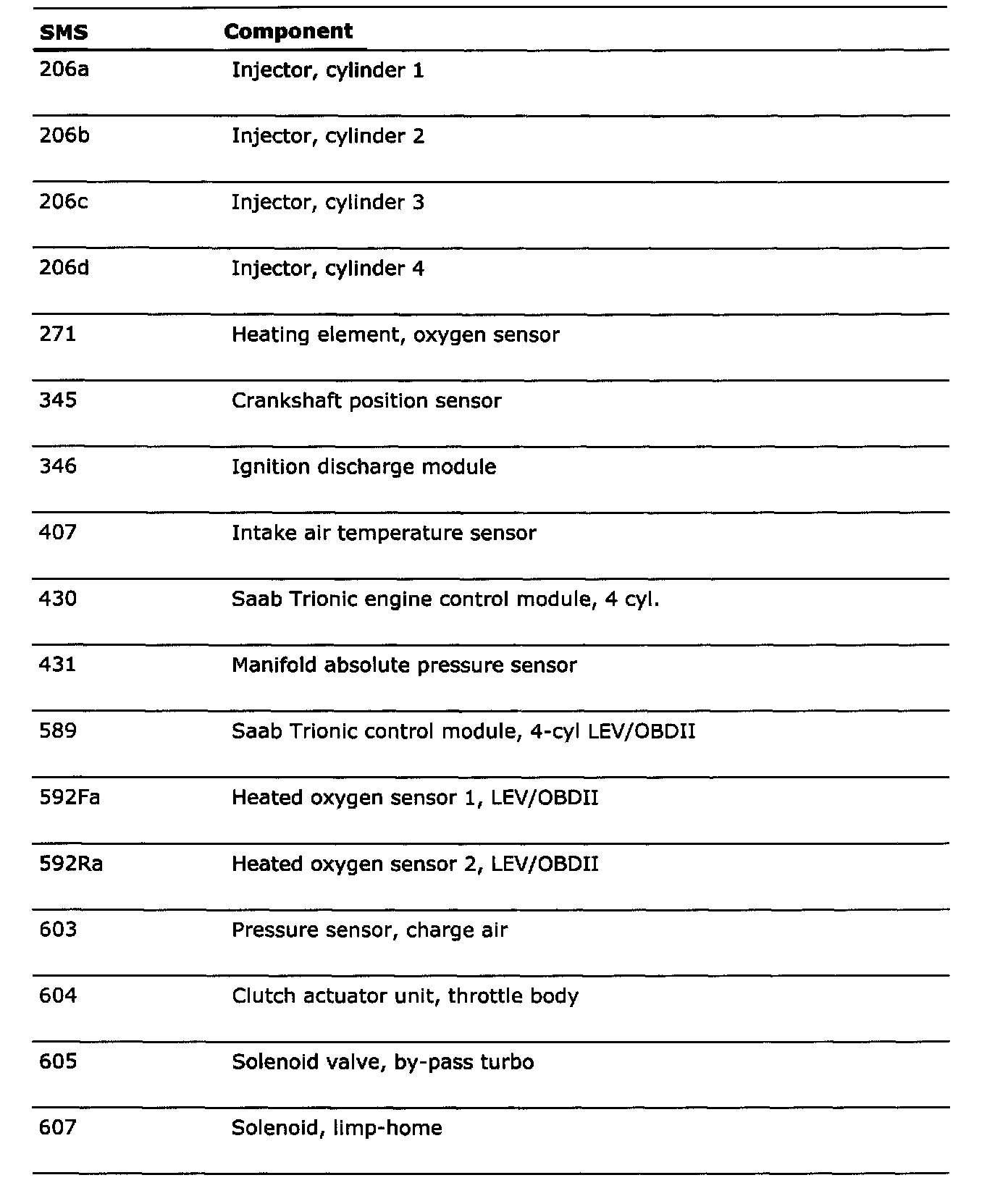

Trionic, 4 Cylinder

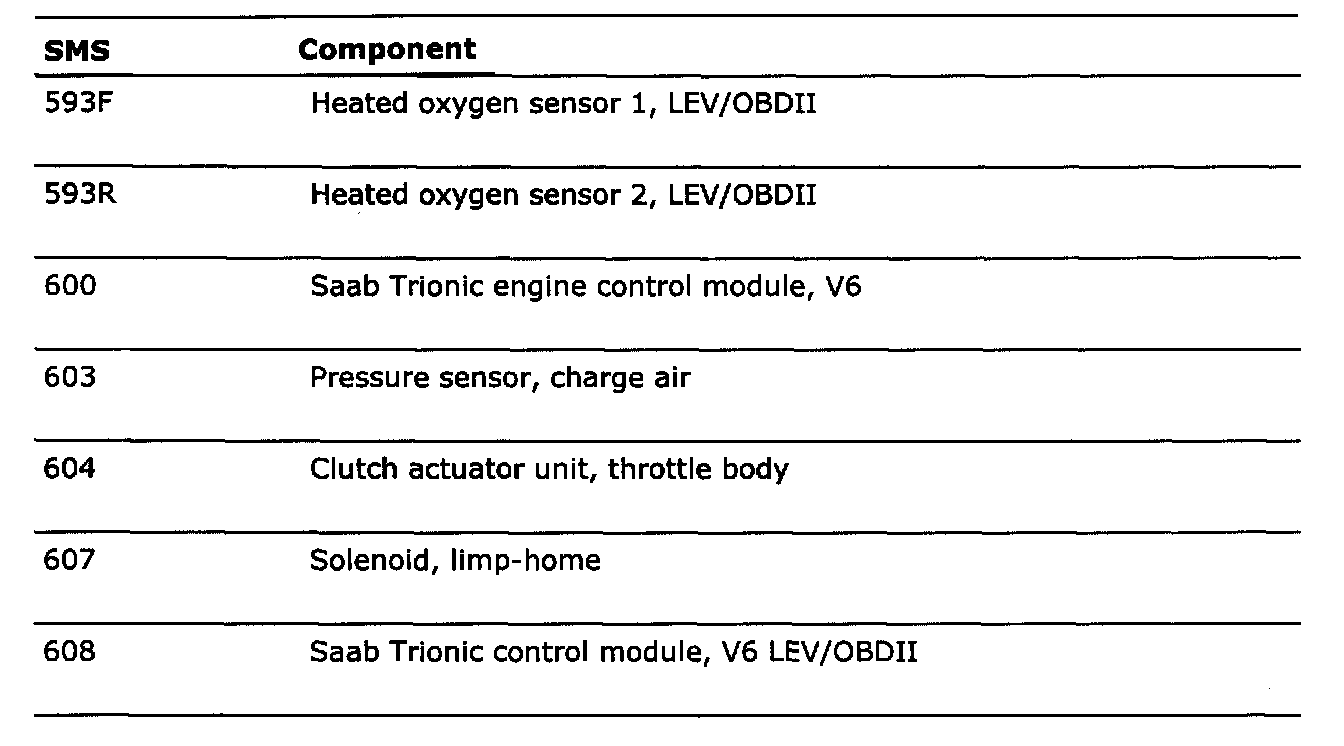

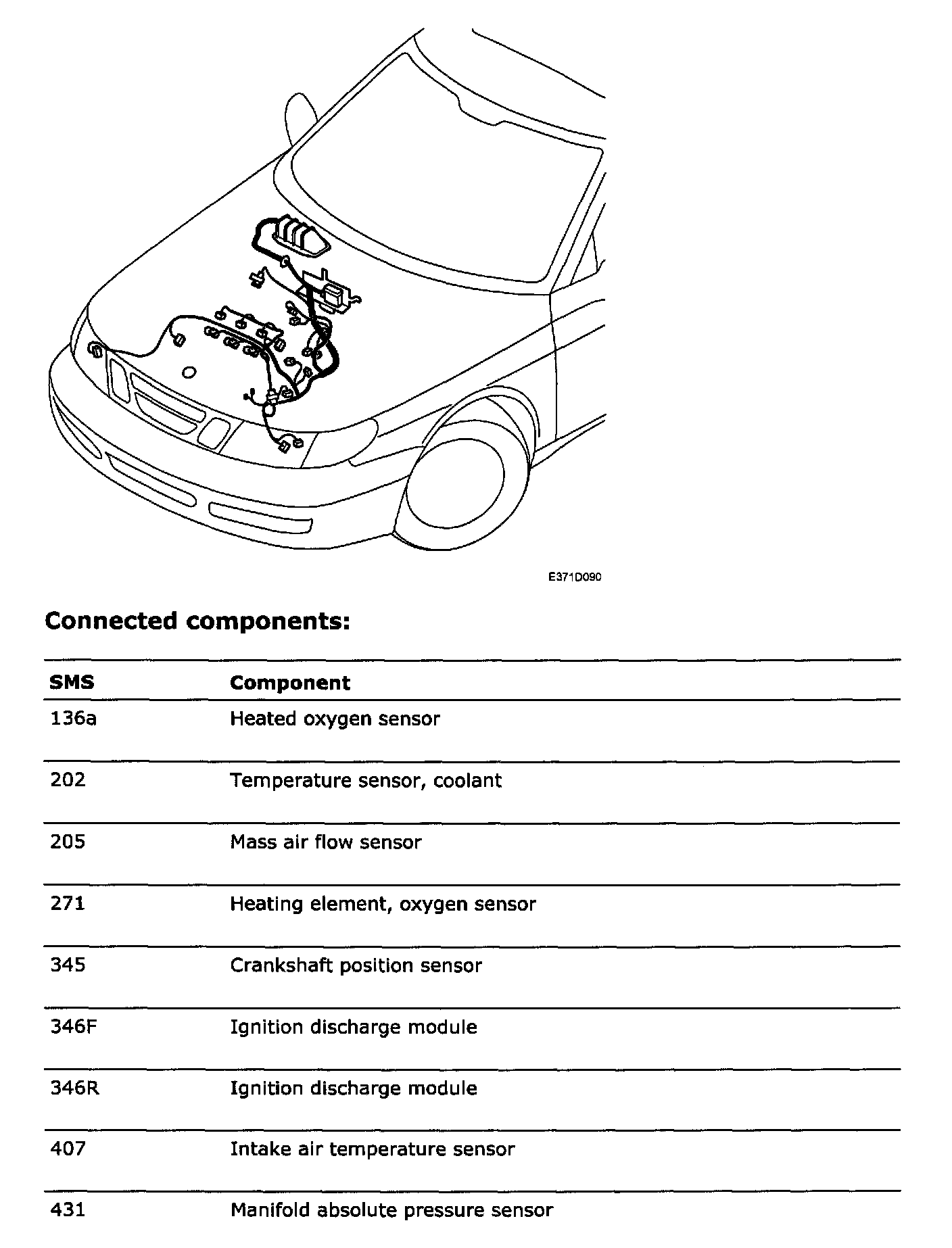

Trionic V6

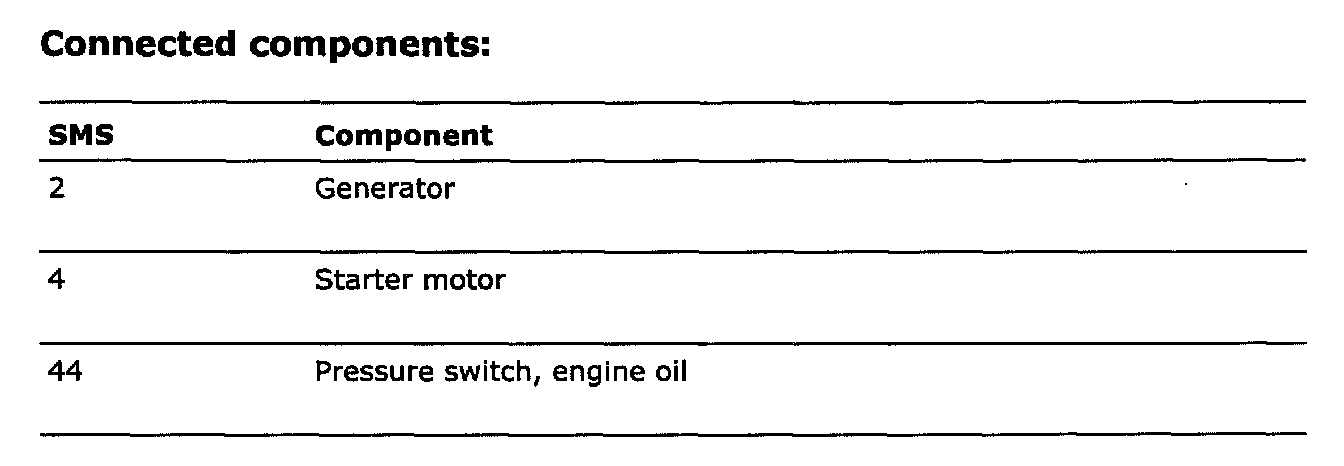

Starter motor harness
Coupled through connector to engine harness.

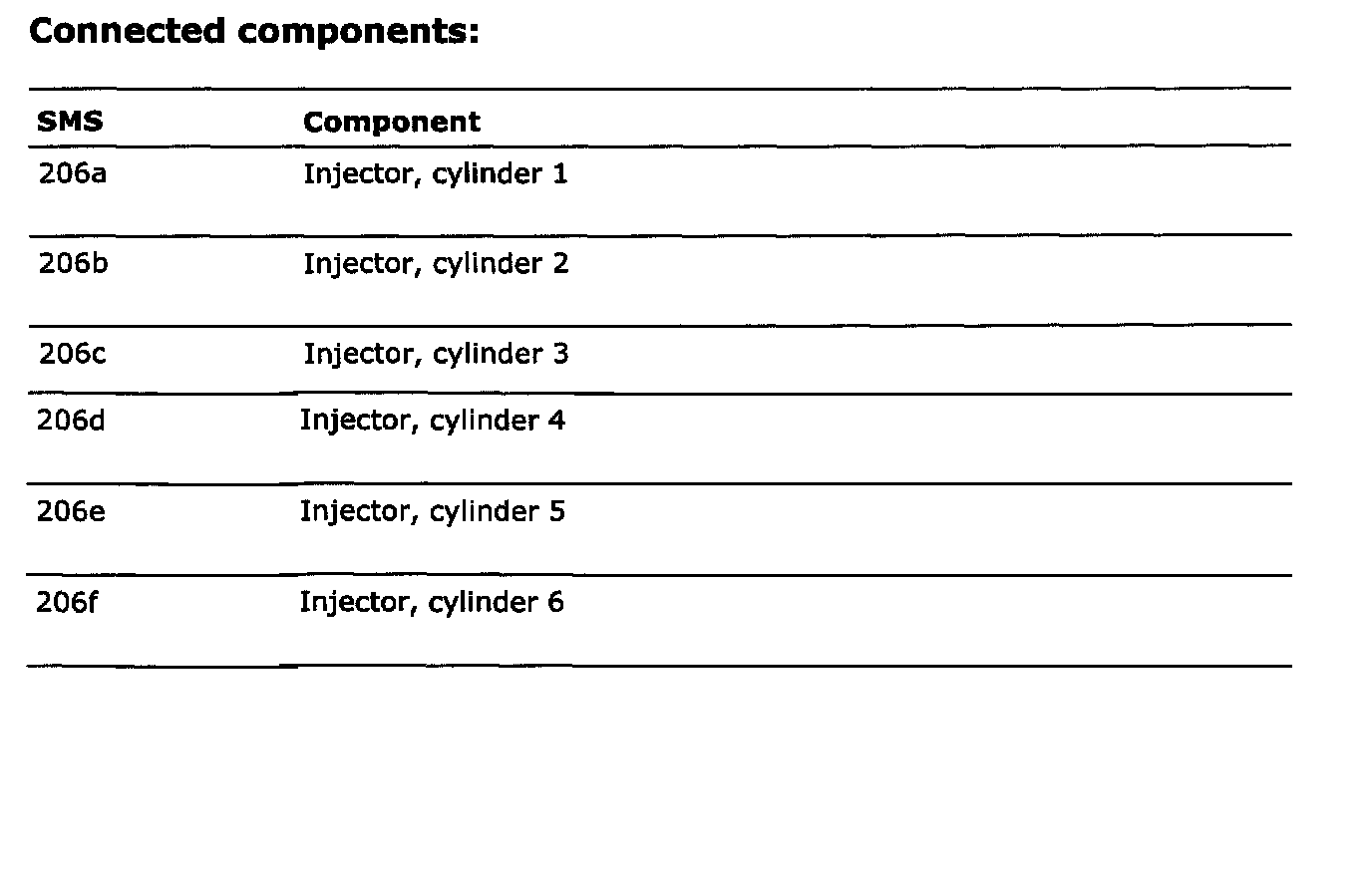

V6 fuel injection harness
Coupled through connector to engine harness.
