Wiring For A Trailer

Wiring For A Trailer

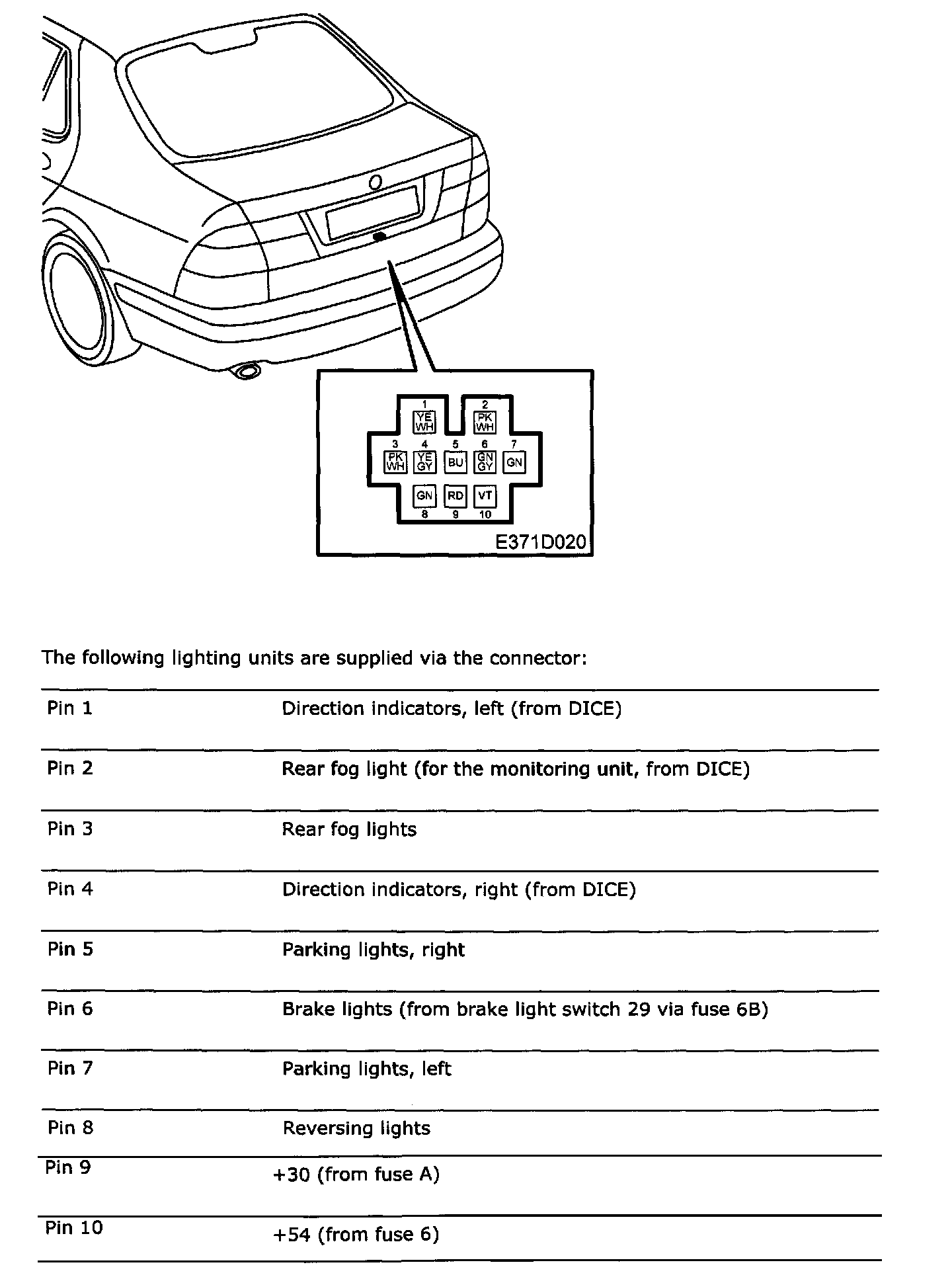

Pin 1 - 10:

A harness has been drawn in preparation for a trailer hitch. There is a 10-pin connector (258) in the centre of the rear stem in the luggage compartment.

Tips for fault diagnosis
1. Check the electrical connections by the tow-bar connector (there is a risk of oxidation).
2. Make sure that there is voltage in each of the connections in connector 258.
3. Check the fuses and harnesses.
