Tires


Recommended tire pressure
Tire pressure should be checked on cold tires, which means that the tire must have the same temperature as the surroundings.

Pressure increases in hot tires (e.g. fast motorway driving) and drops as the temperature decreases.

The following tire pressures are at 20°C. The pressure drops or rises 0.1 bar (2 psi) for every 10°C.

For each occupant fewer, the tire pressure can be lowered by 0.1 bar. Maximum load = 5 persons and luggage.

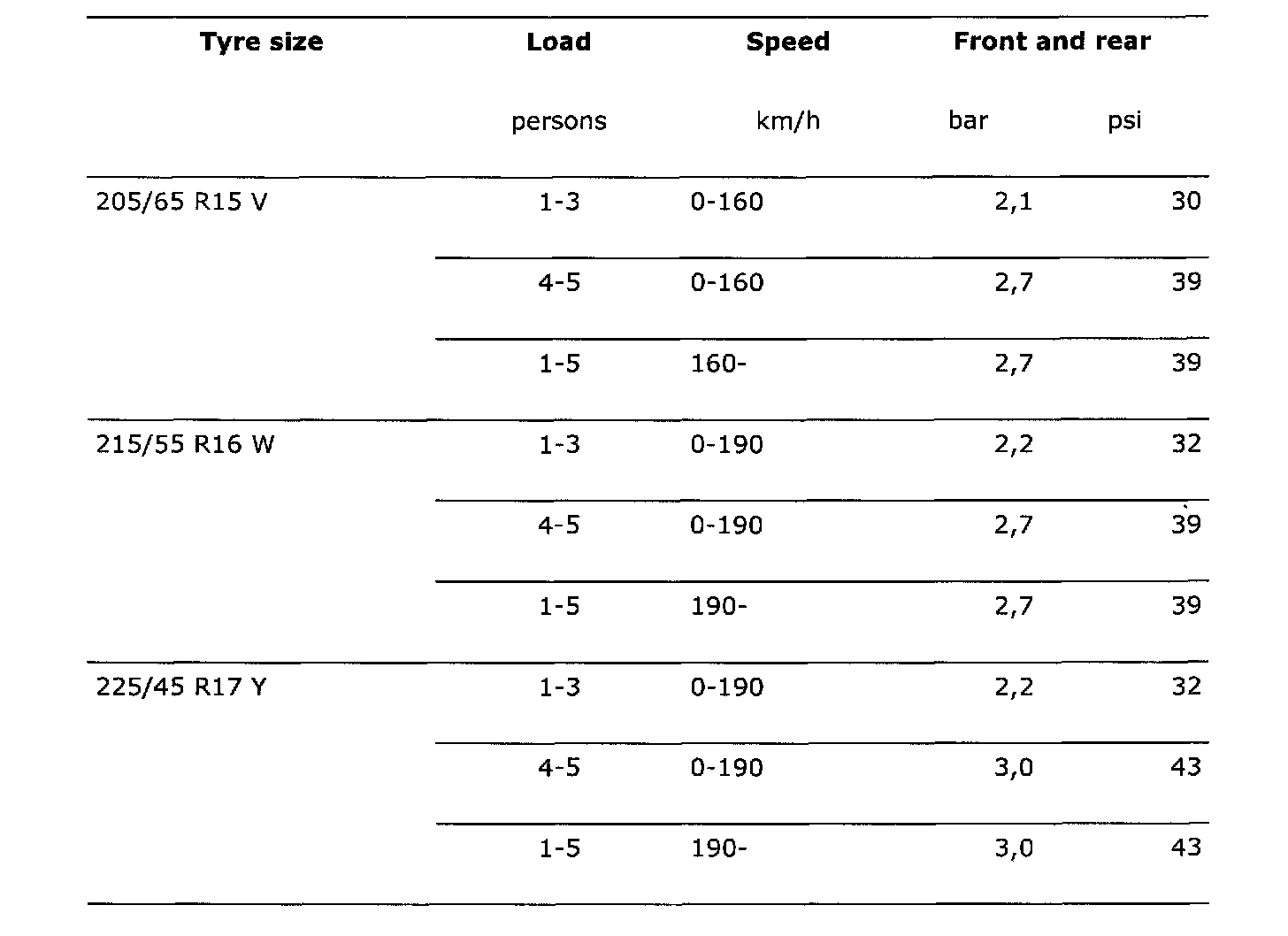

Summer Tires Specification Table:




Winter Tires Specification Table:

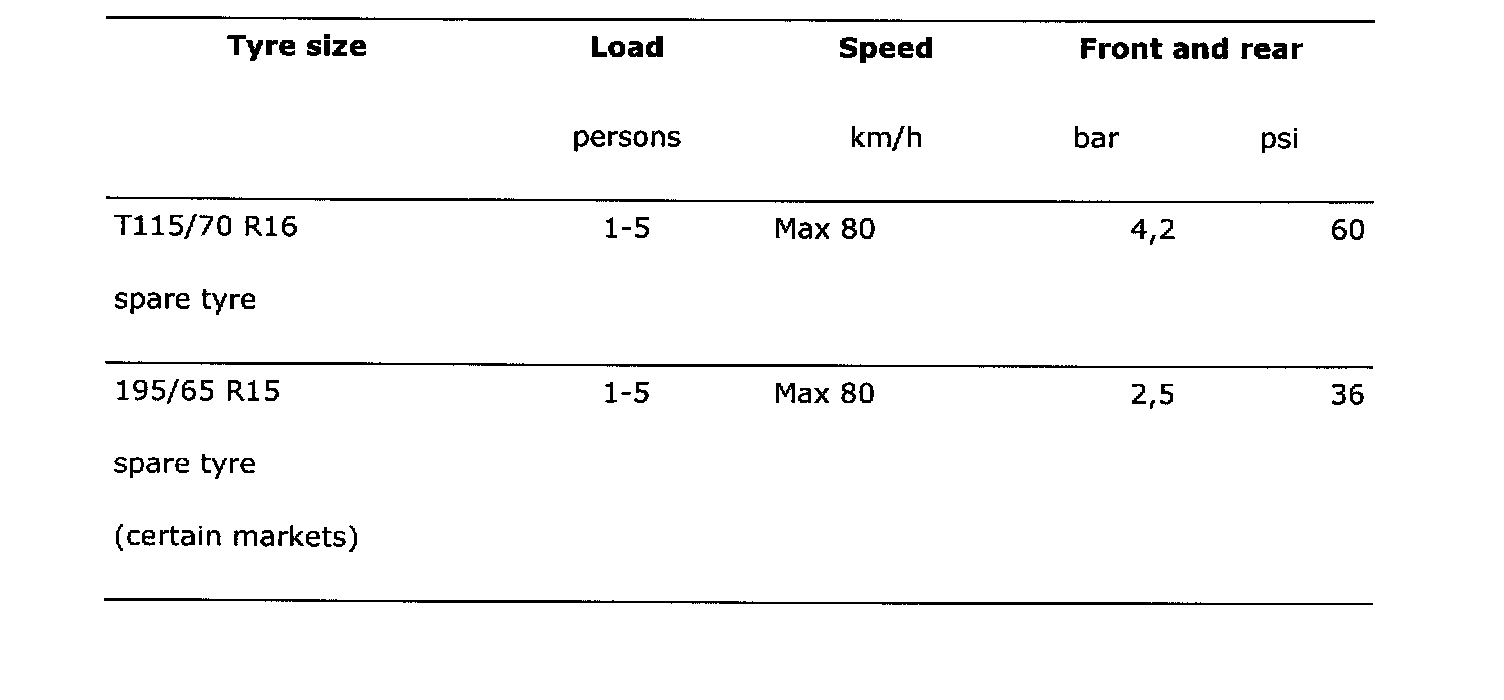

Spare Tires Specification Table:
